2004 MAZDA MODEL MX-5 MIATA dashboard

1-1
Form No. 8S15-EA-03G
1Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Dashboard Overview .................................................................... 1-2
Interior Overview .......................................................................... 1-3
Exterior Overview ......................................................................... 1-4
J07S_8S15-EA-03G_Edition2.book Page 1 Thursday, August 21, 2003 10:04 AM

1-2
Your Vehicle at a Glance
Form No. 8S15-EA-03G
Dashboard Overview
Hood release handle
Climate control systemCup holder
Glove box
Shift lever
Parking brake
Audio system*
Passenger-side air bag
Hazard warning flasher switch
Fog lights switch* Lighting control/Turn signals Instrument cluster
Driver-side air bag
Wiper and washer lever
Ignition switch Ashtray
Center console
Power window
switches
Cruise control switches*
Cruise main switch*(page 2-20)
(page 5-18)
(page 5-31)
(page 5-15)
(page 5-32) (page 5-33)
(page 5-15)
(page 5-36)
(page 6-9)
(page 5-10)
(page 6-62)
(page 3-14)
(page 3-17)
(page 5-2)
(page 6-2) (page 5-5)
(page 6-60) (page 6-61) (page 6-62)
(page 2-20)
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 2 Thursday, August 21, 2003 10:04 AM

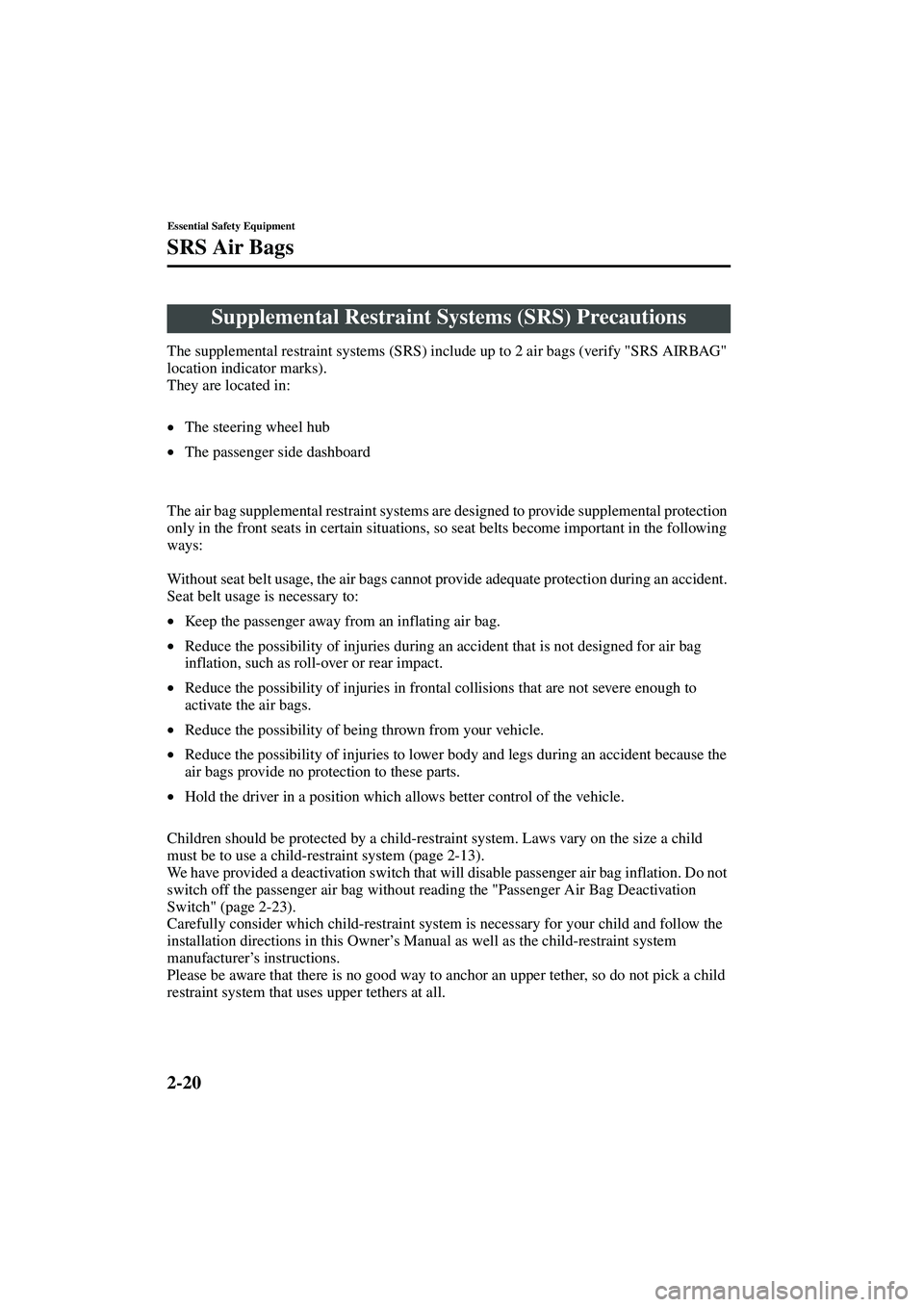

2-20
Essential Safety Equipment
Form No. 8S15-EA-03G
SRS Air Bags
The supplemental restraint systems (SRS) include up to 2 air bags (verify "SRS AIRBAG"
location indicator marks).
They are located in:
•The steering wheel hub
• The passenger side dashboard
The air bag supplemental restraint systems are designed to provide supplemental protection
only in the front seats in certain situations, so seat belts become important in the following
ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
• Keep the passenger away from an inflating air bag.
• Reduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
• Reduce the possibility of injuries in frontal collisions that are not severe enough to
activate the air bags.
• Reduce the possibility of being thrown from your vehicle.
• Reduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts.
• Hold the driver in a position which allows better control of the vehicle.
Children should be protected by a child-restraint system. Laws vary on the size a child
must be to use a child-restraint system (page 2-13).
We have provided a deactivation switch that will disable passenger air bag inflation. Do not
switch off the passenger air bag without reading the "Passenger Air Bag Deactivation
Switch" (page 2-23).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner ’s Manual as well as the child-restraint system
manufacturer’ s instructions.
Please be aware that there is no good way to anchor an upper tether, so do not pick a child
restraint system that uses upper tethers at all.
Supplemental Restraint Systems (SRS) Precautions
J07S_8S15-EA-03G_Edition2.book Page 20 Thursday, August 21, 2003 10:04 AM

2-21
Essential Safety Equipment
SRS Air Bags
Form No. 8S15-EA-03G
Air Bags without Seat Belts:
Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in collisions with frontal or near frontal forces that are at
least moderate. Vehicle occupants should always wear seat belts.
Rear-Facing Child-Restraint System:
When a rear-facing child-restraint system is installed on the passenger’s seat and the
passenger air bag deactivation switch is not in the OFF position, it is extremely
dangerous. In an accident, the air bag could inflate and cause serious injuries or even
death to the child in the rear-facing child-restraint system. When using a rear-facing
child-restraint system, always set the passenger air bag deactivation switch to OFF
position.
Seating Position with Air Bags:
Sitting too close to the air bag storage compartments or placing hands or feet on them
is extremely dangerous. Air bags inflate with great force and speed. Serious injuries
could occur if someone is too close. The driver should always hold onto only the rim
of the steering wheel. The passenger should keep both feet on the floor. Seat
occupants should adjust their seats as far back as possible and always sit upright
against the seatbacks with seat belts worn properly.
Air Bag Storage Areas:
Attaching an object to an air bag storage area or placing something in front of it is
dangerous. In an accident, the object could interfere with air bag inflation and injure
the occupants.
Always keep the air bag storage areas free of objects.
Hot Air Bag Inflators:
Hot air bag inflators are dangerous. Immediately after inflation, the inflators in the
steering wheel or the dashboard are very hot. You could get burned. Don ’
t touch the
internal components of the air bag storage areas after the bags have inflated.
WARNING
Deploying air bag
J07S_8S15-EA-03G_Edition2.book Page 21 Thursday, August 21, 2003 10:04 AM

2-26
Essential Safety Equipment
SRS Air Bags
Form No. 8S15-EA-03G
The supplemental restraint systems (SRS) have two basic subsystems:
•The air bag system with inflators and air bags.
• The electric system with crash sensors and diagnostic module.
The air bags are mounted in the following locations: the center of the steering wheel, the
passenger-side of the dashboard. They are out of sight until activated.
The passenger air bag has a deactivation switch located on the center console (page 2-23).

How the Air Bags Work
When air bag crash sensors detect a frontal impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the air bags and after the inflation, the air bags quickly
deflate.
The air bags will function only once. After that, the air bags will not work again and
must be replaced.
Only an Authorized Mazda Dealer can replace the systems.
Air Bag System Description
Crash sensor
Inflators and air bags
Crash sensors and diagnostic
module (SAS unit)
J07S_8S15-EA-03G_Edition2.book Page 26 Thursday, August 21, 2003 10:04 AM

2-30
Essential Safety Equipment
SRS Air Bags
Form No. 8S15-EA-03G

Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
• The air bag system warning light
flashes.
• The air bag system warning light
remains illuminated.
• The air bag system warning light
remains off when the ignition switch is
turned to the ON position.
• The air bags inflate.
Damaged Air Bag Sensors:
Driving with damaged air bag sensors
is dangerous. A collision, even one
not strong enough to inflate the air
bags, could damage the sensors. If
there was a subsequent collision, a
damaged sensor would not inflate the
air bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front dashboard, the steering
wheel or parts containing air bag
parts or sensors is dangerous. These
parts contain essential air bag parts.
The air bag could accidentally
activate and cause serious injuries.
Always have an Authorized Mazda
Dealer remove these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 30 Thursday, August 21, 2003 10:04 AM

3-29
Knowing Your Mazda
Form No. 8S15-EA-03G
Security System
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Immobilizer System*
•Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user
’s authority to operate
the equipment.
• To avoid damage to the key, do not:

Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
•When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not
being transmitted correctly.

A key ring rests on the key grip.
 Metal parts of other keys or
metal objects touch the key grip.
 Spare keys or keys for other
vehicles equipped with an
immobilizer system touch or
come near the key grip.
 Devices for electronic purchases,
or security passage touch or
come near the key.
CAUTION
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 29 Thursday, August 21, 2003 10:04 AM

5-22
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8S15-EA-03G

Dashboard Illumination
When the headlight switch is in the
or position, rotate the thumb-wheel
to adjust the brightness of the dashboard
lights.
Dim Bright
