3-15
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G

Operating the Passenger Power
Window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
Right window
Fuel-Filler Lid and Cap
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda
Dealers. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 15 Thursday, August 21, 2003 10:04 AM

3-16
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G

Fuel-Filler Lid
The remote fuel-filler lid release is
mounted in the center console.
To open the console, unlock it and pull the
release catch.
To open the fuel-filler lid, pull up on the
remote fuel-filler lid release.

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Remote
fuel-fillerlid release
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn ’t tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer
as soon as possible.
Open
Close
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 16 Thursday, August 21, 2003 10:04 AM

3-31
Knowing Your Mazda
Security System
Form No. 8S15-EA-03G

Maintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.

Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system
’s operation if the system has been
modified or if any add-on equipment has
been installed to it.
NOTE
• If the warning light comes on and
stays on when the ignition switch is
turned to the ON position, the
engine will not start.
• Signals from a TV or radio station,
or from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are
using the proper key and your
engine fails to start, check the
warning light. If it is flashing,
remove the ignition key and wait 2
seconds or more, then reinsert it and
try starting the engine again. If it
doesn
’t start after 3 or more tries,
contact an Authorized Mazda
Dealer.
• If the warning light flashes
continuously while you are driving,
don’
t shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the
engine while the light is flashing
you won ’t be able to restart it.
NOTE
• The keys carry a unique electronic
code. For this reason, and to assure
your safety, replacement keys
require some waiting time to obtain.
They are only available through an
Authorized Mazda Dealer.
• Always keep a replacement key, in
case one is lost. If a key is lost,
contact an Authorized Mazda
Dealer as soon as possible.
• If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system.
Starting the vehicle with a key that
has not been reset is not possible.
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 31 Thursday, August 21, 2003 10:04 AM

4-3
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8S15-EA-03G
Your vehicle is equipped with an emission control system (the catalytic converter is part of this
system) that enables your vehicle to comply with existing exhaust emissions requirements.
Emission Control System
Parking Over Flammable Objects:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system could ignite it because the exhaust system
gets very hot during normal use. A resulting fire could cause serious injury or death.
Never park over or near anything flammable.
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
•USE ONLY UNLEADED FUEL.
• Don
’t drive your Mazda with any sign of engine malfunction.
• Don
’t coast with the ignition switch turned off.
• Don
’t descend steep grades in gear with the ignition switch turned off.
• Don
’t operate the engine at high idle for more than 5 minutes.
• Don
’t tamper with the emission control system. All inspections and adjustments must
be made by a qualified technician.
• Don
’t try to push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control
system before the first sale and registration of a vehicle is subject to penalties. In some
states, such modification made on a used vehicle is also subject to penalties.
NOTE
After driving some distance and turning off the engine, the sound of a valve opening and
closing can be heard behind the passenger seat, however this does not indicate an
abnormality. Your vehicle has a self-checking device and it operates after turning off the
engine.
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 3 Thursday, August 21, 2003 10:04 AM

4-5
Before Driving Your Mazda
Form No. 8S15-EA-03G
Before Starting the Engine
•Be sure the windows, outside mirrors,
and outside lights are clean.
• Inspect inflation pressures and
condition of tires.
• Look under the vehicle for any sign of
a leak.
• If you plan to back up, make sure
nothing will be in your way. •
Are all doors closed and locked?
• Is the seat adjusted properly?
• Are the inside and outside mirrors
adjusted?
• Is everyone
’s seat belt fastened?
• Do all the lights work?
• Check all gauges.
• Check all warning lights when the
ignition switch is turned to the ON
position.
• Release the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake/
clutch fluid, washer fluid, and other
fluid levels should be inspected daily,
weekly, or at refueling, depending on
the fluid. See Maintenance, Section 8.
After Getting In
J07S_8S15-EA-03G_Edition2.book Page 5 Thursday, August 21, 2003 10:04 AM

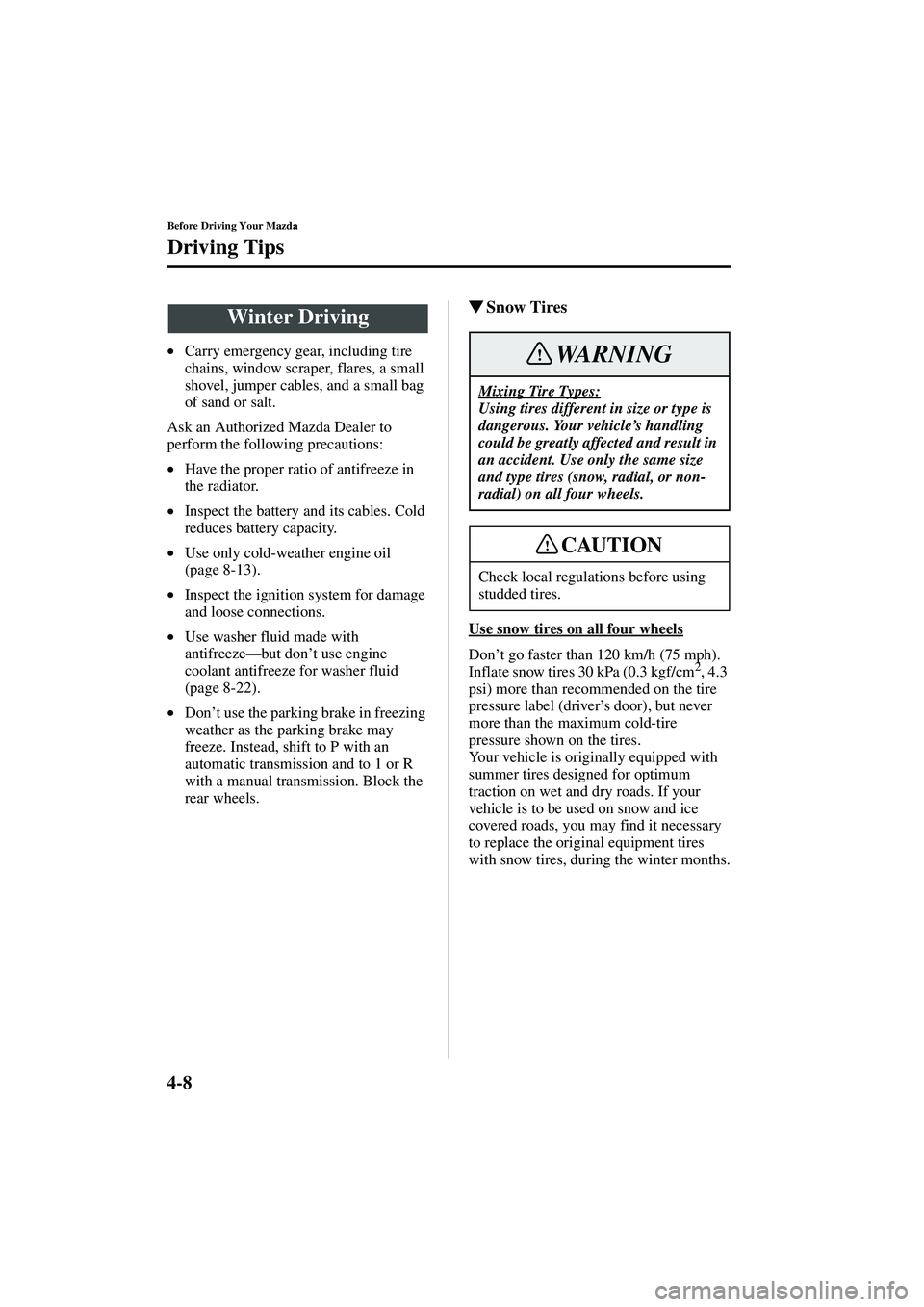

4-8
Before Driving Your Mazda
Driving Tips
Form No. 8S15-EA-03G
•Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
• Have the proper ratio of antifreeze in
the radiator.
• Inspect the battery and its cables. Cold
reduces battery capacity.
• Use only cold-weather engine oil
(page 8-13).
• Inspect the ignition system for damage
and loose connections.
• Use washer fluid made with
antifreeze
—but don ’t use engine
coolant antifreeze for washer fluid
(page 8-22).
• Don
’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transmission and to 1 or R
with a manual transmission. Block the
rear wheels.

Snow Tires
Use snow tires on all four wheels
Don
’t go faster than 120 km/h (75 mph).
Inflate snow tires 30 kPa (0.3 kgf/cm2, 4.3
psi) more than recommended on the tire
pressure label (driver ’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Your vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, you may find it necessary
to replace the original equipment tires
with snow tires, during the winter months.
Winter Driving
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle’ s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 8 Thursday, August 21, 2003 10:04 AM

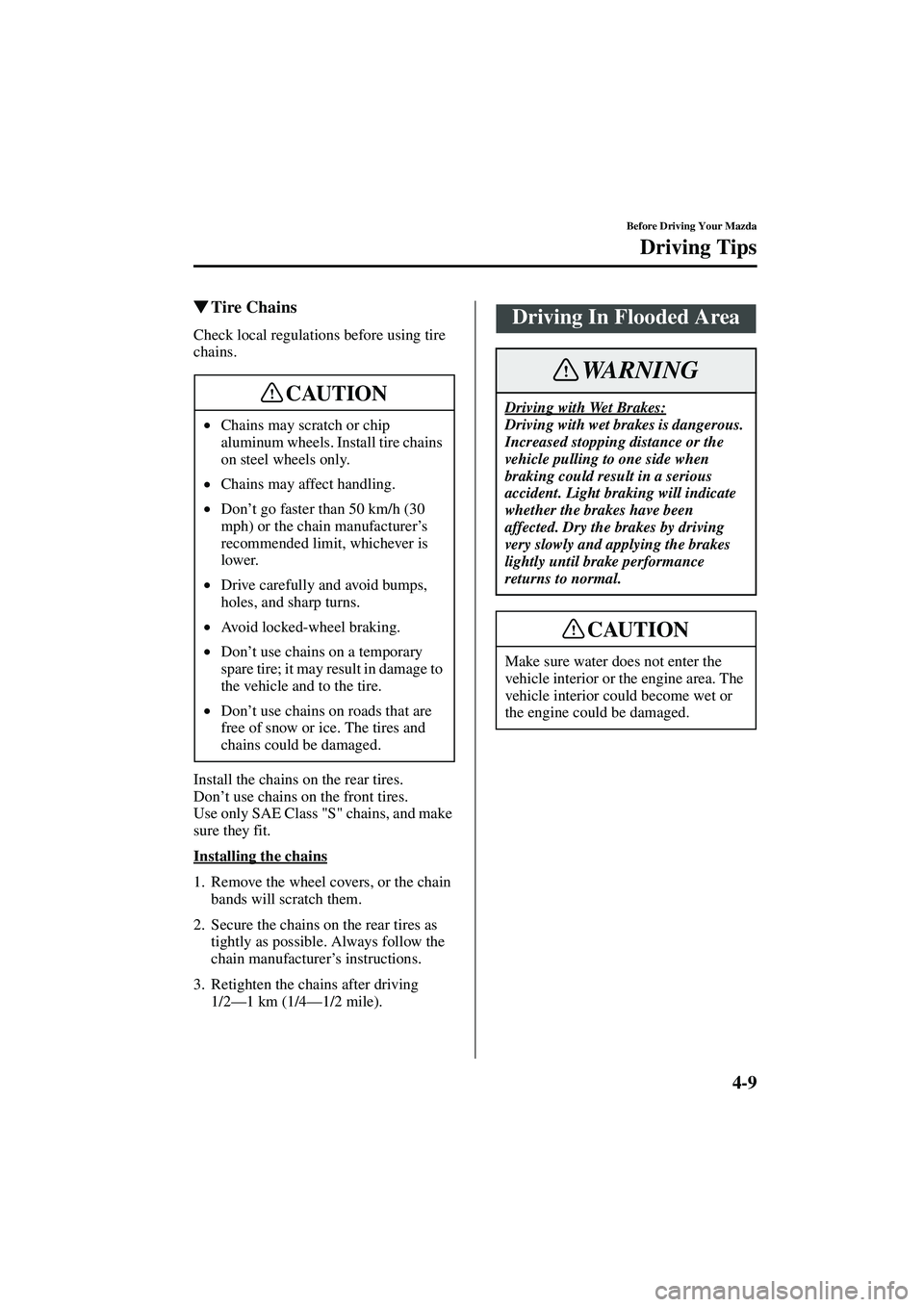

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8S15-EA-03G

Tire Chains
Check local regulations before using tire
chains.
Install the chains on the rear tires.
Don
’t use chains on the front tires.
Use only SAE Class "S" chains, and make
sure they fit.
Installing the chains
1. Remove the wheel covers, or the chain
bands will scratch them.
2. Secure the chains on the rear tires as tightly as possible. Always follow the
chain manufacturer ’s instructions.
3. Retighten the chains after driving 1/2—1 km (1/4 —1/2 mile).
•
Chains may scratch or chip
aluminum wheels. Install tire chains
on steel wheels only.
• Chains may affect handling.
• Don
’t go faster than 50 km/h (30
mph) or the chain manufacturer ’s
recommended limit, whichever is
lower.
• Drive carefully and avoid bumps,
holes, and sharp turns.
• Avoid locked-wheel braking.
• Don
’t use chains on a temporary
spare tire; it may result in damage to
the vehicle and to the tire.
• Don
’t use chains on roads that are
free of snow or ice. The tires and
chains could be damaged.
CAUTION
Driving In Flooded Area
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance
returns to normal.
Make sure water does not enter the
vehicle interior or the engine area. The
vehicle interior could become wet or
the engine could be damaged.
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 9 Thursday, August 21, 2003 10:04 AM

5-3
Driving Your Mazda
Starting and Driving
Form No. 8S15-EA-03G
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-23).
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-23).

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when
any door is opened. 1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4. (Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
If turning the key is difficult, jiggle the
steering wheel from side to side.
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
Starting the Engine
NOTE
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
NOTE
The starter will not operate if the
clutch pedal is not
pushed down all the
way.
NOTE
The starter will not operate if the shift
lever is not
in P or N.
J07S_8S15-EA-03G_Edition2.book Page 3 Thursday, August 21, 2003 10:04 AM
