2-21
Essential Safety Equipment
Form No. 8S18-EA-03I
Child Restraint
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle in the outboard seats, and towards the buckle on the right if the
child is seated on the center seat.
Statistics confirm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system should NEVER
be used on the front seat with the air
bag system activated. The front passenger’s seat is also the least preferred seat for other
child-restraint systems.
If your vehicle is equipped with front passenger seat weight sensors, a front passenger air
bag deactivation indicator light is also equipped (page 2-29). To reduce the chance of
injuries caused by deployment of the front passenger air bag, the front passenger seat
weight sensors work as a part of the supplemental restraint system. This system deactivates
the front passenger front and side air bags and also the front passenger seat belt
pretensioner system when the total seated weight on the front passenger seat is less than
approximately 30 kg (66 lb).
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to "Front passenger seat weight sensors (page 2-44)".
Child Restraint Precautions
J48C_8S18-EA-03I_Edition1.book Page 21 Wednesday, August 6, 2003 8:51 AM

2-23
Essential Safety Equipment
Child Restraint
Form No. 8S18-EA-03I
Seating Children in a Child-Restraint System on the Front Passenger Seat:
If your vehicle is equipped with front passenger seat weight sensors, a front passenger
air bag deactivation indicator light is also equipped (page 2-29). Even with the front
passenger seat weight sensors, if you must use the front passenger seat for children,
seating a child in a child-restraint system on the front passenger seat under the
following conditions increases the danger of the front passenger air bag deploying
and could result in serious injury or death to the child.
•The total seated weight of the child with the child-restraint system on the front
passenger seat is approximately 30 kg (66 lb) or more.
•Luggage or other items are placed on the seat with the child in the child-restraint
system.
•A rear passenger or luggage push or pull down on the front passenger seatback.
•A rear passenger steps on the front passenger seat rails with the feet.
•Luggage or other items are placed on the seatback or hung on the head restraint.
•The seat is washed.
•Liquids are spilled on the seat.
•The front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
•The front passenger seatback contacts the rear seat.
•Luggage or other items are placed between the front passenger seat and driver seat.
•Any accessories which might increase the total seated weight on the front
passenger seat are attached to the front passenger seat.
The designated positions with seat belts on the rear seats are the safest places for
children. Always use seat belts and child restraints.
Children and Seating Position with Side and Curtain Air Bags:
Allowing anyone to lean over or against the front door, the area of front seat, front
and rear window pillars and the roof edge along both sides which the side and curtain
air bags deploy even though using a child-restraint system is dangerous. If the vehicle
is equipped with side and curtain air bags, the impact of inflation could cause serious
injury or death to the child. Furthermore, leaning over or against the front door could
block the side and curtain air bags and eliminate the advantages of supplemental
protection. With the front air bag and the additional side air bag that comes out of the
front seat, the rear seat is always a better location for children. Do not allow a child to
lean over or against the doors, even if the child is seated in a child-restraint system.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 23 Wednesday, August 6, 2003 8:51 AM

2-31
Essential Safety Equipment
Child Restraint
Form No. 8S18-EA-03I
Seating a Child in a Child-Restraint
System on the Front Passenger Seat
With the Front Passenger Air Bag
Deactivation Indicator Light Not
Illuminated:
Seating a child in a child-restraint
system installed on the front
passenger seat with the front
passenger air bag deactivation
indicator light not illuminated is
dangerous. If the front passenger air
bag deactivation indicator light does
not illuminate even when the total
seated weight is less than
approximately 30 kg (66 lb), this
means that the front passenger front
and side air bags, and seat belt
pretensioner are ready for
deployment. If an accident were to
deploy an air bag, a child sitting in
the front passenger seat could be
seriously injured or killed. If the front
passenger air bag deactivation
indicator light does not illuminate
after installing a child-restraint
system on the front passenger seat,
install the child-restraint system on
the rear seat and consult an
Authorized Mazda Dealer as soon as
possible. While it is always better to
install any child-restraint system on
the rear seat, it is essential to do so if
the front passenger air bag
deactivation indicator light does not
illuminate. For further details, refer
to "Front passenger seat weight
sensors (page 2-44)".
WARNING
J48C_8S18-EA-03I_Edition1.book Page 31 Wednesday, August 6, 2003 8:51 AM

2-39
Essential Safety Equipment
SRS Air Bags
Form No. 8S18-EA-03I
Curtain Air Bag Modules:
Attaching objects to the areas where the curtain air bag activates such as on the
windshield glass, side door glass, front and rear window pillars and along the roof
edge and assist grips is dangerous. In an accident the object could interfere with the
curtain air bag, which inflates from the front and rear window pillars and along the
roof edge, impeding the added protection of the curtain air bag system or redirecting
the air bag in a way that is dangerous. Furthermore, the bag could be cut open
spewing exhaust.
Do not place hangers or any other objects on the assist grips. When hanging clothes,
hang them on the coat hook directly. Always keep the curtain air bag modules free to
deploy in the event of a side collision.
Hot Air Bag Inflators:
Hot air bag inflators are dangerous. Immediately after inflation, the inflators in the
steering wheel, dashboard, seatbacks, or the front and rear window pillars and along
the roof edge are very hot. You could get burned. Don’t touch the internal components
of the air bag modules after the bags have inflated.
Installation of Front-End Equipment:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar,
bull bar, push bar, etc.), snowplow, or winches, is dangerous. The air bag crash sensor
system could be affected. This could cause air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an accident. Front occupants could be
seriously injured. Never install any front-end equipment to your vehicle.
Suspension Adjustment:
Adjusting the vehicle suspension is dangerous. If the vehicle’s height or the
suspension is changed, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 39 Wednesday, August 6, 2003 8:51 AM

2-40
Essential Safety Equipment
SRS Air Bags
Form No. 8S18-EA-03I
Modification of the Supplemental Restraint System:
Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Don’t make any
modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electric equipment on or near system components or wiring. An Authorized Mazda
Dealer can provide the special care needed in the removal and installation of front
seats. It is important to protect the air bag wiring and connections to assure that the
bags do not accidentally deploy, the driver seat slide position sensor and front
passenger seat weight sensors are not damaged and that the seats retain an
undamaged air bag connection.
NOTE
•When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the texture of the air bags may
cause light skin injuries on body parts not covered with clothing through friction.
•Should you sell your Mazda, we urge you to tell the new owner of its air bag systems
and that familiarization with all instructions about them, from the Owner’s Manual, is
important.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 40 Wednesday, August 6, 2003 8:51 AM

2-41
Essential Safety Equipment
SRS Air Bags
Form No. 8S18-EA-03I

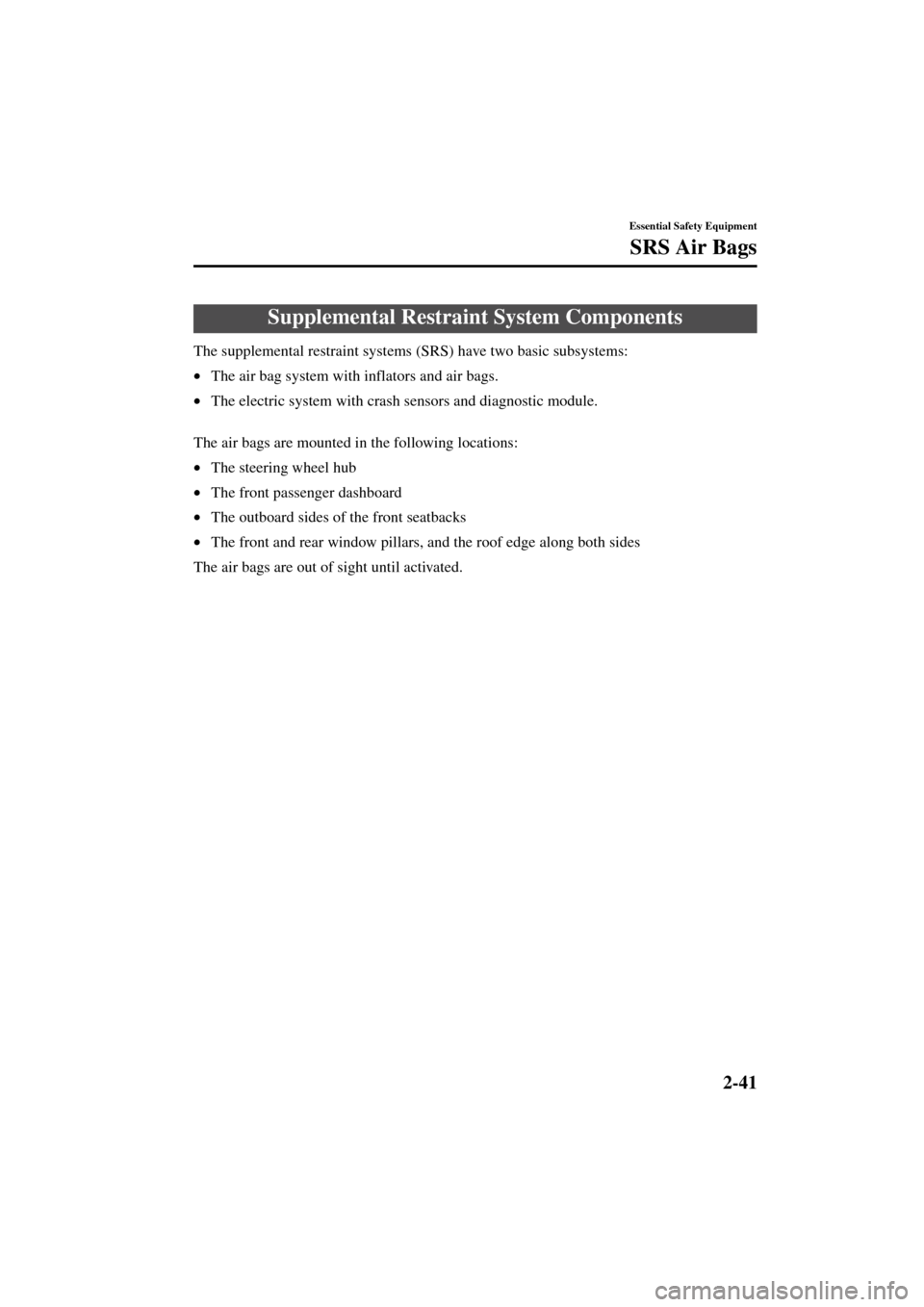

The supplemental restraint systems (SRS) have two basic subsystems:
•The air bag system with inflators and air bags.
•The electric system with crash sensors and diagnostic module.
The air bags are mounted in the following locations:
•The steering wheel hub
•The front passenger dashboard
•The outboard sides of the front seatbacks
•The front and rear window pillars, and the roof edge along both sides
The air bags are out of sight until activated.
Supplemental Restraint System Components
J48C_8S18-EA-03I_Edition1.book Page 41 Wednesday, August 6, 2003 8:51 AM

2-42
Essential Safety Equipment
SRS Air Bags
Form No. 8S18-EA-03I

Front Air Bag System Components
(1) Front dual stage inflators and air bags
(2) Crash sensors and diagnostic module (SAS unit)
(3) Front air bag sensor
(4) Driver seat slide position sensor (page 2-44)
(5) Front passenger seat weight sensors (page 2-44)
(6) Front seats
(7) Driver and front passenger seat belt buckle switches (page 2-44)
(8) Front seat belt pretensioner and load limiting systems (page 2-14)
(9) Front passenger air bag deactivation indicator light (page 2-44)
(4)
(8)
(7)
(5)
(8) (2)(9)(3) (1) (6)
J48C_8S18-EA-03I_Edition1.book Page 42 Wednesday, August 6, 2003 8:51 AM

2-43
Essential Safety Equipment
SRS Air Bags
Form No. 8S18-EA-03I

Side and Curtain Air Bag System Components*
Put children in the rear seats, they do not have side air bag systems.
(1) Inflators and air bags
(2) Side crash sensor
(3) Crash sensors and diagnostic module (SAS unit)
(4) Front seats
4 Door
5 Door(2) (1)(1)
(3)(4)
(3)
(2) (1)(1) (4)
*Some models.
