2004 MAZDA MODEL 3 HATCHBACK engine

2-15
Essential Safety Equipment
Seat Belt Systems
Form No. 8S18-EA-03I

Air Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is OK, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds it
goes out.
A system malfunction is indicated when
the warning light stays on or doesn’t
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
•The pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
•Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally
has no effect on occupants,
however, those with sensitive skin
may experience light skin irritation.
If residue from the deployment of
the air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 15 Wednesday, August 6, 2003 8:51 AM

2-53
Essential Safety Equipment
SRS Air Bags
Form No. 8S18-EA-03I

Constant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
•SAS unit
•Front air bag sensor
•Air bag modules
•Side crash sensor
*
•Front seat belt pretensioners
•Related wiring
•Driver seat slide position sensor
•Front passenger seat weight sensors
•Driver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system’s readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.

Air Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds it
goes out.
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn’t illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
*Some models.
J48C_8S18-EA-03I_Edition1.book Page 53 Wednesday, August 6, 2003 8:51 AM

3-2
Knowing Your Mazda
Form No. 8S18-EA-03I
Doors and Locks
The keys operate all locks.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Keys
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don’t leave
the keys in your vehicle with children
and keep them in a place where your
children will not find or play with
them.
NOTE
(With immobilizer system)
Refer to Immobilizer System (page 3-24)
for information regarding keys and
engine starting on vehicles equipped
with the immobilizer system.
WARNING
Key code number plate
J48C_8S18-EA-03I_Edition1.book Page 2 Wednesday, August 6, 2003 8:51 AM

3-15
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Trunk Security
In some situations you may want to
prevent the trunk from being opened with
the remote trunk lid release lever.
Give your key only to someone you trust.
To secure the trunk lid, lock the rear
seatbacks (page 2-7), push the trunk lock
lever up, and close the trunk.
To cancel the security feature, insert the
key into the lock, turn the key clockwise,
and pull the trunk lock lever down.

Trunk Light
The trunk light is on when the lid is open
and off when it’s closed.
Unlock
Lock
Trunk lock leverNOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is
not running.
J48C_8S18-EA-03I_Edition1.book Page 15 Wednesday, August 6, 2003 8:51 AM

3-19
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

Fuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Fuel-Filler Lid and Cap
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda
Dealers. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
WARNING
CAUTION
Remote fuel-filler
lid release5 Door
Remote fuel-filler
lid release
4 Door
J48C_8S18-EA-03I_Edition1.book Page 19 Wednesday, August 6, 2003 8:51 AM

3-20
Knowing Your Mazda
Doors and Locks
Form No. 8S18-EA-03I

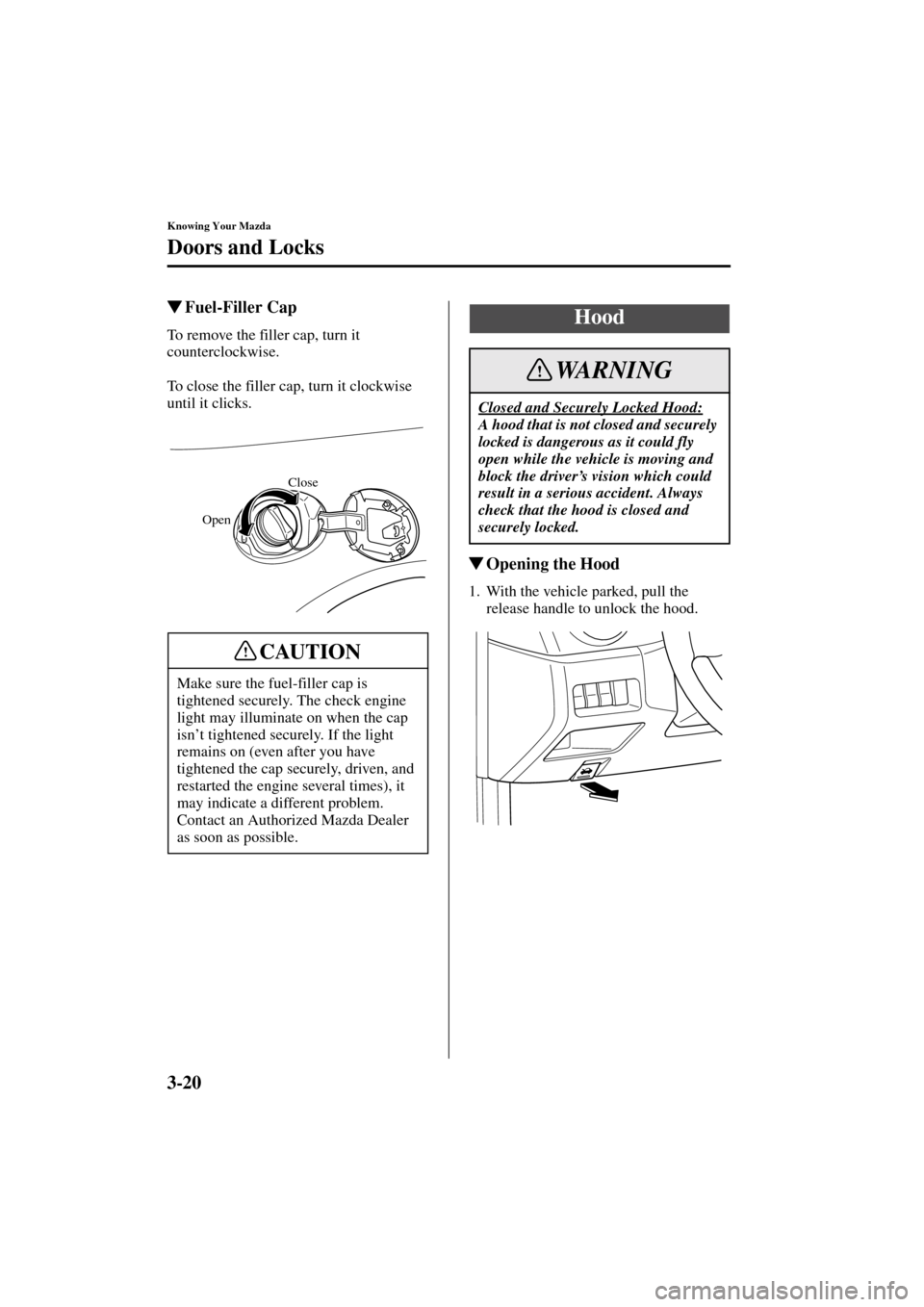

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.

Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn’t tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer
as soon as possible.
OpenClose
CAUTION
Hood
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver’s vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
WARNING
J48C_8S18-EA-03I_Edition1.book Page 20 Wednesday, August 6, 2003 8:51 AM

3-24
Knowing Your Mazda
Form No. 8S18-EA-03I
Security System
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Immobilizer System
•Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
•To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
•When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not
being transmitted correctly.
A key ring rests on the key grip.
Metal parts of other keys or
metal objects touch the key grip.
Spare keys or keys for other
vehicles equipped with an
immobilizer system touch or
come near the key grip.
Devices for electronic purchases,
or security passage touch or
come near the key.
CAUTION
J48C_8S18-EA-03I_Edition1.book Page 24 Wednesday, August 6, 2003 8:51 AM

3-25
Knowing Your Mazda
Security System
Form No. 8S18-EA-03I

Operation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn’t start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
•(U.S.A.)

This device complies with part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2)
this device must accept any
interference received, including
interference that may cause
undesired operation.
•(CANADA)

This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may
cause undesired operation of the
device.
J48C_8S18-EA-03I_Edition1.book Page 25 Wednesday, August 6, 2003 8:51 AM
