8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8S18-EA-03I

Schedule 1
I
: Inspect and repair, clean, adjust, or replace if necessary.
R : Replace
L : Lubricate
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
CHASSIS and BODY
*1:According to state / provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
Maintenance Interval
(Number of months or
kilometers (miles), whichever comes first)Months 6 12182430364248
× 1000 km 12 24 36 48 60 72 84 96
× 1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine valve clearance A u d i b l e i n s p e c t e v e r y 1 2 0 , 0 0 0 k m ( 7 5 , 0 0 0 m i l e s ) ,
if noisy, adjust
Drive belts (tension) I
Engine oil RRRRRRRR
Engine oil filter RRRRRRRR
Cooling system II
Engine coolant Replace at first 96,000 km (60,000 miles) or 4 years ;
after that, every 2 years
Air filter R
Fuel lines and hoses
*1II
Hoses and tubes for emission*1I
Spark plugs Replace every 120,000km (75,000miles)
Brake lines, hoses and connections II
Disc brakes IIII
Tire (Rotation) Rotate every 12,000km (7,500miles)
Steering operation and linkages II
Front and rear suspension and ball joints II
Driveshaft dust boots II
Exhaust system and heat shields Inspect every 72,000km (45,000miles) or 60 months
All locks and hinges LLLLLLLL
J48C_8S18-EA-03I_Edition3.book Page 4 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8S18-EA-03I

Schedule 2
I
: Inspect and repair, clean, adjust, or replace if necessary.
R : Replace
L :Lubricate
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
ELECTRICAL SYSTEM
*1:According to state / provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
Maintenance Interval
(Number of months or kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
× 1000 km 8 1624324048566472808896
× 1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine valve clearance Audible inspect every 120,000km (75,000miles), if noisy, adjust
Drive belts (tension) I
Engine oil Puerto Rico
Replace every 5,000 km (3,000 miles) or 3 months
Others RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Cooling system II
Engine coolant R e p l a c e a t f i r s t 9 6 , 0 0 0 k m ( 6 0 , 0 0 0 m i l e s ) o r 4 y e a r s ;
after that, every 2 years
Engine coolant level IIIIIIIIIIII
Air filter Puerto Rico
RR
Others R
Fuel lines and hoses
*1II
Hoses and tubes for emission
*1I
Spark plugs Replace every 120,000km (75,000miles)
Function of all lights IIIIIIIIIIII
J48C_8S18-EA-03I_Edition3.book Page 5 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

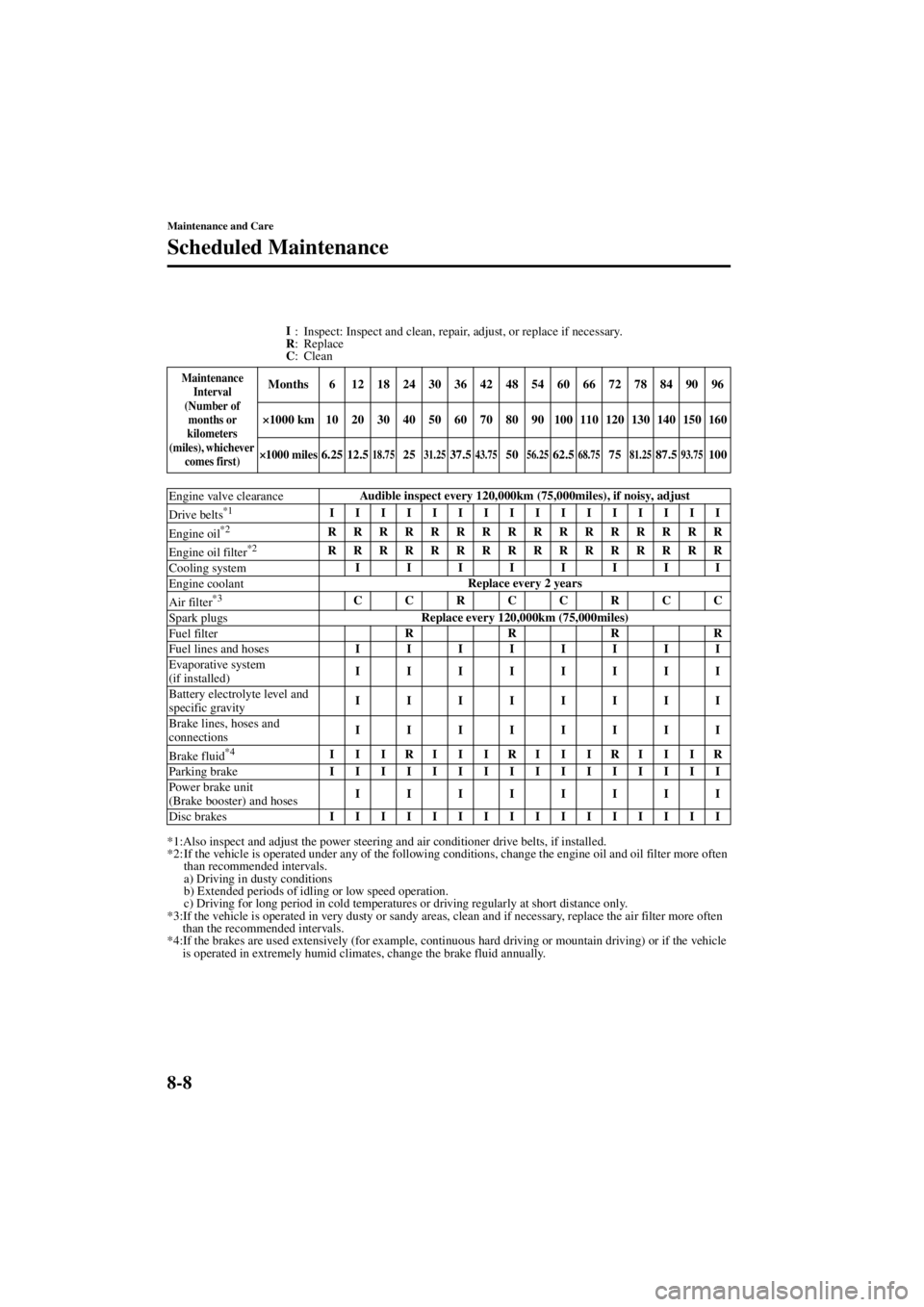

8-8
Maintenance and Care
Scheduled Maintenance
Form No. 8S18-EA-03I
I: Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R : Replace
C : Clean
*1:Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*2: If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often than recommended intervals.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation.
c) Driving for long period in cold temperatures or driving regularly at short distance only.
*3:If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often than the recommended intervals.
*4:If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle
is operated in extremely humid climates, change the brake fluid annually.
Maintenance
Interval
(Number of months or
kilometers
(miles), whichever comes first)Months 6 121824303642485460667278849096
× 1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
×1000 miles6.25 12.518.752531.2537.543.755056.2562.568.757581.2587.593.75100
Engine valve clearance Audible inspect every 120,000km (75,000miles), if noisy, adjust
Drive belts
*1IIIIIIIIIIIIIIII
Engine oil*2RRRRRRRRRRRRRRRR
Engine oil filter*2RRRRRRRRRRRRRRRR
Cooling system IIIIIIII
Engine coolant Replace every 2 years
Air filter
*3CCRCCRCC
Spark plugs Replace every 120,000km (75,000miles)
Fuel filter RRRR
Fuel lines and hoses IIIIIIII
Evaporative system
(if installed) IIIIIIII
Battery electrolyte level and
specific gravity IIIIIIII
Brake lines, hoses and
connections IIIIIIII
Brake fluid
*4IIIRIIIRIIIRIIIR
Parking brake IIIIIIIIIIIIIIII
Power brake unit
(Brake booster) and hoses IIIIIIII
Disc brakes IIIIIIIIIIIIIIII
