2004 LINCOLN TOWN CAR tow

Item Ford part
nameFord part
numberFord
specification
Engine oil Motorcraft SAE
5W20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
with API
Certification
Mark
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B or
ESR-M1C159-A
Lock cylinders Penetrating and
Lock LubricantMotorcraft XL-1 N/A
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R70/75 E-W)
3
Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
Rear Axle
Lubricant
2Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid
is recommended. However, if DOT 3 is not available, DOT 4 fluid can be
used.
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
289

2Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok rear axles.
For limousine, use 2.1-2.3L (4.50-4.75 pints) of Motorcraft SAE 75W-140
High Performance Rear Axle Lubricant XY-75W140–QL or equivalent
meeting Ford Specification WSL-M2C192-A for complete refill of rear
axles.
3Ensure the correct transmission fluid is used. Transmission fluid
requirements are indicated on the dipstick or the dipstick handle.
MERCONand MERCONV are not interchangeable. DO NOT mix
MERCONand MERCONV. Refer to yourScheduled Maintenance
Guideto determine the correct service interval.
ENGINE DATA
Engine 4.6L SOHC V8 engine
Cubic inches 281
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Compression ratio 9.4:1

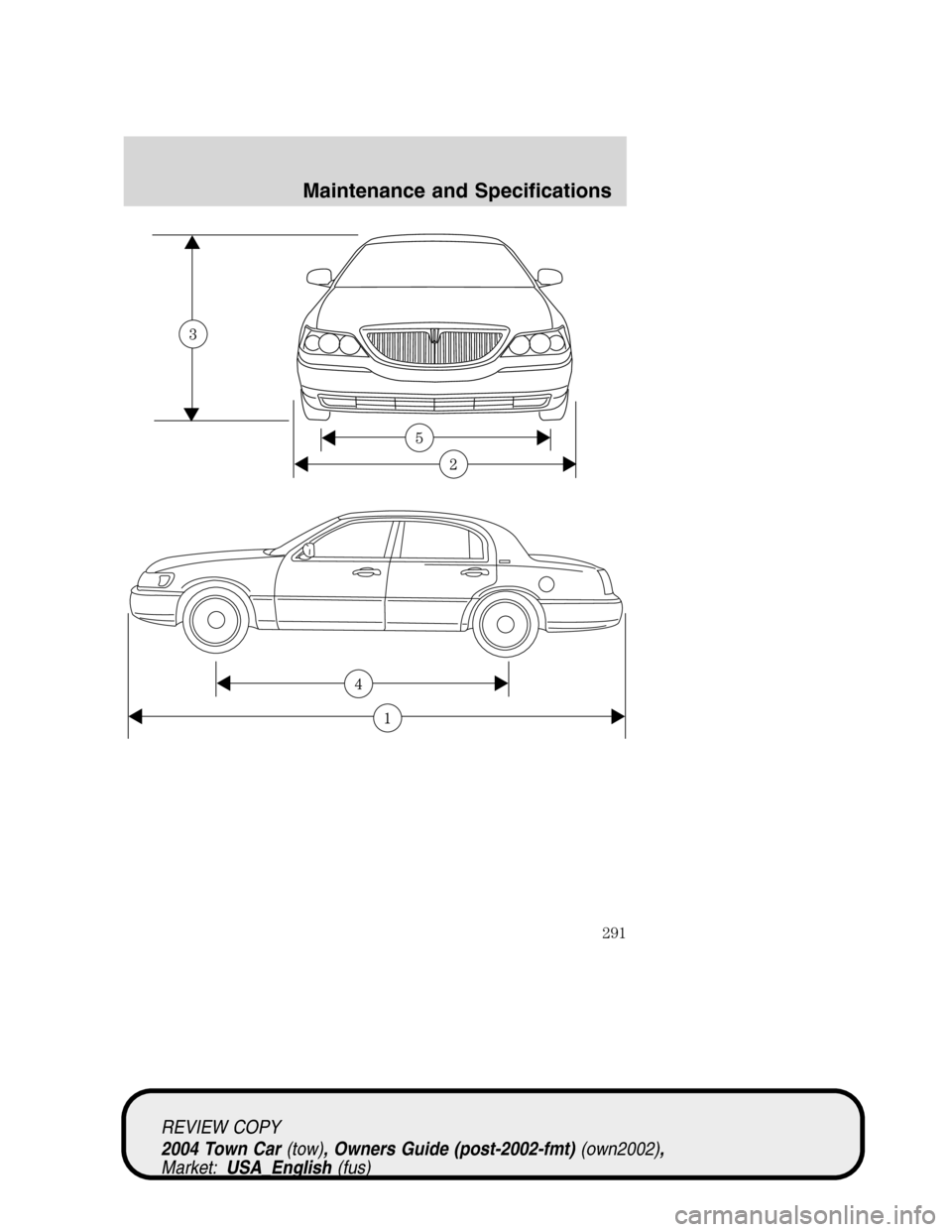

VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 215.4 (5471/221.4 (5623)*
(2) Overall width 78.2 (1987)
(3) Overall height 58.6 (1489)
(4) Wheelbase 117.7 (2990)/123.7 (3142)
*
(5) Track - Front 63.4 (1611)
(5) Track - Rear 65.9 (1673)
*Denotes long wheel base
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
290

REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
291

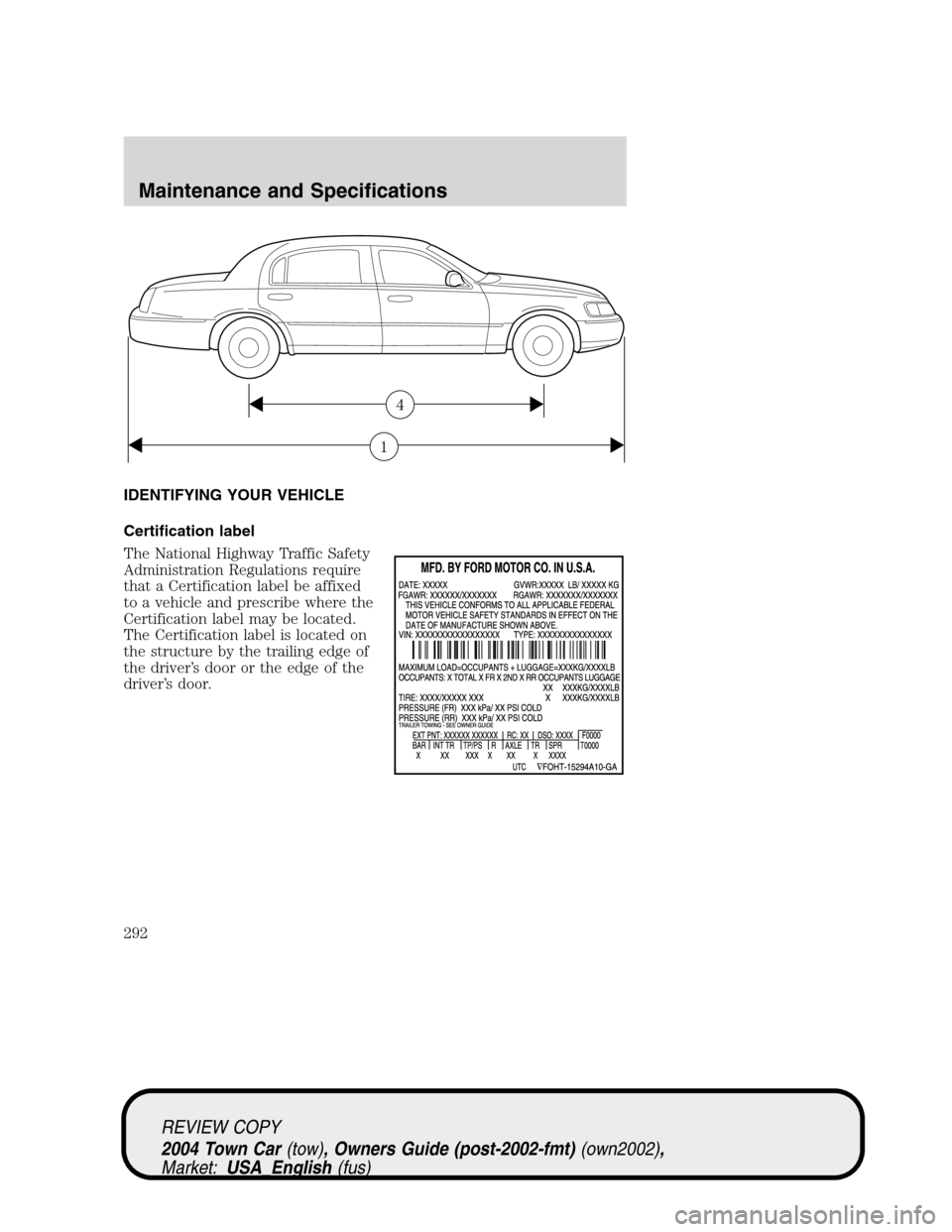

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the structure by the trailing edge of
the driver’s door or the edge of the
driver’s door.
1
4
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
292

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
293

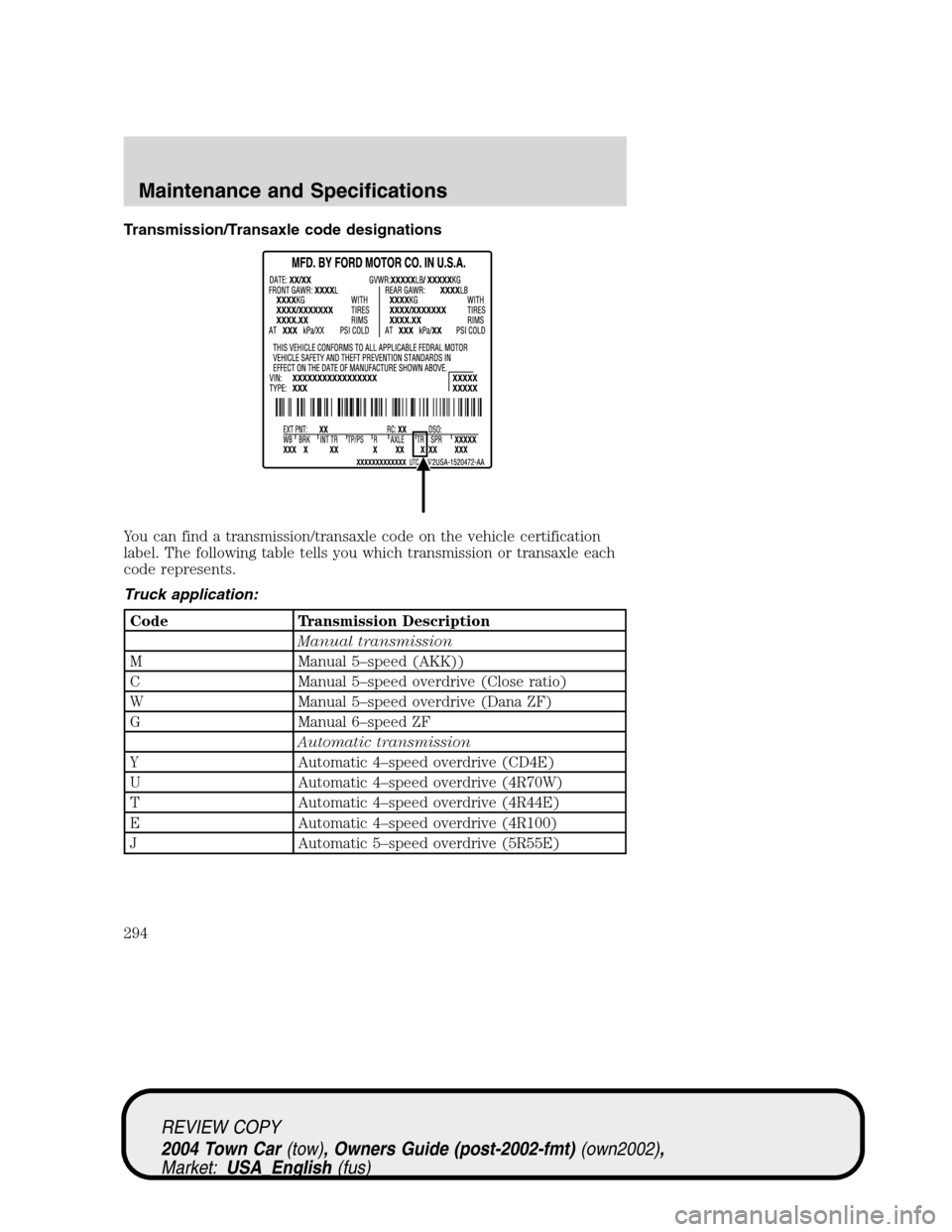

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label. The following table tells you which transmission or transaxle each
code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed (AKK))
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
Y Automatic 4–speed overdrive (CD4E)
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
294

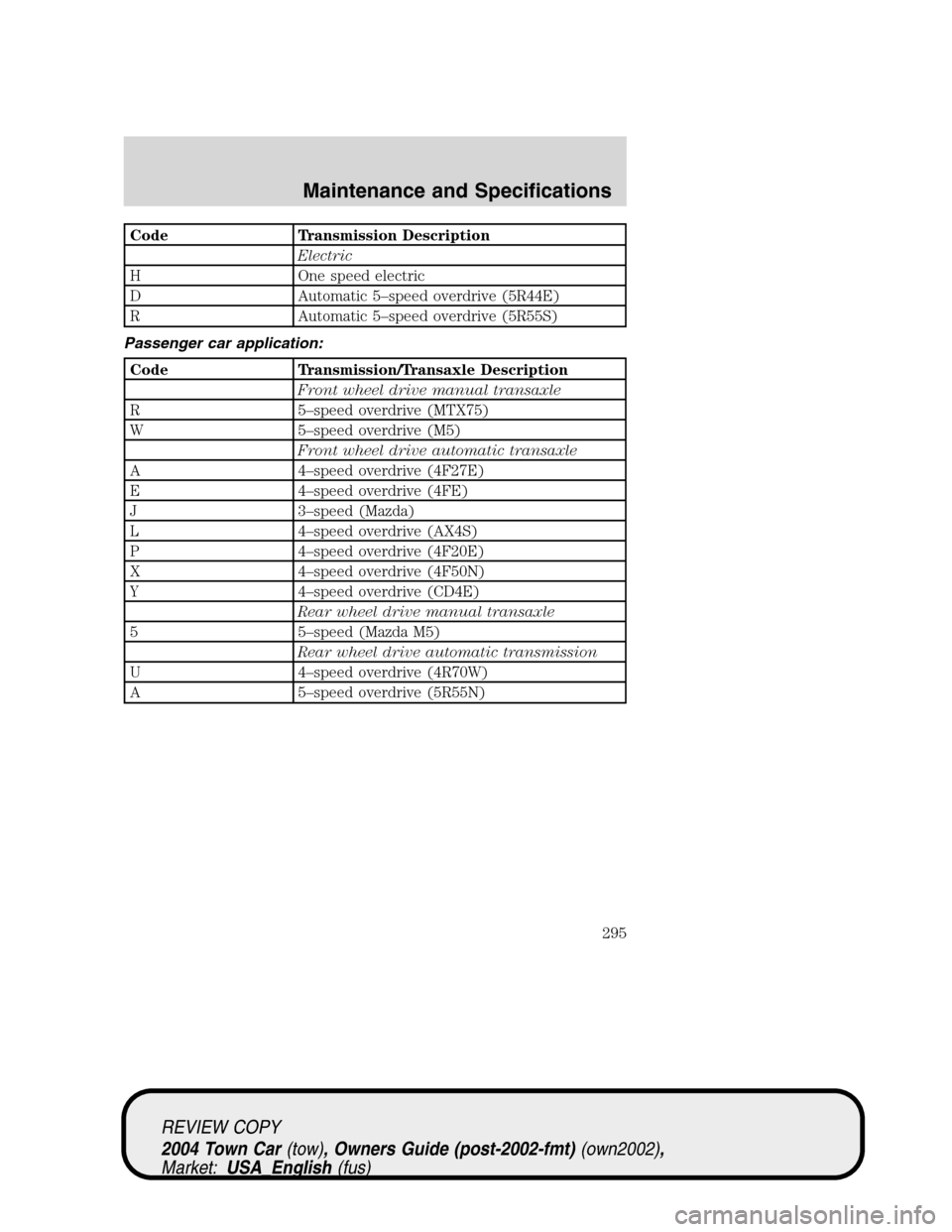

Code Transmission Description
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
A4–speed overdrive (4F27E)
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
295

LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local authorized Lincoln or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln Accessory
found to be defective in factory-supplied materials or workmanship
during the warranty period, as well as any component damaged by the
defective accessory. The accessory will be warranted for whichever
provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Lincoln Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—4 years or 50,000 miles (80,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
Following is a list of several Genuine Lincoln Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
