HOW TO USE THIS MANUAL
vi
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner's Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION Ð QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 Ð INSTRUMENTS AND CONTROLS
The vehicle's equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems
7. Steering wheel and mirrors
SECTION 2 Ð AIR CONDITIONING AND AUDIO
The features of the vehicle's air conditioning and audio are
explained in detail. Be sure to read this Section so that you can
make full use of them.
SECTION 3 Ð STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember Ð drive safely!
SECTION 4 Ð IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner's Manual and follow the instructions given.
SECTION 5 Ð MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 Ð SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner's Manual
so that you can rapidly find the item and page you are
searching for.

For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
x
Page
1Driving position memory switches 200. . . . . . . . . . .
2Power window switches 43. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 44. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 205. . . . . .
6Side vents 228. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 29, 31, 32. . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switch 32. . . . . . . . . . . . . . . . . . . . . .
9Center vents 228. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 46. . . . . . . . . . . . . . . . . . . . .
11Car audio 235. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi-information display 67. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 215. . . . . . . . . .
14Rear window defogger switch 40. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 58. . . . . .
16Glove box 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Ashtray 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Cigarette lighter 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Seat heater switches 47. . . . . . . . . . . . . . . . . . . . . . . . . . Page
20Four-wheel drive control lever 373. . . . . . . . . . . . . . .
21Automatic transmission selector lever 365. . . . . . . .
22Parking brake lever 363. . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock switch 373. . . . . . . . . . . . . . .
24Power outlet (12 VDC) 81. . . . . . . . . . . . . . . . . . . . . . . . .
25Downhill assist control switch 393. . . . . . . . . . . . . . .
26Electronic modulated suspension
control switch 387. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control air suspension
switches 380. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Ignition switch 361. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
292nd STRTº switch 373. . . . . . . . . . . . . . . . . . . . . . . . . .
30Cruise control switch 377. . . . . . . . . . . . . . . . . . . . . . .
31Steering pad switches 256. . . . . . . . . . . . . . . . . . . . . . .
32Hood lock release lever 99. . . . . . . . . . . . . . . . . . . . . . .
33Fuel filler door opener 100. . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 73. . . . . . . . . . . . . .
35Outside rear view mirror defogger switch 42. . . . . . .
36Power outlet (115 VAC) main switch 81. . . . . . . . . . . .

PPY003
PICTORIAL INDEX
xiv

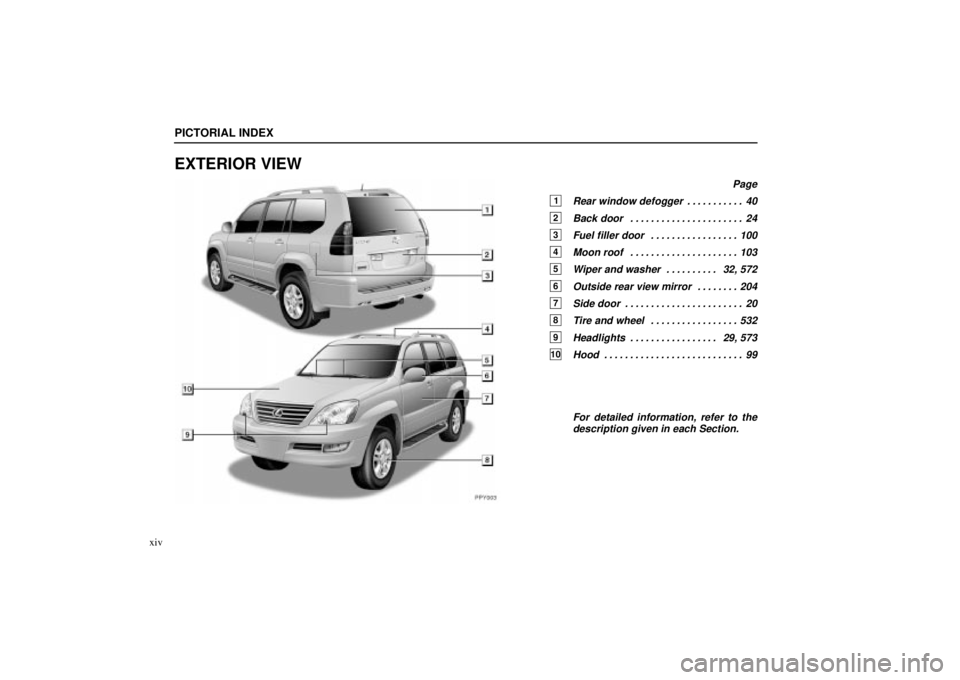

EXTERIOR VIEW
Page
1Rear window defogger 40. . . . . . . . . . .
2Back door 24. . . . . . . . . . . . . . . . . . . . . .
3Fuel filler door 100. . . . . . . . . . . . . . . . .
4Moon roof 103. . . . . . . . . . . . . . . . . . . . .
5Wiper and washer 32, 572. . . . . . . . . .
6Outside rear view mirror 204. . . . . . . .
7Side door 20. . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 532. . . . . . . . . . . . . . . . .
9Headlights 29, 573. . . . . . . . . . . . . . . . .
10Hood 99. . . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

SECTION 1 ± 2
28
INSTRUMENTS AND CONTROLS
Switches
Headlight switch29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fog light switch32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger switch40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defogger switch42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power window switches43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES
42
OUTSIDE REAR VIEW MIRROR
DEFOGGER SWITCH
To turn the electric outside rear view mirror defogger on,
push the switch.
The ignition key must be in the ONº position.
The thin heater wires on the heater panels in the outside rear
view mirrors will quickly clear the surface. Keep your hands off
the mirror faces when the switch is on. An indicator light will
illuminate to indicate the defogger is operating.
The system will automatically shut off when the defogger has
operated about 5 minutes.
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop-and-go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de-icer before operating the switch.
NOTICE
To prevent the battery from being discharged, turn the
switch off when the engine is not running.

SECTION 1 ± 4
74
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated entry system78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead console box90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning reflector holder94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coat hooks94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie-down hookss96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERIOR EQUIPMENT
75
VANITY MIRRORS
To use the vanity mirrors, swing the sun visor down and
slide the cover.
The vanity light comes on when you slide the cover.
Sun visors
1To block out glare from the front, swing the sun visor
down.
2To block out glare from the side, remove the sun visor
from the hook and swing it to the side.
3To block out glare coming obliquely from behind you,
slide the visor backwards.
At this position, the vanity light does not come on.
4To block out glare from the front with the sun visor in
the position 2
or 3
, swing the other sun visor
down.

OCCUPANT RESTRAINT SYSTEMS
200
DRIVING POSITION MEMORY
SYSTEM
A microcomputer will memorize the position of the driver's
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Two different driving position profiles
can be entered into the computer's memory.
Recording the driving position in the computer's memory can
only be done when the ignition key is in the ONº position and
the selector lever is in the Pº position.
Setting the driving position
1. Adjust the driver's seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the SETº button, push button 1º or 2º
until the signal beeps.The beep sound means that the positions are recorded in the
computer's memory.
By repeating these two steps and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
When you push button 1º or 2º, the driving position will
be automatically adjusted to the position recorded for that
button.
