HOW TO USE THIS MANUAL
vi
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner's Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION Ð QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 Ð INSTRUMENTS AND CONTROLS
The vehicle's equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems
7. Steering wheel and mirrors
SECTION 2 Ð AIR CONDITIONING AND AUDIO
The features of the vehicle's air conditioning and audio are
explained in detail. Be sure to read this Section so that you can
make full use of them.
SECTION 3 Ð STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember Ð drive safely!
SECTION 4 Ð IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner's Manual and follow the instructions given.
SECTION 5 Ð MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 Ð SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner's Manual
so that you can rapidly find the item and page you are
searching for.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
56IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(f)
Take vehicle to Lexus
dealer.
If brake system
warning light is also
on, stop immediately
and contact Lexus
dealer.
(g)Close all side doors
and back door.
(h)Shift four-wheel drive
control out of Nº.
(i)Stop and check.
(j)Take vehicle to Lexus
dealer.
IF THIS INDICATOR OR
BUZZER COMES ON...DO THIS.
(k)Stop and check.
(l)Stop and check.
(m)Replace engine oil.
(n)Fill up tank.
(o)Add washer fluid.
(p)Key reminder buzzerRemove key.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
57

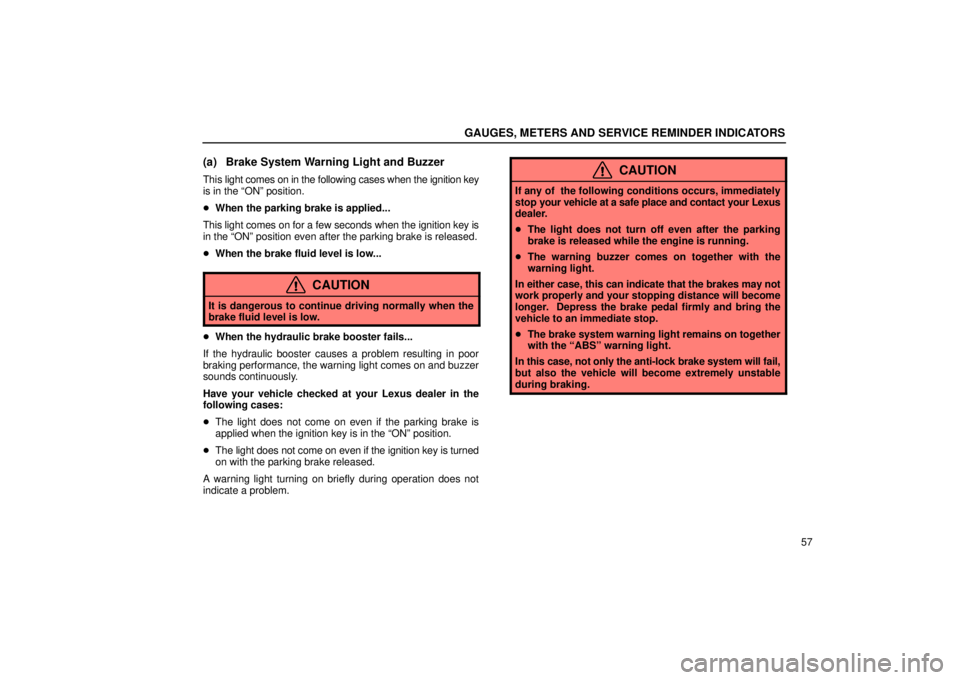

(a) Brake System Warning Light and Buzzer
This light comes on in the following cases when the ignition key
is in the ONº position.
When the parking brake is applied...
This light comes on for a few seconds when the ignition key is
in the ONº position even after the parking brake is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving normally when the
brake fluid level is low.
When the hydraulic brake booster fails...
If the hydraulic booster causes a problem resulting in poor
braking performance, the warning light comes on and buzzer
sounds continuously.
Have your vehicle checked at your Lexus dealer in the
following cases:
The light does not come on even if the parking brake is
applied when the ignition key is in the ONº position.
The light does not come on even if the ignition key is turned
on with the parking brake released.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If any of the following conditions occurs, immediately
stop your vehicle at a safe place and contact your Lexus
dealer.
The light does not turn off even after the parking
brake is released while the engine is running.
The warning buzzer comes on together with the
warning light.
In either case, this can indicate that the brakes may not
work properly and your stopping distance will become
longer. Depress the brake pedal firmly and bring the
vehicle to an immediate stop.
The brake system warning light remains on together
with the ABSº warning light.
In this case, not only the anti-lock brake system will fail,
but also the vehicle will become extremely unstable
during braking.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
59
(d) SRS Warning Light
The indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the SRS airbags and front seat belt pretensioners
are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources.
If either of the following conditions occurs, this indicates a
malfunction somewhere in the parts monitored by the warning
light system. Contact your Lexus dealer as soon as possible
to service the vehicle.
When the ignition key is turned to the ONº position, the light
does not come on, remains on or flashes.
The light comes on or starts flashing while driving.
If the light stays on, it indicates that the driver and front
passenger airbags have a problem. If the light flashes, the side
and curtain shield airbags and/or seat belt pretensioners have
a problem.
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition key is turned to the
ONº position and goes off after the engine starts. This
means that the warning light system is operating properly.
If the lamp remains on, or the lamp comes on while driving,
first check the followings.
Empty fuel tank
If the fuel tank is empty, refuel immediately.
Loose fuel tank cap
If the fuel tank cap is loose, securely tighten it.
These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.
If the lamp will not go off even after the several trips, contact
your Lexus dealer as soon as possible.
If the fuel tank is not empty or the fuel tank cap is not
loose...
There is a problem somewhere in the engine, emission
control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.
Contact your Lexus dealer as soon as possible to service the
vehicle.
If the engine speed does not increase with the accelerator
pedal depressed down, there may be a problem somewhere
in your electronic throttle control system.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
60At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to ACCº or LOCKº position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
Emissions inspection and maintenance (I/M) programs
Your vehicle may not pass a state emission inspection if the
malfunction indicator lamp remains on. Contact your Lexus
dealer to check your vehicle's emission control system and
OBD (On-Board Diagnostics) system before taking your
vehicle for the inspection.
For details, see Emissions inspection and maintenance (I/M)
programsº on page 493.
(f) ABSº Warning Light
The light comes on when the ignition key is turned to the ONº
position. If the anti-lock brake system and the brake assist
system work properly, the light turns off after a few seconds.
Thereafter, if either of the systems malfunctions, the light
comes on again.
When the ABSº warning light is on (and the brake system
warning light is off), the following systems do not operate, but
the brake system still operates conventionally.
Anti-lock brake system
Brake assist system
Active traction control system
Vehicle stability control system
Downhill assist control system
Hill-start assist control system
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system does not
operate, so that the wheels will lock up during a sudden braking
or braking on slippery road surfaces.
If either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light system. Contact your Lexus dealer as
soon as possible to service the vehicle.
The light does not come on when the ignition key is turned
to the ONº position, or remains on.
The light comes on while you are driving.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
63
(j) VSC TRACº Warning Light
The light warns that there is a problem somewhere in the
following.
Vehicle stability control system
Active traction control system
Downhill assist control system
Hill-start assist control system
The light will come on when the ignition key turned to ONº, and
will go off after a few seconds.
It is not a malfunction that the warning light may stay on for 60
seconds after the ignition key is turned to the ONº position.
Depressing the brake pedal repeatedly may turn on the lights.
It is normal if they go out after a few seconds.
There is no problem when the VSC TRACº warning light
comes on when the brake actuator temperature becomes high.
If the light comes on while driving, the above mentioned
systems do not work. However, as conventional braking
operates when applied, there is no problem to continue your
driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to ONº.
The warning light remains on after the ignition key is turned
to ONº.
The warning light comes on while driving.
(k) Discharge Warning Light
This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn off the
engine, and check for the cause. Look first at the engine drive
belt.
If it is loose or broken, the generator will not charge the
battery properly.
If the belt is O.K., there is a problem somewhere in the
charging system.
The engine ignition will continue to operate, however, until the
battery is discharged. Turn off the air conditioning, blower,
radio, etc., and drive directly to the nearest Lexus dealer or
repair shop.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
64
NOTICE
Do not continue driving if the engine drive belt is broken
or loose.
(l) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the road
to a safe place and stop the engine immediately. Call a Lexus
dealer or qualified repair shop for assistance.The light may occasionally flicker when the engine is idling or
it may come on briefly after a hard stop. There is no cause for
concern if it then goes out when the engine is accelerated
slightly.
The light may come on when the oil level is extremely low. It
is not designed to indicate low oil level, and the oil level must
be checked using the oil level dipstick.
NOTICE
Do not drive the vehicle with the warning light on Ð
even for one block. It may ruin the engine.
(m) Engine Oil Replacement Reminder Light
This light reminds you when to replace the engine oil.
This light will come on when the ignition key is turned to ONº
and will go off after about a few seconds.
When you drive for about 8000 km (5000 miles) after the
engine oil replacement, this light illuminates for about 3
seconds and then flashes for about 12 seconds with the
ignition key turned to ONº position. If you continue driving
without the engine oil replacement, and if the driving range
exceeds 12000 km (7500 miles), the light will come on after the
ignition key is turned to ONº position. The light will remain on
thereafter.If the light is flashing, we recommend that you replace the
engine oil at an early opportunity depending on the driving and
road condition. If the light comes on, replace it as soon as
possible.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
65 You need to reset the light after the engine oil replacement.
Reset the light by following the procedure below:
1. Turn the ignition key to the OFFº position with the odometer
reading shown. (For details, see Odometer and trip meterº on
page 55.)
2. Turn the ignition key to the ONº position while holding down
the trip meter reset knob.
Hold down the knob until the light goes off. Before the light
goes off, it illuminates for 3 seconds, flashes for 2 seconds and
illuminates for 1 second.
If the system fails to reset, the light will remain flashing. In this
case, return to step 1 and try again.
(n) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes
very low. Fill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.
(o) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank becomes
very low. Fill the tank as soon as possible.
(p) Key Reminder Buzzer
This buzzer reminds you to remove the key when you open the
driver's door with the ignition key in the ACCº or LOCKº
position.
How to check all the service reminder
indicators (except the low fuel level warning
light)
1. Apply the parking brake.
2. Open the door.
The following service reminder indicator should come on. It
goes off when you close the door completely.
3. Place the four-wheel drive control lever in Nº position and
the selector lever in Pº position and turn the ignition key to
ACCº.
The following service reminder indicator should come on. It
goes off when you place the four-wheel drive control lever in
Hº or Lº position.
