2004 Lexus GX470 Engine / LEXUS 2004 GX470 FROM AUG. 2004 THROUGH SEP. 2004 PROD. OWNER'S MANUAL (OM60B55U)

GAUGES, METERS AND SERVICE REMINDER INDICATORS
86
INSTRUMENT PANEL LIGHTCONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.

SECTION 1 ± 4
87
INSTRUMENTS AND CONTROLS
Interior equipment
Sun visors88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated entry system 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . .
Power outlets 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders 102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead console box 104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning reflector holder 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . .
Coat hooks 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie-down hooks s 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERIOR EQUIPMENT
88
SUN VISORS
To block out glare, move the sun visor as shown.
1To block out glare from the front, swing the sun visor
down.
2To block out glare from the side, remove the sun visor
from the hook and swing it to the side.
3To block out glare coming obliquely from behind you,
slide the visor backwards.
At this position, the vanity light does not come on.
4To block out glare from the front with the sun visor in
the position 2
or 3
, swing the other sun visor
down.
INTERIOR LIGHTS
Center
Vehicles with rear seat audio system
Vehicles without rear seat audio system

INTERIOR EQUIPMENT
89
To turn on the interior light, slide the switch.
The interior light switch has the following positions:
ONº Ð Keeps the light on all the time.
OFFº Ð Turns the light off.
DOORº Ð Turns the light on when any side door is opened.
The light goes off when all the doors are closed. For details,
see Illuminated entry systemº on page 90.

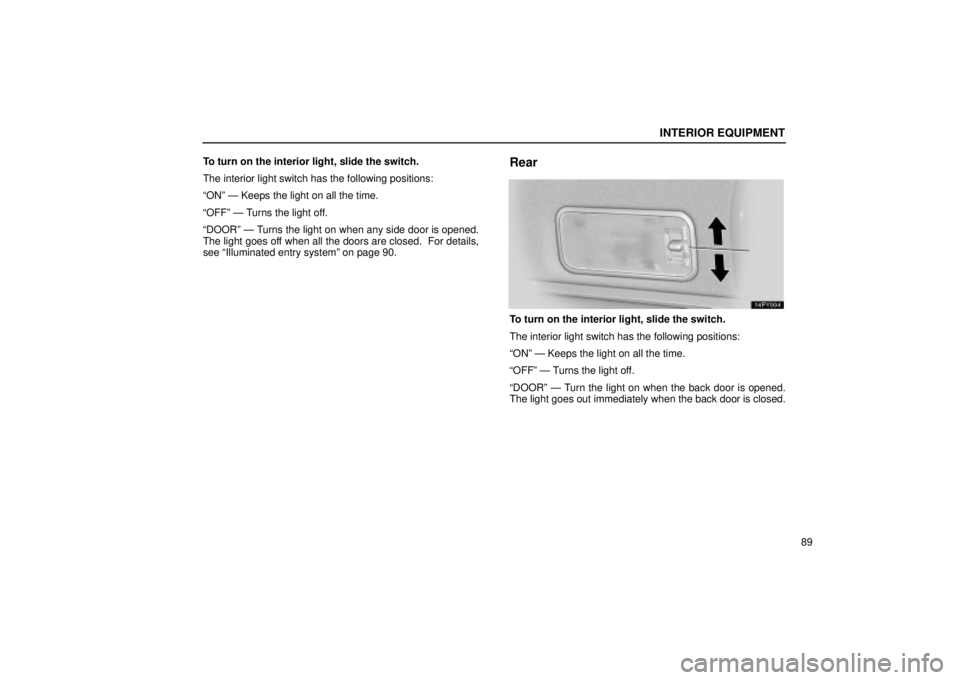

Rear
To turn on the interior light, slide the switch.
The interior light switch has the following positions:
ONº Ð Keeps the light on all the time.
OFFº Ð Turns the light off.
DOORº Ð Turn the light on when the back door is opened.
The light goes out immediately when the back door is closed.

INTERIOR EQUIPMENT
90
PERSONAL LIGHTS
1DOORº position2OFFº position
To turn on the personal light, push the lens. To turn the
light off, push the lens once again.
The personal light switch has the following positions:
DOORº Ð Turn the lights on when any side door is opened
without pushing the lens. The light goes off when all the doors
are closed. For details, see Illuminated entry systemº on page
90.
OFFº Ð Turn the lights on only when you push the lens.
ILLUMINATED ENTRY SYSTEM
14PY027

INTERIOR EQUIPMENT
91

1Foot lights
2Ignition switch light
3Personal lights (with the DOORº position)
4Center console spot lights
5Inside door handle lights
6Center interior light (with the DOORº position)
7Running board lights
All of the lights except the center console spot lights will
come on when any of the side doors are opened.* After all
the doors are closed, the lights remain on for about 15
seconds before fading out.**
NOTE:
* The operating condition can be changed.** The duration of lighting can be changed, and the footlights and inside door handle lights can be set not to comeon.Ask your Lexus dealer for details.
However, in the following cases, the lights go out immediately:
 All of the lights except the center console spot lights Ð All
the side doors and back door are locked.
 Ignition switch light, personal lights and center interior light
Ð All the side doors are closed and the ignition key is in the
ACCº or ONº position.
 Running board lights Ð The vehicle speed exceeds about
8 km/h (5 mph). When
any of the side doors is unlocked, all of the lights except
the center console spot lights will come on and remain on for
about 15 seconds before fading out.
To prevent the battery being discharged, all of the lights will
automatically turn off when the ignition key removed and the
door is left opened for about 30 minutes.
Ignition switch light, personal lights and center interior
light
The ignition switch light, personal lights and center interior light
also come on and remain on for about 15 seconds before
fading out when the ignition switch is turned to the LOCKº
position.
Foot lights and inside door handle lights
The foot lights and inside door handle lights also come on when
the ignition switch is in the ONº position with the selector lever
in the Pº position. When the selector lever is moved out of Pº
position, the intensity of the foot lights and inside door handle
lights will be reduced.*
NOTE: * The intensity of the foot lights and inside door handle lightscan be set not to be reduced.Ask your Lexus dealer for details.
Center console spot lights
The center console spot lights come on when the ignition
switch is in the ACCº or ONº position.

INTERIOR EQUIPMENT
92
CIGARETTE LIGHTER ANDASHTRAY
Front
To use the cigarette lighter and ashtray, first push against
the cigarette lighter and ashtray covers. Then when the
cigarette lighter cover opens, press in the cigarette lighter.
After it finishes heating up, it automatically pops out ready
for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition key must be in the
ACCº position to use the lighter. When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, push it back in completely.
To remove the ashtray, press down on the lock spring plate and
pull out.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always completely close the
ashtray after use.

INTERIOR EQUIPMENT
93

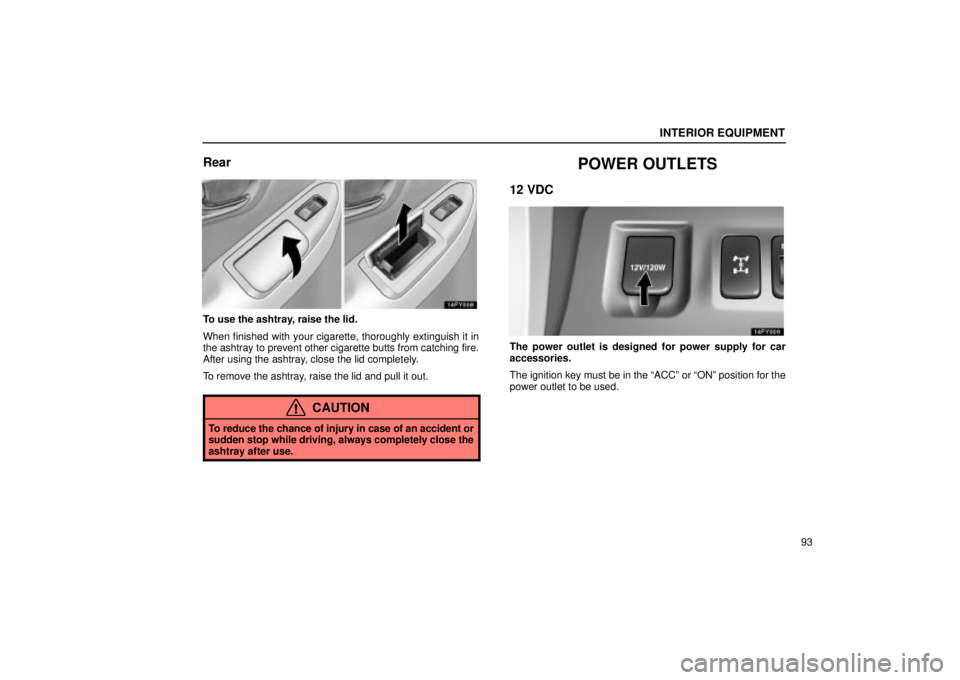

Rear
To use the ashtray, raise the lid.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the lid completely.
To remove the ashtray, raise the lid and pull it out.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always completely close the
ashtray after use.
POWER OUTLETS
12 VDC
The power outlet is designed for power supply for car
accessories.
The ignition key must be in the ACCº or ONº position for the
power outlet to be used.
