PICTORIAL INDEX
xvi

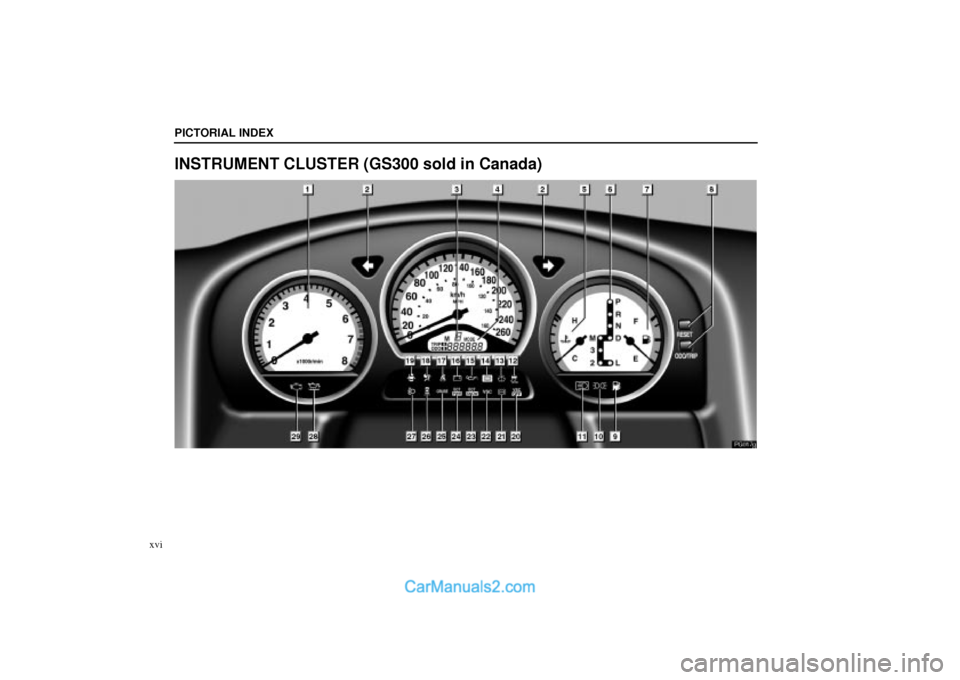

INSTRUMENT CLUSTER (GS300 sold in Canada)
Page 10 of 13
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xvii

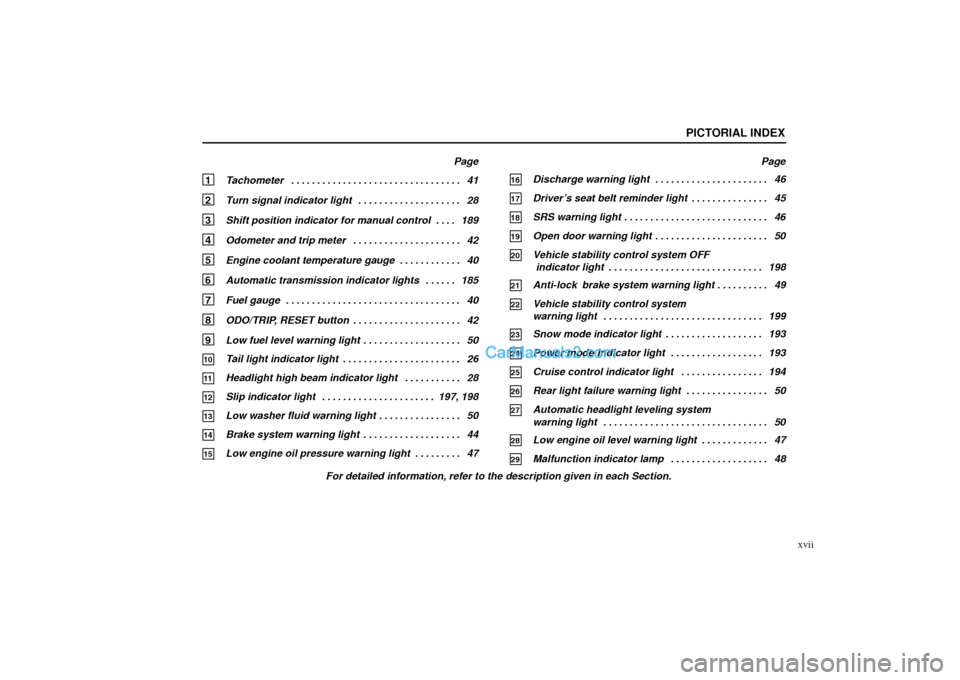

Page
1 Tachometer 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Turn signal indicator light 28. . . . . . . . . . . . . . . . . . . .
3 Shift position indicator for manual control 189. . . .
4 Odometer and trip meter 42. . . . . . . . . . . . . . . . . . . . .
5 Engine coolant temperature gauge 40. . . . . . . . . . . .
6 Automatic transmission indicator lights 185. . . . . .
7 Fuel gauge 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 ODO/TRIP, RESET button 42. . . . . . . . . . . . . . . . . . . . .
9 Low fuel level warning light 50. . . . . . . . . . . . . . . . . . .
10 Tail light indicator light 26. . . . . . . . . . . . . . . . . . . . . . .
11 Headlight high beam indicator light 28. . . . . . . . . . .
12 Slip indicator light 197, 198. . . . . . . . . . . . . . . . . . . . . .
13 Low washer fluid warning light 50. . . . . . . . . . . . . . . .
14 Brake system warning light 44. . . . . . . . . . . . . . . . . . .
15 Low engine oil pressure warning light 47. . . . . . . . . Page
16 Discharge warning light 46. . . . . . . . . . . . . . . . . . . . . .
17 Driver's seat belt reminder light 45. . . . . . . . . . . . . . .
18 SRS warning light 46. . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Open door warning light 50. . . . . . . . . . . . . . . . . . . . . .
20 Vehicle stability control system OFF
indicator light 198. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21 Anti-lock brake system warning light 49. . . . . . . . . .
22 Vehicle stability control system
warning light 199. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Snow mode indicator light 193. . . . . . . . . . . . . . . . . . .
24 Power mode indicator light 193. . . . . . . . . . . . . . . . . .
25 Cruise control indicator light 194. . . . . . . . . . . . . . . .
26 Rear light failure warning light 50. . . . . . . . . . . . . . . .
27 Automatic headlight leveling system
warning light 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28 Low engine oil level warning light 47. . . . . . . . . . . . .
29 Malfunction indicator lamp 48. . . . . . . . . . . . . . . . . . .
Page 11 of 13
PG003b
PICTORIAL INDEX
xviii
SEAT AND STEERING WHEEL
Page
1 Tilt and telescopic steering
adjustment switch 132. . . . . . . . . . . . .
2 Seat position, seat cushion angle
and height control switch 79, 80. . . .
3 Seatback angle control switch 79. . .
4 Lumbar support control switch 80. .
For detailed information, refer to the
description given in each Section.
Page 12 of 13
PG020f
PICTORIAL INDEX
xix

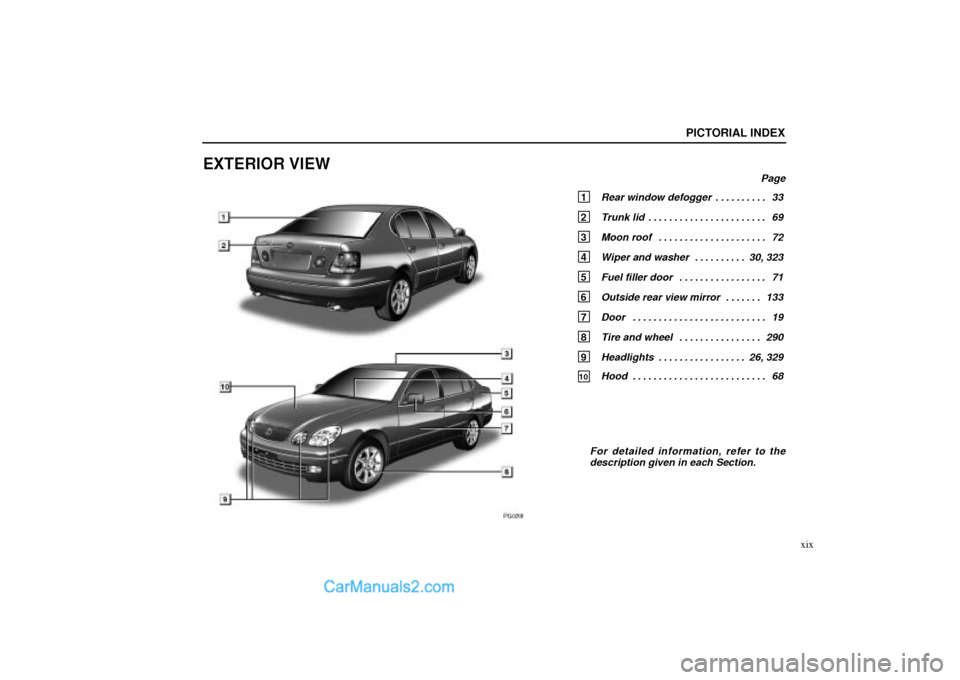

EXTERIOR VIEW
Page
1 Rear window defogger 33. . . . . . . . . .
2 Trunk lid 69. . . . . . . . . . . . . . . . . . . . . . .
3 Moon roof 72. . . . . . . . . . . . . . . . . . . . .
4 Wiper and washer 30, 323. . . . . . . . . .
5 Fuel filler door 71. . . . . . . . . . . . . . . . .
6 Outside rear view mirror 133. . . . . . .
7 Door 19. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Tire and wheel 290. . . . . . . . . . . . . . . .
9 Headlights 26, 329. . . . . . . . . . . . . . . . .
10 Hood 68. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.
