2004 INFINITI FX35 check engine

LAN-172
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45

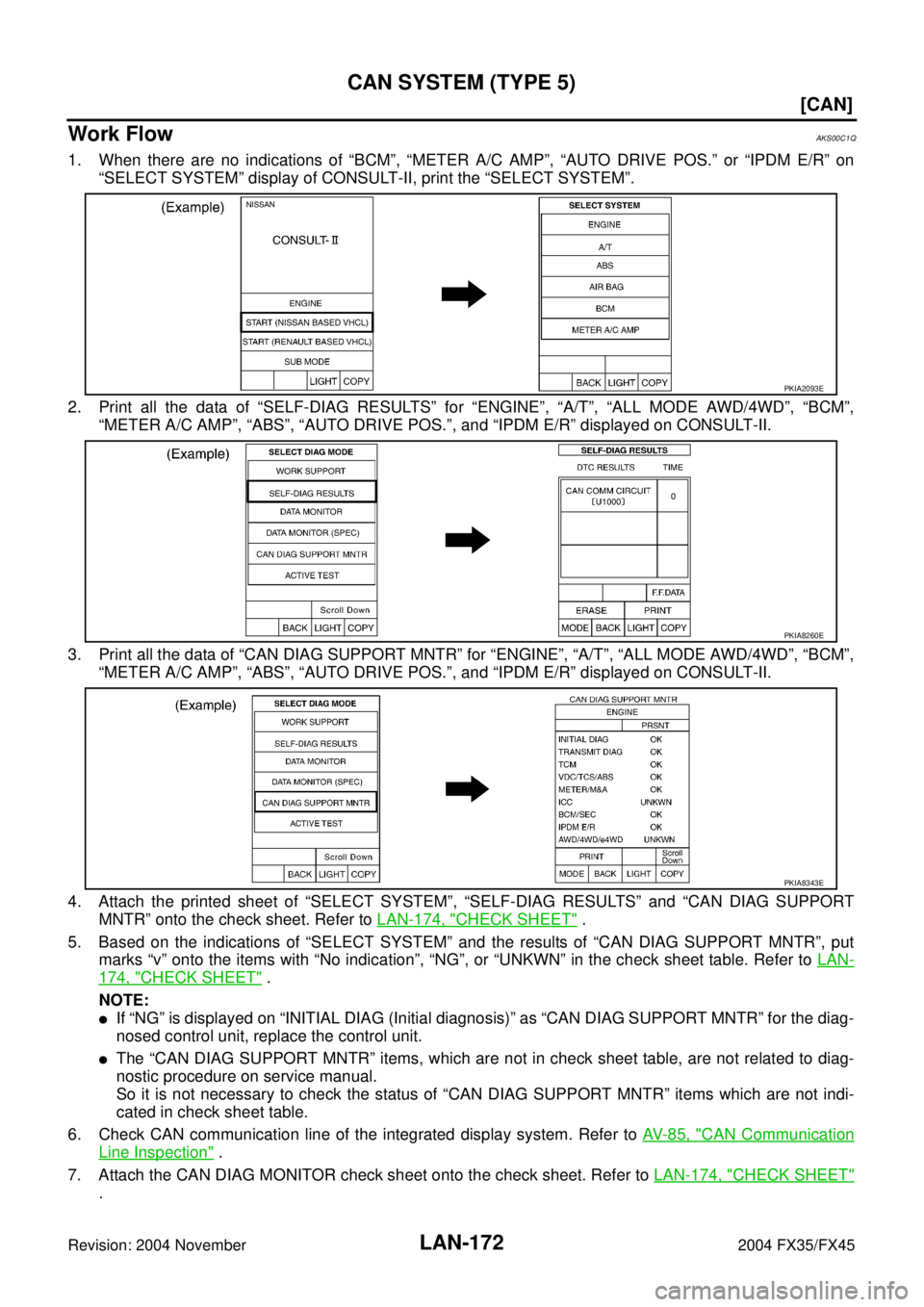

Work FlowAKS00C1Q
1. When there are no indications of “BCM”, “METER A/C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” on
“SELECT SYSTEM” display of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ALL MODE AWD/4WD”, “BCM”,
“METER A/C AMP”, “ABS”, “AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ALL MODE AWD/4WD”, “BCM”,
“METER A/C AMP”, “ABS”, “AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-174, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
174, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the integrated display system. Refer to AV- 8 5 , "
CAN Communication
Line Inspection" .
7. Attach the CAN DIAG MONITOR check sheet onto the check sheet. Refer to LAN-174, "
CHECK SHEET"
.
PKIA2093E
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 6)
LAN-211
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

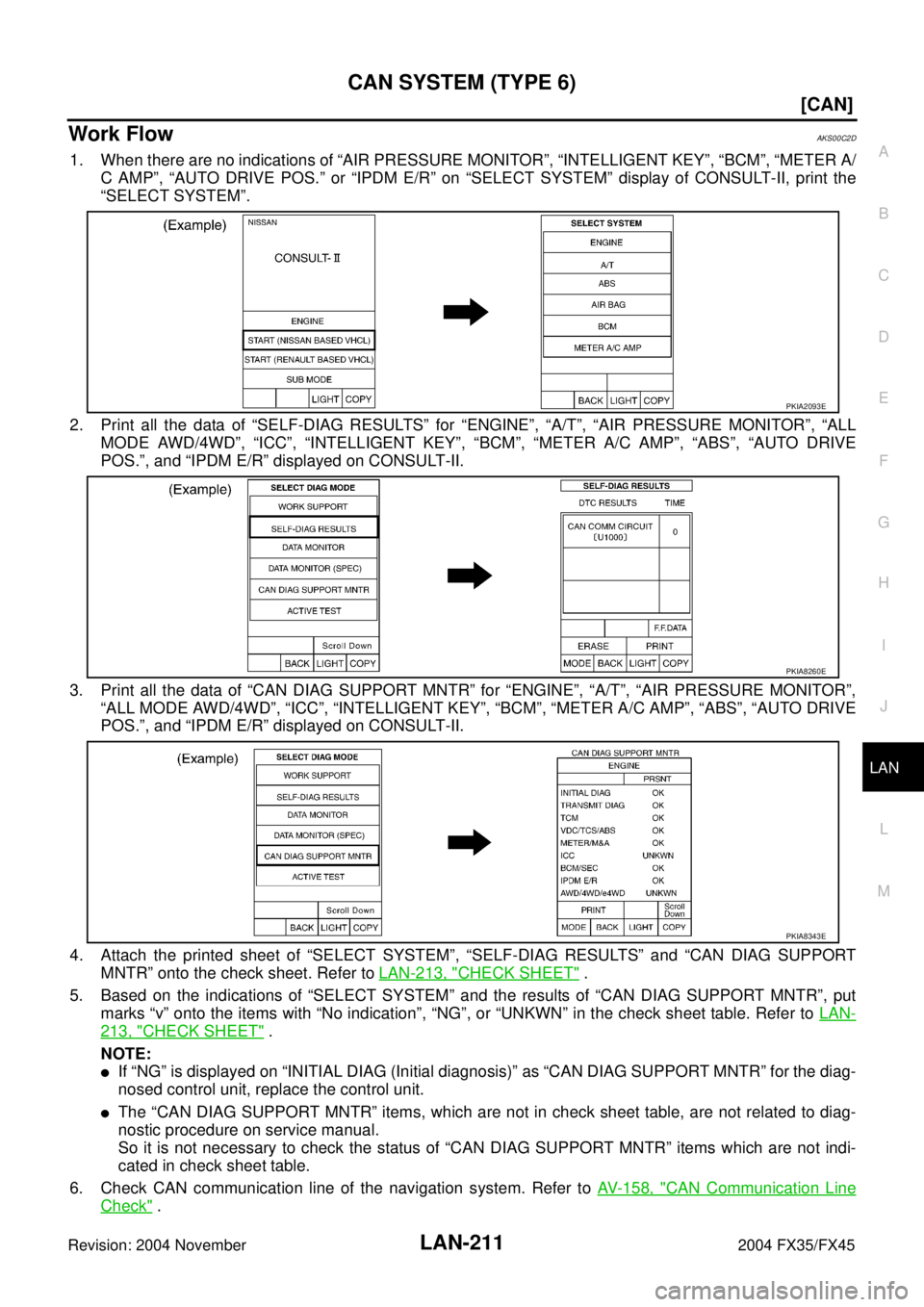

Work FlowAKS00C2D
1. When there are no indications of “AIR PRESSURE MONITOR”, “INTELLIGENT KEY”, “BCM”, “METER A/
C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” on “SELECT SYSTEM” display of CONSULT-II, print the
“SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “AIR PRESSURE MONITOR”, “ALL
MODE AWD/4WD”, “ICC”, “INTELLIGENT KEY”, “BCM”, “METER A/C AMP”, “ABS”, “AUTO DRIVE
POS.”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “AIR PRESSURE MONITOR”,
“ALL MODE AWD/4WD”, “ICC”, “INTELLIGENT KEY”, “BCM”, “METER A/C AMP”, “ABS”, “AUTO DRIVE
POS.”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-213, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
213, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the navigation system. Refer to AV- 1 5 8 , "
CAN Communication Line
Check" .
PKIA2093E
PKIA8260E
PKIA8343E

LT-20
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
Display Item List
NOTE:
1. Vehicles without auto light system display this item, but cannot monitor it.
2. Vehicles without daytime light system display this item, but cannot monitor it.
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “BACK” deactivates the operation.
Display Item List
Monitor item Contents
IGN ON SW “ON/OFF” Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from the ignition switch signal.
ACC ON SW “ON/OFF” Displays “ACC (ON)/OFF, Ignition OFF (OFF)” status judged from ignition switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from light-
ing switch signal.
HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 1: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
LIGHT SW 1 ST “ON/OFF”Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from
lighting switch signal.
AUTO LIGHT SW
NOTE 1 “ON/OFF”Displays status of the lighting switch as judged from the lighting switch signal. (AUTO posi-
tion: ON/Other than AUTO position: OFF)
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW “ON/OFF”Displays status (front fog lamp switch: ON/Others: OFF) of front fog lamp switch judged from
lighting switch signal.
DOOR SW - DR “ON/OFF”Displays status of the driver door as judged from the driver door switch signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays status of the passenger door as judged from the passenger door switch signal.
(Door is open: ON/Door is closed: OFF)
DOOR SW - RR “ON/OFF”Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - RL “ON/OFF”Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is
open: ON/Door is closed: OFF)
BACK DOOR SW “ON/OFF”Displays status of the back door as judged from the back door switch signal. (Door is open:
ON/Door is closed: OFF)
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
ENGINE RUN
NOTE 2“ON/OFF” Displays status (Engine running: ON/Others: OFF) as judged from engine status signal.
PKB SW
NOTE 2“ON/OFF”Displays status (Parking brake switch: ON/Others: OFF) as judged from parking brake switch
signal.
OPTICAL SENSOR
NOTE 1
[0 - 5V] Displays “ambient light (close to 5V when light/close to 0V when dark)” judged from optical
sensor signal.
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON–OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON–OFF.

LT-34
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
Aiming AdjustmentAKS007MV
PREPARATION BEFORE ADJUSTING
For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on flat surface.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam on.
2. Use adjusting screws to perform aiming adjustment.
SKIA5544E

LT-50
DAYTIME LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
NOTE:
1. Vehicles without auto light system display this item, but cannot monitor it.
2. Vehicles without daytime light system display this item, but cannot monitor it.
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “BACK” deactivates the operation.
Display Item List
NOTE:
1. Vehicles without daytime light lamp system display this item, but cannot monitor it.
2. This item is displayed, but cannot monitor it. HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 1: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
LIGHT SW 1 ST “ON/OFF”Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from
lighting switch signal.
AUTO LIGHT SW
NOTE 1 “ON/OFF”Displays status of the lighting switch as judged from the lighting switch signal. (AUTO posi-
tion: ON/Other than AUTO position: OFF)
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW “ON/OFF”Displays status (front fog lamp switch: ON/Others: OFF) of front fog lamp switch judged from
lighting switch signal.
DOOR SW - DR “ON/OFF”Displays status of the driver door as judged from the driver door switch signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays status of the passenger door as judged from the passenger door switch signal.
(Door is open: ON/Door is closed: OFF)
DOOR SW - RR “ON/OFF”Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - RL “ON/OFF”Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is
open: ON/Door is closed: OFF)
BACK DOOR SW “ON/OFF”Displays status of the back door as judged from the back door switch signal. (Door is open:
ON/Door is closed: OFF)
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
ENGINE RUN
NOTE 2“ON/OFF” Displays status (Engine running: ON/Others: OFF) as judged from engine status signal.
PKB SW
NOTE 2“ON/OFF”Displays status (Parking brake switch: ON/Others: OFF) as judged from parking brake
switch signal.
OPTICAL SENSOR
NOTE 1
[0 - 5V] Displays “ambient light (close to 5V when light/close to 0V when dark)” judged from optical
sensor signal. Monitor item Contents
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON–OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON–OFF.
DTRL
NOTE 1Allow day time light lamp operate by switching ON–OFF.
CORNERING LAMP
NOTE 2—

LT-52
DAYTIME LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
4. CHECK GROUND
1. Check continuity between clearance lamp RH harness connec-
tor E23 terminal 3 (B) and ground.
2. Check continuity between clearance lamp LH harness connec-
tor E43 terminal 3 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK BULB
Check bulbs of lamp which does not illuminate.
OK or NG
OK >> GO TO 6.
NG >> Replace bulb.
6. CHECK DAYTIME RELAY CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between daytime lamp relay harness connec-
tor E15 terminal 1 (L) and combination meter harness connector
M20 terminal 10 (L/W).
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK INPUT SIGNAL
1. Connect combination meter connector.
2. Start engine running.
3. Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “ENGINE RUN” turns ON-OFF linked with operation
of engine running or stop.
4. Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “PKB SW” turns ON-OFF linked with operation of
parking brake switch.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installation of BCM" .
NG >> GO TO 8.3 (B) – Ground : Continuity should exist.
3 (B) – Ground : Continuity should exist.
SKIA5881E
1 (L) – 10 (L/W) : Continuity should exist.
PKIA5216E
Engine running : ENGINE RUN ON
Engine stop : ENGINE RUN OFF
Parking brake ON : PKR SW ON
Parking brake OFF : PKR SW OFF
SKIA5883E

LT-66
AUTO LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
NOTE:
1. Vehicles without auto light system display this item, but cannot monitor it.
2. Vehicles without daytime light system display this item, but cannot monitor it.
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “BACK” deactivates the operation.
Display Item List
NOTE:
1. Vehicles without daytime light lamp system display this item, but cannot monitor it.
2. This item is displayed, but cannot monitor it.
CONSULT-II Functions (IPDM E/R)AKS007I6
CONSULT-II can display each diagnostic item using the following diagnostic test modes: work support, self-
diagnostic results, data monitor and active test through data reception and command transmission via the
IPDM E/R CAN communication line.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
DOOR SW - RR “ON/OFF”Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - RL “ON/OFF”Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is
open: ON/Door is closed: OFF)
BACK DOOR SW “ON/OFF”Displays status of the back door as judged from the back door switch signal. (Door is open:
ON/Door is closed: OFF)
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
ENGINE RUN
NOTE 2“ON/OFF” Displays status (Engine running: ON/Others: OFF) as judged from engine status signal.
PKB SW
NOTE 2“ON/OFF”Displays status (Parking brake switch: ON/Others: OFF) as judged from parking brake
switch signal.
OPTICAL SENSOR
NOTE 1
[0 - 5V] Displays “ambient light (close to 5V when light/close to 0V when dark)” judged from optical
sensor signal. Monitor item Contents
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON–OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON–OFF.
DTRL
NOTE 1Allow day time light lamp operate by switching ON–OFF.
CORNERING LAMP
NOTE 2—
Inspection Item, Diagnosis Mode Description
SELF-DIAGNOSTIC RESULTS The IPDM E/R performs self-diagnosis of CAN communication.
DATA MONITOR The input/output data of the IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST The IPDM E/R sends a drive signal to electronic components to check their operation.

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: 2004 November 2004 FX35/FX45
ENGINE LUBRICATION SYSTEM
VQ35DE
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
LUBRICATION SYSTEM ............................................ 5
Lubrication Circuit .................................................... 5
System Drawing ....................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
ENGINE OIL LEVEL ............................................. 7
ENGINE OIL APPEARANCE ................................ 7
ENGINE OIL LEAKAGE ........................................ 7
OIL PRESSURE CHECK ...................................... 8
Changing Engine Oil ................................................ 9
OIL FILTER ............................................................... 10
Removal and Installation ........................................ 10
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ............... 10
OIL FILTER BRACKET (AWD) ................................. 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
INSPECTION AFTER INSTALLATION ............... 12
OIL COOLER ............................................................ 14
Removal and Installation ........................................ 14
2WD MODEL ...................................................... 14
AWD MODEL ...................................................... 15
REMOVAL ........................................................... 15
INSPECTION AFTER REMOVAL ....................... 15
INSTALLATION ................................................... 16
INSPECTION AFTER INSTALLATION ............... 16
OIL PUMP ................................................................. 17
Removal and Installation ........................................ 17REMOVAL ........................................................... 17
INSTALLATION ................................................... 17
INSPECTION AFTER INSTALLATION ................ 17
Disassembly and Assembly .................................... 17
DISASSEMBLY ................................................... 17
INSPECTION AFTER DISASSEMBLY ................ 18
ASSEMBLY ......................................................... 19
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 20
Standard and Limit .................................................. 20
ENGINE OIL PRESSURE ................................... 20
OIL PUMP ........................................................... 20
REGULATOR VALVE .......................................... 20
ENGINE OIL CAPACITY (APPROXIMATE) ........ 20
VK45DE
PRECAUTIONS ........................................................ 21
Precautions for Liquid Gasket ................................ 21
LIQUID GASKET APPLICATION PROCEDURE ... 21
PREPARATION ......................................................... 22
Special Service Tools ............................................. 22
Commercial Service Tools ...................................... 22
LUBRICATION SYSTEM .......................................... 23
Lubrication Circuit ................................................... 23
System Drawing ..................................................... 24
ENGINE OIL .............................................................. 25
Inspection ............................................................... 25
ENGINE OIL LEVEL ............................................ 25
ENGINE OIL APPEARANCE .............................. 25
ENGINE OIL LEAKAGE ...................................... 25
OIL PRESSURE CHECK .................................... 25
Changing Engine Oil ............................................... 26
OIL FILTER ............................................................... 28
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28
INSPECTION AFTER INSTALLATION ................ 28
