Diagnostic ProcedureABS00C7M
1. CHECK PCV HOSE CONNECTION
Confirm that PCV hose is connected correctly.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK INTAKE AIR LEAK
1. Start engine and let it idle.
2. Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Discover air leak location and repair.
3. REPLACE ECM
1. Stop engine.
2. Replace ECM.
3. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-208, "
ECM
Re-communicating Function" .
4. Perform EC-698, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-698, "
Throttle Valve Closed Position Learning" .
6. Perform EC-698, "
Idle Air Volume Learning" .
>>INSPECTION END

EC-1052
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P0550 PSP SENSORPFP:49763
Component DescriptionABS00C7N
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeABS00C7O
Specification data are reference values.
On Board Diagnosis LogicABS00C7P
The MIL will not light up for this diagnosis.
NOTE:
If DTC P0550 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to
EC-1156
.
DTC Confirmation ProcedureABS00C7Q
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1054, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1484E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel is in neutral position
(Forward direction)OFF
Steering wheel is turned ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550Power steering pres-
sure sensor circuitAn excessively low or high voltage from the
sensor is sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted)

Power steering pressure sensor
SEF058Y

DTC P0550 PSP SENSOR
EC-1053
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

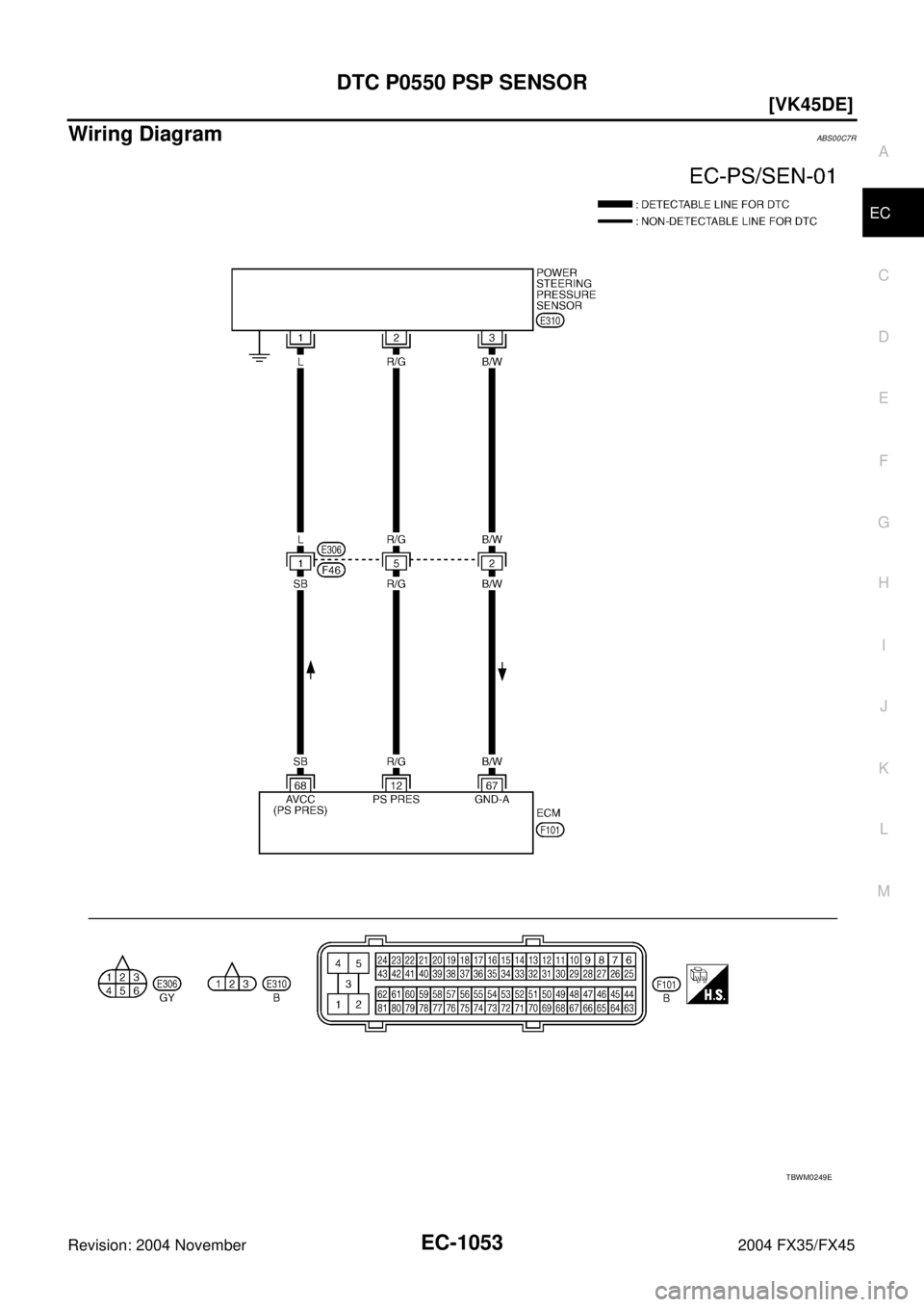

Wiring DiagramABS00C7R
TBWM0249E

EC-1054
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00C7S
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-791, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
12 R/GPower steering pressure
sensor[Engine is running]

Steering wheel is being turned0.5 - 4.5V
[Engine is running]

Steering wheel is not being turned0.4 - 0.8V
67 B/WSensor ground
(Mass air flow sensor / IAT
sensor / Power steering
pressure sensor / EVAP
control system pressure
sensor / Refrigerant pres-
sure sensor / ECT sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
68 SBSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V
PBIB2195E

DTC P0550 PSP SENSOR
EC-1055
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between PSP sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E306, F46

Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to power in harness or connectors.
4. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E306, F46

Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to ground short to power in harness or connectors.
PBIB1484E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.

EC-1056
[VK45DE]
DTC P0550 PSP SENSOR
Revision: 2004 November 2004 FX35/FX45
6. CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E306, F46

Harness for open or short between power steering pressure sensor and ECM
>> Repair open circuit or short to power in harness or connectors.
8. CHECK PSP SENSOR
Refer to EC-1056, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace PSP sensor.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionABS00C7T
POWER STEERING PRESSURE SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and let it idle.
3. Check voltage between ECM terminal 12 and ground under the
following conditions.
Removal and InstallationABS00C7U
POWER STEERING PRESSURE SENSOR
Refer to PS-41, "HYDRAULIC LINE" . Continuity should exist.
Condition Voltage
Steering wheel is being turned. 0.5 - 4.5V
Steering wheel is not being turned. 0.4 - 0.8V
MBIB0126E

EC-1064
[VK45DE]
DTC P1102 MAF SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P1102 MAF SENSORPFP:22680
Component DescriptionABS00C84
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. It consists of a hot film that is supplied with electric current from
the ECM. The temperature of the hot film is controlled by the ECM a
certain amount. The heat generated by the hot film is reduced as the
intake air flows around it. The more air, the greater the heat loss.
Therefore, the ECM must supply more electric current to maintain
the temperature of the hot film as air flow increases. The ECM
detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor ModeABS00C85
Specification data are reference values.
On Board Diagnosis LogicABS00C86
These self-diagnoses have the one trip detection logic.
NOTE:
If DTC P1102 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to
EC-1156
.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
SEC266C
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1 See EC-780, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
CAL/LD VALUE

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N

No loadIdle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1102
11 0 2Mass air flow sensor
circuit range / per-
formance problemA voltage form the sensor is constantly approxi-
mately 1.0V when engine running.

Harness or connectors
(The sensor circuit is open or shorted.)

Mass air flow sensor
Detected items Engine operating condition in fail-safe mode
Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.

DTC P1102 MAF SENSOR
EC-1065
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00C87
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and wait at least 5 seconds.
4. If DTC is detected, go to EC-1067, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
