6DO-IT-YOURSELF MAINTENANCE
27
HGK824

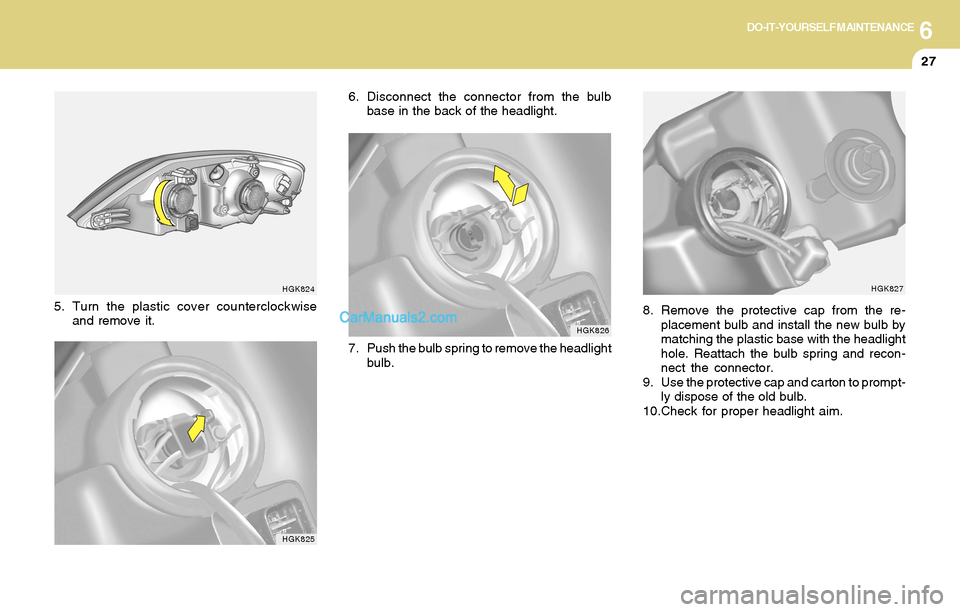

5. Turn the plastic cover counterclockwise
and remove it.
HGK825
6. Disconnect the connector from the bulb
base in the back of the headlight.
HGK826
7. Push the bulb spring to remove the headlight
bulb.
8. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.
9. Use the protective cap and carton to prompt-
ly dispose of the old bulb.
10.Check for proper headlight aim.
HGK827

6DO-IT-YOURSELF MAINTENANCE
28
!WARNING:This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care.
HGK836G270A03O
11.To replace the front turn signal light bulb,
remove from the bulb holder and install the
new bulb.
G270B01GK-GAT
Rear Combination Light
(Without woofer speaker)
1. Open the tail gate.
HGK837
(1)
(2)
(3) (4)

6DO-IT-YOURSELF MAINTENANCE
29
HGK845

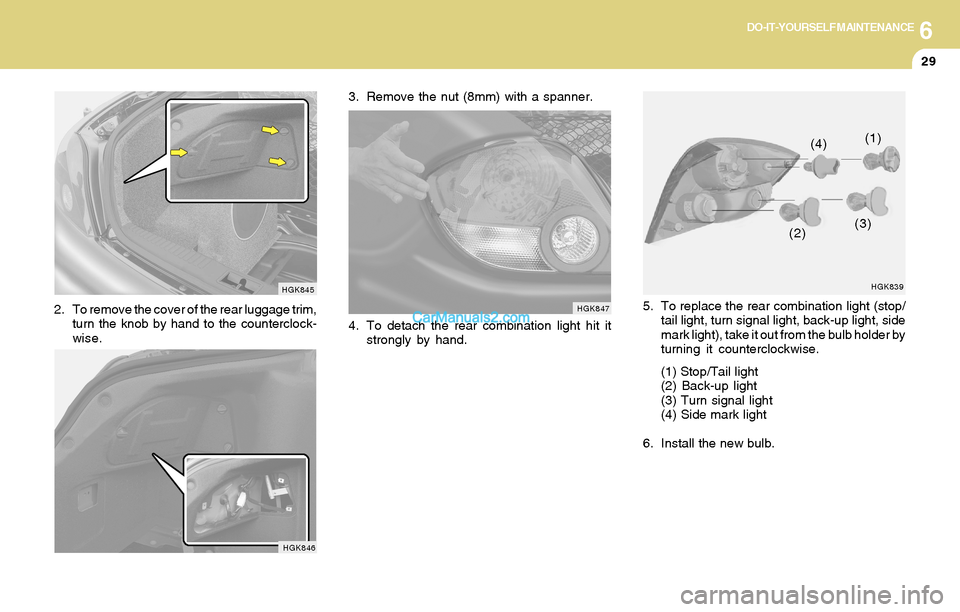

2. To remove the cover of the rear luggage trim,
turn the knob by hand to the counterclock-
wise.3. Remove the nut (8mm) with a spanner.
HGK846
4. To detach the rear combination light hit it
strongly by hand.5. To replace the rear combination light (stop/
tail light, turn signal light, back-up light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
6. Install the new bulb.
HGK839
(1)
(2)(3) (4)
HGK847

6DO-IT-YOURSELF MAINTENANCE
30

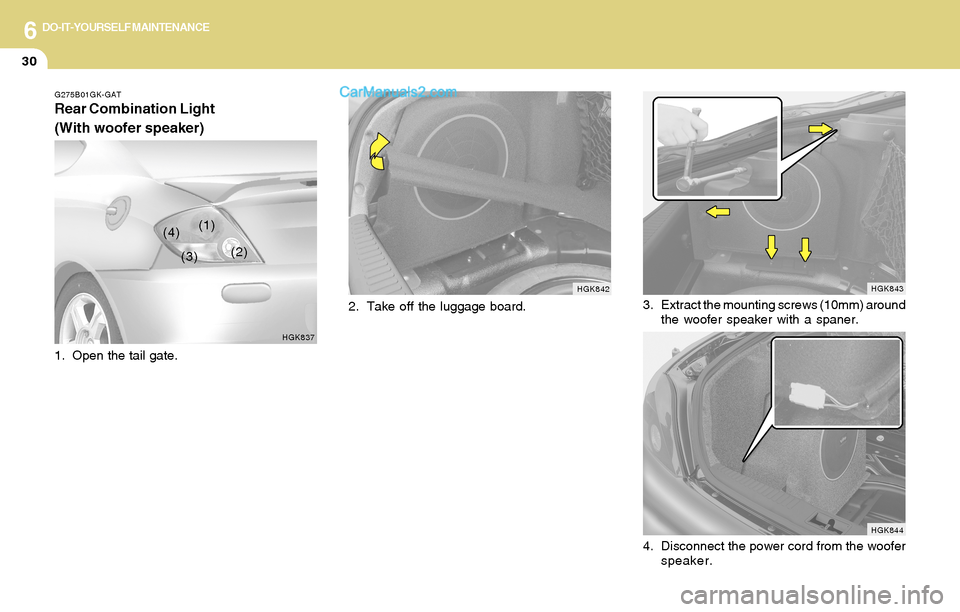

2. Take off the luggage board.
HGK843
HGK844
3. Extract the mounting screws (10mm) around
the woofer speaker with a spaner.
4. Disconnect the power cord from the woofer
speaker.
HGK842 G275B01GK-GAT
Rear Combination Light
(With woofer speaker)
HGK837
(1)
(2)
(3) (4)
1. Open the tail gate.

6DO-IT-YOURSELF MAINTENANCE
31
HGK839
(1)
(2)(3) (4)
8. To replace the rear combination light (stop/
tail light, turn signal light, back-up light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
9. Install the new bulb.

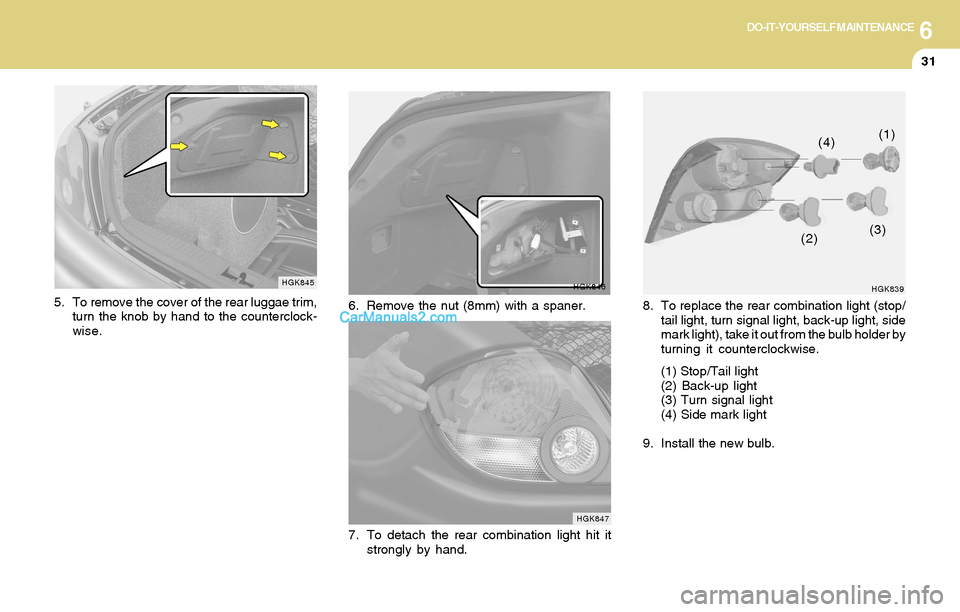

HGK845
5. To remove the cover of the rear luggae trim,
turn the knob by hand to the counterclock-
wise.
HGK846
6. Remove the nut (8mm) with a spaner.
HGK847
7. To detach the rear combination light hit it
strongly by hand.

6DO-IT-YOURSELF MAINTENANCE
32
3. Disconnect the power cord.
G270G01GK-AAT
Map Light
HGK828

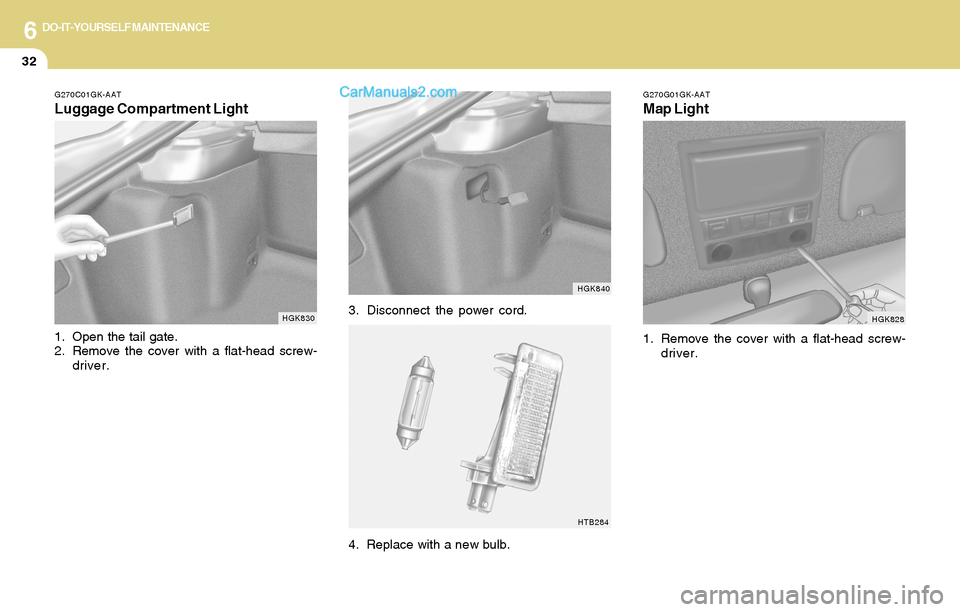

1. Remove the cover with a flat-head screw-
driver.
HGK840
HTB284
4. Replace with a new bulb.
G270C01GK-AAT
Luggage Compartment Light
1. Open the tail gate.
2. Remove the cover with a flat-head screw-
driver.
HGK830

6DO-IT-YOURSELF MAINTENANCE
33
HGK251

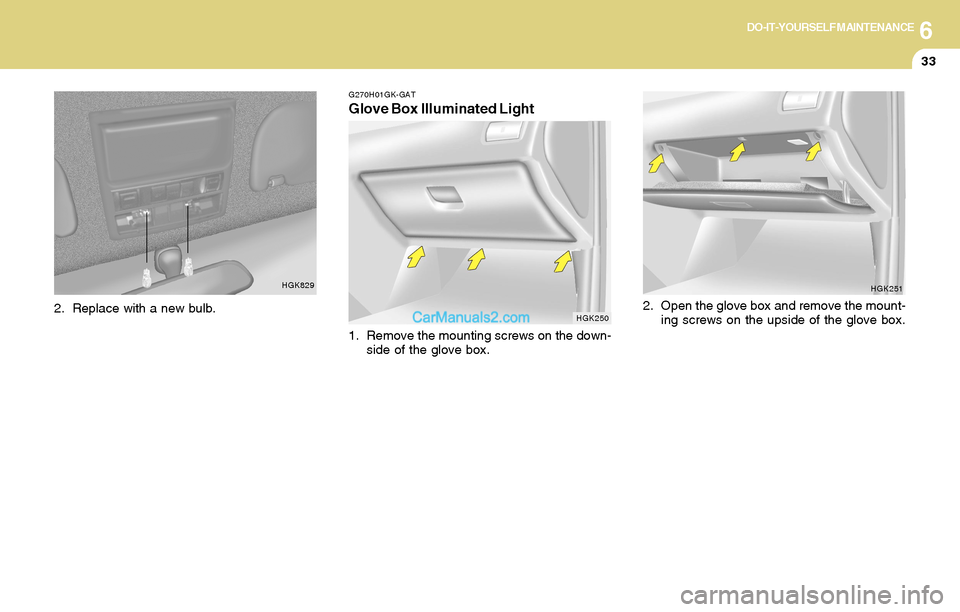

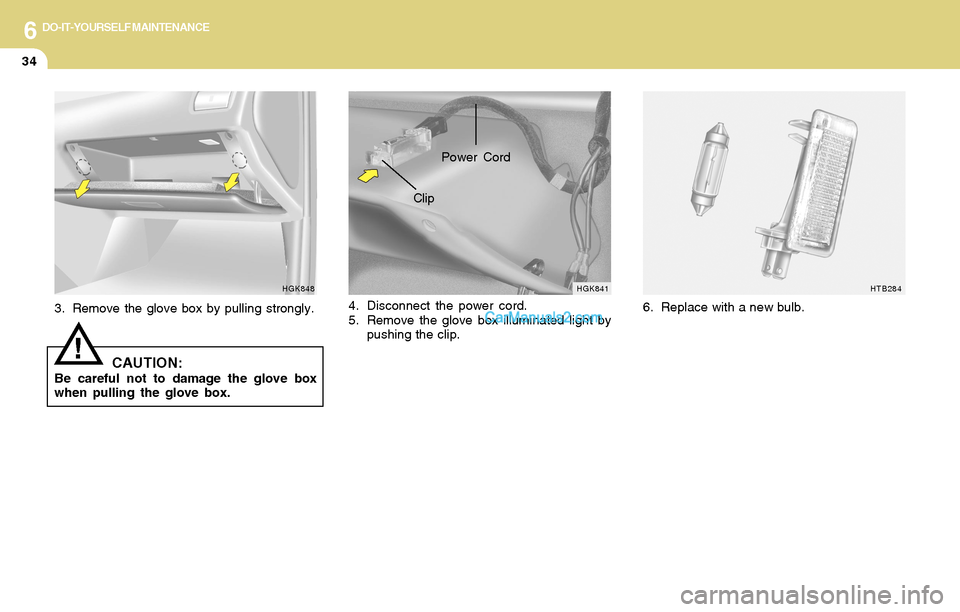

2. Open the glove box and remove the mount-
ing screws on the upside of the glove box.
HGK829
2. Replace with a new bulb.
G270H01GK-GAT
Glove Box Illuminated Light
1. Remove the mounting screws on the down-
side of the glove box.
HGK250

6DO-IT-YOURSELF MAINTENANCE
34
HTB284HGK841
ClipPower Cord
4. Disconnect the power cord.
5. Remove the glove box illuminated light by
pushing the clip. 3. Remove the glove box by pulling strongly.
CAUTION:Be careful not to damage the glove box
when pulling the glove box.
!
6. Replace with a new bulb.
HGK848
