YOUR VEHICLE AT A GLANCE
1. Hood Release Lever
2. Instrument Panel Junction box
3. Multi-Function Light/Front Fog Light Switch
(If installed)
4. Steering Wheel Tilt Lever
5. Horn and Driver Airbag (If installed)
6. Windshield Wiper/Washer Switch
7. Hazard Warning Switch
8. Digital Clock
9. Audio System
10.Heating and Cooling Controls11.Passenger Air Bag (If installed)
12.Glove Box
13.Traction Control System (If installed)
14.Panel Brightness Control Knob (Rheostat Switch)
15.Cruise Control Switch (If installed)
16.Power Outlet
17.Ashtray
18.Cigarette Lighter
19.Shift Lever
20.Parking Brake Lever
21.Cup Holder
22.Center Console
CAUTION:When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor
on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (Instrument
cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does
leak onto these areas, wash them with water immediately.
!
NOTE:Switch arrangements from No. 13 to No. 15 can be changed according to options.

YOUR VEHICLE AT A GLANCE
B255A01Y-AAT
INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
* A detail explanations of these items will be found on page 1-35
SRS (Airbag) Service Reminder
Indicator
Turn Signal Indicator Lights
High Beam Indicator Light
Oil Pressure Warning Light
Parking Brake/Brake Level
Warning Light
Charging System Warning Light
Trunk Lid Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light
Malfunction Indicator Light
Seat Belt Reminder Light
Traction Control Indicator Light
Cruise Indicator
ABS Service Reminder Indicator
Front Fog Lamp Indicator Light

1.FEA 1.FEA1.FEA 1.FEA
1.FEA
TURES OF TURES OF TURES OF TURES OF
TURES OF
Y YY Y
Y
OUR HYUND OUR HYUNDOUR HYUND OUR HYUND
OUR HYUND
AI AIAI AI
AI

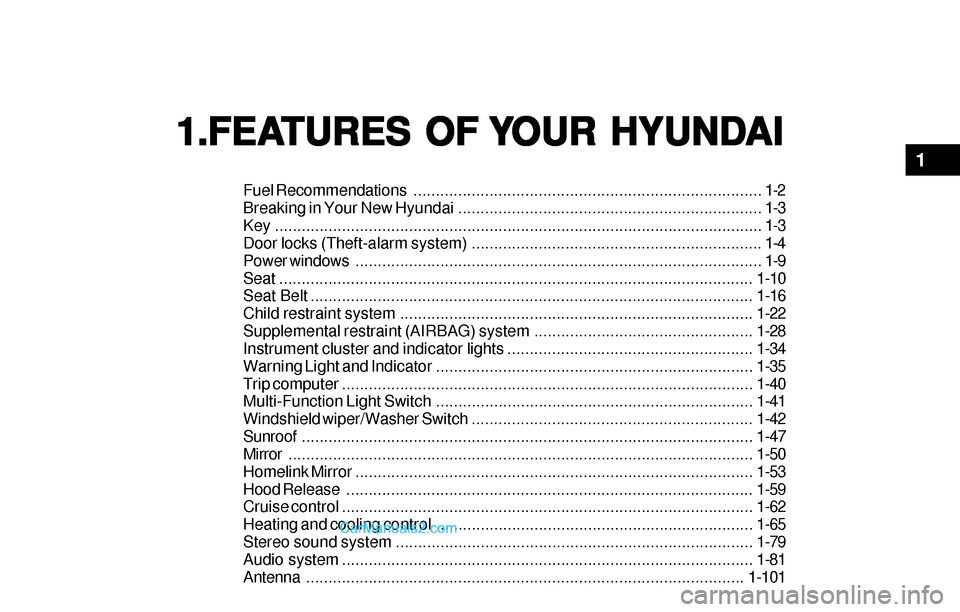

Fuel Recommendations.............................................................................. 1-2
Breaking in Your New Hyundai.................................................................... 1-3
Key ............................................................................................................. 1-3
Door locks (Theft-alarm system) ................................................................. 1-4
Power windows........................................................................................... 1-9
Seat..........................................................................................................1-10
Seat Belt...................................................................................................1-16
Child restraint system ...............................................................................1-22
Supplemental restraint (AIRBAG) system .................................................1-28
Instrument cluster and indicator lights.......................................................1-34
Warning Light and Indicator.......................................................................1-35
Trip computer............................................................................................1-40
Multi-Function Light Switch .......................................................................1-41
Windshield wiper/Washer Switch...............................................................1-42
Sunroof.....................................................................................................1-47
Mirror........................................................................................................1-50
Homelink Mirror.........................................................................................1-53
Hood Release...........................................................................................1-59
Cruise control............................................................................................1-62
Heating and cooling control .......................................................................1-65
Stereo sound system ................................................................................1-79
Audio system............................................................................................1-81
Antenna..................................................................................................1-101
1

1- 2 FEATURES OF YOUR HYUNDAI
CAUTION:Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuel
system and any performance problems that
are caused by the use of fuels containing
methanol or fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol. (Oxy-
gen Content 2.7% weight.)B010B01A-AATWhat About Gasohol?
Gasohol (a mixture of 90% unleaded gasoline
and 10% ethanol or grain alcohol) may be used
in your Hyundai. However, if your engine devel-
ops driveability problems, the use of 100%
unleaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.
B010A02A-AATFUEL RECOMMENDATIONS
Use Unleaded Gasoline
Unleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number 91)
or higher must be used in your Hyundai.
If leaded gasoline is used, it will cause the
catalytic converter to become ineffective and
the emission control system to malfunction.
This can also result in increased maintenance
expense.
To avoid accidental use of leaded fuel, the larger
nozzle used with leaded gasoline at service
stations cannot be inserted into the fuel tank
opening of your Hyundai.
B010C01A-AAT
Use of MTBE
Hyundai recommends that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight) should not
be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per-
formance and produce vapor lock or hard
starting.
B010D01A-AATDo Not Use Methanol
Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel
can reduce vehicle performance and damage
components of the fuel system.
B010E01A-AATGasolines for Cleaner AirTo help contribute to cleaner air, Hyundai rec-
ommends that you use gasolines treated with
detergent additives, which help prevent deposit
formation in the engine. These gasolines will
help the engine run cleaner and the Emission
Control System performance.
!
CAUTION:o Do not "TOP-OFF" after the first nozzle
shut off when refueling.
o The fuel cap must be tightened at least
3 clicks, otherwise " " light may
illuminate.
B010A03Y-1
UNLEADED
FUEL ONLY
!

1- 4 FEATURES OF YOUR HYUNDAI
!
B030C01Y-AATILLUMINATED IGNITION SWITCH
(If installed)B040A01A-AATDOOR LOCKSB040B01A-AATLocking and unlocking front doors with a
key
Whenever a door is opened, the ignition switch
will be illuminated for your convenience, pro-
vided the ignition switch is not in the "ON"
position.
The light will go off approximately 10 seconds
after closing the door or when the ignition switch
is turned on.
B030C01L
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning the
key toward the rear.
NOTE:The driver's door can be unlocked by turn-
ing the key once toward the rear. If you wish
to unlock all doors, turn the key again
toward the rear within 4 seconds.
B040B01Y
LOCKUNLOCK
WARNING:o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be opened from
the inside. This helps assure that doors
will not be opened accidentally. Also,
when combined with the proper use of
seat belts, locking the doors helps keep
occupants from being ejected from the
car in case of an accident.
o Before opening the door, always look for
and avoid oncoming traffic.

FEATURES OF YOUR HYUNDAI 1- 5

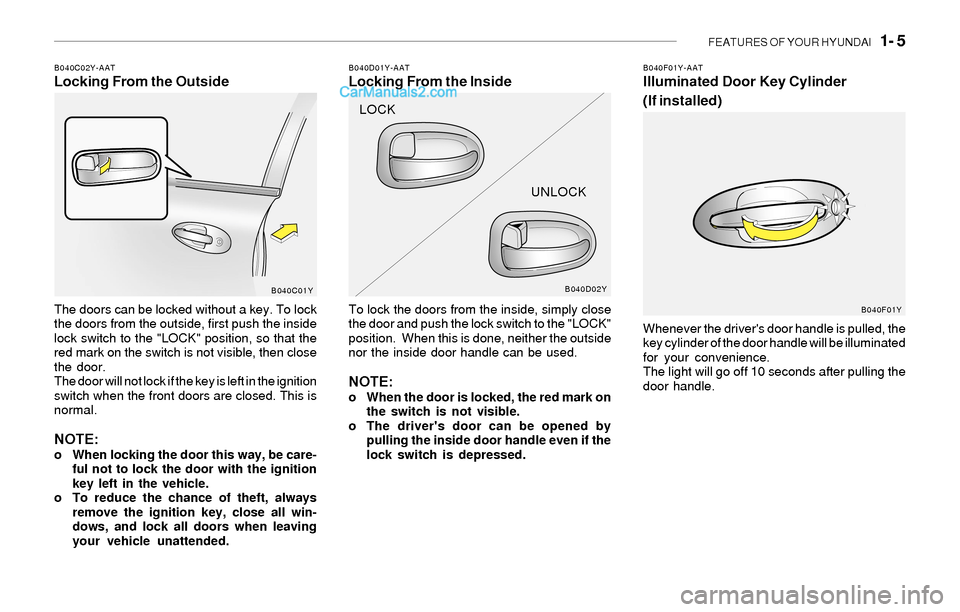

B040C02Y-AATLocking From the Outside
The doors can be locked without a key. To lock
the doors from the outside, first push the inside
lock switch to the "LOCK" position, so that the
red mark on the switch is not visible, then close
the door.
The door will not lock if the key is left in the ignition
switch when the front doors are closed. This is
normal.
NOTE:o When locking the door this way, be care-
ful not to lock the door with the ignition
key left in the vehicle.
o To reduce the chance of theft, always
remove the ignition key, close all win-
dows, and lock all doors when leaving
your vehicle unattended.
B040D01Y-AATLocking From the Inside
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the inside door handle can be used.
NOTE:o When the door is locked, the red mark on
the switch is not visible.
o The driver's door can be opened by
pulling the inside door handle even if the
lock switch is depressed.
B040F01Y-AATIlluminated Door Key Cylinder
(If installed)
Whenever the driver's door handle is pulled, the
key cylinder of the door handle will be illuminated
for your convenience.
The light will go off 10 seconds after pulling the
door handle.
B040D02Y
B040F01Y B040C01Y
LOCK
UNLOCK

1- 6 FEATURES OF YOUR HYUNDAI
B070A01S-AATTHEFT-ALARM SYSTEM
(If installed)
This system is designed to provide protection
from unauthorized entry into the car. This sys-
tem is operated in three stages : the first is the
"Armed" stage, the second is the "Alarm" stage,
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal lights.
B040G01Y-AATCentral Door Locks
The central door locking switch is located on the
driver's arm rest. It is operated by depressing
the door lock switch. If any door is open when
the switch is depressed, the door will remain
locked when closed.
NOTE:o When pushing the front portion of the
driver's door lock switch, all vehicle doors
will lock.
o When pushing the rear portion of the
switch, all vehicle doors will unlock.
B040E03A-AATCHILD-PROTECTOR REAR DOOR LOCK
Your Hyundai is equipped with a "child-protec-
tor" rear door lock assembly. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. It's use is recommend-
ed whenever there are small children in the rear
seat.
To engage the child-protector feature so that
the door cannot be opened from the inside,
move the child-protector lever to the " " position
and close the door. Move the lever to the
opposite direction of " " position when normal
door operation is desired.
If you wish to be able to open the door from the
outside, the outside door handle will function
normally.
B040G02Y
HEF-131
Lock
Unlock

1- 8 FEATURES OF YOUR HYUNDAI
B070E02HP-GATReplacing the batteryWhen the transmitter's battery begins to get
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a blade
screwdriver as shown in the illustration. If any door, trunk lid or engine hood is not opened
within 30 seconds, the system will be rearmed.NOTE:Once the system has been disarmed, it can
not be rearmed except by repeating the
arming procedures.
CAUTION:Only the transmitter can disarm the armed
stage. If the transmitter does not disarm the
system, it is necessary to take the following
steps;
1. Unlock the door with the key, which will
cause the alarm to be activated.
2. Insert the key in the ignition key cylinder
and turn the ignition key to "ON" posi-
tion.
3. Wait for 30 seconds.
After completing the steps above, the sys-
tem will be disarmed.
Keyless Entry System (If installed)
Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. All doors will lock and the turn signal lamp will
blink once to indicate that the system is
armed.
Unlocking doors1. Push the "UNLOCK" button on the transmit-
ter.
2. All doors will unlock and the turn signal lamp
will blink twice to indicate that the system is
disarmed.
Releasing the trunk lidPush and hold the trunk release button on
transmitter for longer than 1 second.
HEF-192A
!
Screwdriver
