6- 30 DO-IT-YOURSELF MAINTENANCE
G200D02Y-GATInstrument panel junction boxDESCRIPTIONFUSE RATINGPROTECTED COMPONENTS
RR HTD IND 10A Rear window defroster, Outside rear view mirror heater
HAZARD 10AHazard light, Turn signal lights
RR FOG 15A Rear fog light
A/CON 10AAir conditioning system
ETACS 10AETACS, Keyless entry system, Door lock system
DR LOCK 15A Power door lock
P/SEAT 25A Power seat
T/LID OPEN 15A Remote trunk lid
STOP LP 15A Stop lights
H/LP 10AHead light
A/BAG IND 10A Air-bag
T/SIG 10A Turn signal lights
A/CON SW 10A Air conditioning system
ACC SOCKET 15A Power outlet
S/HTR 15A Seat heater
A/BAG 15A Air-bag
B/UP 10A Backup lights
CLUSTER 10A Cluster
START 10AEngine switch
SP1 15A Spare fuse
SP2 15A Spare fuse
P/SEAT (RH) 25A Power Seat
SP4 15A Spare fuse
D/CLOCK 10ADigtal clock
TAIL(LH) 10APosition lights, License plate lights, Tail lights
AUDIO 10AAudio
WIPER 20A Wiper
ROOM LP 10A Dome lights, Front door edge warning lights
TAIL(RH) 10APosition lights, License plate lights, Tail lights
C/LIGHTER 15ACigar lighter
EPS 10A
G200C02Y

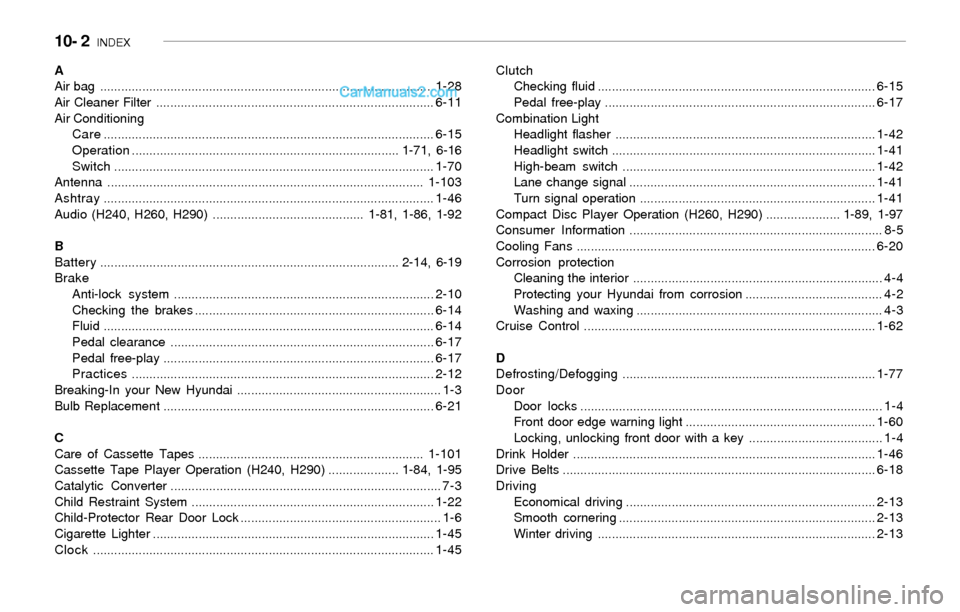

10- 2 INDEX
A
Air bag ...............................................................................................1-28
Air Cleaner Filter ...............................................................................6-11
Air Conditioning
Care..............................................................................................6-15
Operation............................................................................ 1-71, 6-16
Switch...........................................................................................1-70
Antenna..........................................................................................1-103
Ashtray..............................................................................................1-46
Audio (H240, H260, H290)........................................... 1-81, 1-86, 1-92
B
Battery..................................................................................... 2-14, 6-19
Brake
Anti-lock system..........................................................................2-10
Checking the brakes ....................................................................6-14
Fluid ..............................................................................................6-14
Pedal clearance...........................................................................6-17
Pedal free-play.............................................................................6-17
Practices......................................................................................2-12
Breaking-In your New Hyundai .......................................................... 1-3
Bulb Replacement.............................................................................6-21
C
Care of Cassette Tapes ................................................................1-101
Cassette Tape Player Operation (H240, H290) .................... 1-84, 1-95
Catalytic Converter............................................................................. 7-3
Child Restraint System.....................................................................1-22
Child-Protector Rear Door Lock ......................................................... 1-6
Cigarette Lighter................................................................................1-45
Clock .................................................................................................1-45Clutch
Checking fluid...............................................................................6-15
Pedal free-play.............................................................................6-17
Combination Light
Headlight flasher..........................................................................1-42
Headlight switch...........................................................................1-41
High-beam switch........................................................................1-42
Lane change signal ......................................................................1-41
Turn signal operation...................................................................1-41
Compact Disc Player Operation (H260, H290) ..................... 1-89, 1-97
Consumer Information........................................................................ 8-5
Cooling Fans.....................................................................................6-20
Corrosion protection
Cleaning the interior....................................................................... 4-4
Protecting your Hyundai from corrosion....................................... 4-2
Washing and waxing...................................................................... 4-3
Cruise Control...................................................................................1-62
D
Defrosting/Defogging........................................................................1-77
Door
Door locks...................................................................................... 1-4
Front door edge warning light ......................................................1-60
Locking, unlocking front door with a key ...................................... 1-4
Drink Holder ......................................................................................1-46
Drive Belts.........................................................................................6-18
Driving
Economical driving .......................................................................2-13
Smooth cornering.........................................................................2-13
Winter driving...............................................................................2-13

INDEX 10- 3
E
Emission Control System ................................................................... 7-2
Engine
Before starting the engine .............................................................. 2-3
Compartment (2.4 DOHC) ............................................................ 6-2
Compartment (2.7 V6)................................................................... 6-3
Coolant........................................................................................... 6-7
Coolant temperature gauge .........................................................1-38
If the engine overheats .................................................................. 3-3
Number........................................................................................... 8-2
Oil .................................................................................................... 6-5
Starting........................................................................................... 2-4
Engine Exhaust Can Be Dangerous .................................................. 2-2
F
Fan Speed Control............................................................................1-66
Floor Mat Anchor ..............................................................................1-62
Fog Light
Front.............................................................................................1-42
Front Seats
Adjustable front seats ..................................................................1-10
Adjustable headrests...................................................................1-11
Adjusting seat forward and rearward ..........................................1-10
Adjusting seatback angle .............................................................1-11
Fuel
Capacity......................................................................................... 9-2
Gauge...........................................................................................1-38
Unleaded gasoline.......................................................................... 1-2
Fuel Filler Lid
Remote release............................................................................1-58
Fuses ................................................................................................6-18G
General Everyday Checks................................................................. 6-4
Glove Box..........................................................................................1-50
H
Hazard Warning System ..................................................................1-44
Headlight ..................................................................................1-41, 6-21
Heating and Cooling Control
Rotary and push Button type .......................................................1-65
Automatic type.............................................................................1-72
Heating and Ventilation
Air flow control..............................................................................1-68
Temperature control....................................................................1-66
High-Mounted Rear Stop Light .........................................................1-58
Homelink Mirror.................................................................................1-53
Hood Release....................................................................................1-59
Horn...................................................................................................1-60
I
Ignition Switch ...................................................................................... 2-3
Instrument Cluster and Indicator Lights...........................................1-34
Instrument Panel Light Control (Rheostat).......................................1-45
Interior Light.......................................................................................1-49
Intermittent Wiper..............................................................................1-43
J
Jump Starting...................................................................................... 3-2
Junction Box Description..................................................................6-29

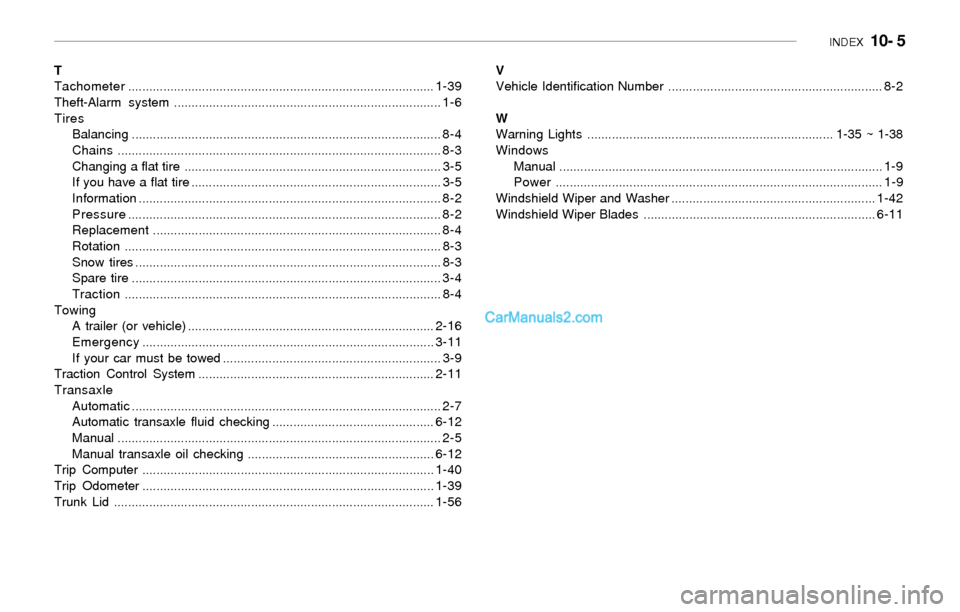

INDEX 10- 5
T
Tachometer.......................................................................................1-39
Theft-Alarm system............................................................................ 1-6
Tires
Balancing........................................................................................ 8-4
Chains............................................................................................ 8-3
Changing a flat tire ......................................................................... 3-5
If you have a flat tire ....................................................................... 3-5
Information...................................................................................... 8-2
Pressure......................................................................................... 8-2
Replacement.................................................................................. 8-4
Rotation.......................................................................................... 8-3
Snow tires....................................................................................... 8-3
Spare tire........................................................................................ 3-4
Traction.......................................................................................... 8-4
Towing
A trailer (or vehicle)......................................................................2-16
Emergency...................................................................................3-11
If your car must be towed .............................................................. 3-9
Traction Control System ...................................................................2-11
Transaxle
Automatic........................................................................................ 2-7
Automatic transaxle fluid checking ..............................................6-12
Manual............................................................................................ 2-5
Manual transaxle oil checking.....................................................6-12
Trip Computer...................................................................................1-40
Trip Odometer...................................................................................1-39
Trunk Lid ...........................................................................................1-56V
Vehicle Identification Number............................................................. 8-2
W
Warning Lights...................................................................... 1-35 ~ 1-38
Windows
Manual............................................................................................ 1-9
Power............................................................................................. 1-9
Windshield Wiper and Washer ..........................................................1-42
Windshield Wiper Blades..................................................................6-11

Seoul KoreaPrinting: FEB. 20, 2004
Publication No.: A38O-EU42P
Printed in Korea
SERVICE STATION INFORMATION
FUEL:
UNLEADED gasoline only
Pump Octane Rating of 87 (Research Octane Number 91) or higher.
FUEL TANK CAPACITY
US.gal (Imp.gal., liter) 17.2 (14.3, 65)
TIRE PRESSURE:
See the label on the driver's side of the center pillar outer panel.
OTHER TIRE INFORMATION:
See pages 8-2 through 8-6
HOOD RELEASE:
Pull handle under left side of dash.
ENGINE OIL:
API grade SH, SG or SG/CD multigrade and fuel efficient oil. Use SAE
10W-30, 10W-40 or 10W-50 if normal temperatures are above -10°F
(-23°C). For other viscosity recommendations, see page 6-5 or 9-4.
MANUAL TRANSAXLE:
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) Oil level
should be up to filler-bolt hole in housing beside differential.
AUTOMATIC TRANSAXLE:
Apply the parking brake, with the engine running, shift the selector
lever through all ranges and return to “N” (Neutral) position. Then
check the level of fluid on the dipstick. Use only HYUNDAI GENU-
INE ATF available at your dealer or DIAMOND ATF SP-III or SK
ATF SP-III.
QUICK INDEX
o Car will not start ....................................................................... 3-2
o Flat tire ..................................................................................... 3-5
o Warning light/chime comes on .............................................. 1-35
o Engine overheats ...................................................................... 3-3
o Towing of your vehicle ............................................................. 3-9
o Starting the engine ................................................................... 2-3
o Driving tips for first 1,200 miles (2,000 km) .......................... 1-3
o Scheduled maintenance ............................................................ 5-4
o Reporting safety defects ........................................................... 8-7
