FEATURES OF YOUR HYUNDAI 1- 9
HTB053
B070F01TB-EAT
Keyless Entry System
(Not all models)
Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal light will blink once to
indicate that the system is armed.
Unlocking doors
1. Push the button on the transmitter.
2. At the same time all doors unlock, the turn signal light will blink twice to
indicate that the system is disarmed. B070E01TB-GAT
Replacing the battery
When the transmitter's battery begins
to get weak, it may take several pushes
on the button to lock or unlock the
doors, and the LED will not light. Re-
place the battery as soon as possible.
Battery type : CR1220
Replacement instructions:
1. Remove the screw with a (+) screw-
driver.
2. Separate the case with a (-) screw- driver as shown in the illustration. 3. Remove four screws back side of the
built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make
sure the polarity of the new battery
is the same (+side facing up), then
insert it in the transmitter.
tbuk-1a.p65 3/23/04, 2:21 PM
9

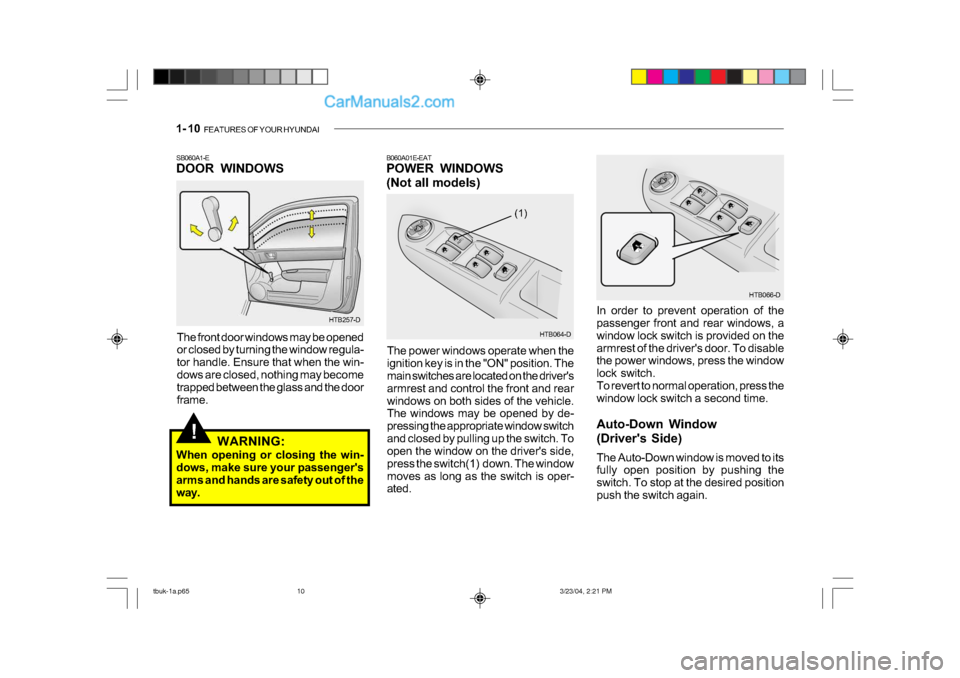

1- 10 FEATURES OF YOUR HYUNDAI
!
HTB257-D
SB060A1-E
DOOR WINDOWS
The front door windows may be opened
or closed by turning the window regula-
tor handle. Ensure that when the win-
dows are closed, nothing may become
trapped between the glass and the door
frame. HTB064-D
(1)
HTB066-D
In order to prevent operation of the
passenger front and rear windows, a
window lock switch is provided on the
armrest of the driver's door. To disable
the power windows, press the window
lock switch.
To revert to normal operation, press the
window lock switch a second time.
Auto-Down Window
(Driver's Side)
The Auto-Down window is moved to its
fully open position by pushing the
switch. To stop at the desired position
push the switch again.
B060A01E-EAT
POWER WINDOWS
(Not all models)
The power windows operate when the
ignition key is in the "ON" position. The
main switches are located on the driver's
armrest and control the front and rear
windows on both sides of the vehicle.
The windows may be opened by de-
pressing the appropriate window switch
and closed by pulling up the switch. To
open the window on the driver's side,
press the switch(1) down. The window
moves as long as the switch is oper-
ated.
WARNING:
When opening or closing the win-
dows, make sure your passenger's
arms and hands are safety out of the
way.
tbuk-1a.p65 3/23/04, 2:21 PM
10

FEATURES OF YOUR HYUNDAI 1- 11
!
HTB024-D
B080A01FC-EAT
SEAT ADJUSTMENT
B080B02FC-EAT
FRONT SEATS
Front Seat Rake Adjustment
The front seat rake adjustment is per-
formed by raising the lever at the front
of the seat base and sliding the seat to
the desired position. At this position the
lever should be released and the seat
rocked to and fro to ensure that the
mechanism has locked.
WARNING:
Front seat adjustments must not be
undertaken whilst the vehicle is in
motion. Loss of control of the ve-
hicle may result if seat adjustments
are made whilst the vehicle is in
motion.
WARNING:
1) Be careful that someone's head, hands and body are not trapped
by a closing window.
2) Never try to operate the main switch on the driver's door and
the individual door window switch
in opposing directions at the same
time. If this is done, the window
will stop and cannot be opened or
closed.
3) Do not leave children alone in the
car. Always remove the ignition
key for their safety.
!
!WARNING:
To ensure the seat is locked se-
curely, attempt to move the seat for-
ward or rearward without using the
lever.
tbuk-1a.p65 3/23/04, 2:21 PM
11

FEATURES OF YOUR HYUNDAI 1- 29
!
o Although it is harmless, the fine
dust may cause skin irritation and
should not be breathed for pro-
longed periods. Wash your hands
and face thoroughly after an acci-
dent in which the pre-tensioner
seat belts were activated. it illuminates whilst the vehicle is
being driven, please have an au-
thorized Hyundai dealer inspect
the pre-tensioner seat belt or SRS
airbag system as soon as pos-
sible.
CAUTION:
o Because the sensor that activates the SRS airbag is connected with
the pre-tensioner seat belt, the SRS
airbag warning light on the
instrument panel will blink for
approximately 6 seconds after the
ignition key has been turned to the
"ON" position and then it should
turn off.
o If the pre-tensioner seat belt is not working properly, this warning
light will illuminate even if there is
no function of the SRS airbag sys-
tem.
If the SRS airbag warning light
does not illuminate when the igni-
tion key is turned to "ON", or if it
remains illuminated after blinking
for approximately 6 seconds, or if WARNING:
o Pre-tensioners are designed to op- erate only one time. After activa-
tion, pre-tensioner seat belts must
be replaced. All seat belts, of any
type, should always be replaced
after they have been worn during a
collision.
o The pre-tensioner seat belt assem-
bly mechanisms become hot dur-
ing activation. Do not touch the
pre-tensioner seat belt assemblies
for several minutes after they have
been activated.
o Do not attempt to inspect or re-
place the pre-tensioner seat belts
yourself. This must be done by an
authorized Hyundai dealer.
o Do not strike the pre-tensioner seat
belt assemblies.
!
!WARNING:
To obtain maximum benefit from a
pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position.
NOTE:
o Both the driver's and front passenger's pre-tensioner seat
belts will be activated in certain
frontal collisions. The pre-
tensioner seat belts can be acti-
vated with the airbags. The pre-
tensioners will be activated under
these conditions even if the seat
belts are not being worn at the
time of the collision.
o When the pre-tensioner seat belts
are activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be vis-
ible in the passenger compart-
ment. These are normal operating
conditions and are not hazard-
ous.
tbuk-1a.p65 3/23/04, 2:22 PM
29

1- 32 FEATURES OF YOUR HYUNDAI
B240B03L-D
The airbag modules are located both in
the centre of the steering wheel and in
the front passenger's panel above the
glove box. When the SRSCM detects a
considerable impact to the front of the
vehicle, it will automatically deploy the
airbags.
Passenger's Airbag
HTB204-D
Upon deployment, tear seams molded
directly into the pad covers will sepa-
rate under pressure from the expansion
of the airbags. Further opening of the
covers then allows full inflation of the
airbags.
A fully inflated airbag in combination
with a properly worn seat belt slows the
driver's or the passenger's forward mo-
tion, thus reducing the risk of head or
chest injury.
The SRS service reminder indicator
(SRI) on the instrument panel will blink
for about 6 seconds after the ignition
key is turned to the "ON" position or
after the engine is started, after which
the SRI should go out.
B240B02L-D
tbuk-1a.p65
3/23/04, 2:22 PM
32

FEATURES OF YOUR HYUNDAI 1- 33
!
!
CAUTION:
When installing a container of liquid
air freshener inside a vehicle, do not
place it near the instrument cluster
nor on the instrument panel pad
surface. If there is any leakage from
the air freshener onto these areas
(instrument cluster, instrument panel
pad or air ventilator), it may damage
these parts. If the liquid from the air
freshener does leak onto these ar-
eas, wash them with water immedi-
ately.
WARNING:
o When the SRS is activated, there may be a loud noise and fine dust
will be released throughout the
vehicle. These conditions are nor-
mal and are not hazardous. How-
ever, the fine dust generated dur-
ing airbag deployment may cause
skin irritation. Be sure to wash
your hands and face thoroughly
with lukewarm water and a mild
soap after an accident in which
the airbags were deployed. o The SRS can function only when
the ignition key is in the "ON"
position. If the SRS SRI does not
come on, or continuously remains
on, after flashing for about 6 sec-
onds when the ignition key is
turned to the "ON" position, or
after the engine is started, or comes
on while driving, the SRS is not
working properly. If this occurs,
have your vehicle immediately
inspected by your Hyundai dealer.
o Before you replace a fuse or dis-
connect a battery terminal, turn
the ignition key to the "LOCK"
position or remove the ignition
key. Never remove or replace the
air bag related fuse(s) when the
ignition key is in the "ON" posi-
tion. Failure to heed this warning
will cause the SRS SRI to illumi-
nate.
B240B05L-D
Passenger's Airbag
!
CAUTION:
Do not install or place any accesso-
ries (drink holder, cassette holder,
sticker, etc) on the front passenger's
panel above the glove box in a ve-
hicle with passenger's side air bag.
Such objects may become danger-
ous projectiles and cause injury if
the passenger's side air bag inflates.
After complete inflation, the airbag im-
mediately starts deflating, enabling the
driver to maintain forward visibility.
tbuk-1a.p65 3/23/04, 2:22 PM
33

FEATURES OF YOUR HYUNDAI 1- 35
!
B240C02L WARNING:
o Do not install a child restraint system in the front passenger
seat position.
A child restraint system must
never be placed in the front seat.
The infant or child could be se-
verely injured by an airbag de-
ployment in case of an accident.
o Extreme Hazard! Do not use a rear-
ward facing restraint on a seat
protected by an airbag in front of
it!
o Modification to SRS components or wiring, including the addition
of any kind of badges to the pad
covers or modifications to the
body structure, can adversely
affect SRS performance and lead
to possible injury.
o For cleaning the airbag pad cov-
ers, use only a soft, dry cloth or
one which has been moistened
with plain water. Solvents or
cleaners could adversely affect the
airbag covers and proper deploy-
ment of the system.
B240C02Y-GAT
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. The entire SRS
system must be inspected by an au-
thorized Hyundai dealer in 10 years
after the date that the vehicle was
manufactured.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel must be
performed by a qualified Hyundai tech-
nician. Improper handling of the SRS
system may result in serious personal
injury.
o Do not place any objects (an um-
brella, bag, etc.) between the front
door and the front seat. Such ob-
jects may become dangerous pro-
jectiles and cause injury if the
supplemental side impact air bag
inflates.
o To prevent unexpected deploy- ment of the side air impact bag
that may result in personal injury,
avoid impact to the side airbag
sensor when the ignition key is
on.
tbuk-1a.p65 3/23/04, 2:22 PM
35

FEATURES OF YOUR HYUNDAI 1- 39
SB210C1-F
SRS (Airbag) SERVICE
REMINDER INDICATOR
The SRS service reminder indicator
(SRI) comes on and flashes for about 6
seconds after the ignition key is turned
to the "ON" position or after the engine
is started, after which it will go out.
This light also comes on when the SRS
is not working properly.
If the SRI does not come on, or continu-
ously remains on after flashing for about
6 seconds when you turned the ignition
key to the "ON" position or started the
engine, or if it comes on while driving,
have the SRS inspected by an autho-
rized Hyundai Dealer. B260P02Y-EAT
ABS SERVICE
REMINDER INDICATOR
(SRI) (Not all models)
When the key is turned to the "ON"
position, the Anti-Lock Brake System
SRI will come on and then go off in a few
seconds. If the ABS SRI remains on,
comes on while driving, or does not
come on when the key is turned to the
"ON" position, this indicates that there
may be a problem with the ABS.
If this occurs, have your vehicle
checked by your Hyundai dealer as
soon as possible. The normal braking
system will still be operational, but
without the assistance of the anti-lock
brake system. SB210E1-E
OVERDRIVE OFF INDI
CATORLIGHT
(Not all models)
When the overdrive (4th gear) switch is
turned off and the operation of overdrive
(4th gear) is cancelled, the overdrive
warning light (O/D OFF) will be illumi-
nated. When the switch is at the on
position, the gearbox will operate in the
normal fully automatic mode and the
warning light will be extinguished.
SB210G1-E TURN SIGNAL
INDICATOR LIGHT
Operation of a turn signal is indicated
by the warning light located in the in-
strument cluster. If the light fails to
illuminate or does not flash, a malfunc-
tion within the turn signal system is
indicated.
! WARNING:
If the both ABS SRI and Parking
Brake/Brake fluid level warning lights
remain "ON" or come on while driv-
ing, there may be a problem with
E.B.D (Electronic brake force distri-
bution).
If this occurs, avoid sudden stops
and have your vehicle checked by
your Hyundai dealer as soon as pos-
sible.
tbuk-1a.p65 3/23/04, 2:22 PM
39
