FEATURES OF YOUR HYUNDAI 1- 35
!
B240C02L WARNING:
o Do not install a child restraint system in the front passenger
seat position.
A child restraint system must
never be placed in the front seat.
The infant or child could be se-
verely injured by an airbag de-
ployment in case of an accident.
o Extreme Hazard! Do not use a rear-
ward facing restraint on a seat
protected by an airbag in front of
it!
o Modification to SRS components or wiring, including the addition
of any kind of badges to the pad
covers or modifications to the
body structure, can adversely
affect SRS performance and lead
to possible injury.
o For cleaning the airbag pad cov-
ers, use only a soft, dry cloth or
one which has been moistened
with plain water. Solvents or
cleaners could adversely affect the
airbag covers and proper deploy-
ment of the system.
B240C02Y-GAT
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. The entire SRS
system must be inspected by an au-
thorized Hyundai dealer in 10 years
after the date that the vehicle was
manufactured.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel must be
performed by a qualified Hyundai tech-
nician. Improper handling of the SRS
system may result in serious personal
injury.
o Do not place any objects (an um-
brella, bag, etc.) between the front
door and the front seat. Such ob-
jects may become dangerous pro-
jectiles and cause injury if the
supplemental side impact air bag
inflates.
o To prevent unexpected deploy- ment of the side air impact bag
that may result in personal injury,
avoid impact to the side airbag
sensor when the ignition key is
on.
tbuk-1a.p65 3/23/04, 2:22 PM
35

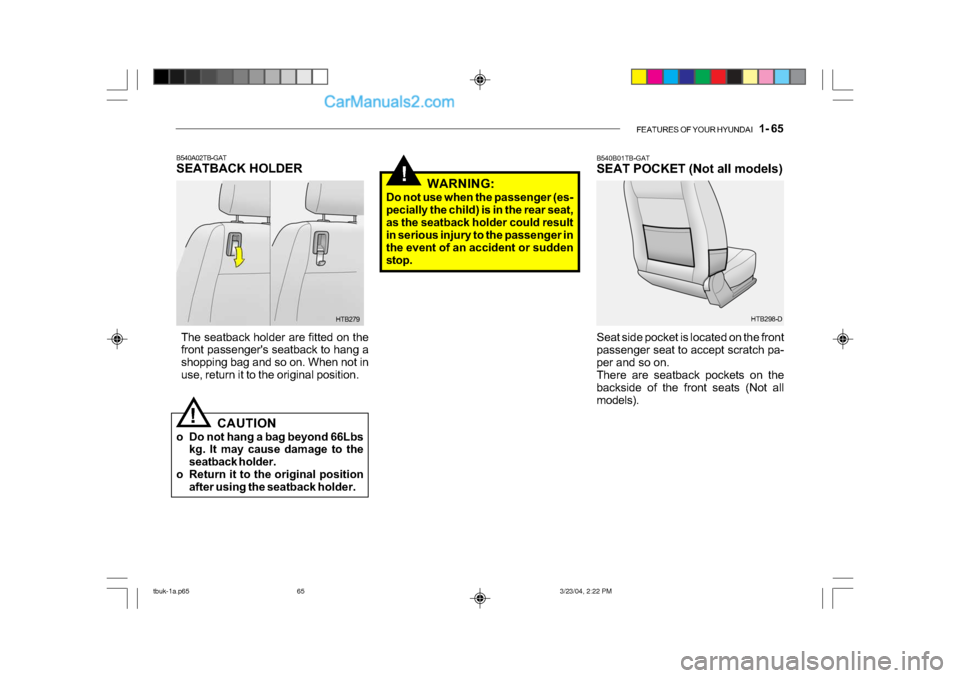

FEATURES OF YOUR HYUNDAI 1- 65
!
B540B01TB-GAT
SEAT POCKET (Not all models)
Seat side pocket is located on the front
passenger seat to accept scratch pa-
per and so on.
There are seatback pockets on the
backside of the front seats (Not all
models). HTB298-D
The seatback holder are fitted on the
front passenger's seatback to hang a
shopping bag and so on. When not in
use, return it to the original position. HTB279
B540A02TB-GAT
SEATBACK HOLDER
! WARNING:
Do not use when the passenger (es-
pecially the child) is in the rear seat,
as the seatback holder could result
in serious injury to the passenger in
the event of an accident or sudden
stop.
CAUTION
o Do not hang a bag beyond 66Lbs kg. It may cause damage to the
seatback holder.
o Return it to the original position after using the seatback holder.
tbuk-1a.p65 3/23/04, 2:22 PM
65
10- 2 INDEX
A
AIR BAG ................................................... ................1-30
AIR CONDITIONING SWI TCH ................................. 1-74
AIR CONDITIONING SYSTEM MAINTENANCE .....6-19
AIR CLEANER FILTER ............................................. 6-14
ANTENNA ................................................... ..............1-84
ANTI-LOCK BRAKE SYSTEM .................................. 2-13
ANTI-THEFT ALARM SYSTEM .................................. 1-7
ASHTRAY ................................................... ..............1-54
AUTO FUEL CUT SWITCH...................................... 1-68
AUTOMATIC TRANSAXLE ......................................... 2-9
AUTOMATIC TRANSAXLE FLUID .......................... .6-16
B
BATTERY MAINTENANCE ......................................6-25
BEFORE STARTING THE ENGINE........................... 2-3
BONNET RELEASE .................................................. 1-62
BRAKE PEDAL FREEPLAY ..................................... 6-22
BRAKE SYSTEM CHECKI NG ..................................6-18
C
CARE OF DI SC ................................................. ........1-82
CARE OF SEAT BELTS ........................................... 1-19
CARGO AREA COVER ............................................ 1-66
CATALYTIC CONVERTOR OPERATING PRECAUTIONS ................................................... ... 7-3
CENTRAL DOOR LOCKS .......................................... 1-5
CHANGING A FLAT TYRE ......................................... 3-6 CHILD-PROOF REAR DOOR LOCK
.......................... 1-5
CHILD RESTRAINT SYST EM ..................................1-22
CIGAR LIGHTER ................................................... ...1-53
CLUTCH PEDAL FREEPLAY ...................................6-22
COMBINATION IGNITION SWITCH AND STEERING LOCK ................................................... 2-3
CONSOLE TRAY ................................................... ...1-54
COOLANT TEMPERATURE GAUGE .......................1-44
D
DAILY OPERATING CHECKS .................................... 6-6
DIGITAL CLOCK ........ ............................................... 1-53
DOOR LOCKS ................................................... ......... 1-5
DOOR WINDOWS ................................................... .1-10
DRINK HOLDER ... ................................................... .1-54
DRIVE BELTS ................................................... ........6-23
DRIVING FOR ECONOMY .......................................2-14
E
EFFECTIVE BRAKING ............................................. 2-13
ELECTRIC COOLING FANS ....................................6-25
EMERGENCY TOWI NG ........................................... 3-12
EMISSION CONTROL SYSTEM ................................ 7-2
ENGINE COM PARTMENT......................................... 6-2
ENGINE COOLANT CHECKING AND REPLACI NG ................................................. ........6-10
ENGINE OIL AND FILTER REPLACEMENT .............. 6-9
ENGINE OIL CO NSUMPTION................................... 6-8
tbuk-10.p65 3/23/04, 4:31 PM
2
