10- 2 INDEX
A Air Bag ...................................................................... 1-34
Air Cleaner Filter ....................................................... 6-17
Air Conditioning
Care ....................................................................... 6-22
Operation ............................................................... 1-82
Switch ..................................................................... 1-81
Air conditioner filter .......................................... 1-83, 6-23 Antenna ................................................................... 1-107
Ashtray ...................................................................... 1-58
Auto Fuel cut Switch................................................ 1-73
B
Battery .............................................................. 2-16, 6-28 Brake Anti-lock system ..................................................... 2-13
Checking the brakes .............................................. 6-21
Fluid ....................................................................... 6-21
Pedal clearance ..................................................... 6-25
Pedal freepl ay ........................................................ 6-25
Practices ................................................................ 2-12
Breaking-In your New Hyundai ................................... 1-3
Bulbs Repl acement ................................................... 6-32
Bulbs wattage ........................................................... 6-37C
Care of Cassette Tapes ....................
..................... 1-119
Cargo area cover ...................................................... 1-70
Cassette Tape Player Operation
(K220, K240, H280, HMP280) . 1-89, 1-94, 1-99, 1-108
Catalytic Converter ..................................................... 7-3
CD Changer operation (HMP280) .......................... 1-115
Child-Protector Rear Door Lock ................................. 1-8
Child Restraint System............................................. 1-26
Cigarette Lighter ....................................................... 1-58
Clock ......................................................................... 1-58
Clutch
Pedal freepl ay ........................................................ 6-24
Combination Ligh
Headlight flasher .................................................... 1-54
Headlight swi tch ..................................................... 1-53
High-beam swi tch .................................................. 1-54
Lane change si gnal ................................................ 1-53
Turn signal oper ation............................................. 1-53
Compact Disc Player Operation (H280, HMP280)
.................................................................. 1-101, 1-111
Console tray .............................................................. 1-59
Cooling Fans ............................................................. 6-29
Corrosion protection
Cleaning the interior ................................................. 4-5
Protecting your Hyundai from corrosion .................. 4-2
Washing and waxing ................................................ 4-3

DRIVING YOUR HYUNDAI 2- 3
!
C020A01O-EAT BEFORE STARTING THE EN- GINE Before you start the engine, you should always:
1. Look around the vehicle to be sure
there are no flat tyres, puddles of oil or water or other indications of pos- sible trouble.
2. After entering the car, check to be
sure the parking brake is engaged.
3. Check that all windows, and lights are clean.
4. Check that the interior and exterior
mirrors are clean and in position.
5. Check your seat, seatback and
headrestraint to be sure they are intheir proper positions.
6. Close all the doors.
7. Fasten your seat belt and be sure
that all other occupants have fas- tened theirs.
8. Turn off all lights and accessories that are not needed.
9. When you turn the ignition switch to "ON" check that all appropriate warn-ing lights are operating and that youhave sufficient fuel. 10.Check the operation of warning
lights and all bulbs when key is inthe "ON" position.
WARNING: (DIESEL ENGINE)
To ensure that sufficient vacuum exists within the brake system dur-ing cold weather start-up condi-tions, it is necessary to run theengine at idle for several seconds after starting the engine. SC040A1-F COMBINATION IGNITION SWITCH AND STEERING LOCK To Start the Engine
o If your Hyundai is equipped with a
manual transaxle, place the shift lever in neutral and depress theclutch pedal fully.
o If your Hyundai has an automatic
transaxle, place the shift lever in "P" (park).
o To start the engine, insert the igni-
tion key and turn it to the "START" position. Release it as soon as theengine starts. Do not hold the key inthe "START" position for more that 15 seconds.
NOTE: For safety, the engine will not start if the shift lever is not in "P" or "N"Position (automatic transaxle).
tbuk-2.p65 3/23/04, 4:55 PM
3

6. Do-It-Yourself MaintenanceEngine compart ment ............................................... ......................... 6-2
Daily operating checks ............................................. ........................ 6-6
Engine oil ......................................... ................................................. 6-6
Engine and filter Replacement ................................................... ...... 6-9
Engine coolant Checking and R eplacing ....................................... 6-10
Spark plug Replacem ent ................................................ ................6-13
Changing the air cleaner filter ................................................... ......6-14
Manual Transaxle Lubri cant ............................................... ............6-15
Automatic Transaxle flui d .................................................. .............6-16
Brake System Checki ng ................................................. ...............6-18
Air conditioning System ............................................. .....................6-19
Drive belts .............................................. ........................................6-23
Individual Circu it Fuses ........................................... .......................6-24
Power steering fluid level ........................................ .......................6-26
Replacing Light Bulbs .............................................. ......................6-28
Fuse panel description ................................................... ................6-34
6
tbuk-6.p65 3/23/04, 4:26 PM
1

6- 28 DO-IT-YOURSELF MAINTENANCE
SPECIFICATIONS:
"H"
Horizontal center line of headlights
from ground.
: 26.8 in.(656 mm)
"W"
Distance between each headlight
center.
: 43.3 in. (1,100 mm)
"L"
Distance between the headlights
and the wall that the lights are tested
against.
: 118 in. (3,000 mm). G270A01TB-EAT
REPLACING LIGHT BULBS
Headlight Bulb
In the event of bulb failure being expe-
rienced, ensure that the relative lighting
circuit is turned off prior to attempting to
replace the bulb. The illustrations on
the following page will assist in locating
and removing the various bulbs. En-
sure that the replacement bulb has the
same cap configuration and wattage as
the original.
!
CAUTION:
Keep the lamps out of contact with
petroleum product, such as oil, gaso-
line, etc.
If the vehicle has had front body repair
and the headlight assembly has been
replaced, the headlight aiming should
be checked using the aiming screen as
shown in the illustration. Turn on the
headlight switch. (Low Beam Position)
1. Adjust headlights so that main axis
of light is parallel to center line of the
body and is aligned with point "P"
shown in the illustration.
2. Dotted lines in the illustration show
the center of headlights.
G290B01TB-EAT
Adjustment After Headlight As-
sembly ReplacementG290B01L
L
W
H
H Cut-off line
Ground
line
"P"
Horizontal line0.59in. (15mm)
1.18 in. (30mm) Vertical line
tbuk-6.p65
3/23/04, 4:27 PM
28

DO-IT-YOURSELF MAINTENANCE 6- 29
!
HTB183
HTB268HTB184
Replacement instructions:
1. Allow the bulb to cool. Wear eye
protection.
2. Always grasp the bulb by its plastic base, avoid touching the glass.
3. Disconnect the power cord from the bulb base in the back of the head-
light.
4. Remove the dust cover. 5. Push the bulb spring for removing
the headlight bulb. 6. Remove the protective cap from the
replacement bulb and install the new
bulb by matching the plastic base
with the headlight hole. Install the
dust cover after retightening the bulb
spring and reconnect the power cord.
7. Use the protective cap and carton to dispose of the old bulb.
8. Check for proper headlight aim.
WARNING
The halogen bulb contains gas un-
der pressure and if impacted could
shatter, resulting in flying fragments.
Always wear eye protection when
servicing the bulb. Protect the bulb
against abrasions or scratches and
against liquids when lighted. Turn
on the bulb only when installed in a
headlight. Replace the headlight if
damaged or cracked. Keep the bulb
out of the reach of children and dis-
pose of the used bulb with care.
tbuk-6.p65 3/23/04, 4:27 PM
29

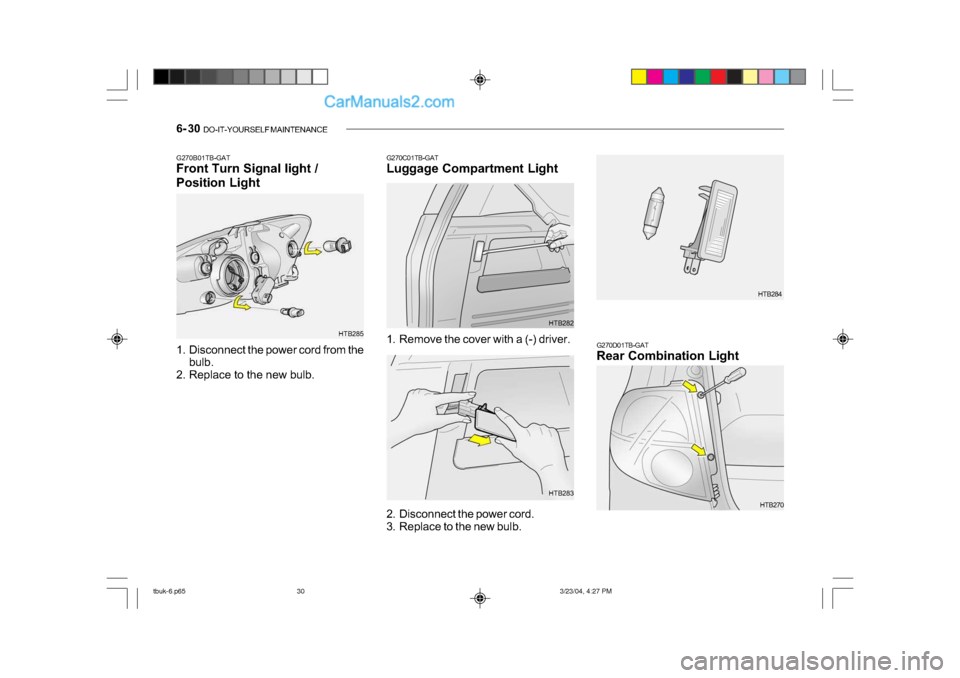

6- 30 DO-IT-YOURSELF MAINTENANCE
G270B01TB-GAT
Front Turn Signal light /
Position Light
1. Disconnect the power cord from the
bulb.
2. Replace to the new bulb. HTB285G270C01TB-GAT
Luggage Compartment Light
HTB282
1. Remove the cover with a (-) driver.
2. Disconnect the power cord.
3. Replace to the new bulb. HTB283
HTB284
G270D01TB-GAT
Rear Combination Light
HTB270
tbuk-6.p65 3/23/04, 4:27 PM
30

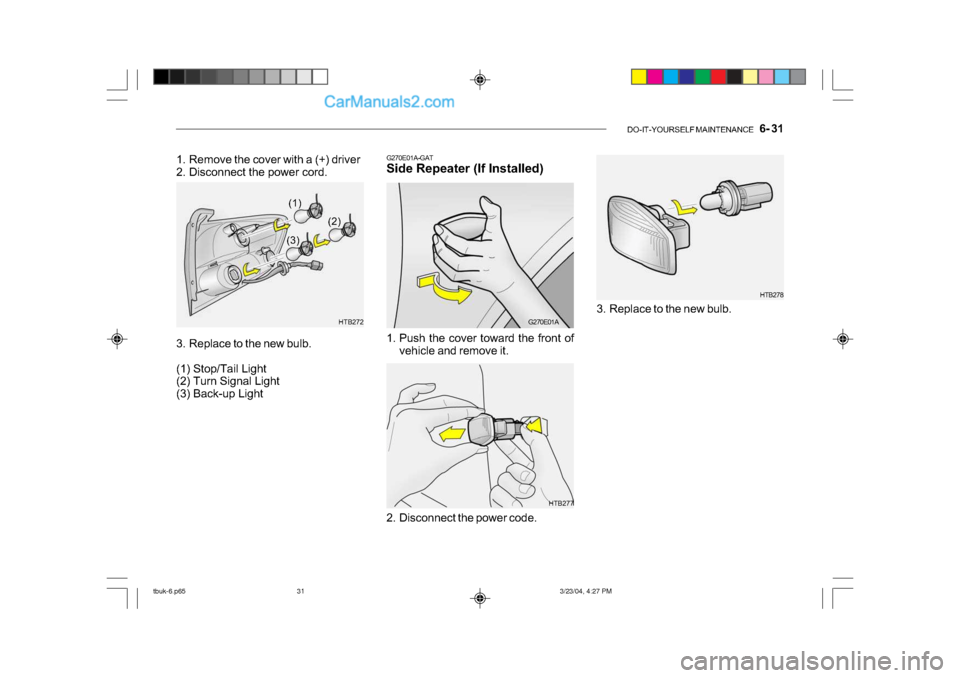

DO-IT-YOURSELF MAINTENANCE 6- 31
HTB278
3. Replace to the new bulb.
HTB277
1. Remove the cover with a (+) driver
2. Disconnect the power cord.
3. Replace to the new bulb.
(1) Stop/Tail Light
(2) Turn Signal Light
(3) Back-up Light HTB272G270E01A-GAT
Side Repeater (If Installed)
(1) (2)
(3)
1. Push the cover toward the front ofvehicle and remove it.
2. Disconnect the power code.
G270E01A
tbuk-6.p65 3/23/04, 4:27 PM
31

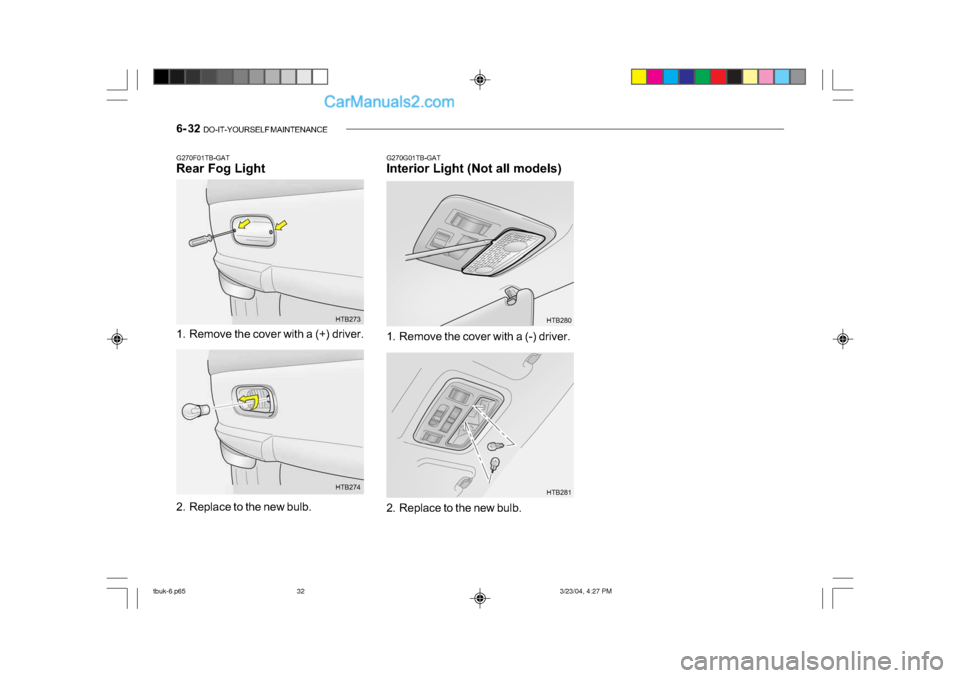

6- 32 DO-IT-YOURSELF MAINTENANCE
G270G01TB-GAT
Interior Light (Not all models)
G270F01TB-GAT
Rear Fog Light
1. Remove the cover with a (+) driver. HTB273
2. Replace to the new bulb. HTB2741. Remove the cover with a (-) driver.
HTB280
2. Replace to the new bulb. HTB281
tbuk-6.p65
3/23/04, 4:27 PM
32
