FEATURES OF YOUR HYUNDAI 1- 15
HTB025
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)
To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward. B130A01A-AAT REAR SEAT ENTRY (For 3-door model) The front passenger seatback should be tilted to enter the rear seat. By pulling up on the recliner controllever (1) at the outside of the front passenger seat, the seatback will tilt forward and the seat will automaticallyslide forward. Rear seat occupants can tilt the front passenger seatback by depressing thefoot lever (2) as shown in the illustra- tion. WARNING:
Passengers sitting in the rear seatshould be careful not to acciden- tally press the foot lever (2) whilethe vehicle is moving, as this may cause the seatback to move for- ward and injure a front seat occu-pant.
HTB258
!
HTB028
Seatback folding lever
B080I01FC-GAT REAR SEAT Adjusting Seatback Angle
(1)
(2)

1- 22 FEATURES OF YOUR HYUNDAI
B180A02A-GAT SEAT BELTS 3-Point System with Emergency Locking Retrac-
tor (If Installed)To Fasten Your Belt
B180A01L
To fasten your seat belt, pull it out of the retractor and insert the metal tabinto the buckle. There will be an au- dible "click" when the tab locks into the buckle.The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fitssnugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. Ifthere is a sudden stop or impact, how- ever, the belt will lock into position. It
B170A04A-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT(If Installed)
B170A01L
You can adjust the height of the shoul- der belt anchor to one of the 4 posi- tions.If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection.The shoulder portion should be adjusted so that it lies across your chest and midway over your shouldernearest the door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height ad-juster into an appropriate position. To raise the height adjuster, pull it up. To lower it, push it down while pressingthe height adjuster button. Release the button to lock the anchorinto position. Try sliding the release button to make sure that it has locked into the position.
WARNING:
o The height adjuster must be in the locked position when thevehicle is moving.
o The misadjustment of height of
the shoulder belt could reduce the effectiveness of the seat belt in a crash.
!

INDEX 10- 3
D Defrosting / Defogging .............................................. 1-80
Door Door locks ................................................................ 1-7
Locking, unlocking front doors with a key ............... 1-7
Drink Holder .............................................................. 1-59
Drive Belts ................................................................ 6-25
Driving
Economical driving ................................................. 2-14
Smooth cornering ................................................... 2-15
Winter driving ......................................................... 2-15
EEmission Control Syst em ........................................... 7-2
Engine Before starting the engine ....................................... 2-3
Compartment ........................................................... 6-2
Coolant ................................................................... 6-13
Coolant temperature gauge ................................... 1-49
If the engine overheats ............................................ 3-4
Number .................................................................... 8-2
Oil ............................................................................. 6-7
Starting ..................................................................... 2-3
Engine Exhaust Can Be Dangerous ........................... 2-2F Fog Light
Front ....................................................................... 1-57
Rear ....................................................................... 1-57
Front Seats Adjustable front seats ............................................ 1-13
Adjustable headrest s .............................................. 1-14
Adjusting seat forward and rear ward..................... 1-13
Adjusting seatback angle .......................................1-13
Lumbar support control .................. ........................ 1-14
Seat cushion height adjustment............................ 1-15
Seat warmer ........................................................... 1-19
Fuel Capacity ................................................................... 9-2
Gauge .................................................................... 1-48
recommendations ..................................................... 1-2
Fuel Filler Lid Remote release ...................................................... 1-68
Fuses ........................................................................ 6-26
Fuse Panel description ............................................. 6-38
G General Checks .......................................................... 6-6
Glove Box ................................................................. 1-63

FEATURES OF YOUR HYUNDAI 1- 11
!
HTB024-D
B080A01FC-EAT
SEAT ADJUSTMENT
B080B02FC-EAT
FRONT SEATS
Front Seat Rake Adjustment
The front seat rake adjustment is per-
formed by raising the lever at the front
of the seat base and sliding the seat to
the desired position. At this position the
lever should be released and the seat
rocked to and fro to ensure that the
mechanism has locked.
WARNING:
Front seat adjustments must not be
undertaken whilst the vehicle is in
motion. Loss of control of the ve-
hicle may result if seat adjustments
are made whilst the vehicle is in
motion.
WARNING:
1) Be careful that someone's head, hands and body are not trapped
by a closing window.
2) Never try to operate the main switch on the driver's door and
the individual door window switch
in opposing directions at the same
time. If this is done, the window
will stop and cannot be opened or
closed.
3) Do not leave children alone in the
car. Always remove the ignition
key for their safety.
!
!WARNING:
To ensure the seat is locked se-
curely, attempt to move the seat for-
ward or rearward without using the
lever.
tbuk-1a.p65 3/23/04, 2:21 PM
11

1- 12 FEATURES OF YOUR HYUNDAI
HFC2028
Lock knob
SB070D2-E
Head Restraint Adjustment
To raise the head restraint, pull it up. To
lower it, push it down while pressing the
lock knob. For maximum effectiveness
in the event of an accident, the restraint
must be adjusted so that the restraint is
approximately at the level of the seat
occupant's ears. The restraint must
never be so adjusted that it is centred
about the level of the seat occupant's
neck.SB070C1-E
Front Seat Recline Adjustment
HTB026-D
The front seat back recline angle may
be adjusted by leaning forward slightly
and raising the recline adjustment lever
at the side of the seat. When the
seatback is at the desired angle, the
lever should be released. Ensure that
the seatback is locked before driving
the vehicle.
!WARNING:
To minimize risk of severe injury in
the event of a collision or a sudden
stop, both the driver and passenger
seatbacks should always be in an
upright position while the vehicle is
in motion. The protection provided
by the seat belts and airbags in a
frontal collision may be reduced sig-
nificantly when the seatbacks are
reclined. There is greater risk that
the driver and passenger will slide
under the seat belt which may result
in serious injury if a crash occurs
when the seatbacks are reclined. The
seat belt cannot provide full protec-
tion to an occupant if the seatback is
reclined.
tbuk-1a.p65 3/23/04, 2:21 PM
12

FEATURES OF YOUR HYUNDAI 1- 13
HTB025-D
SB070F1-F
Seat Cushion Height Adjustment
(Not all models) (Driver's seat
only)
To raise or lower the front part of the
seat cushion, turn the front knob for-
ward or rearward.
To raise or lower the rear part of the seat
cushion, turn the rear knob forward or
rearward.HTB027-D
SB070E1-E
Lumbar Support Adjustment
(Not all models) (Driver's seat
only)
Some models are fitted with adjustable
driver seat lumbar support which may
be used to increase the amount of
lumbar support offered by the seat back.
Adjustment is performed by moving the
handle at the side of the backrest in a
forward direction to increase the sup-
port.
!WARNING:
o For maximum effectiveness in case of an accident, the headrest should
be adjusted so the top of the head-
rest is at the same height as the
top of the occupant's ears. The
use of a cushion that holds the
body away from the seatback is
not recommended.
o Do not operate the vehicle with the headrests removed as severe in-
jury to an occupant may occur in
the event of an accident. Head-
rests may provide protection
against severe neck injuries when
properly adjusted.
tbuk-1a.p65 3/23/04, 2:21 PM
13

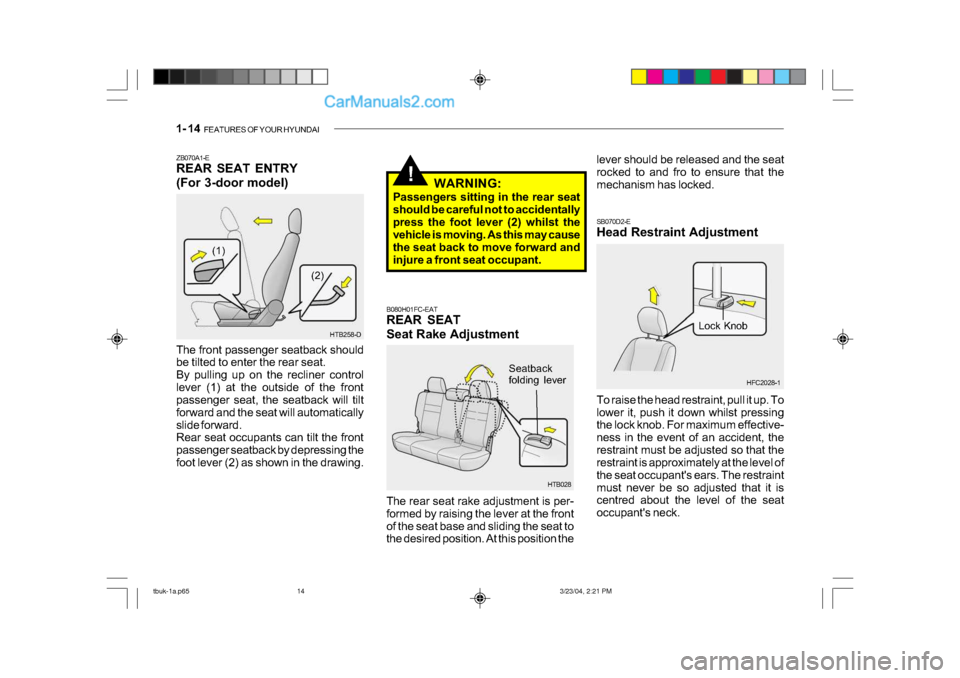

1- 14 FEATURES OF YOUR HYUNDAI
Lock Knob
SB070D2-E
Head Restraint Adjustment
To raise the head restraint, pull it up. To
lower it, push it down whilst pressing
the lock knob. For maximum effective-
ness in the event of an accident, the
restraint must be adjusted so that the
restraint is approximately at the level of
the seat occupant's ears. The restraint
must never be so adjusted that it is
centred about the level of the seat
occupant's neck. HFC2028-1
ZB070A1-E
REAR SEAT ENTRY
(For 3-door model)
The front passenger seatback should
be tilted to enter the rear seat.
By pulling up on the recliner control
lever (1) at the outside of the front
passenger seat, the seatback will tilt
forward and the seat will automatically
slide forward.
Rear seat occupants can tilt the front
passenger seatback by depressing the
foot lever (2) as shown in the drawing. B080H01FC-EAT
REAR SEAT
Seat Rake Adjustment
HTB258-D
(1)
(2)
The rear seat rake adjustment is per-
formed by raising the lever at the front
of the seat base and sliding the seat to
the desired position. At this position the HTB028
Seatback
folding lever
!WARNING:
Passengers sitting in the rear seat
should be careful not to accidentally
press the foot lever (2) whilst the
vehicle is moving. As this may cause
the seat back to move forward and
injure a front seat occupant. lever should be released and the seat
rocked to and fro to ensure that the
mechanism has locked.
tbuk-1a.p65
3/23/04, 2:21 PM
14

FEATURES OF YOUR HYUNDAI 1- 19
!
B170A01L
SB090K1-E
Replacement of Seat Belts
The entire seat belt assembly or as-
semblies should be replaced if the ve-
hicle has been involved in an accident
even if no damage is evident. Addi-
tional questions concerning seat belt
operation should be directed to a Hyundai
Dealer.
B170A04A-EAT
HEIGHT ADJUSTABLE FRONT
SEAT SHOULDER BELT
(Not all models)
You can adjust the height of the shoul-
der belt anchor to one of the 4 positions.
If the height of the adjusting seat belt is
too near your neck, you will not be
getting the most effective protection.
The shoulder portion should be ad-
justed so that it lies across your chest
and midway over your shoulder nearest
the door and not your neck.
To adjust the height of the seat belt
anchor, lower or raise the height ad-
juster into an appropriate position. To
raise the height adjuster, pull it up. To
lower it, push it down while pressing the
height adjuster button.
Release the button to lock the anchor
into position. Try sliding the release
button to make sure that it has locked
into the position.
WARNING:
o The height adjuster must be in the locked position when the vehicle
is moving.
o The misadjustment of height of the shoulder belt could reduce the
effectiveness of the seat belt in a
crash.
SB090H1-E
CARE OF SEAT BELTS
Seat belt assemblies must never be
disassembled or modified in any way.
In addition, care should be exercised to
ensure that the belt assemblies do not
become damaged by being trapped in
seat mechanisms, door shuts etc.
SB090I-E
Periodic Inspection
It is recommended that all seat belts be
inspected periodically for wear or dam-
age of any kind. Parts of the system
that are damaged should be replaced
as soon as possible. Under no circum-
stances must any part of the seat belt
assemblies be dismantled or repaired.
SB090J1-E
Keep Belts Clean and Dry
Seat belts should be kept clean and
dry. If belts become dirty, they can be
cleaned using a mild soap solution and
warm water. Bleach, dye, strong deter-
gents or abrasives should not be used
since the fabric may become damaged
and weakened.
tbuk-1a.p65
3/23/04, 2:21 PM
19
