2004 Hyundai Getz light

DO-IT-YOURSELF MAINTENANCE 6- 29
!
HTB183
HTB268HTB184
Replacement instructions:
1. Allow the bulb to cool. Wear eye
protection.
2. Always grasp the bulb by its plastic base, avoid touching the glass.
3. Disconnect the power cord from the bulb base in the back of the head-
light.
4. Remove the dust cover. 5. Push the bulb spring for removing
the headlight bulb. 6. Remove the protective cap from the
replacement bulb and install the new
bulb by matching the plastic base
with the headlight hole. Install the
dust cover after retightening the bulb
spring and reconnect the power cord.
7. Use the protective cap and carton to dispose of the old bulb.
8. Check for proper headlight aim.
WARNING
The halogen bulb contains gas un-
der pressure and if impacted could
shatter, resulting in flying fragments.
Always wear eye protection when
servicing the bulb. Protect the bulb
against abrasions or scratches and
against liquids when lighted. Turn
on the bulb only when installed in a
headlight. Replace the headlight if
damaged or cracked. Keep the bulb
out of the reach of children and dis-
pose of the used bulb with care.
tbuk-6.p65 3/23/04, 4:27 PM
29

6- 30 DO-IT-YOURSELF MAINTENANCE
G270B01TB-GAT
Front Turn Signal light /
Position Light
1. Disconnect the power cord from the
bulb.
2. Replace to the new bulb. HTB285G270C01TB-GAT
Luggage Compartment Light
HTB282
1. Remove the cover with a (-) driver.
2. Disconnect the power cord.
3. Replace to the new bulb. HTB283
HTB284
G270D01TB-GAT
Rear Combination Light
HTB270
tbuk-6.p65 3/23/04, 4:27 PM
30

DO-IT-YOURSELF MAINTENANCE 6- 31
HTB278
3. Replace to the new bulb.
HTB277
1. Remove the cover with a (+) driver
2. Disconnect the power cord.
3. Replace to the new bulb.
(1) Stop/Tail Light
(2) Turn Signal Light
(3) Back-up Light HTB272G270E01A-GAT
Side Repeater (If Installed)
(1) (2)
(3)
1. Push the cover toward the front ofvehicle and remove it.
2. Disconnect the power code.
G270E01A
tbuk-6.p65 3/23/04, 4:27 PM
31

6- 32 DO-IT-YOURSELF MAINTENANCE
G270G01TB-GAT
Interior Light (Not all models)
G270F01TB-GAT
Rear Fog Light
1. Remove the cover with a (+) driver. HTB273
2. Replace to the new bulb. HTB2741. Remove the cover with a (-) driver.
HTB280
2. Replace to the new bulb. HTB281
tbuk-6.p65
3/23/04, 4:27 PM
32

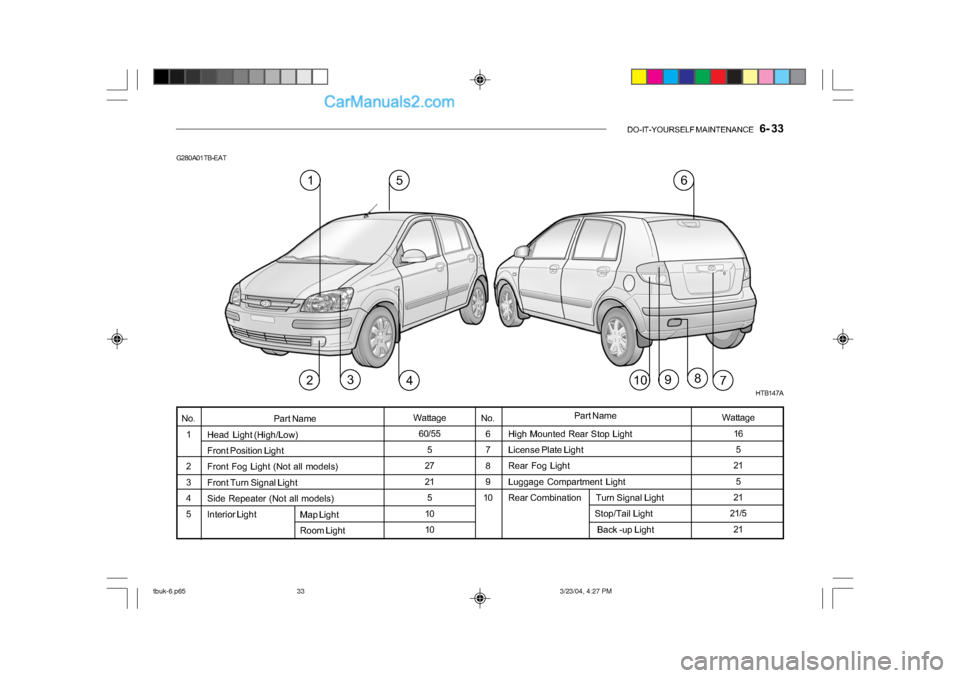

DO-IT-YOURSELF MAINTENANCE 6- 33
High Mounted Rear Stop Light
License Plate Light
Rear Fog Light
Luggage Compartment Light
Rear Combination Turn Signal Light
Stop/Tail Light
Back -up Light
Part Name
Head Light (High/Low)
Front Position Light
Front Fog Light (Not all models)
Front Turn Signal Light
Side Repeater (Not all models)
Interior Light No.
6
7
8
9
10
G280A01TB-EAT
HTB147A
516
Wattage60/55
5
27
21 5
10
10No. 1
2
3
4
5Wattage
165
21
5
21
21/5
21
Map Light
Room Light Part Name
43279108
tbuk-6.p65
3/23/04, 4:27 PM
33

6- 34 DO-IT-YOURSELF MAINTENANCE
G200C01TB-GAT
FUSE PANEL DESCRIPTION
Engine Compartment
HTB261-EPROTECTED COMPONENTS
Ignition Switch
Ignition Switch, Start Relay
Fuel pump, Alternator, ECM
Auto Fuel Cut Switch
Radiator Fan
Headlight, Defogger Relay
ABS
ECM
A/CON, Fuel Pump
Injector
A/Conditioner
Horn
ABS
ABS
Blower, Blower Motor
Power Window
Electronic power steering
Alternator
Spare Fuse
Spare Fuse
Spare Fuse
FUSE RATING
30A
30A
30A
20A
30A
50A
10A
10A
10A
15A
10A
10A
20A
40A
30A
30A
50A
15A
10A
10A
DESCRIPTION
IGN 2
IGN 1ECU
F/PUMP RAD
BATT ABS
ECU
SNSR INJ
A/CON HORN ABS1
ABS2 BLW
P/WDW EPS
BATT( ) SPARE
SPARE
SPARE
NOTE:
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing.
When you inspect the fuse box on your vehicle, refe r to the fuse box label.
1.1L
1.3/1.6L100A
120A
tbuk-6.p65
3/23/04, 4:27 PM
34

DO-IT-YOURSELF MAINTENANCE 6- 35
G200E01TB-GAT
Inner Panel
HTB260-DFUSE RATING10A
10A
10A
10A
10A
10A
10A
15A
10A
10A
20A
15A
10A
20A
10A
15A
15A
15A
20A
10A
10A
10A
30A
15A
10A
15A
15APROTECTED COMPONENTS
Air conditioner
Stop/Tail Light (LH)
A/Bag Indicator
Audio, Electronic Outside Mirror
Turn signal Light, Back-up Light
Stop/Tail Light (RH)
Cluster
Cigarette Lighter
PCM, ABS control
Air Bag
Door Lock System, Sunroof
Rear Wiper Motor
Start Relay, 9oTheft alarm system
Seat Warmer
Rear window Defroster
ECM
Stop Light, Power Window
Hazard Warning Light, ETACM
Front Wiper Motor
Rear Fog Light
Fog light, ETACM, Power Window, Headlight leveling Device
Blower, Sunroof
Rear window Defroster
Headlight (RH)
Front Fog Light
High Beam Light Indicator, Headlight (LH)
Room Lamp, Audio, Cluster
DESCRIPTION
A/C SW
TAIL LH
A/BAG IND
AUDIO
T/SIG
TAIL RH
CLUSTER C/LIGHT ECU 1
A/BAG
D/LOCK
RR/WPR STARTS/HTD
HTD MIR ECU2
STOP
HAZARD
FRT WPR R/FOG
IGNITION BLOWER PR/HTD
H/LP RH F/FOG
H/LP LH
POWER CONN & R/LP
tbuk-6.p65 3/23/04, 4:27 PM
35

10- 2 INDEX
A
AIR BAG ................................................... ................1-30
AIR CONDITIONING SWI TCH ................................. 1-74
AIR CONDITIONING SYSTEM MAINTENANCE .....6-19
AIR CLEANER FILTER ............................................. 6-14
ANTENNA ................................................... ..............1-84
ANTI-LOCK BRAKE SYSTEM .................................. 2-13
ANTI-THEFT ALARM SYSTEM .................................. 1-7
ASHTRAY ................................................... ..............1-54
AUTO FUEL CUT SWITCH...................................... 1-68
AUTOMATIC TRANSAXLE ......................................... 2-9
AUTOMATIC TRANSAXLE FLUID .......................... .6-16
B
BATTERY MAINTENANCE ......................................6-25
BEFORE STARTING THE ENGINE........................... 2-3
BONNET RELEASE .................................................. 1-62
BRAKE PEDAL FREEPLAY ..................................... 6-22
BRAKE SYSTEM CHECKI NG ..................................6-18
C
CARE OF DI SC ................................................. ........1-82
CARE OF SEAT BELTS ........................................... 1-19
CARGO AREA COVER ............................................ 1-66
CATALYTIC CONVERTOR OPERATING PRECAUTIONS ................................................... ... 7-3
CENTRAL DOOR LOCKS .......................................... 1-5
CHANGING A FLAT TYRE ......................................... 3-6 CHILD-PROOF REAR DOOR LOCK
.......................... 1-5
CHILD RESTRAINT SYST EM ..................................1-22
CIGAR LIGHTER ................................................... ...1-53
CLUTCH PEDAL FREEPLAY ...................................6-22
COMBINATION IGNITION SWITCH AND STEERING LOCK ................................................... 2-3
CONSOLE TRAY ................................................... ...1-54
COOLANT TEMPERATURE GAUGE .......................1-44
D
DAILY OPERATING CHECKS .................................... 6-6
DIGITAL CLOCK ........ ............................................... 1-53
DOOR LOCKS ................................................... ......... 1-5
DOOR WINDOWS ................................................... .1-10
DRINK HOLDER ... ................................................... .1-54
DRIVE BELTS ................................................... ........6-23
DRIVING FOR ECONOMY .......................................2-14
E
EFFECTIVE BRAKING ............................................. 2-13
ELECTRIC COOLING FANS ....................................6-25
EMERGENCY TOWI NG ........................................... 3-12
EMISSION CONTROL SYSTEM ................................ 7-2
ENGINE COM PARTMENT......................................... 6-2
ENGINE COOLANT CHECKING AND REPLACI NG ................................................. ........6-10
ENGINE OIL AND FILTER REPLACEMENT .............. 6-9
ENGINE OIL CO NSUMPTION................................... 6-8
