2004 Hyundai Elantra Owner's Manual

1FEATURES OF YOUR HYUNDAI
6
B040D01E-AAT
Locking From the Inside
(Driver's side)
o To lock the doors from the inside, simply
close the door and push the lock switch to the
"LOCK" position. When this is done, neither
the outside nor the passenger's inside door
handles can be used.
o The driver's door can be opened by pulling
the inside door handle even if the lock switch
is depressed.
NOTE:o When pushing the lock switch of the
driver's door to the "LOCK", only the
driver's door can be locked.
o When the door is locked, the red mark on
the switch is not visible.
HXD530
LOCK
UNLOCK
B045C01O-AAT
Locking From the Outside
(Passenger's side)
B045D01O-AATLocking From the Inside
(Passenger's side)
The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position, so that the red mark on the
switch is not visible, then close the door.
The door will not lock if the key is left in the ignition
switch when the front doors are closed. This is
normal.
B040C01E-R
HXD530-R
NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK", all
doors can be locked.
o When locking the door this way, be care-
ful not to lock the door with the ignition
key left in the vehicle.
o To prevent theft, always remove the ig-
nition key, close all windows, and lock all
doors when leaving your vehicle unat-
tended.
LOCKUNLOCK

1FEATURES OF YOUR HYUNDAI

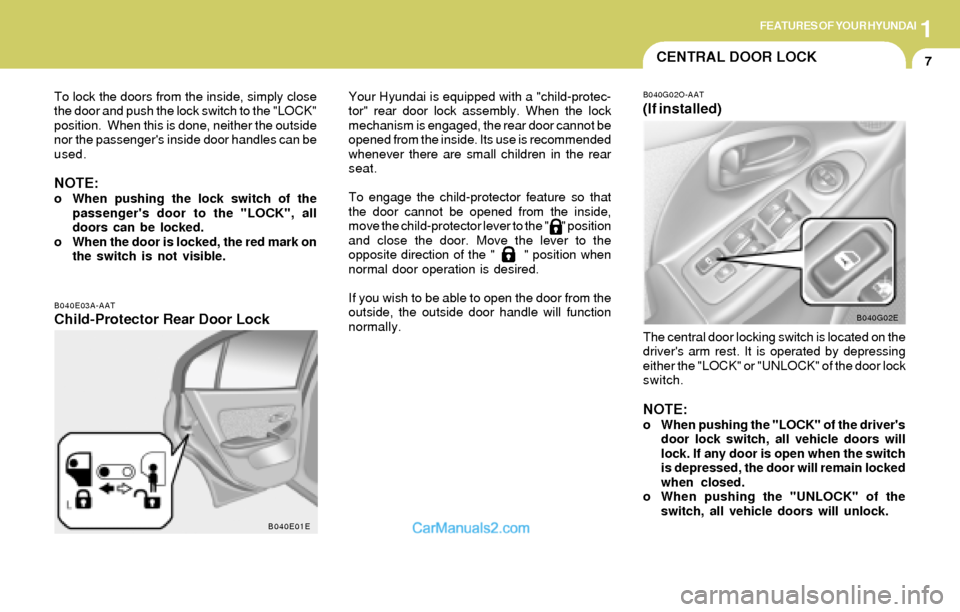

7CENTRAL DOOR LOCK
B040E03A-AATChild-Protector Rear Door Lock
Your Hyundai is equipped with a "child-protec-
tor" rear door lock assembly. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. Its use is recommended
whenever there are small children in the rear
seat.
To engage the child-protector feature so that
the door cannot be opened from the inside,
move the child-protector lever to the " " position
and close the door. Move the lever to the
opposite direction of the " " position when
normal door operation is desired.
If you wish to be able to open the door from the
outside, the outside door handle will function
normally.B040G02O-AAT
(If installed)
The central door locking switch is located on the
driver's arm rest. It is operated by depressing
either the "LOCK" or "UNLOCK" of the door lock
switch.
NOTE:o When pushing the "LOCK" of the driver's
door lock switch, all vehicle doors will
lock. If any door is open when the switch
is depressed, the door will remain locked
when closed.
o When pushing the "UNLOCK" of the
switch, all vehicle doors will unlock.
B040E01EB040G02E
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the passenger's inside door handles can be
used.
NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK", all
doors can be locked.
o When the door is locked, the red mark on
the switch is not visible.

1FEATURES OF YOUR HYUNDAI
8THEFT-ALARM SYSTEM
B070A01A-AAT
(If Installed)
This system is designed to provide protection
from unauthorized entry into the car. This sys-
tem is operated in three stages: the first is the
"Armed" stage, the second is the "Alarm" stage,
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal lights.
B070B01E-GAT
Armed Stage
Park the car and stop the engine. Arm the
system as described below.
1) Remove the ignition key from the ignition
switch.
2) Make sure that the engine hood and trunk
lid(4 door)/ tail gate (5 door) are locked.
3) Lock the doors using the transmitter of the
keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the
system is armed.
NOTE:1) If any door, trunk lid (4 door)/ tail gate
(5 door) or engine hood remains open,
the system will not be armed.
2) If this happens, rearm the system as
described above.
3) Once the system is armed, only the trunk
lid (4 door) may be unlocked using the
key without disarming the system.
CAUTION:Do not arm the system until all passengers
have left the car. If the system is armed while
a passenger(s) remains in the car, the alarm
may be activated when the remaining
passenger(s) leaves the car.
!
HXD200
UNLOCK
LOCK

1FEATURES OF YOUR HYUNDAI
9
B070C02E-AAT
Alarm StageThe alarm will be activated if any of the following
occurs while the car is parked and the system
is armed.
1) A door and tail gate (5 door) are opened
without using the transmitter.
2) The trunk lid (4 door) is opened without using
the key.
3) The engine hood is opened.
The siren will sound and the turn signal lights will
blink continuously for 30 seconds (This hap-
pens 3 times). To turn off the system, unlock the
door or tail gate (5 door) with the transmitter.
B070D02E-AAT
Disarmed Stage
The system will be disarmed when the following
step is taken:
The driver's or passenger's door is unlocked by
depressing the "UNLOCK" button on the trans-
mitter.
After completion of the step above, the turn
signal lights will blink twice to indicate that the
system is disarmed.
CAUTION:Only the transmitter can disarm the armed
stage. If the transmitter does not disarm the
system, it is necessary to take the following
steps;
1. Unlock the door with the key, which will
cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder
and turn the ignition key to "ON" posi-
tion.
3. Wait for 30 seconds.
After completing the steps above, the sys-
tem will be disarmed.
!
!CAUTION:Avoid trying to start the engine while the
system is armed.
3A9BA21
UNLOCK

1FEATURES OF YOUR HYUNDAI
10
B070F01O-AAT
KEYLESS ENTRY SYSTEM (If installed)
Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn signal
lights will blink once to indicate that the
system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit-
ter.
2. At the same time the driver's door unlocks,
the turn signal lights will blink twice to indicate
that the system is disarmed.
NOTE:If you wish to unlock all doors, press the
"UNLOCK" button on the transmitter again
within 4 seconds.
B070E02HP-GAT
Replacing the battery
When the transmitter's battery begins to get
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Separate the case with a blade screwdriver
as shown in the illustration.
MSO-0048-1
Screwdriver2. Remove the old battery from the case and
note the polarity. Make sure the polarity of
the new battery is the same(+side facing
down), then insert it in the transmitter.
MSO-0048-2
Battery Case

1FEATURES OF YOUR HYUNDAI
11WINDOW
B050A01A-AAT
WINDOW GLASS
To raise or lower the window, turn the window
regulator handle clockwise or counterclock-
wise.
!WARNING:When opening or closing the windows,
make sure your passenger's arms, hands
and body are safely out of the way.
B060A01E-AAT
POWER WINDOWS (If Installed)
The power windows operate when the ignition
key is in the "ON" position. The main switches
are located on the driver's armrest and control
the front and rear windows on both sides of the
vehicle. The windows may be opened by de-
pressing the appropriate window switch and
closed by pulling up the switch. To open the
window on the driver's side, press the switch(1)
down. The window moves as long as the switch
is operated.In order to prevent operation of the passenger
front and rear windows, a window lock switch is
provided on the armrest of the driver's door. To
disable the power windows, press the window
lock switch.
To revert to normal operation, press the window
lock switch a second time.
Auto-Down Window (Driver's Side)The Auto-Down window is moved to its fully
open position by pushing the switch. To stop at
the desired position push the switch again.
B050A01E
Close
B060A01E
(1)
Open
B060B01E

1FEATURES OF YOUR HYUNDAI
12
!
!WARNING:1) Be careful that someone's head, hands
and body are not trapped by a closing
window.
2) Never try to operate the main switch on
the driver's door and the individual door
window switch in opposing directions
at the same time. If this is done, the
window will stop and cannot be opened
or closed.
3) Do not leave children alone in the car.
Always remove the ignition key for their
safety.
B080A01A-AAT
ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the
vehicle is moving. This could result in loss
of control or an accident which may cause
death, serious injury, or property damage.
SEAT
B080B02A-AAT
Adjusting Seat Forward and Rearward
To move the seat toward the front or rear, pull
the lock release lever upward. This will release
the seat on its track so you can move it forward
or rearward to the desired position. When you
find the position you want, release the lever and
slide the seat forward or rearward on its track
until it locks into the desired position and cannot
be moved further.
B080B01E
!WARNING:To ensure the seat is locked securely, at-
tempt to move the seat forward or rearward
without using the lock release lever.

1FEATURES OF YOUR HYUNDAI
13
!
B080C01A-AAT
Adjusting Seatback Angle
To recline the seatback, lean forward to take
your weight off it, then pull up on the recliner
control lever at the outside edge of the seat. Now
lean back until the desired seatback angle is
achieved. To lock the seatback into position,
release the recliner control lever.
WARNING:To minimize risk of severe injury in the
event of a collision or a sudden stop, both
the driver and passenger seatbacks should
always be in an upright position while the
vehicle is in motion. The protection pro-
vided by the seat belts and airbags in a
frontal collision may be reduced signifi-
cantly when the seatbacks are reclined.
There is greater risk that the driver and
passenger will slide under the seat belt
which may result in serious injury if a crash
occurs when the seatbacks are reclined.
The seat belt cannot provide full protection
to an occupant if the seat back is reclined.
B080D02A-AAT
Adjustable Headrests
B080C01E
Headrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it, push
it down while pressing the lock knob.
Lock Knob
HXDFL114
