2004 HONDA INSIGHT Owners Manual

Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement.
Using any non-Honda brake f luid can
cause corrosion and decrease the lif e
of the system. Have the brake
system f lushed and ref illed with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Pour the f luid slowly and caref ully so
you do not spill. Clean up any spills
immediately; it could damage
components in the engine
compartment.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Replace the brake f luid according to
the recommendation in the
maintenance schedule.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to check and
add f luid, contact your Honda dealer.
Transmission Fluid, Brake and Clutch Fluid
Maint enance
Brake and Clutch Fluid
142

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system.
Low f luid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Honda dealer.
The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
Brake and Clutch Fluid, Hood L atch
Maint enance
Clutch System
Hood L atch
Brake System
143
MAX
MIN
MAX
MIN PIVOTS

Open the hood.
To change the headlight bulb on
the driver’s side, remove the
engine coolant reservoir tank by
pulling it out of its holder.
Your vehicle has halogen headlight
bulbs, one on each side. When
replacing a bulb, handle it by its steel
base and protect the glass from
contactwithyourskinorhard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustments should be
perf ormed by a Honda dealer or
other qualif ied mechanic.
1.
Lights
Maint enance
Replacing a Headlight Bulb
Headlight A iming
144
NOTICE:
HOLDER
Halogen headlight bulbs get
very hot when lit. Oil, perspiration, or a
scratch on the glass can cause the bulb
to overheat and shatter.

CONT INUED
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Install the new bulb into the
socket.
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way, and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP’’.
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
(Driver’s side)
Reinstall the engine coolant
reserve tank.
Remove the electrical connector
f rom the bulb by squeezing the
connector on both sides to unlock
the tab. Pull the connector straight
off.
Remove the rubber weather seal
by pulling on the tab. 4.
5.
6.
7.
8.
1.
2.
3.
2.
3.
Lights
Maint enance
Replacing a Front Parking L ight
Bulb
145
BULB
CONNECTOR WEATHER SEAL
HOLD-DOWN WIRE

Install the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, then turn of f the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
lef t.
Use a Phillips-head screwdriver to
remove the screw f rom the top of
the f ender.Pull the inner f ender cover back.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
3.
2. 4.
5.
4.
5.
1.
Lights
Maint enance
Replacing the Front Side Marker/
Turn Signal Light Bulb
146

Install the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Put the inner f ender cover in place.
Tighten the screw securely.Open the hatch.
Pull the cover back.
Loosen the nut holding the rear
light assembly.Remove the two covers. Remove
the two screws holding the rear
light assembly. Remove the light
assembly.
3. 2. 4.
1.
6.
7.
8.
CONT INUED
Lights
Maint enance
Replacing Rear Bulbs
147
COVER

Determine which bulb, brake/
taillight, back-up light, side marker
light or turn signal is burned out.
Remove the socket f or that bulb
by turning counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Reinstall the light assembly and
tighten the two screws and nut.
Reinstall the two covers in the rear
light assembly.
Put the cover in place in the cargo
area.
9.
5.
6. 11. 10.
8. 7.
Lights
Maint enance148

Clean dirty seat belts with a sof t
brush and a mixture of mild soap and
warm water. Do not use bleach, dye,
or cleaning solvents. They can
weaken the belt material. Let the
belts air dry bef ore you use the

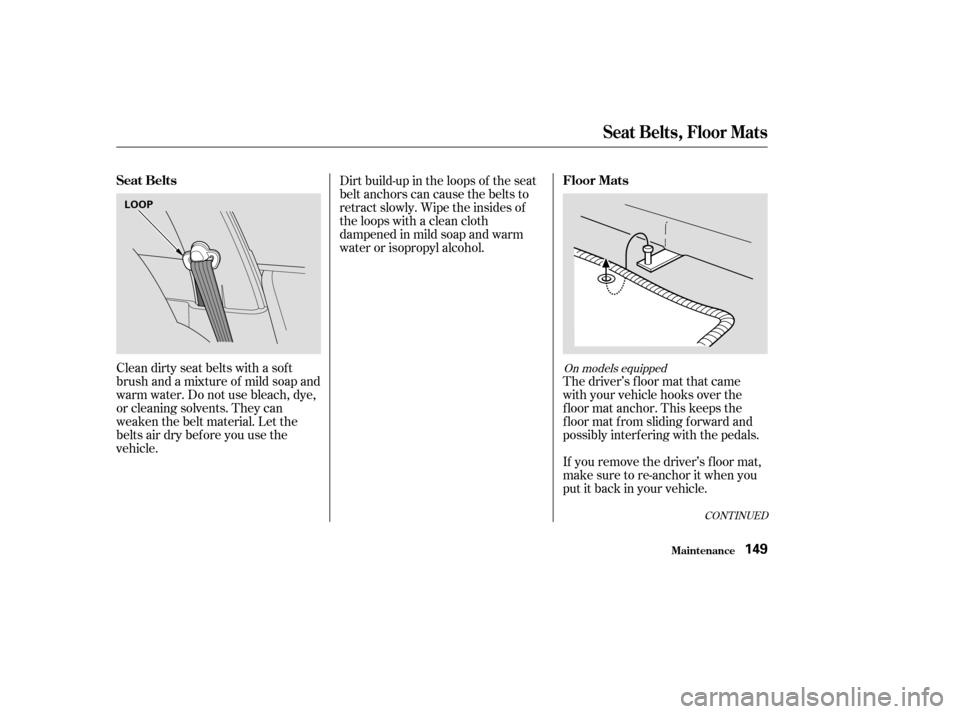

vehicle.Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s f loor mat that came
with your vehicle hooks over the
f loor mat anchor. This keeps the
f loor mat f rom sliding f orward and
possibly interf ering with the pedals.
If you remove the driver’s f loor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.On models equipped
CONT INUED
Seat Belt s, Floor Mat s
Maint enance
Seat Belts Floor Mats
149
LOOP
