2004 HONDA ACCORD COUPE navigation system

µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
thesameknob.
Pushing the AUDIO DISPLAY
button will also turn on the system.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
XM Satellite Radio inf ormation is
available on page . You can use any of f ive methods to
f ind radio stations on the selected
band: the
preset bars/icons, and
.
Use the TUNE bar or
knob to tune the radio to a desired
f requency. Press the side of the
bar or turn the knob to the right to
tune to a higher f requency, and
press the side or turn the knob
to the left to tune to a lower
f requency.
The SEEK f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
bar, then release it. The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it, or touch the SCAN
icon on vehicles with navigation
system. You will see SCAN in the
display. The system will scan f or a
station with a strong signal. When it
f inds one, it will stop and play that
station f or about f ive seconds.
If you do nothing, the system will the
scan f or the next strong station and
play it f or f ive seconds. When it plays
a station you want to listen to, press
the SCAN button or touch the SCAN
icon again.
128
For Vehicles with Navigation System
CONT INUED
Playing the Radio
Comf ort and Convenience Feat ures
To Play the Radio To Select a Station TUNE,SEEK,SCAN,AUTO
SEL ECT
TUNE SEEK SCAN
123
——y
y
(%
y
y

µµµ
µ
Each side of the bars (1
6) or preset icon can store one
f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each side of
the preset bar or each preset icon. The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select f eature
to find stations in the local area.
Press the A. SEL button or touch the
AUTO SELECT icon. ‘‘A. SEL’’
f lashes in the display (the upper
display on vehicles with navigation
system), and the system goes into
scan mode f or several seconds. It
stores the f requencies of six AM,
and twelve FM stations in the preset
bars or icons.
You will see a ‘‘0’’ displayed af ter
pressing a preset bar or icon if Auto
Select cannot f ind a strong station
foreverypresetbaroricon. If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset bars
or icons. Use the TUNE, SEEK, or
SCAN f unction to f ind stations, then
store them in the preset bars or
icons as described previously.
press the
A.SEL button or touch the AUTO
SELECTicon.Thisrestoresthe
presets you originally set.
First push the AUDIO DISPLAY
button to view the preset icons.
Press the SOUND button repeatedly
to display the Bass (BAS), Treble
(TRE), Balance (BAL), and Fader
(FAD) setting. On vehicles with
navigation system, touch the
SOUND icon or press the TUNE
knob.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset number (1 6), and
hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
Press the lef t or right side of the
bar or icon and hold it until you
hear a beep.
1. 2. 3. 4.
To turn of f Auto Select,
For Vehicles with Navigation System
Playing the Radio
Comf ort and Convenience Feat ures
Preset
AUTO SELECT
Adjusting the Sound
124
——y
y
(%
y
y

µ
µ The system will automatically return
the display to the selected audio
mode about f ive seconds af ter you
stop adjusting a mode. On vehicles
with navigation system, touch the
RETURN icon to go back to the
audio screen.
If you want to adjust the sound while
the radio/CD is playing, push the
AUDIO DISPLAY button, then touch
the SOUND icon in the display.
These two
modes adjusts the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Use the TRE/BAS
modes to adjust the tone to your
liking.
Eachmodeisshowninthedisplayas
it changes. Turn the VOLUME knob
to adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘ ’’ in the display. Touch the arrows next to the BAS or
TRE icons. The adjustment shows
you the current setting. Touch the
lef t or right bars on the sound grid.
Balance is equalized when the
vertical lines are centered on the
grid. Touch the f ront or rear bars on
the sound grid. The f ader is
equalized when the horizontal lines
arecenteredonthegrid.
On vehicles with navigation system
On vehicles without navigation system On vehicles with navigation system
Playing the Radio
Comf ort and Convenience Feat ures
Balance/Fader
Treble/Bass
125
FADER ADJUST ICONS
SOUND GRID
RETURN ICON
TREBLE ASJUST ICONS
With Navigation System
BALANCE
ADJUST ICONS
BASS ADJUST ICONS
——y

y
(%
y
y

Comf ort and Convenience Feat ures
Playing t he XMSatellite Radio
128
PWR/VOL KNOB
TUNE BAR
PWR/VOL KNOB
SCAN BUTTON Without Navigation System
With Navigation System
CD/SAT
BUTTON DISP
BUTTON
PRESET BARS CATEGORY/CHANNEL MODE INDICATOR
MODE ICON
SCAN ICON
CD/SAT
BUTTON
PRESET ICONS
AUDIO DISPLAY
BUTTON
SEEK/SKIP
BAR SCAN
BUTTON
CATEGORY/CHANNEL
MODE INDICATOR
SEEK/SKIP
BAR TUNE KNOB
U.S. EX-L and EX-V6 models
CH/DISC BAR
——y
y
(%
y

y

µ
CONT INUED
XMis a registered trademark of
XM Satellite Radio Inc.
Satellite radio is available in U.S.
models only. The ignition must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on:
Push any of the f ollowing: PWR/
VOL knob, the CD/SAT, or AUDIO
button.
Push any of the f ollowing: PWR/
VOL knob or the CD/SAT button.
Turn the PWR/VOL knob to adjust
the volume.When in the satellite radio mode,
you can use any of three methods to
f ind channels: TUNE, SEEK/SKIP
(CATEGORY), and SCAN.
Turn the TUNE knob to change
channels. Turn the knob right f or
higher numbered channels and lef t
f or lower numbered channels.
Press the TUNE bar to change
channel selections. Press f or
higher numbered channels and
f or lower numbered channels.
Your vehicle is capable of receivingXM
Satellite Radio anywhere in the
United States except Hawaii, Alaska,
and Canada.
Vehicles with Navigation System
Vehicles without Navigation System Vehicles with Navigation System
Vehicles without Navigation System
Comf ort and Convenience Feat ures
Satellite Digital Radio To Select a Channel
TUNE
To Play XMSatellite Radio
Playing t he XMSatellite Radio
U.S. EX-L and EX-V6 models
129
——y
y
(%
y
y

µ
µ µ
µ
The
SEEK/SKIP f unction selects the
various categories in XM, such as
Jazz/Blues, Rock, Classical, etc.
Push the to change the
category f orward. Push the to
change the category backward. To
search f or channels within a
category, turn the TUNE knob
clockwiseorpresstheTUNEbar .
Press and release this
button to change the display. The
display will change in the f ollowing
sequence: channel name, channel
number, category, artist name, and
music title. The SCAN f unction
samples all channels f or 5 seconds.
To activate the function, push the
SCAN button. Push it again to get
out of the sequence.
Each preset icon or each
side of the preset bar can store one
channel in XM1 and one in XM2.
Push the SAT button, you will see
XM1 or XM2.
Use the TUNE, SEEK or SCAN
function to tune the radio to a
desired channel.
Pick a preset icon or number and
hold it until you hear a beep.
Repeat step 1 to 3 to store a total
of six stations on XM1 and six on
XM2. Once your XM channels are preset,
pressing either side of the CH/DISC
bar will select your preset channels.
1. 2. 3. 4.
Vehicles with Navigation System On vehicles with navigation system
Comf ort and Convenience Feat ures
SEEK /SK IP (CA T EGORY)
DISPSCAN
Preset
Playing t he XMSatellite Radio
130
——y

y
(%
y
y

CONT INUED
Comf ort and Convenience Feat ures

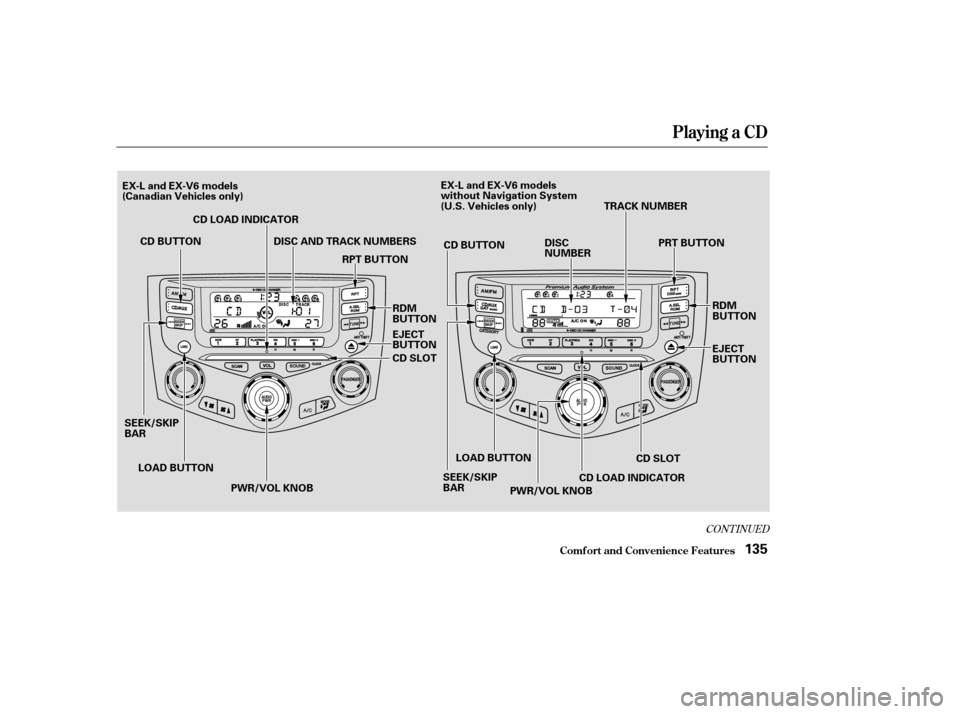

Playing a CD
135
PWR/VOL KNOB
CD SLOT
CD BUTTON
PRT BUTTON
CD SLOT
LOAD BUTTON RDM
BUTTON
RDM
BUTTON
CD BUTTON
SEEK/SKIP
BAR
EX-L and EX-V6 models
(Canadian Vehicles only)
SEEK/SKIP
BARDISC
NUMBER
CD LOAD INDICATOR
LOAD BUTTON EJECT
BUTTON
CD LOAD INDICATOR
RPT BUTTON
EJECT
BUTTONEX-L and EX-V6 models
without Navigation System
(U.S. Vehicles only)
DISC AND TRACK NUMBERS TRACK NUMBER
PWR/VOL KNOB
——y
y
(%
y
y

Playing a CD
Comf ort and Convenience Feat ures136
PWR/VOL KNOBUPPER DISPLAY
DISC AND TRACK NUMBERS
CH/DISC BARCD SLOT
EJECT BUTTON
RANDOM ICON
LOAD BUTTON
CD/SAT BUTTON
SCAN BUTTON
DISC
RPTICON TRACK
RPTICON
DISC
SCANICON
TRACK
SCAN ICON
SEEK/
SKIP BAR
CD
LOAD INDICATORAUDIO DISPLAY BUTTON
EX-L and EX-V6 models
with Navigation System (U.S. Vehicles only)
