Top Strap Anchor Location
Yukon XL Denali models:A child restraint with a top
strap should only be used in the second or third
row. Don't use a child restraint with a top strap in the
front seat because there's no place to anchor the
top strap.
An anchor loop bracket for a top strap is located at the
bottom rear of the seat cushion for each seating
position in the second row, and for the center seating
position in the third row on bench seats.
Yukon XL Denali Second Row Seat
(Bucket Seats Similar)
Yukon XL Denali Third Row Seat
1-59

Yukon Denali models:A child restraint with a top
strap should only be used in the second row or third row.
Don't use a child restraint with a top strap in the right
front passenger's position, because there's no place to
anchor the top strap.
An anchor loop bracket for a top strap is located at the
bottom rear of the seat cushion for each seating
position in the second row, and in the outboard
passenger position in the third row for 50/50 split seats.
Yukon Denali Second Row Seat
Yukon Denali Third Row 50/50 Split Seat
1-60

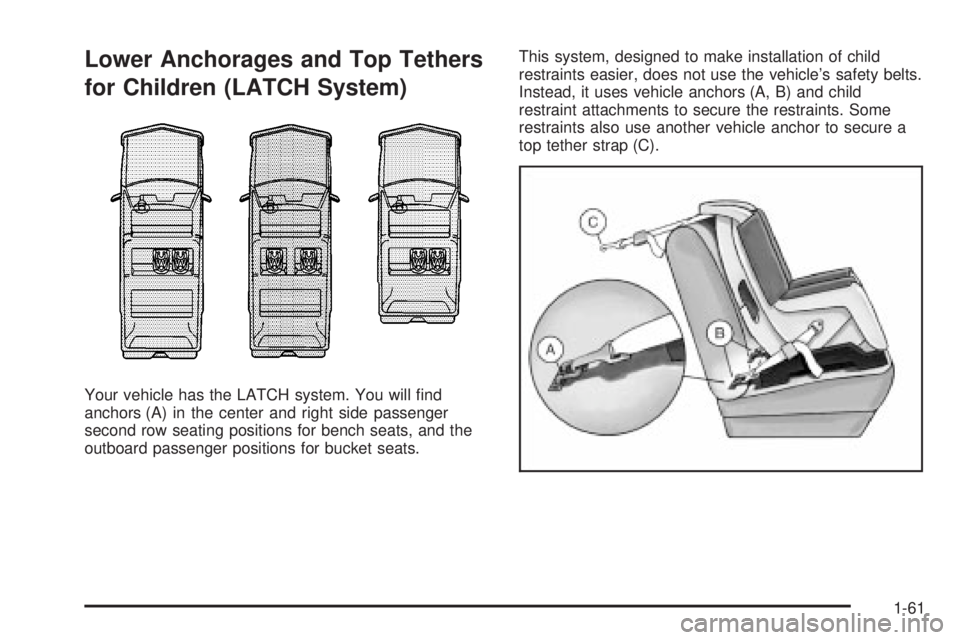

Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You will ®nd
anchors (A) in the center and right side passenger
second row seating positions for bench seats, and the
outboard passenger positions for bucket seats.This system, designed to make installation of child
restraints easier, does not use the vehicle's safety belts.
Instead, it uses vehicle anchors (A, B) and child
restraint attachments to secure the restraints. Some
restraints also use another vehicle anchor to secure a
top tether strap (C).
1-61

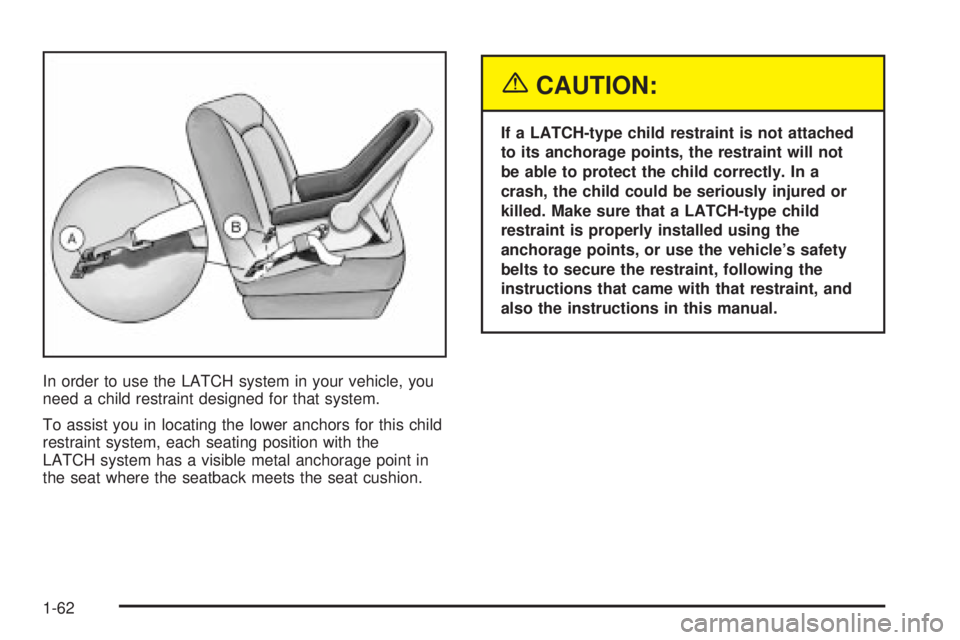

In order to use the LATCH system in your vehicle, you
need a child restraint designed for that system.
To assist you in locating the lower anchors for this child
restraint system, each seating position with the
LATCH system has a visible metal anchorage point in
the seat where the seatback meets the seat cushion.
{CAUTION:
If a LATCH-type child restraint is not attached
to its anchorage points, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured or
killed. Make sure that a LATCH-type child
restraint is properly installed using the
anchorage points, or use the vehicle's safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
1-62

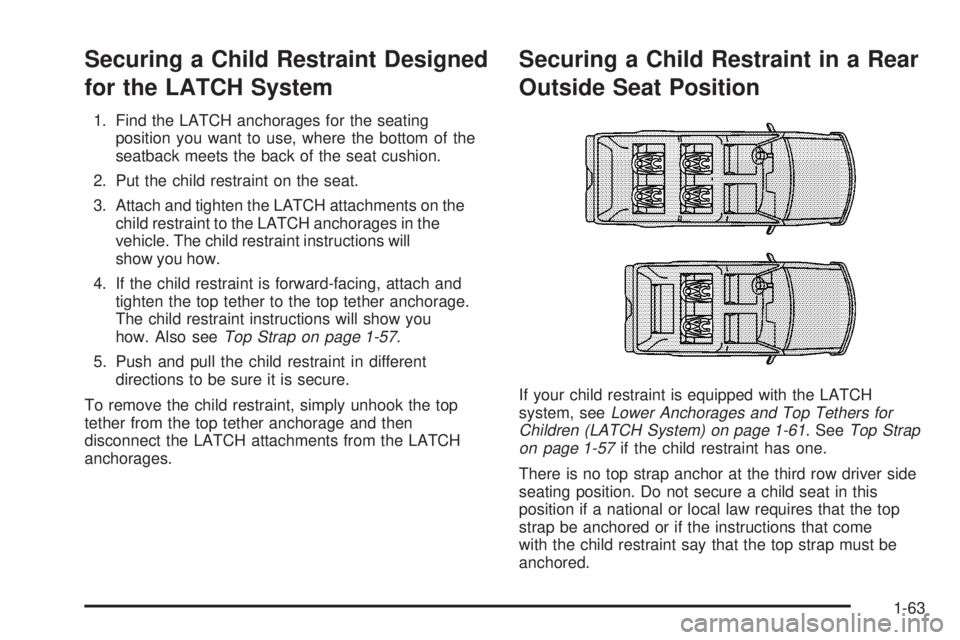

Securing a Child Restraint Designed
for the LATCH System
1. Find the LATCH anchorages for the seating
position you want to use, where the bottom of the
seatback meets the back of the seat cushion.
2. Put the child restraint on the seat.
3. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will
show you how.
4. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also see
Top Strap on page 1-57.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
tether from the top tether anchorage and then
disconnect the LATCH attachments from the LATCH
anchorages.
Securing a Child Restraint in a Rear
Outside Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-61. SeeTop Strap
on page 1-57if the child restraint has one.
There is no top strap anchor at the third row driver side
seating position. Do not secure a child seat in this
position if a national or local law requires that the top
strap be anchored or if the instructions that come
with the child restraint say that the top strap must be
anchored.
1-63

If your child restraint does not have the LATCH system,
you'll be using the lap-shoulder belt to secure the child
restraint in this position. Be sure to follow the instructions
that came with the child restraint. Secure the child in the
child restraint when and as the instructions say.

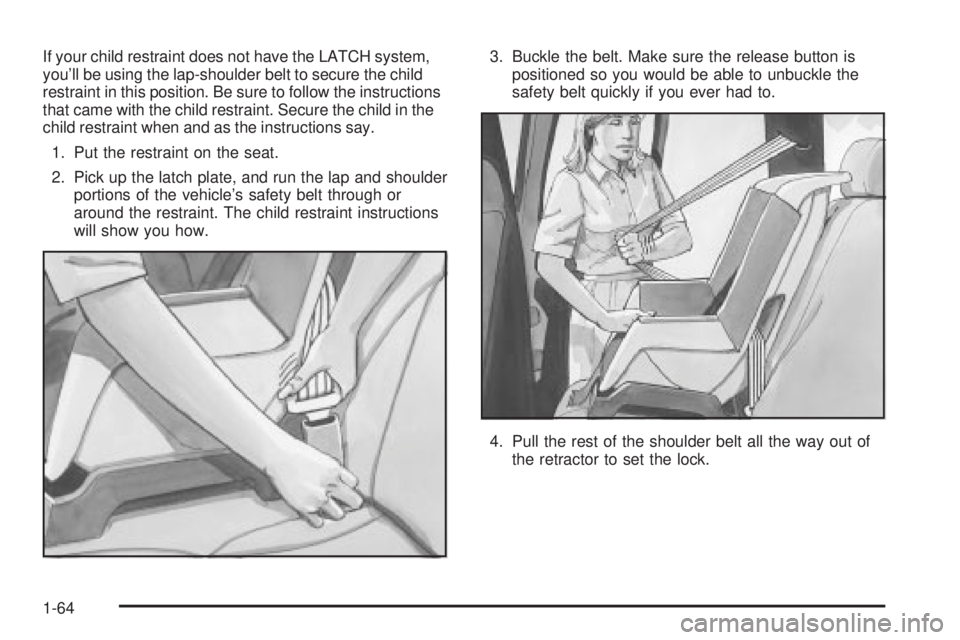

1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle's safety belt through or
around the restraint. The child restraint instructions
will show you how.3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-64

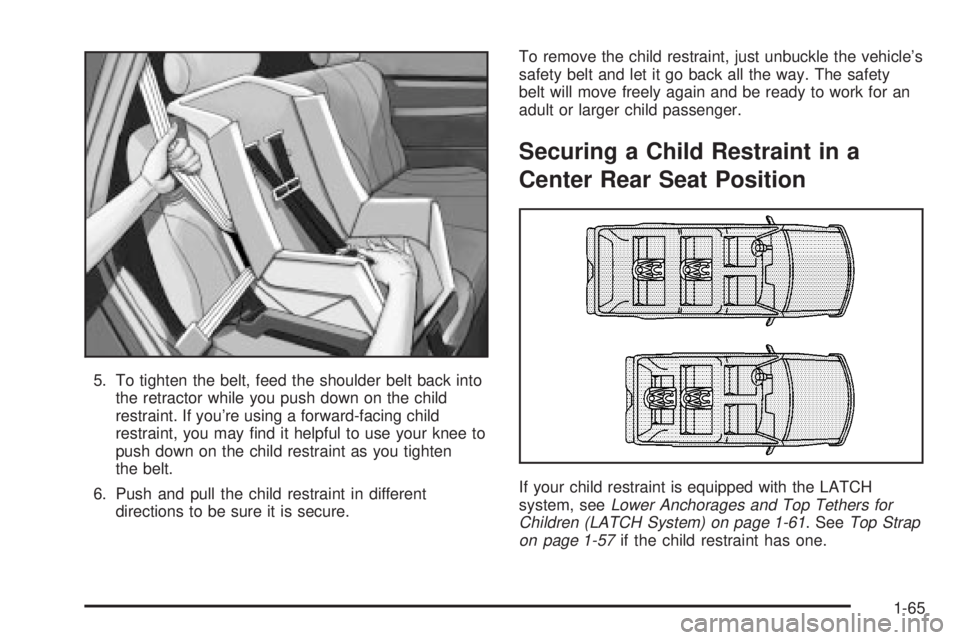

5. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child
restraint. If you're using a forward-facing child
restraint, you may ®nd it helpful to use your knee to
push down on the child restraint as you tighten
the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Securing a Child Restraint in a
Center Rear Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-61. SeeTop Strap
on page 1-57if the child restraint has one.
1-65

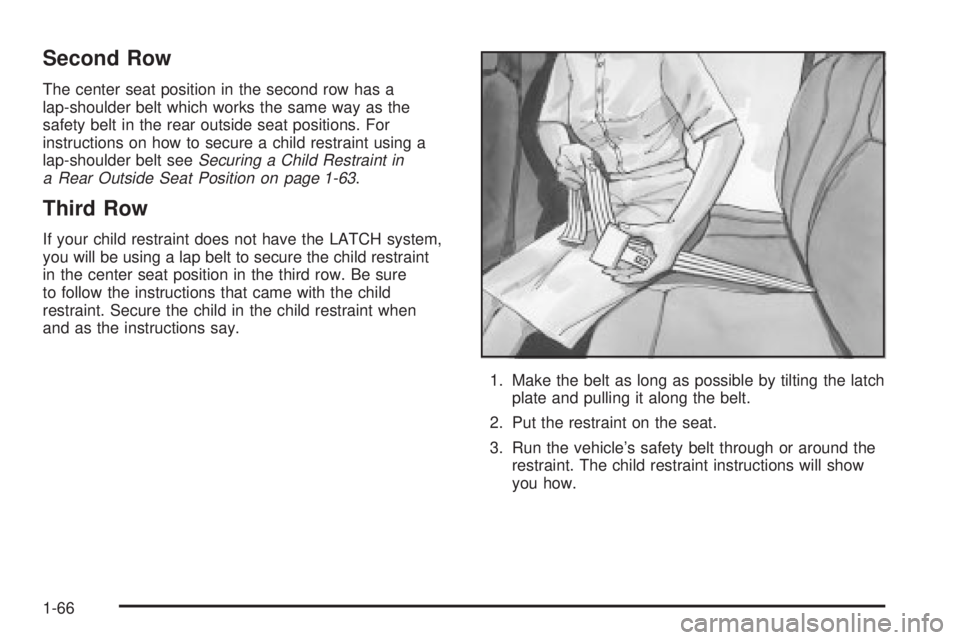

Second Row
The center seat position in the second row has a
lap-shoulder belt which works the same way as the
safety belt in the rear outside seat positions. For
instructions on how to secure a child restraint using a
lap-shoulder belt see
Securing a Child Restraint in
a Rear Outside Seat Position on page 1-63.
Third Row
If your child restraint does not have the LATCH system,
you will be using a lap belt to secure the child restraint
in the center seat position in the third row. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when
and as the instructions say.
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will show
you how.
