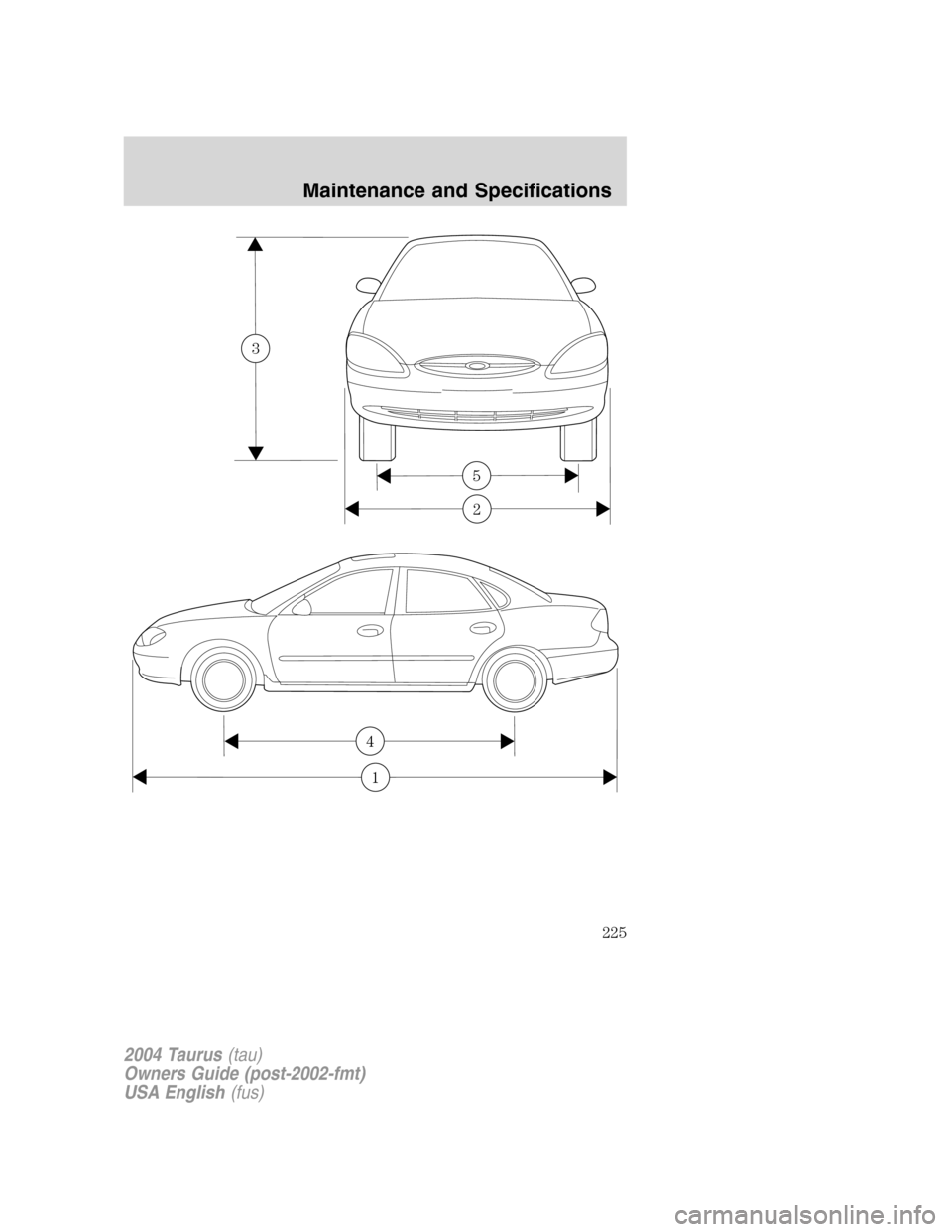

2004 FORD TAURUS Owners Manual

5
2
3
4
1
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
225

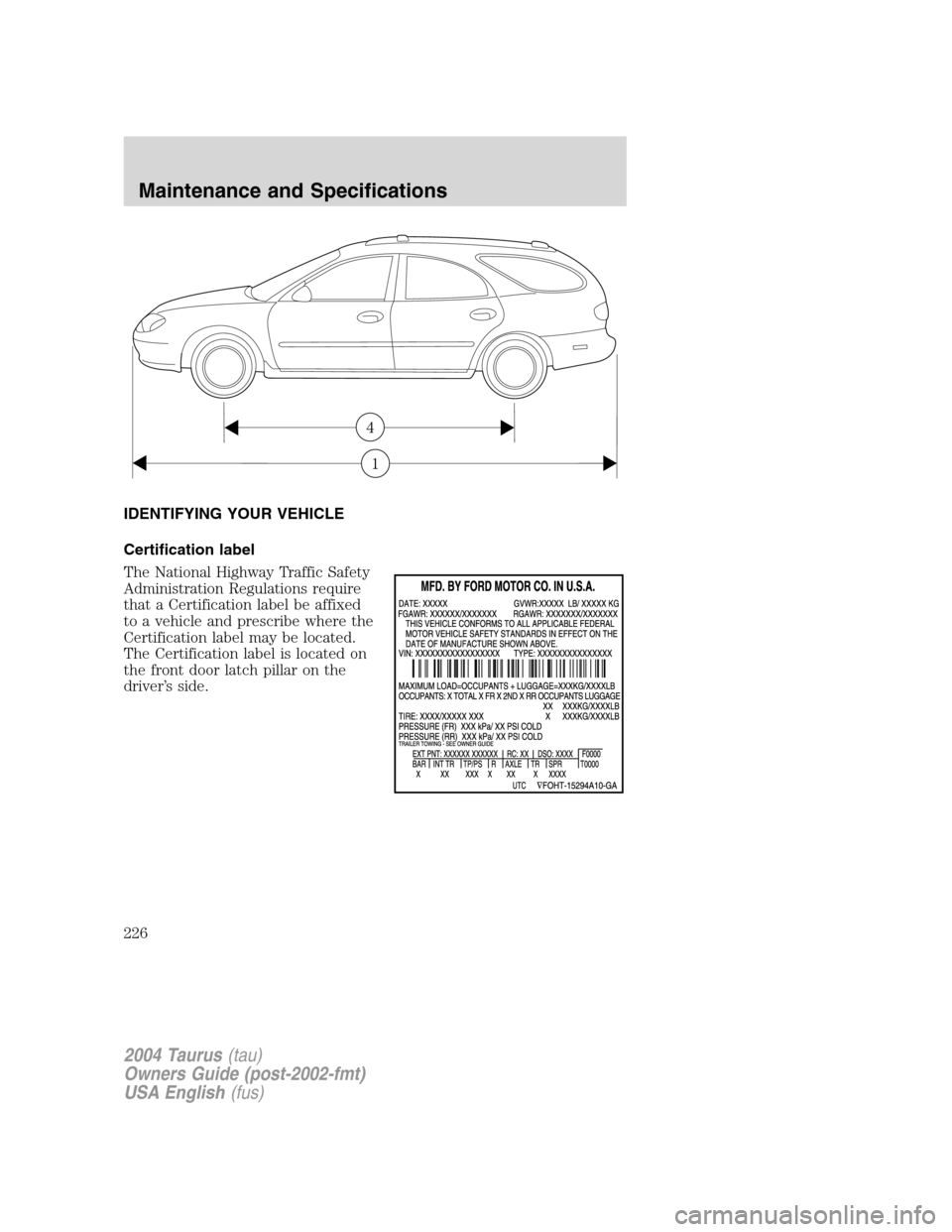

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
1
4
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
226

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transaxle.
XXXXXXXXXXXXXXXXX
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
227

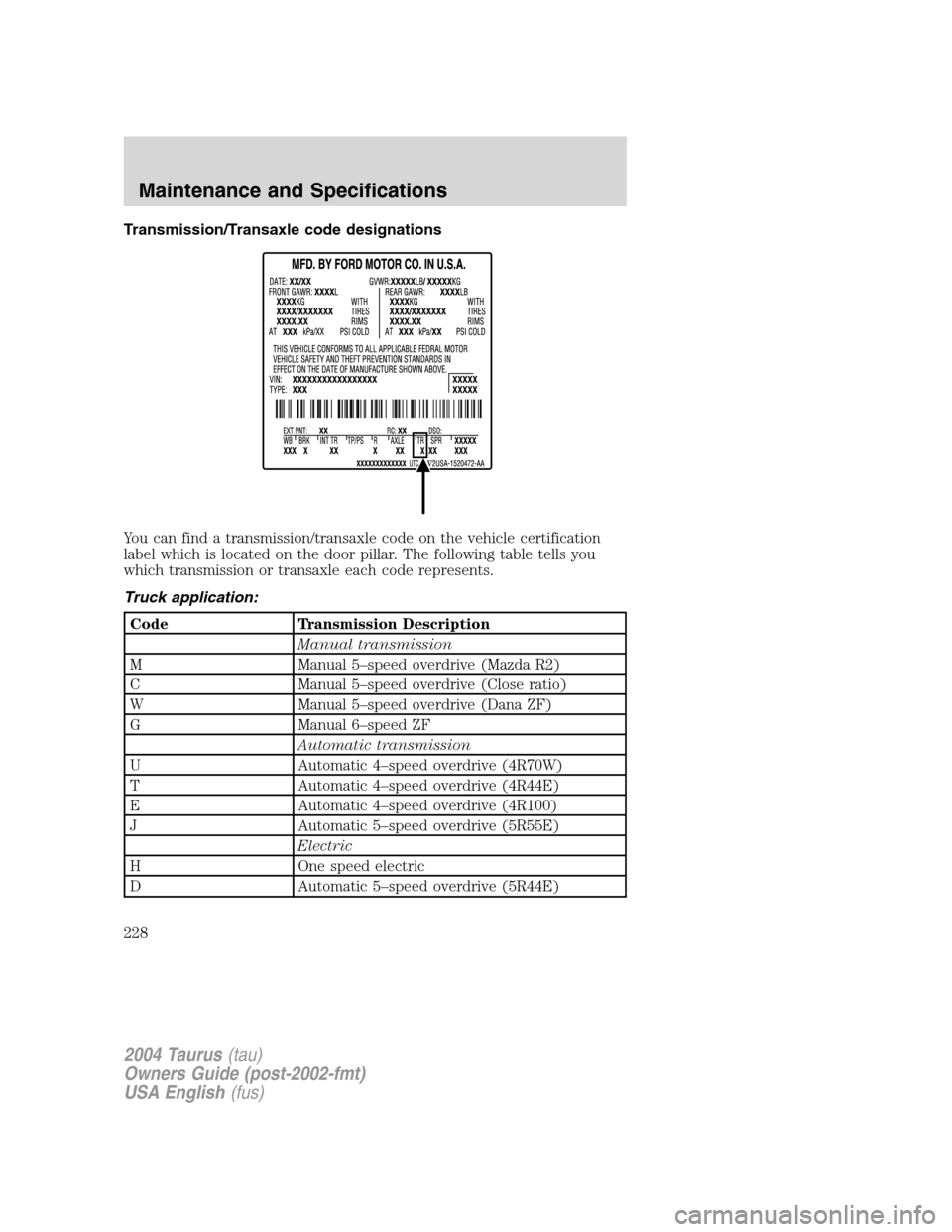

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed overdrive (Mazda R2)
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
228

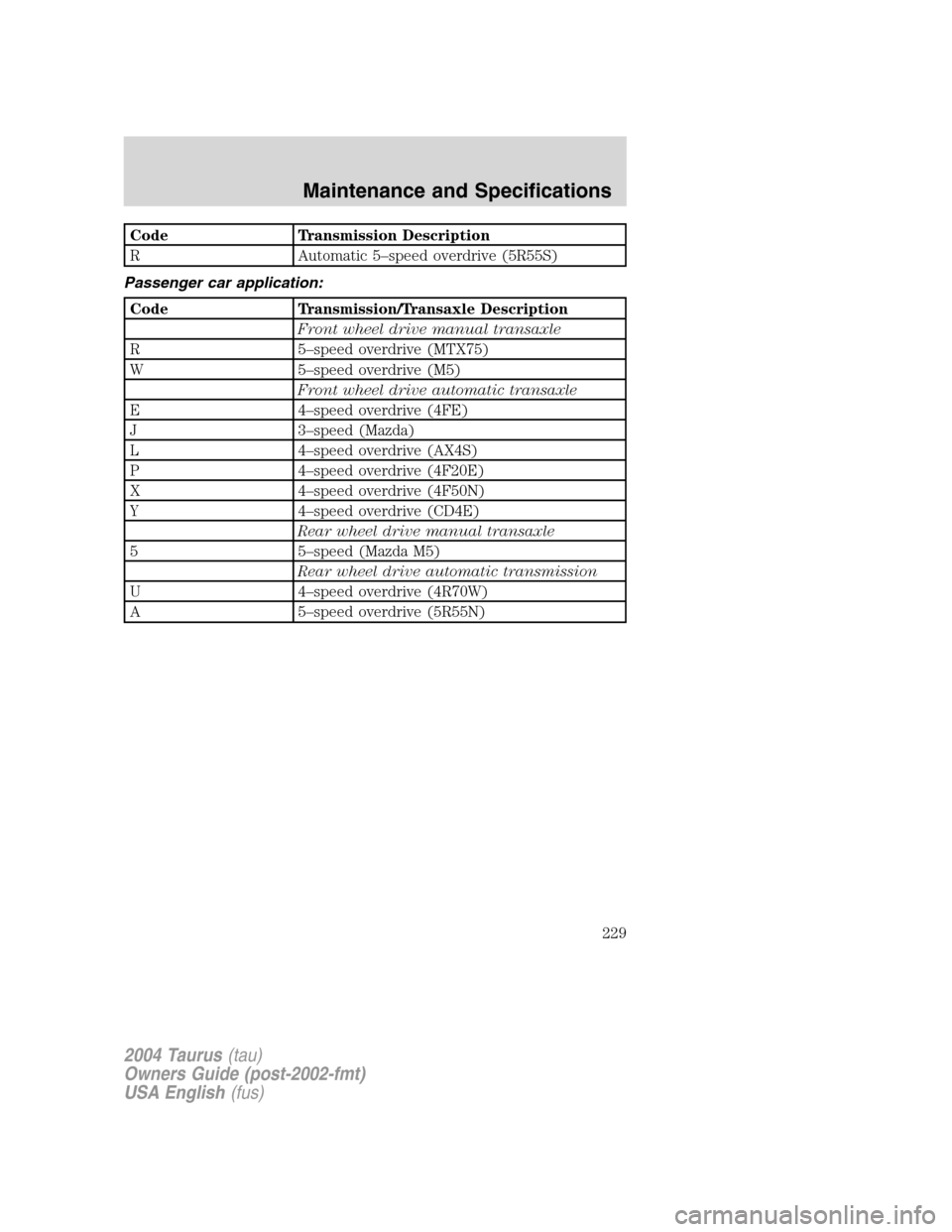

Code Transmission Description
R Automatic 5–speed overdrive (5R55S)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
229

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLS)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
230

Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems—such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
231

A
Accessory delay ..........................47
Air bag supplemental restraint
system ........................101–102, 107
and child safety seats ............103
description ......................102, 107
disposal ....................................109
driver air bag ..........102, 104, 108
indicator light .........................107
operation .................102, 104, 108
passenger air bag ...102, 104, 108
side air bag ..............................107
Air cleaner filter .......................220
Air conditioning ..........................25
Antifreeze (see Engine
coolant) .....................................187
Anti-lock brake system
(see Brakes) ..............................127
Anti-theft system ........................79
arming the system ....................80
disarming a triggered
system .......................................80
Audio system
(see Radio) ......................15–16, 19
Automatic transaxle
fluid, adding ............................204
fluid, checking ........................204
fluid, refill capacities ..............221
fluid, specification ..................224
Automatic transmission
driving an automatic
overdrive .................................132
Auxiliary power point .................46
Axle
lubricant specifications ..........222
B
Battery .......................................185acid, treating emergencies .....185
jumping a disabled battery ....156
maintenance-free ....................185
replacement, specifications ...220
servicing ..................................185
BeltMinder ...................................96
Brakes ........................................126
anti-lock ...................................127
anti-lock brake system (ABS)
warning light ...........................127
fluid, checking and adding ....204
fluid, refill capacities ..............221
fluid, specifications .........222, 224
lubricant specifications ..222, 224
parking ....................................128
shift interlock ..........................130
Bulbs ............................................33
C
Capacities for refilling fluids ....221
Cargo area shade ........................65
Cargo cover .................................64
Cargo net .....................................64
CD changer .................................21
CD-single premium .........15–16, 19
Cell phone use ............................53
Certification Label ....................226
Changing a tire .........................151
Child safety restraints ..............110
child safety belts ....................110
Child safety seats ......................113
attaching with tether
straps .......................................117
in front seat ............................114
in rear seat ......................114, 117
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
232
