2004 DODGE GRAND CARAVAN odometer

Interior light Defeat (OFF)
Rotate the dimmer control to the
OFF position (extreme bottom).
The interior lights will remain off
when the doors or liftgate are
open.
Parade Mode (Daytime Brightness Feature)
Rotate the dimmer control to the
first detent. This feature brightens
the odometer, radio and overhead
displays when the park lights or
headlights are on. Automatic Headlights Ð If Equipped
This system automatically turns
your headlights ON or OFF based
on ambient light levels. To turn
the system ON, turn the headlight
switch to the extreme counter-
clockwise position. When the sys-
tem is ON, the Headlight Time
Delay feature is also ON. This
means your headlights will stay
ON for up to 90 seconds after you turn the ignition
switch OFF. To turn the Automatic System OFF, turn the
headlight switch clockwise to the OFF position.
NOTE: The engine must be running before the head-
lights will come ON in the Automatic mode.100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving. TRACTION CONTROL SWITCH Ð IF EQUIPPED
The TRAC indicator, located below the instrument clus-
ter odometer, will light up when the Traction Control is in
use.
To turn the system OFF, press the TRAC OFF switch
located on the steering column, until the TRAC OFF
indicator below the instrument cluster odometer lights up. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105
3

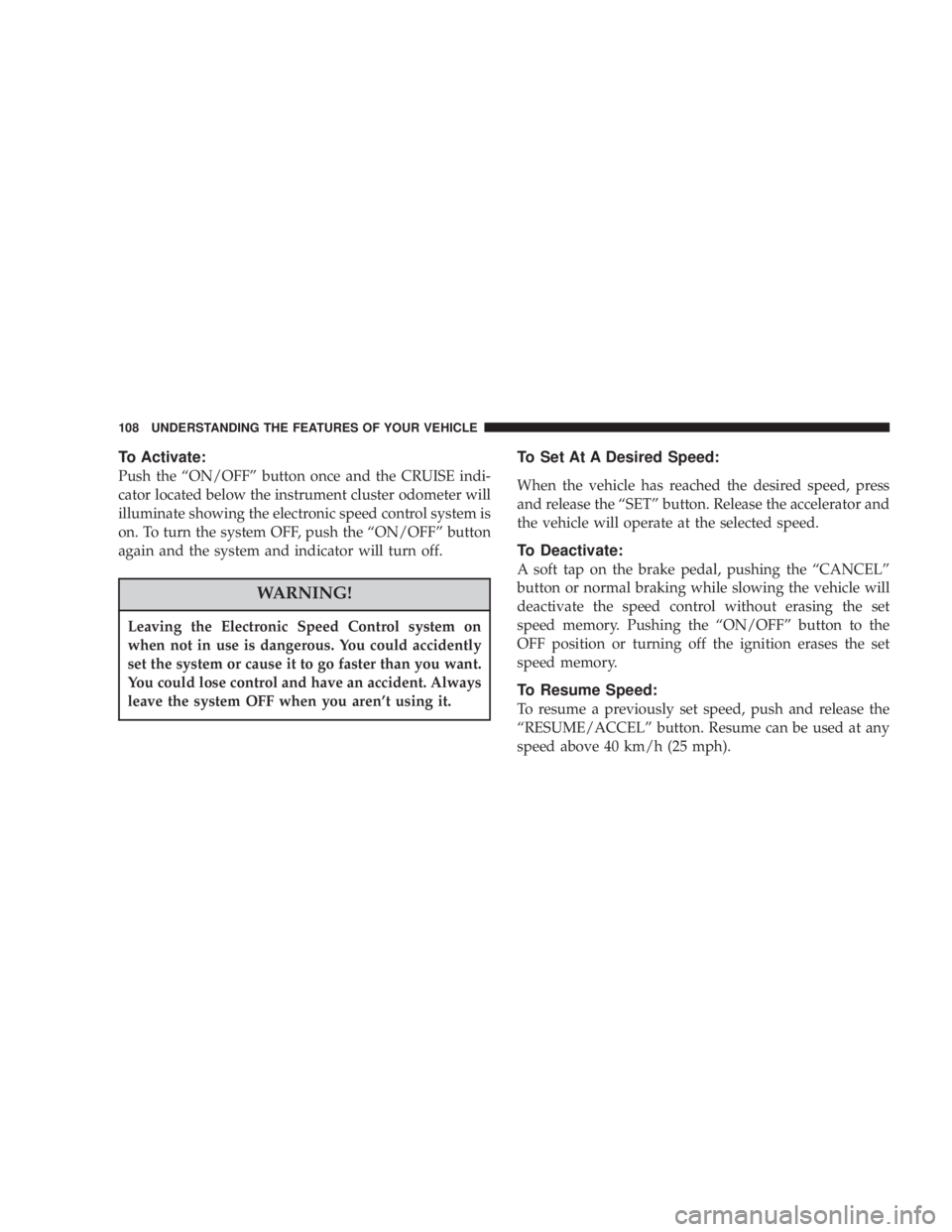

To Activate:
Push the ªON/OFFº button once and the CRUISE indi-
cator located below the instrument cluster odometer will
illuminate showing the electronic speed control system is
on. To turn the system OFF, push the ªON/OFFº button
again and the system and indicator will turn off.
WARNING!Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidently
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you aren't using it. To Set At A Desired Speed:
When the vehicle has reached the desired speed, press
and release the ªSETº button. Release the accelerator and
the vehicle will operate at the selected speed.
To Deactivate:
A soft tap on the brake pedal, pushing the ªCANCELº
button or normal braking while slowing the vehicle will
deactivate the speed control without erasing the set
speed memory. Pushing the ªON/OFFº button to the
OFF position or turning off the ignition erases the set
speed memory.
To Resume Speed:
To resume a previously set speed, push and release the
ªRESUME/ACCELº button. Resume can be used at any
speed above 40 km/h (25 mph).108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Mini-Trip Computer
This displays information on the following:
² Average Fuel Economy (ECO AVG)
Shows the average fuel economy since the last reset.
² Distance To Empty (DTE)
Shows the estimated distance that can be travelled with
the fuel remaining in the tank. This estimated distance is
determined using the MPG for the last few minutes.
² Trip Odometer (ODO)
Shows the distance travelled since the last reset.
² Elapsed Time (ET)
Shows the accumulated ignition ON time since the last
reset.
² Off Mode
Shows a blank display. ² Step Button
Push this button to cycle through all the Compass/Mini-
trip Computer displays.
² US/M Button
Press this button to convert the display from U.S. to
metric.
To Reset The Display
Pressing the Reset button once will clear the resettable
function currently being displayed. Resettable functions
are average fuel economy, trip odometer and elapsed
time. Pressing the reset button twice within four seconds
will clear all resettable functions. Reset will only occur if
a resettable function is currently being displayed.114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

20. Odometer/Trip Odometer
The odometer shows the total distance the vehicle has
been driven.
U.S. federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. There-
fore, if the odometer reading is changed during repair or
replacement, be sure to keep a record of the reading
before and after the service so that the correct mileage can
be determined.
The trip odometer shows individual trip mileage. To
switch from odometer to trip odometer, press the Trip
Odometer button.
21. Cruise Indicator
This vacuum fluorescent display indicator shows that the
Speed Control System is ON. 22. Trip Odometer Button
Press this button to change the display from odometer to
trip odometer. The word TRIP will appear when in the
trip odometer mode.
Push in and hold the button for two seconds to reset the
trip odometer to 0 miles or kilometers. The odometer
must be in trip mode to reset.
23. Tire Pressure Monitor Warning Light Ð If
Equipped
This light will turn on when there is a Low tire
pressure condition. The light will also turn on
if a problem exist with any tire sensor. The light
will remain on until the tire pressure is prop-
erly set or the problem with the sensor is corrected.
This light will turn on momentarily as a bulb check when
the engine is started. UNDERSTANDING YOUR INSTRUMENT PANEL 157
4

WARNING!² Do not use a tire, wheel size or rating other than that
specified for your vehicle. Some combinations of
unapproved tires and wheels may change suspen-
sion dimensions and performance characteristics,
resulting in changes to steering, handling, and brak-
ing of your vehicle. This can cause unpredictable
handling and stress to steering and suspension com-
ponents. You could lose control and have an accident
resulting in serious injury or death. Use only the tire
and wheel sizes with load ratings approved for your
vehicle.
² Never use a tire with a smaller load index or capacity,
other than what was originally equipped on your
vehicle. Using a tire with a smaller load index could
result in tire overloading and failure. You could lose
control and have an accident.
² Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control. CAUTION!Replacing original tires with tires of a different size
may result in false speedometer and odometer read-
ings.
Alignment And Balance
Poor suspension alignment may result in:
² fast tire wear;
² uneven tire wear, such as feathering and one-sided
wear;
² vehicle pull to right or left.
Tires may also cause the vehicle to pull to the left or right.
Alignment will not correct this condition. See your dealer
for proper diagnosis.258 STARTING AND OPERATING

Automatic Dimming ..................... 77
Electric Remote ........................ 79
Exterior Folding ........................ 78
Heated .............................. 80
Outside .............................. 78
Rearview ............................. 77
Vanity ............................... 80
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 259
Mopar Parts ......................... 302,375
Multi-Function Control Lever ............... 102
New Vehicle Break-In Period ................ 70
Occupant Restraints ....................... 38
Octane Rating, Gasoline ................... 266
Odometer ............................. 157
Oil, Engine ......................... 303,344
Capacity ............................ 343 Change Interval ....................... 305
Checking ............................ 303
Disposal ............................ 307
Filter ............................ 307,344
Filter Disposal ........................ 307
Identification Logo ..................... 306
Materials Added to ..................... 307
Recommendation ...................... 305
Synthetic ............................ 307
Viscosity ............................ 306
Onboard Diagnostic System .............. 300,301
Opener, Garage Door ..................... 119
Operator Manuals ......................... 4
Outside Rearview Mirrors .................. 77
Overdrive ............................. 234
Overhead Console ....................... 110
Overhead Travel Information Center .......... 110
Overheating, Engine ................... 154,281
Owner's Manual ....................... 4,376 INDEX 391
10

Sizes ............................... 244
Snow Tires ........................... 264
Spare Tire ........................... 283
Spinning ............................ 256
Tread Wear Indicators ................... 256
Towing ............................... 275
Disabled Vehicle ....................... 291
Trailering ............................ 275
Traction Control ................... 105,156,241
Trailer Towing .......................... 275
Minimum Requirements ................. 275
Trailer and Tongue Weight ................ 276
Transaxle ........................... 231,326
Automatic ........................ 231,326
Filter ............................... 328
Operation ........................... 231
Overdrive ........................... 234
Selection of Lubricant ................ 326,345
Transmission ..................... See Transaxle Transmitter Battery Service .................. 25
Transmitter, Garage Door Opener ............ 119
Transmitter Programming ................... 23
Transmitter, Remote Keyless Entry ............ 20
Transporting Pets ........................ 66
Tread Wear Indicators .................... 256
Trip Odometer .......................... 157
Trip Odometer Reset Button ................ 157
Turn Signals ................ 102,158,159,340,342
Uniform Tire Quality Grades ................ 378
Universal Joints ......................... 315
Universal Transmitter ..................... 119
Unleaded Gasoline ....................... 266
Vanity Mirrors ........................... 80
Variance, Compass ....................... 112
Vehicle Certification Label ................. 272
Vehicle Identification Number ................ 6396 INDEX
