FIVE–SPEED MANUAL TRANSAXLE 5B – 21
DAEWOO V–121 BL4
TRANSAXLE ASSEMBLY
Tools Required
J–28467–B Engine Support Fixture
Removal Procedure
1. Install the engine support fixture J–28467–B.
2. Remove the battery and battery tray. Refer to Sec-
tion 1E, ENGINE ELETRICAL.
3. Remove the shift linkage assembly. Refer to ”Shift
Linkage Adjustment” in this section.
4. Remove the drive axle shaft. Refer to Section 3B,
Manual Transaxle Drive Axle.
5. Disconnect the backup lamp switch electrical con-
nector.
6. Disconnect the speedometer speed sensor electri-
cal connector.
7. Remove the pin and the clutch release cylinder
pipe.
8. Remove the damping block connection nut and
bolt.
9. Remove the three rear mounting bracket bolts.
10. Remove the rear mounting bracket from the trans-
axle.

FIVE–SPEED MANUAL TRANSAXLE 5B – 25
DAEWOO V–121 BL4
11. Connect the clutch release cylinder pipe.
12. Connect the speedometer speed sensor electrical
connector.
13. Connect the backup lamp switch electrical connec-
tor.
14. Remove the engine support fixture J–28467–B.
15. Install the drive axle shaft. Refer to Section 3B,
Manual Transaxle Drive Axle.
16. Install the shift linkage assembly. Refer to ”Shift
Linkage Assembly” in this section.
17. Install the battery and battery tray. Refer to Section
1E, ENGINE ELETRICAL.
18. Inspect the fluid level. Refer to ”Checking Fluid Lev-
el” in this section.

5B – 28IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4

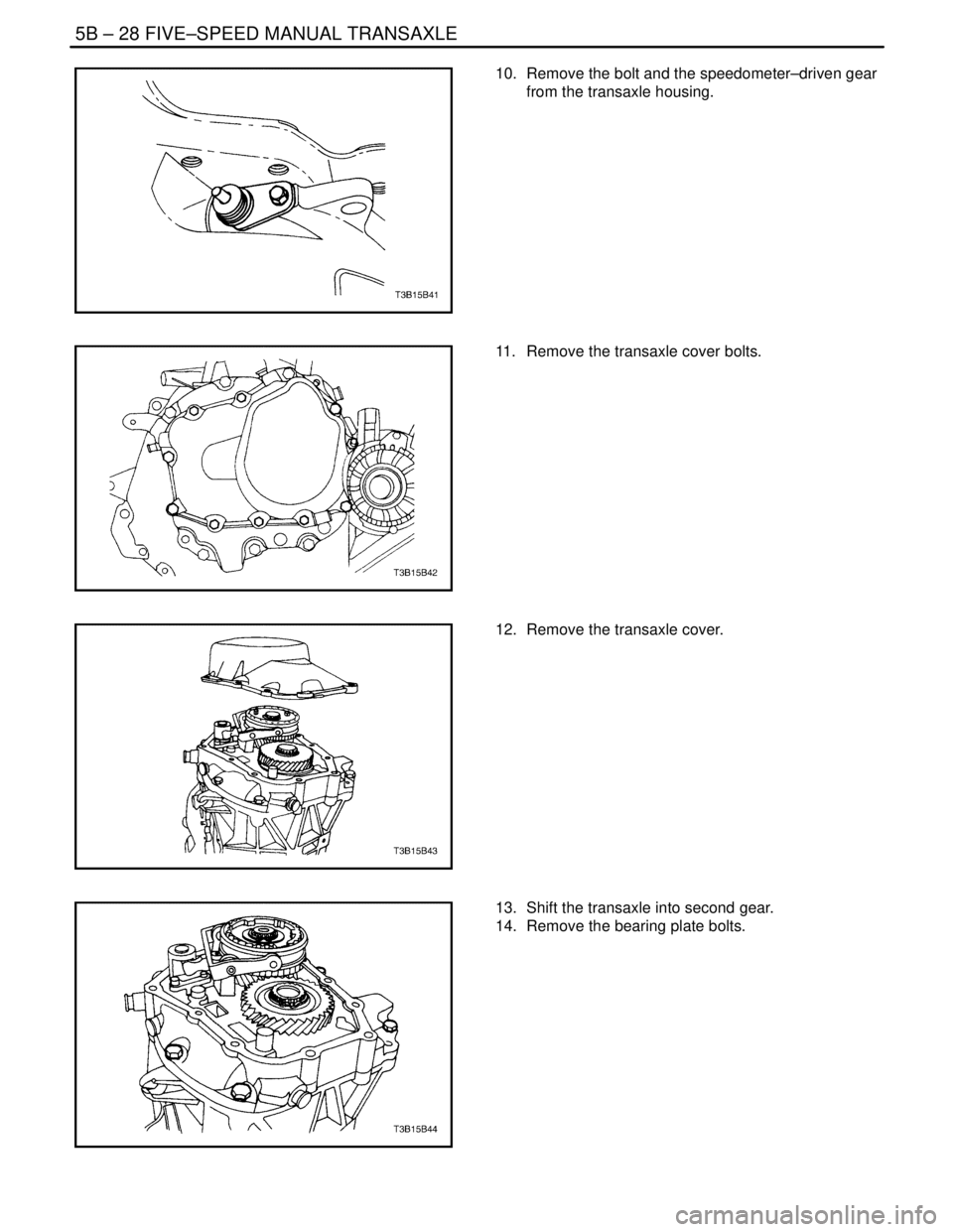

10. Remove the bolt and the speedometer–driven gear
from the transaxle housing.
11. Remove the transaxle cover bolts.
12. Remove the transaxle cover.
13. Shift the transaxle into second gear.
14. Remove the bearing plate bolts.

FIVE–SPEED MANUAL TRANSAXLE 5B – 49
DAEWOO V–121 BL4

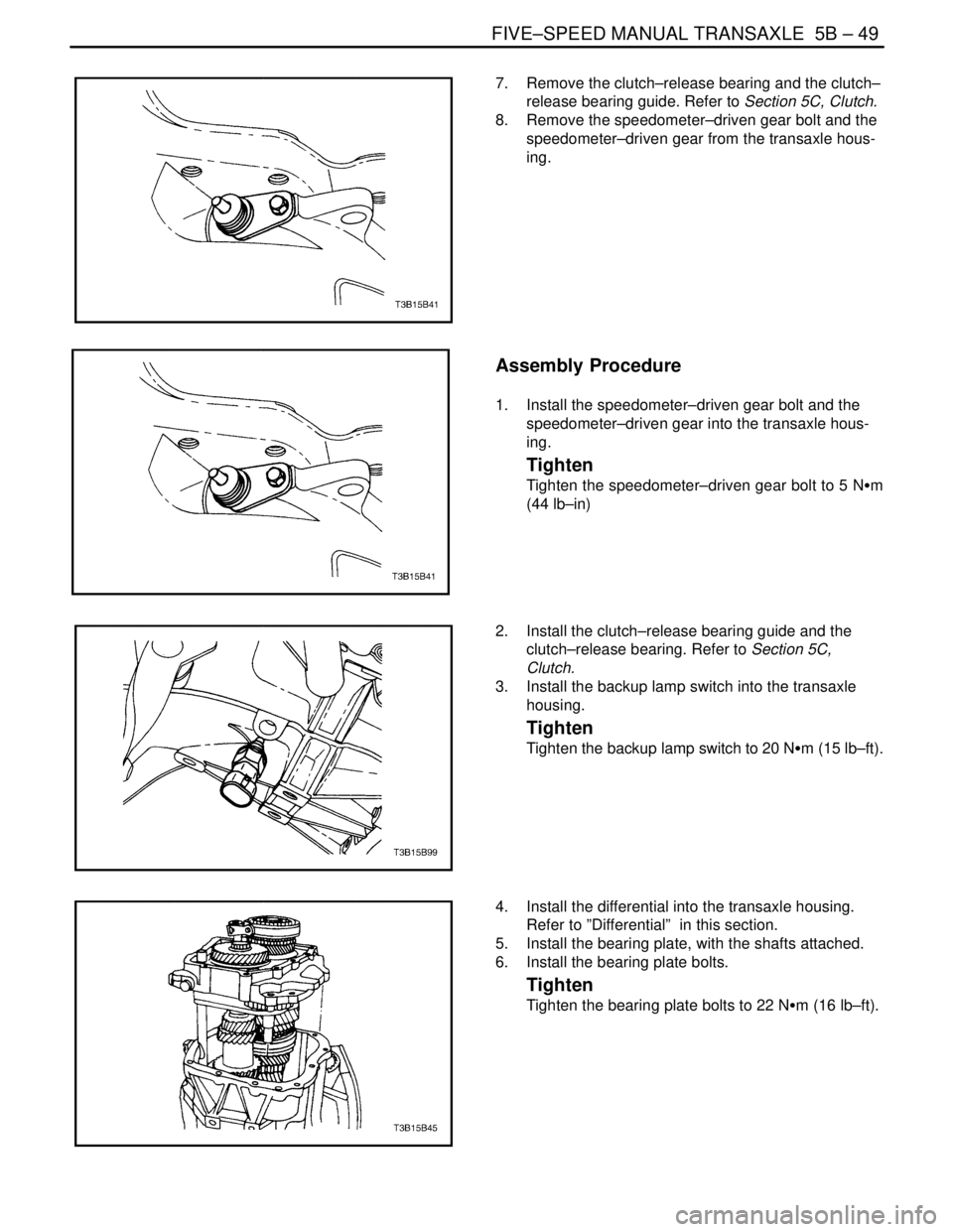

7. Remove the clutch–release bearing and the clutch–
release bearing guide. Refer to Section 5C, Clutch.
8. Remove the speedometer–driven gear bolt and the
speedometer–driven gear from the transaxle hous-
ing.
Assembly Procedure
1. Install the speedometer–driven gear bolt and the
speedometer–driven gear into the transaxle hous-
ing.
Tighten
Tighten the speedometer–driven gear bolt to 5 NSm
(44 lb–in)
2. Install the clutch–release bearing guide and the
clutch–release bearing. Refer to Section 5C,
Clutch.
3. Install the backup lamp switch into the transaxle
housing.
Tighten
Tighten the backup lamp switch to 20 NSm (15 lb–ft).
4. Install the differential into the transaxle housing.
Refer to ”Differential” in this section.
5. Install the bearing plate, with the shafts attached.
6. Install the bearing plate bolts.
Tighten
Tighten the bearing plate bolts to 22 NSm (16 lb–ft).

FIVE–SPEED MANUAL TRANSAXLE 5B – 53
DAEWOO V–121 BL4
12. Remove both of the differential bearings using the
bearing puller J–22888–20–A with the puller legs
J–22888–35.
13. Remove the speedometer drive gear from the dif-
ferential gear housing.
Assembly Procedure
1. Install the speedometer drive gear onto the differen-
tial gear housing using the installer KM–525.
2. Install both of the differential bearings using the in-
staller KM–522.

FIVE–SPEED MANUAL TRANSAXLE 5B – 61
DAEWOO V–121 BL4

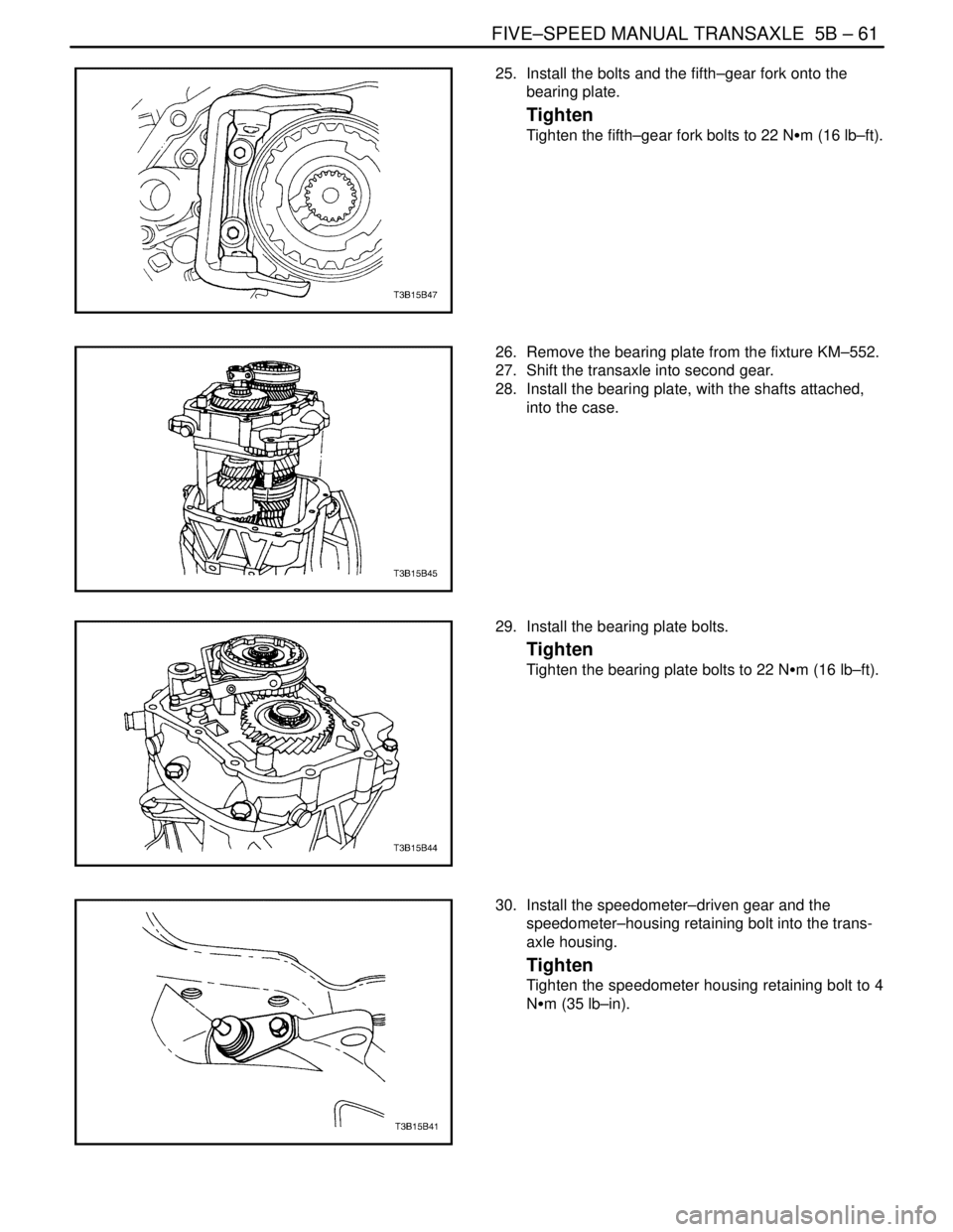

25. Install the bolts and the fifth–gear fork onto the
bearing plate.
Tighten
Tighten the fifth–gear fork bolts to 22 NSm (16 lb–ft).
26. Remove the bearing plate from the fixture KM–552.
27. Shift the transaxle into second gear.
28. Install the bearing plate, with the shafts attached,
into the case.
29. Install the bearing plate bolts.
Tighten
Tighten the bearing plate bolts to 22 NSm (16 lb–ft).
30. Install the speedometer–driven gear and the
speedometer–housing retaining bolt into the trans-
axle housing.
Tighten
Tighten the speedometer housing retaining bolt to 4
NSm (35 lb–in).

POWER STEERING GEAR 6C – 7
DAEWOO V–121 BL4
SPEED SENSITIVE POWER STEERING SYSTEM
OPERATING WITH FULL ASSIST AT ALL TIMES
StepActionValue(s)YesNo
1Perform an initial inspection of the power steering
system.
Is the system operational?–Go to Step 2Go to
Section 6A,
Power Steering
System
2Check the speedometer.
Is the speedometer inoperative?–Go to
Section5,
TransaxleGo to Step 3
3Check the diagnostic trouble codes at the engine
control module (ECM).
Is the ECM code 24 set?–Go to
Section1F,
Engine
ControlsGo to Step 4
41. Turn the ignition ON.
2. Disconnect the electronic variable orifice (EVO)
solenoid actuator electrical connector at the
power steering pump.
3. Probe terminal 1 of the EVO actuator connec-
tor with a voltmeter.
Does the voltmeter display the specified value?–Go to Step 6Go to Step 5
5Repair the open or short in the circuit between termi-
nal 1 of the EVO solenoid actuator electrical connec-
tor and terminal 2 on the speed sensitive power
steering (SSPS) control module connector.
Is the repair complete?–System OK–
61. Remove the EVO solenoid actuator from the
power steering pump.
2. Turn the actuator upside down to position the
pintle.
3. Stimulate the actuator by connecting it to the
battery.
Does the actuator click?–Go to Step 8Go to Step 7
7Replace the EVO solenoid actuator.
Is the repair complete?–System OK–
81. Turn the ignition OFF.
2. Remove the SSPS control module from the
control module bracket.
3. Disconnect the SSPS control module connec-
tor.
4. Connect a test light from terminal 8 on the
SSPS control module connector to the ground.
5. Turn the ignition ON.
Is the test light on?–Go to Step 14Go to Step 9
9Check the ignition fuse.
Is the ignition fuse open?–Go to Step 10Go to Step 11
10Replace the ignition fuse.
Is the repair complete?–System OK–
11Check for an open or short in the circuit between ter-
minal 8 of the control module connector and the I/P
fuse block.
Is the connection faulty?–Go to Step 12Go to Step 13

POWER STEERING GEAR 6C – 9
DAEWOO V–121 BL4
StepNo Yes Value(s) Action
23Repair the open, short to ground, short to B+, or poor
terminal contact between terminal 14 of the SSPS
control module connector and terminal 2 of the
steering wheel rotation sensor connector.
Is the repair complete?–System OK–
241. Turn the ignition OFF.
2. Connect the SSPS control module.
3. Connect the steering wheel rotation sensor.
4. Turn the ignition ON.
5. Backprobe with a voltmeter from terminal 5 on
the control module connector to the ground.
6. Rotate the steering wheel quickly in both direc-
tions.
Does the voltage show an increase and decrease
from the specified value?
3 VGo to Step 25Go to Step 26
25Replace the SSPS control module.
Is the repair complete?–System OK–
26Replace the steering wheel rotation sensor.
Is the repair complete?–System OK–
SPEED SENSITIVE POWER STEERING SYSTEM
OPERATING WITH DECREASED ASSIST AT ALL TIMES
StepActionValue(s)YesNo
1Check the speedometer.
Is speedometer inoperative?–Go to
Section5,
TransaxleGo to Step 2
2Disconnect the EVO solenoid actuator at the power
steering pump.
Is the symptom still present?–Go to
Section 6A,
Power Steering
SystemGo to Step 3
3Replace the speed sensitive poser steering (SSPS)
control module.
Is repair complete?–System OK–
General Operation
The control module self–diagnoses SSPS system. If there
is any malfunction, the warning lamp comes ON and at the
same time a trouble code is set. The trouble code can be
retrieved or cleared only by SCANTOOL.
In normal condition, If the ignition is turned on, the warning
lamp comes on for the first 2 sec and out. During this 2 sec,
the control module is diagnosing SSPS system, so a driver
can feel a little heavy steering effort.
If the warning lamp stays on after the 2 sec or comes on
afterward, it means there is a malfunction and a related
trouble code is recorded.
The warning lamp once come on does not go off even if the
malfunction is cleared. It goes off after ignition is turned off
and on without a malfunction.However the trouble code still remains in the control mod-
ule.
