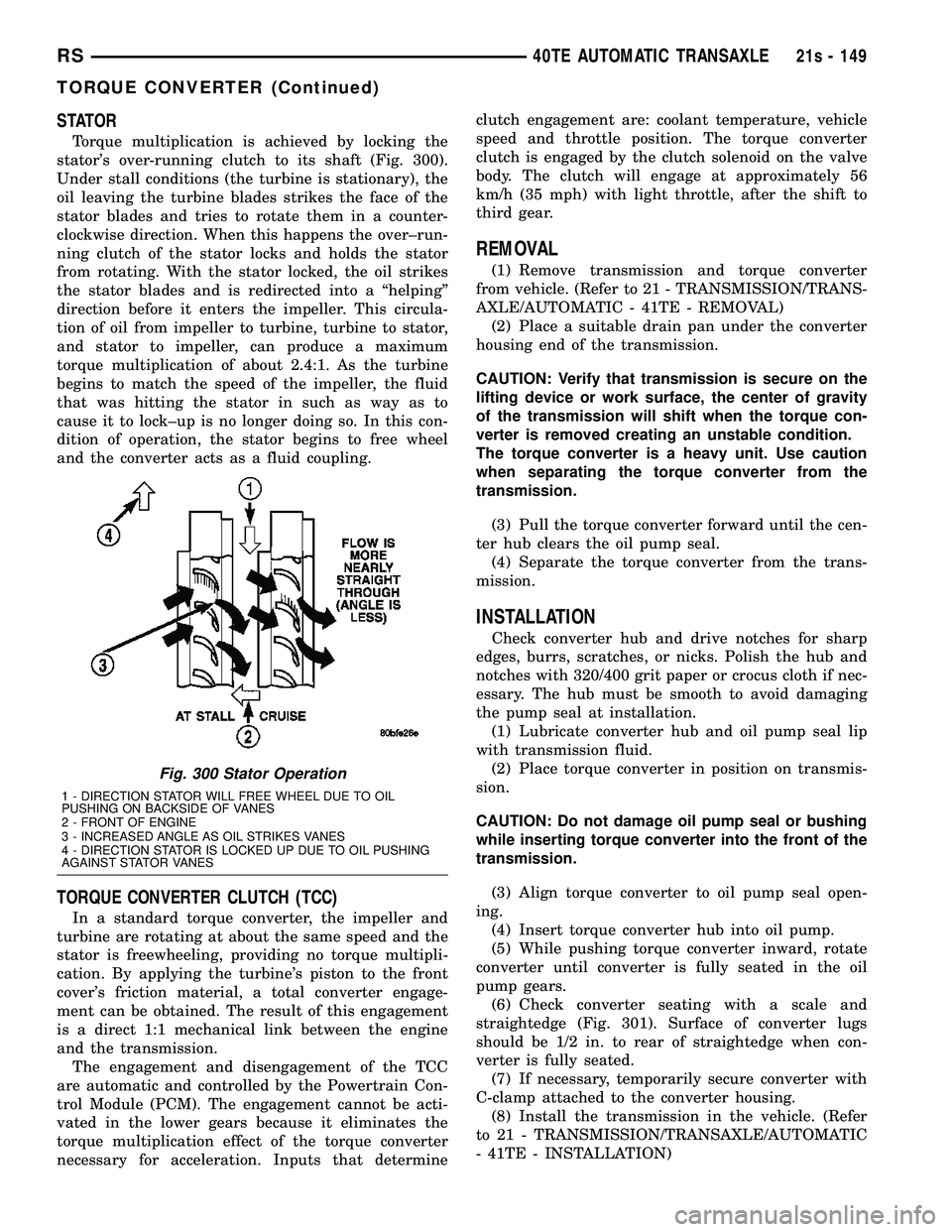

STATOR
Torque multiplication is achieved by locking the
stator's over-running clutch to its shaft (Fig. 300).
Under stall conditions (the turbine is stationary), the
oil leaving the turbine blades strikes the face of the
stator blades and tries to rotate them in a counter-
clockwise direction. When this happens the over±run-
ning clutch of the stator locks and holds the stator
from rotating. With the stator locked, the oil strikes
the stator blades and is redirected into a ªhelpingº
direction before it enters the impeller. This circula-
tion of oil from impeller to turbine, turbine to stator,
and stator to impeller, can produce a maximum
torque multiplication of about 2.4:1. As the turbine
begins to match the speed of the impeller, the fluid
that was hitting the stator in such as way as to
cause it to lock±up is no longer doing so. In this con-
dition of operation, the stator begins to free wheel
and the converter acts as a fluid coupling.
TORQUE CONVERTER CLUTCH (TCC)
In a standard torque converter, the impeller and
turbine are rotating at about the same speed and the
stator is freewheeling, providing no torque multipli-
cation. By applying the turbine's piston to the front
cover's friction material, a total converter engage-
ment can be obtained. The result of this engagement
is a direct 1:1 mechanical link between the engine
and the transmission. The engagement and disengagement of the TCC
are automatic and controlled by the Powertrain Con-
trol Module (PCM). The engagement cannot be acti-
vated in the lower gears because it eliminates the
torque multiplication effect of the torque converter
necessary for acceleration. Inputs that determine clutch engagement are: coolant temperature, vehicle
speed and throttle position. The torque converter
clutch is engaged by the clutch solenoid on the valve
body. The clutch will engage at approximately 56
km/h (35 mph) with light throttle, after the shift to
third gear.
REMOVAL
(1) Remove transmission and torque converter
from vehicle. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 41TE - REMOVAL) (2) Place a suitable drain pan under the converter
housing end of the transmission.
CAUTION: Verify that transmission is secure on the
lifting device or work surface, the center of gravity
of the transmission will shift when the torque con-
verter is removed creating an unstable condition.
The torque converter is a heavy unit. Use caution
when separating the torque converter from the
transmission.
(3) Pull the torque converter forward until the cen-
ter hub clears the oil pump seal. (4) Separate the torque converter from the trans-
mission.
INSTALLATION
Check converter hub and drive notches for sharp
edges, burrs, scratches, or nicks. Polish the hub and
notches with 320/400 grit paper or crocus cloth if nec-
essary. The hub must be smooth to avoid damaging
the pump seal at installation. (1) Lubricate converter hub and oil pump seal lip
with transmission fluid. (2) Place torque converter in position on transmis-
sion.
CAUTION: Do not damage oil pump seal or bushing
while inserting torque converter into the front of the
transmission.
(3) Align torque converter to oil pump seal open-
ing. (4) Insert torque converter hub into oil pump.
(5) While pushing torque converter inward, rotate
converter until converter is fully seated in the oil
pump gears. (6) Check converter seating with a scale and
straightedge (Fig. 301). Surface of converter lugs
should be 1/2 in. to rear of straightedge when con-
verter is fully seated. (7) If necessary, temporarily secure converter with
C-clamp attached to the converter housing. (8) Install the transmission in the vehicle. (Refer
to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC
- 41TE - INSTALLATION)
Fig. 300 Stator Operation
1 - DIRECTION STATOR WILL FREE WHEEL DUE TO OIL
PUSHING ON BACKSIDE OF VANES
2 - FRONT OF ENGINE
3 - INCREASED ANGLE AS OIL STRIKES VANES
4 - DIRECTION STATOR IS LOCKED UP DUE TO OIL PUSHING
AGAINST STATOR VANES
RS 40TE AUTOMATIC TRANSAXLE21s - 149
TORQUE CONVERTER (Continued)

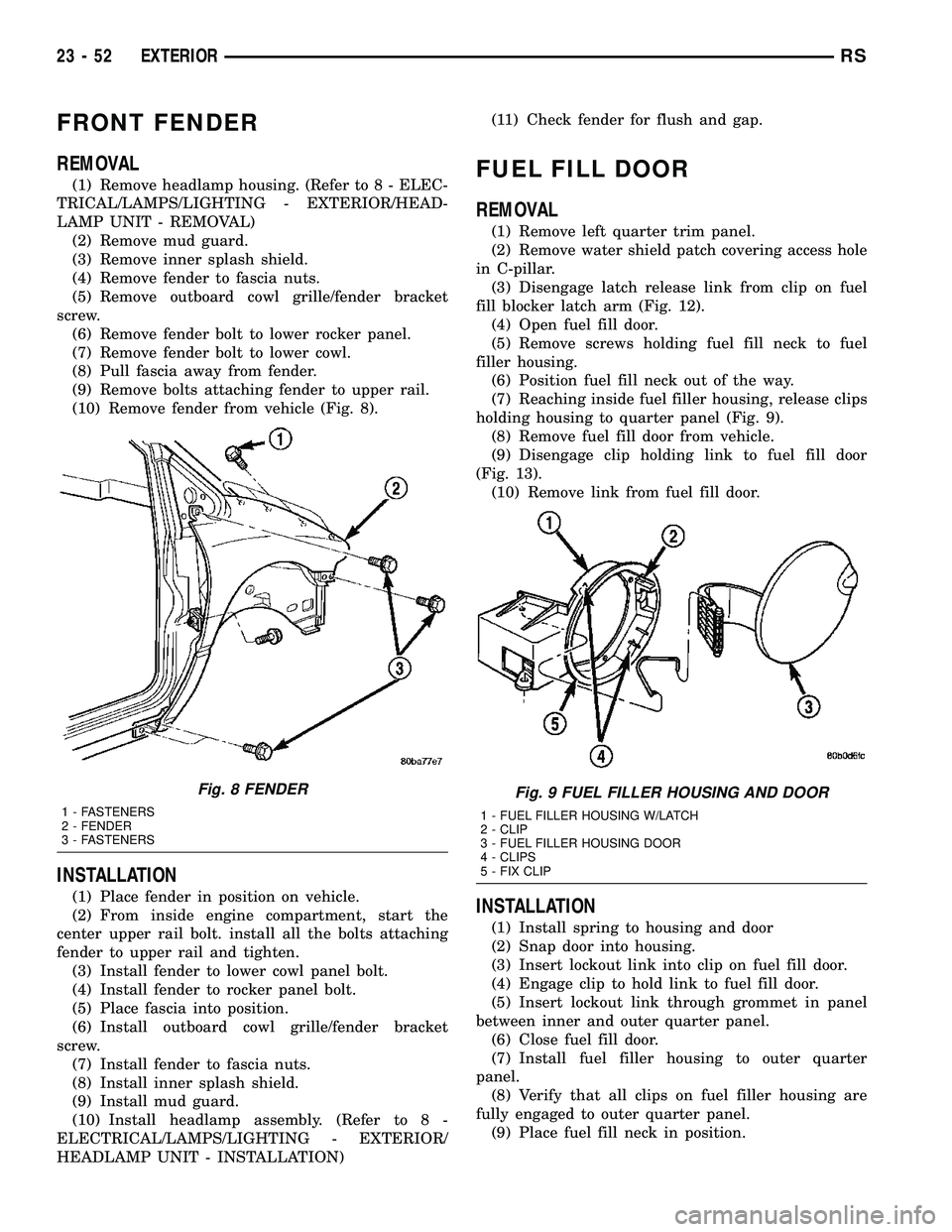

FRONT FENDER
REMOVAL
(1) Remove headlamp housing. (Refer to 8 - ELEC-
TRICAL/LAMPS/LIGHTING - EXTERIOR/HEAD-
LAMP UNIT - REMOVAL)
(2) Remove mud guard.
(3) Remove inner splash shield.
(4) Remove fender to fascia nuts.
(5) Remove outboard cowl grille/fender bracket
screw.
(6) Remove fender bolt to lower rocker panel.
(7) Remove fender bolt to lower cowl.
(8) Pull fascia away from fender.
(9) Remove bolts attaching fender to upper rail.
(10) Remove fender from vehicle (Fig. 8).
INSTALLATION
(1) Place fender in position on vehicle.
(2) From inside engine compartment, start the
center upper rail bolt. install all the bolts attaching
fender to upper rail and tighten.
(3) Install fender to lower cowl panel bolt.
(4) Install fender to rocker panel bolt.
(5) Place fascia into position.
(6) Install outboard cowl grille/fender bracket
screw.
(7) Install fender to fascia nuts.
(8) Install inner splash shield.
(9) Install mud guard.
(10) Install headlamp assembly. (Refer to 8 -
ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/
HEADLAMP UNIT - INSTALLATION)(11) Check fender for flush and gap.
FUEL FILL DOOR
REMOVAL
(1) Remove left quarter trim panel.
(2) Remove water shield patch covering access hole
in C-pillar.
(3) Disengage latch release link from clip on fuel
fill blocker latch arm (Fig. 12).
(4) Open fuel fill door.
(5) Remove screws holding fuel fill neck to fuel
filler housing.
(6) Position fuel fill neck out of the way.
(7) Reaching inside fuel filler housing, release clips
holding housing to quarter panel (Fig. 9).
(8) Remove fuel fill door from vehicle.
(9) Disengage clip holding link to fuel fill door
(Fig. 13).
(10) Remove link from fuel fill door.
INSTALLATION
(1) Install spring to housing and door
(2) Snap door into housing.
(3) Insert lockout link into clip on fuel fill door.
(4) Engage clip to hold link to fuel fill door.
(5) Insert lockout link through grommet in panel
between inner and outer quarter panel.
(6) Close fuel fill door.
(7) Install fuel filler housing to outer quarter
panel.
(8) Verify that all clips on fuel filler housing are
fully engaged to outer quarter panel.
(9) Place fuel fill neck in position.
Fig. 8 FENDER
1 - FASTENERS
2 - FENDER
3 - FASTENERS
Fig. 9 FUEL FILLER HOUSING AND DOOR
1 - FUEL FILLER HOUSING W/LATCH
2 - CLIP
3 - FUEL FILLER HOUSING DOOR
4 - CLIPS
5 - FIX CLIP
23 - 52 EXTERIORRS

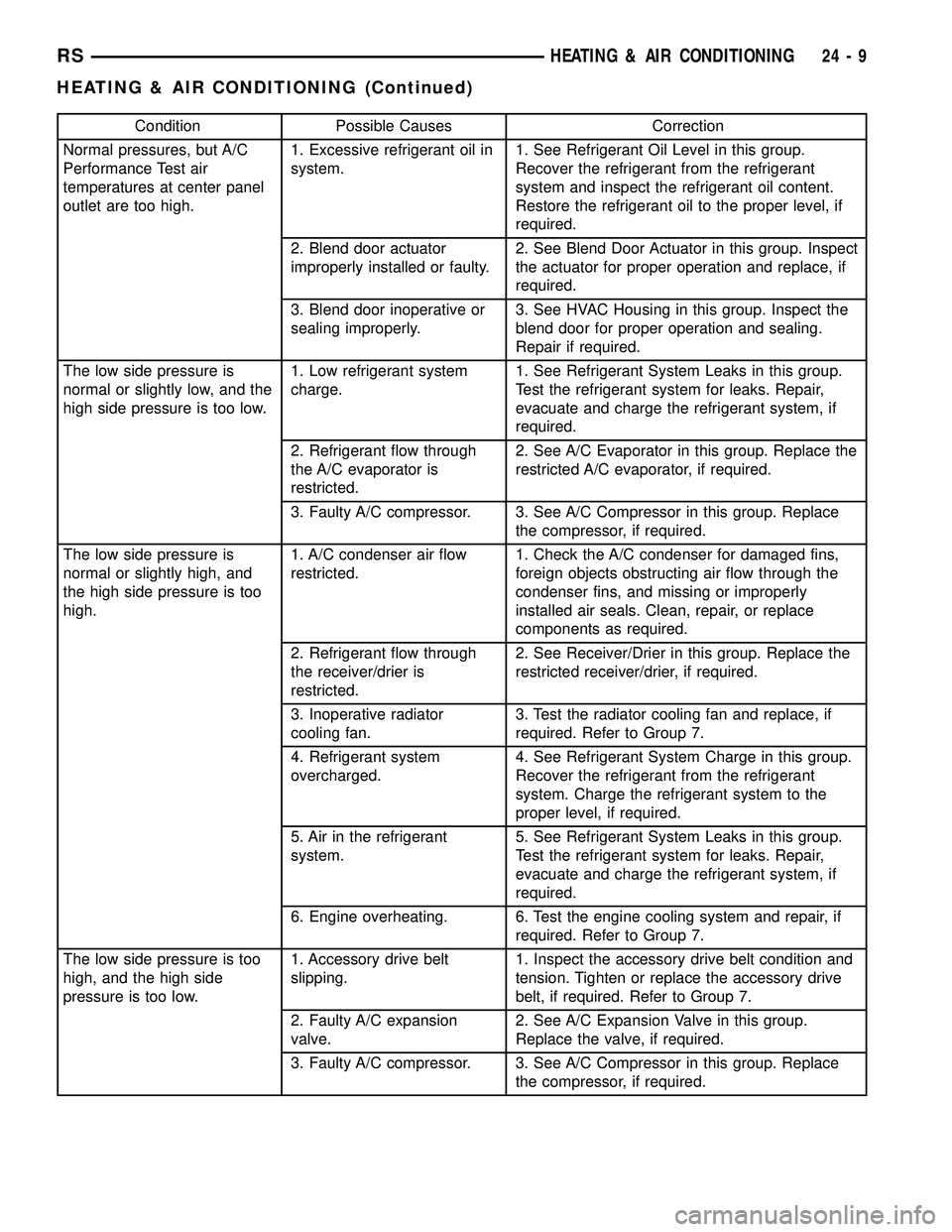

Condition Possible Causes Correction
Normal pressures, but A/C
Performance Test air
temperatures at center panel
outlet are too high.1. Excessive refrigerant oil in
system.1. See Refrigerant Oil Level in this group.
Recover the refrigerant from the refrigerant
system and inspect the refrigerant oil content.
Restore the refrigerant oil to the proper level, if
required.
2. Blend door actuator
improperly installed or faulty.2. See Blend Door Actuator in this group. Inspect
the actuator for proper operation and replace, if
required.
3. Blend door inoperative or
sealing improperly.3. See HVAC Housing in this group. Inspect the
blend door for proper operation and sealing.
Repair if required.
The low side pressure is
normal or slightly low, and the
high side pressure is too low.1. Low refrigerant system
charge.1. See Refrigerant System Leaks in this group.
Test the refrigerant system for leaks. Repair,
evacuate and charge the refrigerant system, if
required.
2. Refrigerant flow through
the A/C evaporator is
restricted.2. See A/C Evaporator in this group. Replace the
restricted A/C evaporator, if required.
3. Faulty A/C compressor. 3. See A/C Compressor in this group. Replace
the compressor, if required.
The low side pressure is
normal or slightly high, and
the high side pressure is too
high.1. A/C condenser air flow
restricted.1. Check the A/C condenser for damaged fins,
foreign objects obstructing air flow through the
condenser fins, and missing or improperly
installed air seals. Clean, repair, or replace
components as required.
2. Refrigerant flow through
the receiver/drier is
restricted.2. See Receiver/Drier in this group. Replace the
restricted receiver/drier, if required.
3. Inoperative radiator
cooling fan.3. Test the radiator cooling fan and replace, if
required. Refer to Group 7.
4. Refrigerant system
overcharged.4. See Refrigerant System Charge in this group.
Recover the refrigerant from the refrigerant
system. Charge the refrigerant system to the
proper level, if required.
5. Air in the refrigerant
system.5. See Refrigerant System Leaks in this group.
Test the refrigerant system for leaks. Repair,
evacuate and charge the refrigerant system, if
required.
6. Engine overheating. 6. Test the engine cooling system and repair, if
required. Refer to Group 7.
The low side pressure is too
high, and the high side
pressure is too low.1. Accessory drive belt
slipping.1. Inspect the accessory drive belt condition and
tension. Tighten or replace the accessory drive
belt, if required. Refer to Group 7.
2. Faulty A/C expansion
valve.2. See A/C Expansion Valve in this group.
Replace the valve, if required.
3. Faulty A/C compressor. 3. See A/C Compressor in this group. Replace
the compressor, if required.
RSHEATING & AIR CONDITIONING24-9
HEATING & AIR CONDITIONING (Continued)

Condition Possible Causes Correction
The low side pressure is too
low, and the high side
pressure is too high.1. Restricted refrigerant flow
through the refrigerant lines.1. See Liquid Line, Suction Line and Discharge
Line in this group. Inspect the refrigerant lines for
kinks, tight bends or improper routing. Correct
the routing or replace the refrigerant line, if
required.
2. Restricted refrigerant flow
through the A/C expansion
valve.2. See A/C Expansion Valve in this group.
Replace the valve, if required.
3. Restricted refrigerant flow
through the A/C condenser.3. See A/C Condenser in this group. Replace the
restricted condenser, if required.
DIAGNOSIS AND TESTING - HEATER
PERFORMANCE TEST
WARNING: REVIEW SAFETY PRECAUTIONS AND
WARNINGS IN THIS GROUP BEFORE PERFORMING
THIS PROCEDURE (Refer to 24 - HEATING & AIR
CONDITIONING/PLUMBING - WARNING).
Check the coolant level, drive belt tension, radiator
air flow and fan operation. Start engine and allow to
warm up to normal operating temperature.
WARNING: DO NOT REMOVE RADIATOR CAP
WHEN ENGINE IS HOT, PERSONAL INJURY CAN
RESULT.
If vehicle has been run recently, wait 15 minutes
before removing the radiator cap. Place a rag overthe cap and turn it to the first safety stop. Allow
pressure to escape through the overflow tube. When
the system pressure stabilizes, remove the cap com-
pletely.
MAXIMUM HEATER OUTPUT: TEST AND ACTION
Engine coolant is provided to the heater system by
two heater hoses. With the engine idling at normal
operating temperature, set the temperature control
to maximum heat, the mode control to the floor posi-
tion, and the blower in the highest speed position.
Using a test thermometer, check the temperature of
the air being discharged from the floor outlets. Com-
pare the test thermometer reading to the Tempera-
ture Reference chart.
TEMPERATURE REFERENCE
Ambient Temperature Minimum Floor Outlet Temperature
Celsius Fahrenheit Celsius Fahrenheit
15.5É 60É 62.2É 144É
21.1É 70É 63.8É 147É
26.6É 80É 65.5É 150É
32.2É 90É 67.2É 153É
If the floor outlet air temperature is insufficient,
check that the cooling system is operating to specifi-
cations (Refer to 7 - COOLING/ENGINE - DIAGNO-
SIS AND TESTING). Both heater hoses should be
HOT to the touch (the coolant return hose should be
slightly cooler than the supply hose). If the coolant
return hose is much cooler than the supply hose,
locate and repair the engine coolant flow obstruction
in heater system.OBSTRUCTED COOLANT FLOW Possible locations or causes
of obstructed coolant flow are as follows:
²Pinched or kinked heater hoses.
²Improper heater hose routing.
²Plugged heater hoses or supply and return ports
at the cooling system connections.
²Plugged heater core.
If proper coolant flow through the cooling system is
verified, and heater outlet air temperature is insuffi-
cient, a mechanical problem may exist.
24 - 10 HEATING & AIR CONDITIONINGRS
HEATING & AIR CONDITIONING (Continued)

ENGINE OIL LEVEL CHECK, STANDARD
PROCEDURE.........................9-53
ENGINE OIL PRESSURE - DIAGNOSIS
AND TESTING.......................9-136
ENGINE OIL PRESSURE - DIAGNOSIS
AND TESTING, CHECKING...............9-52
ENGINE, SPECIAL TOOLS - 2.4L..........9-21
ENGINE, SPECIAL TOOLS - 3.3/3.8L.......9-95
ENGINE, SPECIFICATIONS - 3.3/3.8L . . 9-91,9s-11
ENGINE SPEED SENSOR - DESCRIPTION . . 14-26
ENGINE SPEED SENSOR - OPERATION....14-26
ENGINES - DESCRIPTION, ENGINE OIL -
DIESEL..............................0-6
ENGINES - DIAGNOSIS AND TESTING,
SYSTEM CHARGE LEVEL TEST -
GASOLINE..........................24-67
ENGINES - EXPORT - DESCRIPTION,
DIESEL.............................0-24
ENTRY MODULE - DESCRIPTION,
REMOTE KEYLESS...................8N-43
ENTRY MODULE - DESCRIPTION,
SENTRY KEY REMOTE.................8Q-3
ENTRY MODULE - DIAGNOSIS AND
TESTING, REMOTE KEYLESS...........8N-43
ENTRY MODULE - DIAGNOSIS AND
TESTING, SENTRY KEY REMOTE.........8Q-5
ENTRY MODULE - INSTALLATION,
REMOTE KEYLESS...................8N-44
ENTRY MODULE - INSTALLATION,
SENTRY KEY REMOTE.................8Q-6
ENTRY MODULE - OPERATION, REMOTE
KEYLESS...........................8N-43
ENTRY MODULE - OPERATION, SENTRY
KEY REMOTE........................8Q-4
ENTRY MODULE - REMOVAL, REMOTE
KEYLESS...........................8N-44
ENTRY MODULE - REMOVAL, SENTRY
KEY REMOTE........................8Q-5
ENTRY SYSTEM - DIAGNOSIS AND
TESTING, SENTRY KEY REMOTE.........8Q-3
ENTRY TRANSMITTER - DIAGNOSIS AND
TESTING, KEYLESS..............8N-42,8N-5
ENTRY TRANSMITTER PROGRAMMING -
STANDARD PROCEDURE, REMOTE
KEYLESS............................8N-5
EQUIPMENT - STANDARD PROCEDURE,
REFRIGERANT SYSTEM SERVICE........24-70
ERASING TRANSMITTER CODES -
STANDARD PROCEDURE..............8M-11
EVACUATE - STANDARD PROCEDURE,
REFRIGERANT SYSTEM...............24-72
EVAP CANISTER - INSTALLATION, REAR . . 25-20
EVAP CANISTER - REMOVAL, REAR......25-19
EVAPORATION CONTROL SYSTEM -
OPERATION.........................25-10
EVAPORATOR - DESCRIPTION, A/C . 24-80,24-97
EVAPORATOR - INSTALLATION, A/C......24-80
EVAPORATOR - INSTALLATION, REAR
A/C................................24-99
EVAPORATOR - OPERATION, A/C . . . 24-80,24-97
EVAPORATOR - REMOVAL, A/C..........24-80
EVAPORATOR - REMOVAL, REAR A/C.....24-97
EVAPORATOR LINE EXTENSION -
INSTALLATION, REAR A/C..............24-99
EVAPORATOR LINE EXTENSION -
REMOVAL, A/C......................24-98
EVAPORATOR TEMPERATURE SENSOR -
DESCRIPTION.......................24-27
EVAPORATOR TEMPERATURE SENSOR -
OPERATION.........................24-28
EVAP/PURGE SOLENOID - DESCRIPTION . . 25-12
EVAP/PURGE SOLENOID - INSTALLATION . 25-12
EVAP/PURGE SOLENOID - OPERATION....25-12
EVAP/PURGE SOLENOID - REMOVAL.....25-12
EXCESSIVE EXHAUST SYSTEM NOISE -
DIAGNOSIS AND TESTING..............11-2
EXHAUST MANIFOLD - CLEANING........9-61
EXHAUST MANIFOLD - INSPECTION.......9-61
EXHAUST MANIFOLD - INSTALLATION.....9-61
EXHAUST MANIFOLD - LEFT - CLEANING . . 9-152
EXHAUST MANIFOLD - LEFT -
INSPECTION
........................9-152
EXHAUST MANIFOLD - LEFT -
INSTALLATION
.......................9-152
EXHAUST MANIFOLD - LEFT - REMOVAL
. . 9-152
EXHAUST MANIFOLD - REMOVAL
.........9-61
EXHAUST MANIFOLD - RIGHT -
CLEANING
..........................9-151EXHAUST MANIFOLD - RIGHT -
INSPECTION........................9-151
EXHAUST MANIFOLD - RIGHT -
INSTALLATION.......................9-151
EXHAUST MANIFOLD - RIGHT -
REMOVAL..........................9-150
EXHAUST SYSTEM - DESCRIPTION.......11-1
EXHAUST SYSTEM NOISE - DIAGNOSIS
AND TESTING, EXCESSIVE..............11-2
EXHAUST SYSTEM RESTRICTION CHECK
- DIAGNOSIS AND TESTING.............11-2
EXHAUST SYSTEM, SPECIAL TOOLS......11-4
EXHAUST TUBE - INSTALLATION.......24-115
EXHAUST TUBE - REMOVAL...........24-114
EXHAUSTER - DESCRIPTION, REAR
QUARTER PANEL/FENDER AIR..........23-57
EXHAUSTER - INSTALLATION, REAR
QUARTER PANEL/FENDER AIR..........23-58
EXHAUSTER - REMOVAL, REAR
QUARTER PANEL/FENDER AIR..........23-57
EXPANSION VALVE - DESCRIPTION......24-81
EXPANSION VALVE - DESCRIPTION, A/C . . 24-99
EXPANSION VALVE - DIAGNOSIS AND
TESTING..........................24-100
EXPANSION VALVE - DIAGNOSIS AND
TESTING, A/C.......................24-81
EXPANSION VALVE - INSTALLATION......24-82
EXPANSION VALVE - INSTALLATION, A/C . 24-100
EXPANSION VALVE - OPERATION........24-81
EXPANSION VALVE - OPERATION, A/C....24-99
EXPANSION VALVE - REMOVAL.........24-82
EXPANSION VALVE - REMOVAL, A/C.....24-100
EXPORT - BRAKE ROTOR..........5-55,5s-58
EXPORT - DESCRIPTION...........5-58,5s-60
EXPORT - DESCRIPTION................0-15
EXPORT - DESCRIPTION................2-10
EXPORT - DESCRIPTION, ANTENNA
MODULE............................8A-6
EXPORT - DESCRIPTION, DIESEL
ENGINES............................0-24
EXPORT - DESCRIPTION, DOOR
CYLINDER LOCK SWITCH...............8N-3
EXPORT - DESCRIPTION, POWER
FOLDAWAY MIRROR SWITCH..........8N-48
EXPORT - DESCRIPTION, QUARTER
GLASS INTEGRAL ANTENNA.............8A-9
EXPORT - DIAGNOSIS AND TESTING,
ANTENNA MODULE....................8A-7
EXPORT - DIAGNOSIS AND TESTING,
DOOR CYLINDER LOCK SWITCH.........8N-3
EXPORT - DIAGNOSIS AND TESTING,
QUARTER GLASS INTEGRAL ANTENNA....8A-9
EXPORT - INSTALLATION...............2-11
EXPORT - INSTALLATION, ANTENNA
MODULE............................8A-7
EXPORT - INSTALLATION, DOOR
CYLINDER LOCK SWITCH...............8N-4
EXPORT - INSTALLATION, HEADLAMP
UNIT..............................8L-17
EXPORT - INSTALLATION, HOOD AJAR
SWITCH............................8Q-3
EXPORT - INSTALLATION, POWER
FOLDAWAY MIRROR SWITCH..........8N-49
EXPORT - OPERATION, ANTENNA
MODULE............................8A-6
EXPORT - OPERATION, DOOR CYLINDER
LOCK SWITCH........................8N-3
EXPORT - OPERATION, POWER
FOLDAWAY MIRROR SWITCH..........8N-48
EXPORT - OPERATION, QUARTER GLASS
INTEGRAL ANTENNA...................8A-9
EXPORT - REMOVAL...................2-11
EXPORT - REMOVAL, ANTENNA MODULE . . 8A-7
EXPORT - REMOVAL, DOOR CYLINDER
LOCK SWITCH........................8N-3
EXPORT - REMOVAL, HEADLAMP UNIT . . . 8L-17
EXPORT - REMOVAL, HOOD AJAR
SWITCH............................8Q-3
EXPORT - REMOVAL, POWER
FOLDAWAY MIRROR SWITCH
..........8N-48
EXPORT - STANDARD PROCEDURE,
FRONT FOG LAMP UNIT ALIGNMENT
......8L-9
EXPORT - STANDARD PROCEDURE,
HEADLAMP UNIT ALIGNMENT
..........8L-14
EXTENSION - INSTALLATION, REAR A/C
EVAPORATOR LINE
...................24-99
EXTENSION - REMOVAL, A/C
EVAPORATOR LINE
...................24-98EXTENSION TRIM - INSTALLATION,
A-PILLAR LOWER....................23-74
EXTENSION TRIM - REMOVAL, A-PILLAR
LOWER............................23-74
EXTERIOR - DESCRIPTION, LAMPS/
LIGHTING...........................8L-2
EXTERIOR - OPERATION, LAMPS/
LIGHTING...........................8L-2
EXTERIOR - WARNING, LAMPS/
LIGHTING...........................8L-3
EXTERIOR HANDLE - INSTALLATION.....23-22,
23-40
EXTERIOR HANDLE - REMOVAL....23-21,23-40
EXTERIOR HANDLE SWITCH -
DESCRIPTION.......................8N-11
EXTERIOR HANDLE SWITCH -
INSTALLATION......................8N-12
EXTERIOR HANDLE SWITCH -
OPERATION.........................8N-11
EXTERIOR HANDLE SWITCH - REMOVAL . . 8N-11
EXTERIOR LAMPS, SPECIFICATIONS......8L-3
EXTERIOR NAME PLATES - ADHESIVE
ATTACHED - INSTALLATION............23-51
EXTERIOR NAME PLATES - ADHESIVE
ATTACHED - REMOVAL................23-51
EXTERIOR NAME PLATES - TAPE
ATTACHED - INSTALLATION............23-51
EXTERIOR NAME PLATES - TAPE
ATTACHED - REMOVAL................23-51
FACTOR SETTING - STANDARD
PROCEDURE, PINION............8E-15,8E-23
FAILED PARK SWITCH - DIAGNOSIS AND
TESTING..............................8R-2
FAN - DESCRIPTION, RADIATOR..........7-28
FAN - INSTALLATION, RADIATOR.........7-30
FAN - OPERATION, RADIATOR...........7-29
FAN - REMOVAL, RADIATOR.............7-30
FAN MOTOR - DIAGNOSIS AND
TESTING, RADIATOR...................7-29
FAN RELAY - DESCRIPTION, RADIATOR....7-30
FAN RELAY - INSTALLATION, RADIATOR . . . 7-30
FAN RELAY - OPERATION, RADIATOR......7-30
FAN RELAY - REMOVAL, RADIATOR.......7-30
FASCIA - INSTALLATION, FRONT.........13-1
FASCIA - INSTALLATION, REAR..........13-2
FASCIA - REMOVAL, FRONT.............13-1
FASCIA - REMOVAL, REAR..............13-2
FASCIA - SCUFF PAD - INSTALLATION,
REAR...............................13-4
FASCIA - SCUFF PAD - REMOVAL, REAR . . . 13-3
FASTENER IDENTIFICATION -
DESCRIPTION......................Intro.-2
FASTENER TORQUE, SPECIFICATIONS -
ABS ................................5-79
FASTENER TORQUE, SPECIFICATIONS -
BRAKE...........................5-9,5s-8
FASTENER TORQUE, SPECIFICATIONS -
FRONT SUSPENSION...................2-3
FASTENER TORQUE, SPECIFICATIONS -
POWER STEERING....................19-9
FASTENER TORQUE, SPECIFICATIONS -
REAR SUSPENSION...................2-28
FASTENER USAGE - DESCRIPTION......Intro.-5
FEED CIRCUIT RESISTANCE TEST -
DIAGNOSIS AND TESTING.........8F-32,8F-34
FEED CIRCUIT TEST - DIAGNOSIS AND
TESTING
......................8F-33,8F-35
FENDER - INSTALLATION, FRONT
........23-52
FENDER - REMOVAL, FRONT
...........23-52
FILL - DIAGNOSIS AND TESTING,
VEHICLE DOES NOT
..................25-16
FILL - STANDARD PROCEDURE, FLUID
DRAIN
.............................21-71
FILL DOOR - INSTALLATION, FUEL
.......23-52
FILL DOOR - REMOVAL, FUEL
..........23-52
FILL DOOR BLOCKER LATCH -
INSTALLATION, FUEL
.................23-53
FILL DOOR BLOCKER LATCH -
REMOVAL, FUEL
.....................23-53
FILL DOOR BLOCKER LATCH STRIKER -
INSTALLATION, FUEL
.................23-53
FILL DOOR BLOCKER LATCH STRIKER -
REMOVAL, FUEL
.....................23-53
FILL DOOR BLOCKER LOCKOUT LINK -
INSTALLATION, FUEL
.................23-54
FILL DOOR BLOCKER LOCKOUT LINK -
REMOVAL, FUEL
.....................23-53
RSINDEX13
Description Group-Page Description Group-Page Description Group-Page

KEY REMOTE ENTRY MODULE -
INSTALLATION, SENTRY................8Q-6
KEY REMOTE ENTRY MODULE -
OPERATION, SENTRY..................8Q-4
KEY REMOTE ENTRY MODULE -
REMOVAL, SENTRY...................8Q-5
KEY REMOTE ENTRY SYSTEM -
DIAGNOSIS AND TESTING, SENTRY.......8Q-3
KEYLESS ENTRY MODULE -
DESCRIPTION, REMOTE...............8N-43
KEYLESS ENTRY MODULE - DIAGNOSIS
AND TESTING, REMOTE...............8N-43
KEYLESS ENTRY MODULE -
INSTALLATION, REMOTE..............8N-44
KEYLESS ENTRY MODULE - OPERATION,
REMOTE...........................8N-43
KEYLESS ENTRY MODULE - REMOVAL,
REMOTE...........................8N-44
KEYLESS ENTRY TRANSMITTER -
DIAGNOSIS AND TESTING.........8N-42,8N-5
KEYLESS ENTRY TRANSMITTER
PROGRAMMING - STANDARD
PROCEDURE, REMOTE.................8N-5
KEY/LOCK CYLINDER - DESCRIPTION....19-20
KEY/LOCK CYLINDER - INSTALLATION....19-20
KEY/LOCK CYLINDER - OPERATION......19-20
KEY/LOCK CYLINDER - REMOVAL.......19-20
KNOB - INSTALLATION, GEARSHIFT......21-87
KNOB - INSTALLATION, SEAT BELT
HEIGHT ADJUSTER...................8O-14
KNOB - REMOVAL, GEARSHIFT..........21-87
KNOB - REMOVAL, SEAT BELT HEIGHT
ADJUSTER.........................8O-14
KNOCK SENSOR - DESCRIPTION..........8I-8
KNOCK SENSOR - OPERATION...........8I-8
KNUCKLE - DESCRIPTION................2-6
KNUCKLE - INSPECTION, STEERING........2-9
KNUCKLE - INSTALLATION, STEERING......2-9
KNUCKLE - OPERATION.................2-7
KNUCKLE - REMOVAL, STEERING.........2-7
LABEL - DESCRIPTION, E-MARK......Intro.-11
LABEL - DESCRIPTION, VECI.........Intro.-11
LABEL - DESCRIPTION, VEHICLE
CERTIFICATION....................Intro.-11
LABEL - DESCRIPTION, VEHICLE
EMISSION CONTROL INFORMATION.......25-1
LAMP - DESCRIPTION, VTSS/SKIS
INDICATOR..........................8Q-7
LAMP - DIAGNOSIS AND TESTING,
FRONT FOG..........................8L-7
LAMP - INSTALLATION, CENTER
CONSOLE...........................8L-21
LAMP - INSTALLATION, CENTER HIGH
MOUNTED STOP......................8L-6
LAMP - INSTALLATION, COURTESY......8L-21
LAMP - INSTALLATION, DOME/CARGO....8L-22
LAMP - INSTALLATION, FRONT FOG.......8L-8
LAMP - INSTALLATION, LICENSE........8L-17
LAMP - INSTALLATION, LIFTGATE.......8L-22
LAMP - INSTALLATION, PARK/TURN
SIGNAL............................8L-18
LAMP - INSTALLATION, READING........8L-23
LAMP - INSTALLATION, TAIL...........8L-19
LAMP - INSTALLATION, VANITY.........8L-24
LAMP - OPERATION, VTSS/SKIS
INDICATOR..........................8Q-8
LAMP - REMOVAL, CENTER CONSOLE....8L-21
LAMP - REMOVAL, CENTER HIGH
MOUNTED STOP......................8L-6
LAMP - REMOVAL, COURTESY..........8L-21
LAMP - REMOVAL, DOME/CARGO.......8L-22
LAMP - REMOVAL, FRONT FOG..........8L-8
LAMP - REMOVAL, LICENSE............8L-17
LAMP - REMOVAL, LIFTGATE...........8L-22
LAMP - REMOVAL, PARK/TURN SIGNAL . . 8L-18
LAMP - REMOVAL, READING...........8L-23
LAMP - REMOVAL, TAIL...............8L-18
LAMP - REMOVAL, VANITY.............8L-24
LAMP REPLACEMENT - STANDARD
PROCEDURE, MODULE................8M-3
LAMP REPLACEMENT - STANDARD
PROCEDURE, READING/COURTESY
.......8M-3
LAMP SWITCH - DESCRIPTION, BRAKE
....8L-4
LAMP SWITCH - DIAGNOSIS AND
TESTING, BRAKE
......................8L-4
LAMP SWITCH - INSTALLATION,
BACK-UP
...........................21-62
LAMP SWITCH - INSTALLATION, BRAKE
. . . 8L-5LAMP SWITCH - INSTALLATION, CENTER
CONSOLE...........................8L-21
LAMP SWITCH - INSTALLATION, GLOVE
BOX ...............................8L-22
LAMP SWITCH - OPERATION, BRAKE......8L-4
LAMP SWITCH - REMOVAL, BACK-UP....21-62
LAMP SWITCH - REMOVAL, BRAKE.......8L-5
LAMP SWITCH - REMOVAL, CENTER
CONSOLE...........................8L-21
LAMP SWITCH - REMOVAL, GLOVE BOX . . 8L-22
LAMP UNIT - INSTALLATION, CENTER
HIGH MOUNTED STOP.................8L-6
LAMP UNIT - INSTALLATION, TAIL.......8L-19
LAMP UNIT - REMOVAL, CENTER HIGH
MOUNTED STOP......................8L-6
LAMP UNIT - REMOVAL, TAIL...........8L-19
LAMP UNIT ALIGNMENT - EXPORT -
STANDARD PROCEDURE, FRONT FOG.....8L-9
LAMP UNIT ALIGNMENT - STANDARD
PROCEDURE, FRONT FOG...............8L-9
LAMPS - INSTALLATION, CLUSTER
ILLUMINATION......................8L-21
LAMPS - REMOVAL, CLUSTER
ILLUMINATION......................8L-21
LAMPS, SPECIFICATIONS - EXTERIOR.....8L-3
LAMPS, SPECIFICATIONS - INTERIOR....8L-20
LAMPS/LIGHTING - EXTERIOR -
DESCRIPTION........................8L-2
LAMPS/LIGHTING - EXTERIOR -
OPERATION..........................8L-2
LAMPS/LIGHTING - EXTERIOR -
WARNING...........................8L-3
LASH ADJUSTER NOISE DIAGNOSIS -
DIAGNOSIS AND TESTING, HYDRAULIC....9-34
LASH ADJUSTERS - INSTALLATION,
HYDRAULIC..........................9-34
LASH ADJUSTERS - REMOVAL,
HYDRAULIC..........................9-34
LATCH - DESCRIPTION...........8N-13,8N-29
LATCH - INSTALLATION.....23-18,23-41,23-61
LATCH - INSTALLATION..........8N-14,8N-29
LATCH - INSTALLATION, FUEL FILL
DOOR BLOCKER.....................23-53
LATCH - INSTALLATION, GLOVE BOX.....23-64
LATCH - INSTALLATION, HOLD OPEN.....23-25
LATCH / LOCK ASSEMBLY -
INSTALLATION.......................23-27
LATCH / LOCK ASSEMBLY - REMOVAL....23-26
LATCH - OPERATION............8N-13,8N-29
LATCH - REMOVAL.........23-18,23-41,23-61
LATCH - REMOVAL..............8N-13,8N-29
LATCH - REMOVAL, FUEL FILL DOOR
BLOCKER...........................23-53
LATCH - REMOVAL, GLOVE BOX.........23-64
LATCH - REMOVAL, HOLD OPEN........23-25
LATCH ACTUATOR - DESCRIPTION......8N-14
LATCH ACTUATOR - INSTALLATION......8N-14
LATCH ACTUATOR - OPERATION........8N-14
LATCH ACTUATOR - REMOVAL..........8N-14
LATCH CABLE - INSTALLATION, HOLD
OPEN..............................23-38
LATCH CABLE - REMOVAL, HOLD OPEN . . . 23-38
LATCH HANDLE - INSTALLATION, INSIDE . . 23-34
LATCH HANDLE - REMOVAL, INSIDE.....23-34
LATCH LOCKING LINK - INSTALLATION,
SEAT RISER........................23-106
LATCH LOCKING LINK - REMOVAL, SEAT
RISER
............................23-106
LATCH RELEASE CABLE - INSTALLATION
. . 23-62
LATCH RELEASE CABLE - REMOVAL
.....23-61
LATCH STRIKER - INSTALLATION
. . 23-19,23-41,
23-62
LATCH STRIKER - INSTALLATION, FUEL
FILL DOOR BLOCKER
.................23-53
LATCH STRIKER - INSTALLATION, GLOVE
BOX
...............................23-64
LATCH STRIKER - INSTALLATION, HOLD
OPEN
..............................23-26
LATCH STRIKER - INSTALLATION, REAR
. . 23-29
LATCH STRIKER - REMOVAL
. 23-19,23-41,23-62
LATCH STRIKER - REMOVAL, FUEL FILL
DOOR BLOCKER
.....................23-53
LATCH STRIKER - REMOVAL, GLOVE
BOX
...............................23-64
LATCH STRIKER - REMOVAL, HOLD
OPEN
..............................23-26
LATCH STRIKER - REMOVAL, REAR
......23-29LEAD - DIAGNOSIS AND TESTING,
TIRE/VEHICLE..................22-14,22s-6
LEAF SPRING FRONT BUSHING -
INSTALLATION........................2-30
LEAF SPRING FRONT BUSHING -
REMOVAL...........................2-29
LEAK DETECTION ASSY - INSTALLATION,
NATURAL VAC.......................25-13
LEAK DETECTION ASSY - REMOVAL,
NATURAL VAC.......................25-13
LEAK DETECTION PUMP - INSTALLATION . 25-13
LEAK DETECTION PUMP - REMOVAL.....25-13
LEAK DIAGNOSIS, DIAGNOSIS AND
TESTING - FLUID......................21-3
LEAK INSPECTION - DIAGNOSIS AND
TESTING, ENGINE OIL...............9-8,9-82
LEAK REPAIRING - STANDARD
PROCEDURE, TIRE..............22-17,22s-9
LEAK TEST - DIAGNOSIS AND TESTING,
COOLING SYSTEM.....................7-2
LEAKAGE - DIAGNOSIS AND TESTING,
TORQUE CONVERTER HOUSING FLUID . . 21-123,
21s-31
LEAKAGE TEST - DIAGNOSIS AND
TESTING, CYLINDER COMBUSTION
PRESSURE.......................9-83,9-9
LEAKS - DIAGNOSIS AND TESTING,
INTAKE MANIFOLD...............9-145,9-58
LEAKS - DIAGNOSIS AND TESTING,
REFRIGERANT SYSTEM...............24-66
LEAKS - DIAGNOSIS AND TESTING,
WATER .............................23-1
LEARN CYCLE - STANDARD
PROCEDURE, POWER DOOR.............8N-28
LEARN CYCLE - STANDARD
PROCEDURE, POWER LIFTGATE..........8N-9
LEARN PROCEDURE - STANDARD
PROCEDURE, QUICK.............8E-16,8E-23
LEFT - CLEANING, EXHAUST MANIFOLD . . 9-152
LEFT - INSPECTION, EXHAUST
MANIFOLD..........................9-152
LEFT - INSTALLATION, CYLINDER HEAD
COVER.............................9-103
LEFT - INSTALLATION, EXHAUST
MANIFOLD..........................9-152
LEFT - REMOVAL, CYLINDER HEAD
COVER.............................9-103
LEFT - REMOVAL, EXHAUST MANIFOLD . . . 9-152
LEFT B-PILLAR SWITCH - DESCRIPTION . . 8N-32
LEFT B-PILLAR SWITCH - INSTALLATION . 8N-32
LEFT B-PILLAR SWITCH - OPERATION....8N-32
LEFT B-PILLAR SWITCH - REMOVAL.....8N-32
LEFT D-PILLAR TRIM PANEL -
INSTALLATION.......................23-78
LEFT D-PILLAR TRIM PANEL - REMOVAL . 23-78
LEFT MOUNT - INSTALLATION......9-133,9-50
LEFT MOUNT - REMOVAL..........9-133,9-49
LEFT OUTBOARD - INSTALLATION, SEAT
BELT & RETRACTOR - SECOND ROW....8O-17
LEFT OUTBOARD - REMOVAL, SEAT
BELT & RETRACTOR - SECOND ROW....8O-17
LEFT QUARTER TRIM PANEL -
INSTALLATION.......................23-80
LEFT QUARTER TRIM PANEL - REMOVAL
. 23-80
LENS - INSTALLATION, CLUSTER
........8J-10
LENS - REMOVAL, CLUSTER
............8J-10
LEVEL - STANDARD PROCEDURE,
CHECKING BATTERY ELECTROLYTE
......8F-14
LEVEL - STANDARD PROCEDURE,
REFRIGERANT OIL
...................24-93
LEVEL AND CONDITION CHECK,
STANDARD PROCEDURE - FLUID
......21-201,
21s-102
LEVEL CHECK - STANDARD
PROCEDURE, COOLANT
.................7-5
LEVEL CHECK - STANDARD
PROCEDURE, ENGINE OIL
..............9-137
LEVEL CHECK - STANDARD
PROCEDURE, FLUID
..................21-71
LEVEL CHECK, STANDARD PROCEDURE
- ENGINE OIL
........................9-53
LEVEL CHECKING - STANDARD
PROCEDURE, BRAKE FLUID
........5-32,5s-31
LEVEL CHECKING - STANDARD
PROCEDURE, POWER STEERING FLUID
. . . 19-44
LEVEL INSPECTION - STANDARD
PROCEDURE, FLUID
...................21-4
RSINDEX19
Description Group-Page Description Group-Page Description Group-Page
