RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 Z378 18BK/TN GROUND
RIGHT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
2 Z76 20BK/YL GROUND
RIGHT HEADLAMP (EXCEPT EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 123

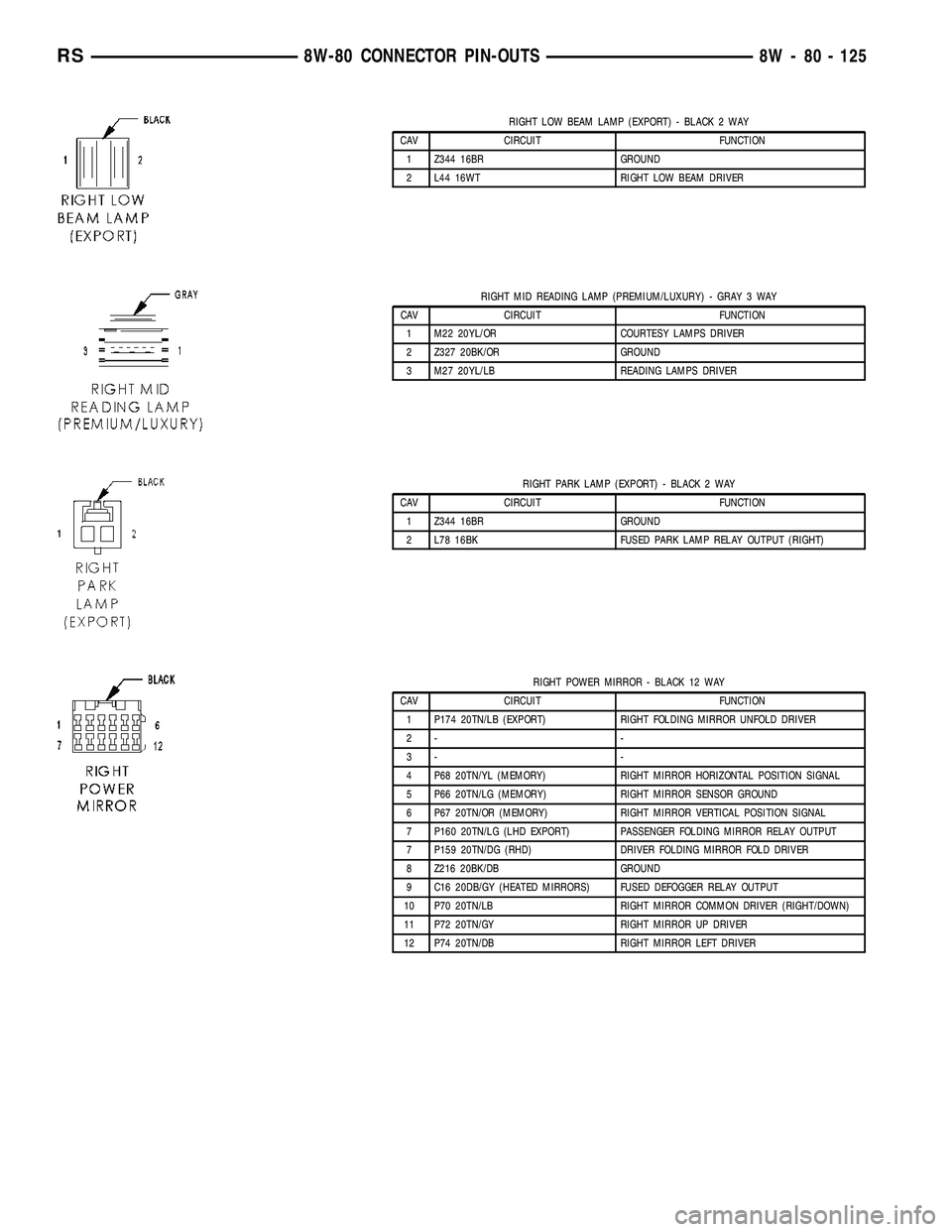

RIGHT LOW BEAM LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L44 16WT RIGHT LOW BEAM DRIVER
RIGHT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RIGHT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P174 20TN/LB (EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
2- -
3- -
4 P68 20TN/YL (MEMORY) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
5 P66 20TN/LG (MEMORY) RIGHT MIRROR SENSOR GROUND
6 P67 20TN/OR (MEMORY) RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (LHD EXPORT) PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (RHD) DRIVER FOLDING MIRROR FOLD DRIVER
8 Z216 20BK/DB GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED DEFOGGER RELAY OUTPUT
10 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P72 20TN/GY RIGHT MIRROR UP DRIVER
12 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 125

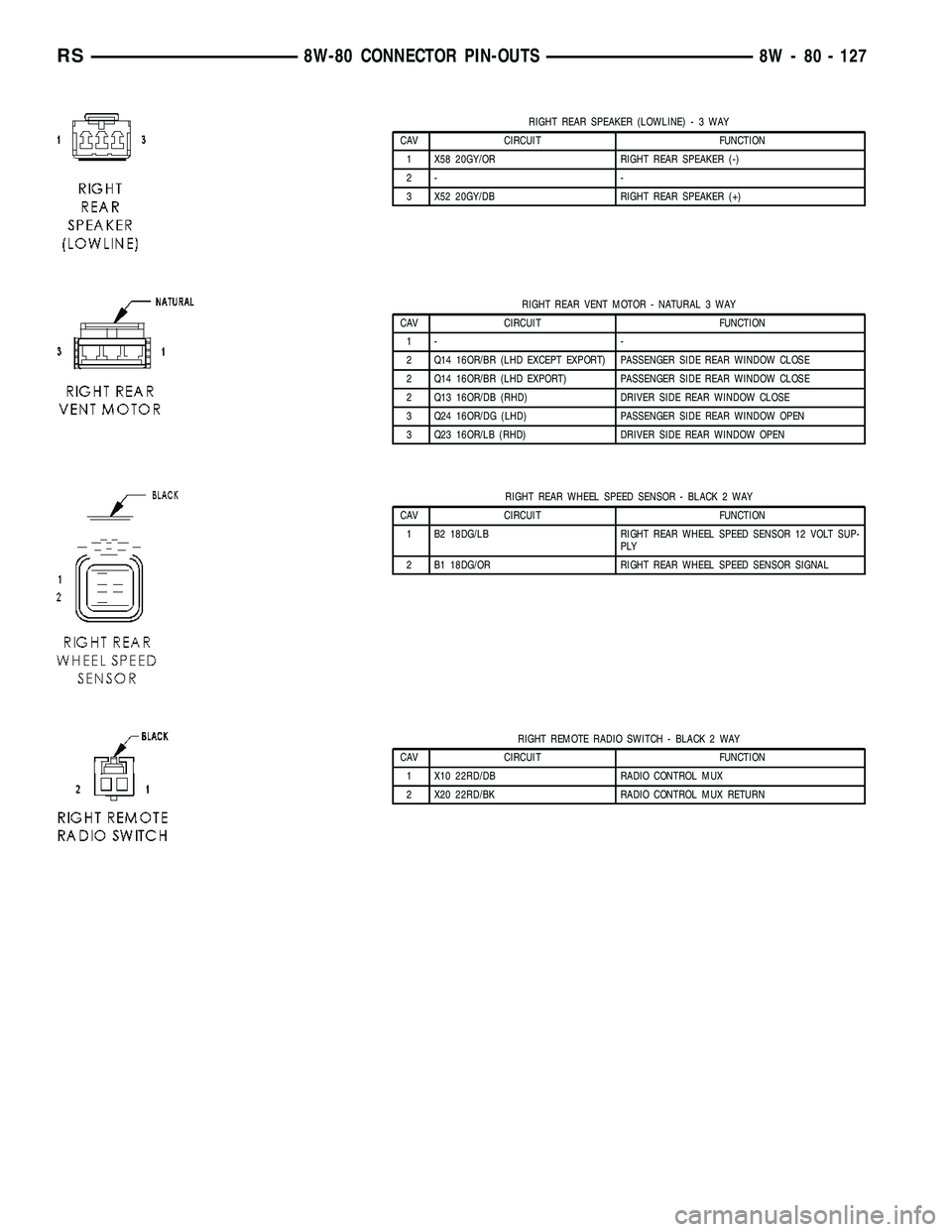

RIGHT REAR SPEAKER (LOWLINE)-3WAY
CAV CIRCUIT FUNCTION
1 X58 20GY/OR RIGHT REAR SPEAKER (-)
2- -
3 X52 20GY/DB RIGHT REAR SPEAKER (+)
RIGHT REAR VENT MOTOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 Q14 16OR/BR (LHD EXCEPT EXPORT) PASSENGER SIDE REAR WINDOW CLOSE
2 Q14 16OR/BR (LHD EXPORT) PASSENGER SIDE REAR WINDOW CLOSE
2 Q13 16OR/DB (RHD) DRIVER SIDE REAR WINDOW CLOSE
3 Q24 16OR/DG (LHD) PASSENGER SIDE REAR WINDOW OPEN
3 Q23 16OR/LB (RHD) DRIVER SIDE REAR WINDOW OPEN
RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
RIGHT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X10 22RD/DB RADIO CONTROL MUX
2 X20 22RD/BK RADIO CONTROL MUX RETURN
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 127

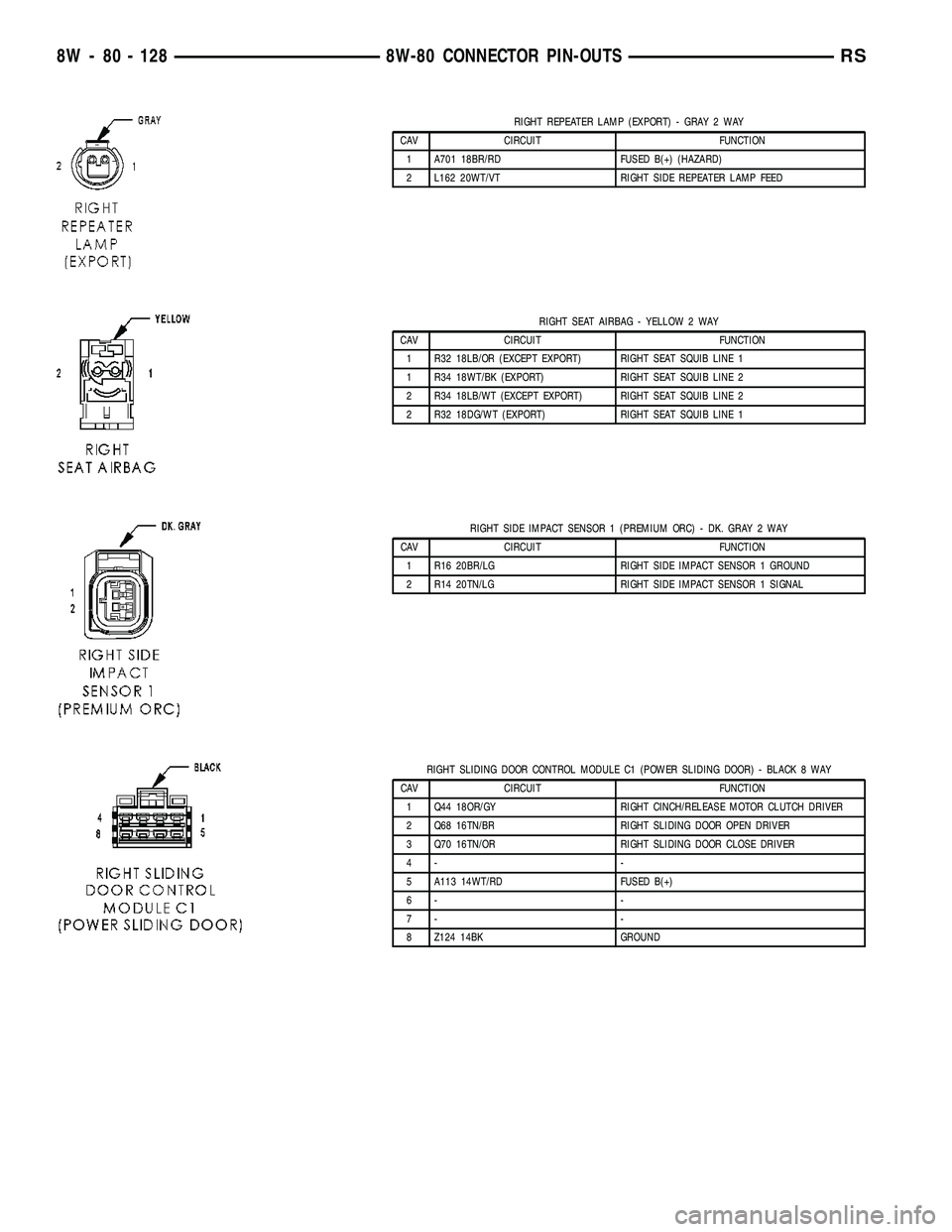

RIGHT REPEATER LAMP (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+) (HAZARD)
2 L162 20WT/VT RIGHT SIDE REPEATER LAMP FEED
RIGHT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R32 18LB/OR (EXCEPT EXPORT) RIGHT SEAT SQUIB LINE 1
1 R34 18WT/BK (EXPORT) RIGHT SEAT SQUIB LINE 2
2 R34 18LB/WT (EXCEPT EXPORT) RIGHT SEAT SQUIB LINE 2
2 R32 18DG/WT (EXPORT) RIGHT SEAT SQUIB LINE 1
RIGHT SIDE IMPACT SENSOR 1 (PREMIUM ORC) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND
2 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL
RIGHT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER
3 Q70 16TN/OR RIGHT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z124 14BK GROUND
8W - 80 - 128 8W-80 CONNECTOR PIN-OUTSRS

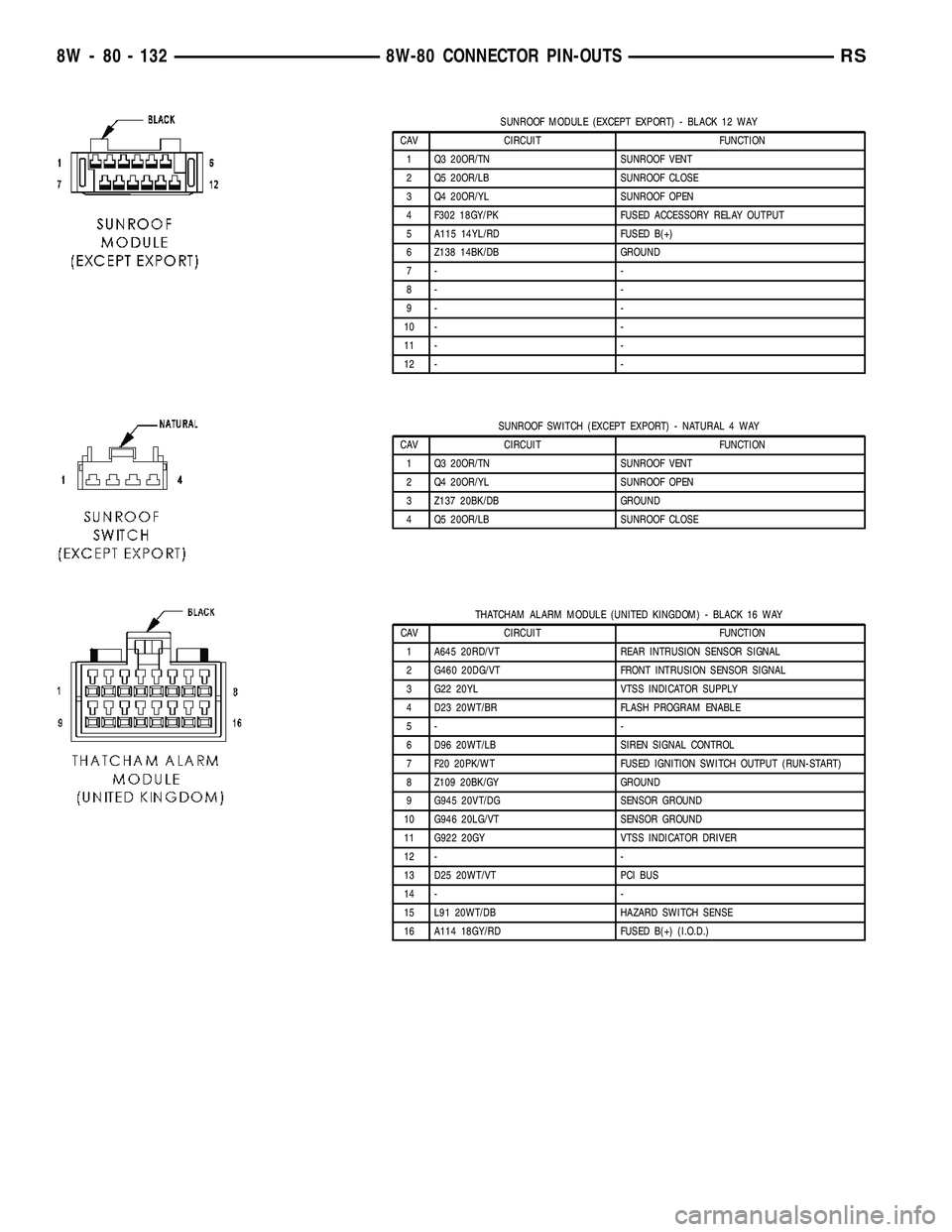

SUNROOF MODULE (EXCEPT EXPORT) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 Q3 20OR/TN SUNROOF VENT
2 Q5 20OR/LB SUNROOF CLOSE
3 Q4 20OR/YL SUNROOF OPEN
4 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
5 A115 14YL/RD FUSED B(+)
6 Z138 14BK/DB GROUND
7- -
8- -
9- -
10 - -
11 - -
12 - -
SUNROOF SWITCH (EXCEPT EXPORT) - NATURAL 4 WAY
CAV CIRCUIT FUNCTION
1 Q3 20OR/TN SUNROOF VENT
2 Q4 20OR/YL SUNROOF OPEN
3 Z137 20BK/DB GROUND
4 Q5 20OR/LB SUNROOF CLOSE
THATCHAM ALARM MODULE (UNITED KINGDOM) - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1 A645 20RD/VT REAR INTRUSION SENSOR SIGNAL
2 G460 20DG/VT FRONT INTRUSION SENSOR SIGNAL
3 G22 20YL VTSS INDICATOR SUPPLY
4 D23 20WT/BR FLASH PROGRAM ENABLE
5- -
6 D96 20WT/LB SIREN SIGNAL CONTROL
7 F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
8 Z109 20BK/GY GROUND
9 G945 20VT/DG SENSOR GROUND
10 G946 20LG/VT SENSOR GROUND
11 G922 20GY VTSS INDICATOR DRIVER
12 - -
13 D25 20WT/VT PCI BUS
14 - -
15 L91 20WT/DB HAZARD SWITCH SENSE
16 A114 18GY/RD FUSED B(+) (I.O.D.)
8W - 80 - 132 8W-80 CONNECTOR PIN-OUTSRS

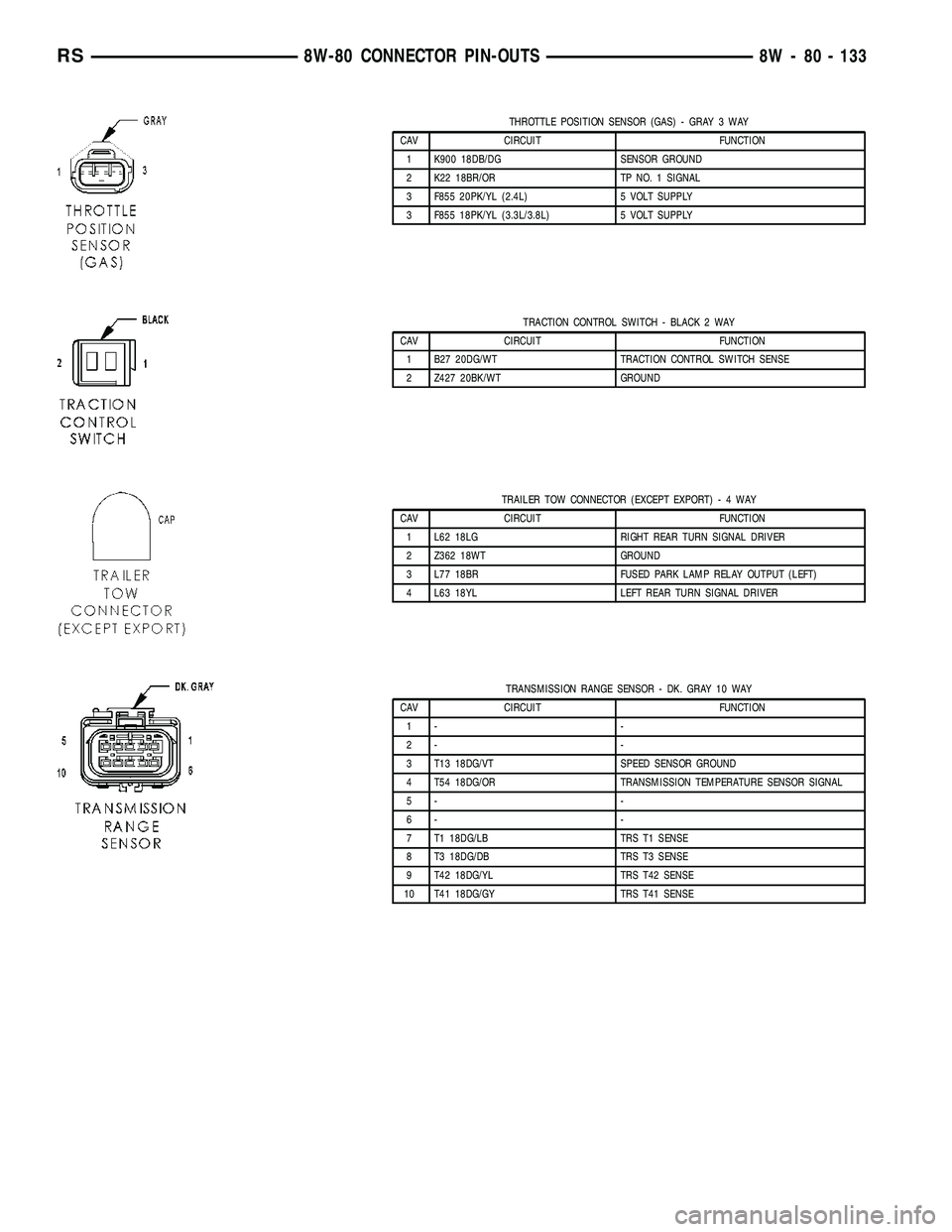

THROTTLE POSITION SENSOR (GAS) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K900 18DB/DG SENSOR GROUND
2 K22 18BR/OR TP NO. 1 SIGNAL
3 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
3 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
TRACTION CONTROL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
2 Z427 20BK/WT GROUND
TRAILER TOW CONNECTOR (EXCEPT EXPORT)-4WAY
CAV CIRCUIT FUNCTION
1 L62 18LG RIGHT REAR TURN SIGNAL DRIVER
2 Z362 18WT GROUND
3 L77 18BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
4 L63 18YL LEFT REAR TURN SIGNAL DRIVER
TRANSMISSION RANGE SENSOR - DK. GRAY 10 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 T13 18DG/VT SPEED SENSOR GROUND
4 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
5- -
6- -
7 T1 18DG/LB TRS T1 SENSE
8 T3 18DG/DB TRS T3 SENSE
9 T42 18DG/YL TRS T42 SENSE
10 T41 18DG/GY TRS T41 SENSE
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 133

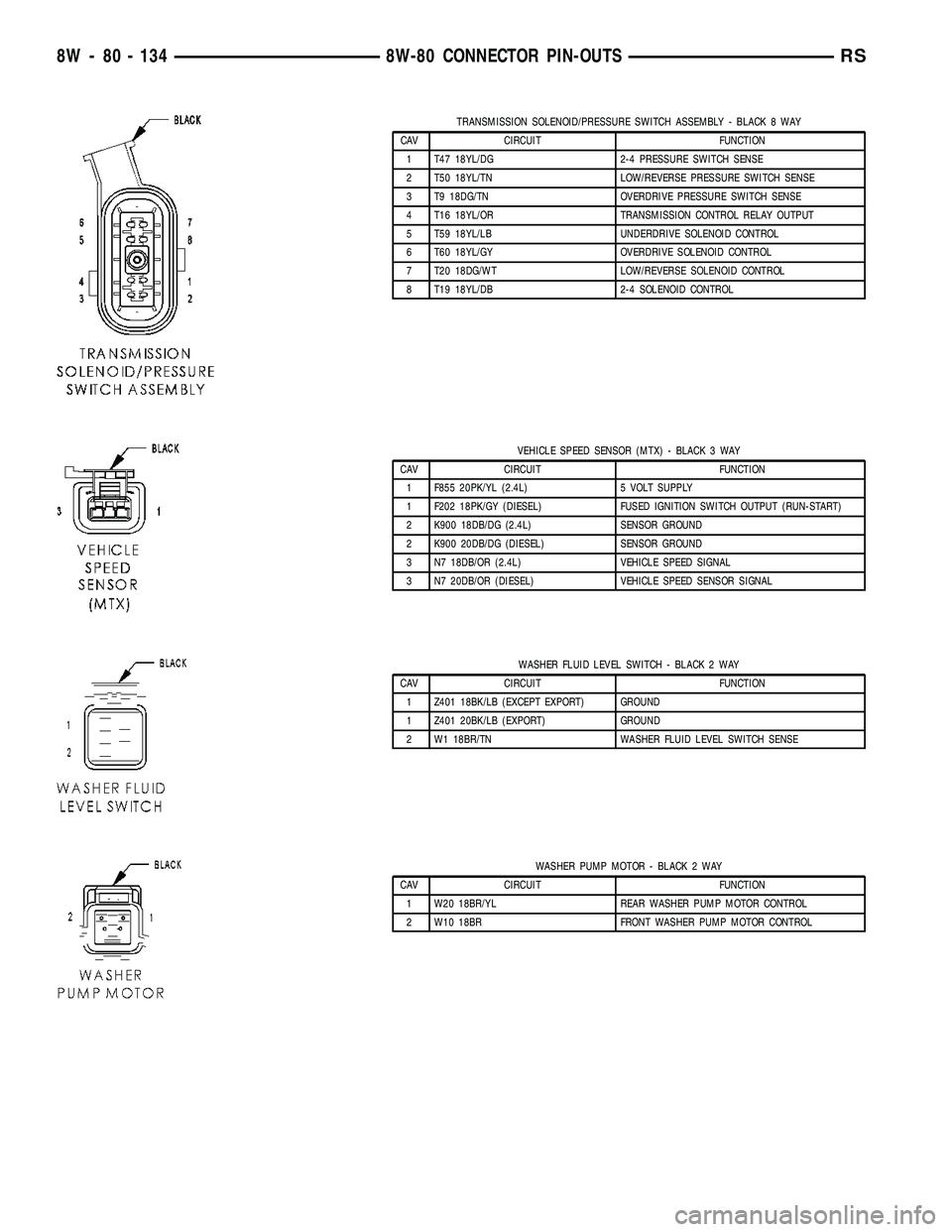

TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
2 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
3 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
4 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
5 T59 18YL/LB UNDERDRIVE SOLENOID CONTROL
6 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
7 T20 18DG/WT LOW/REVERSE SOLENOID CONTROL
8 T19 18YL/DB 2-4 SOLENOID CONTROL
VEHICLE SPEED SENSOR (MTX) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
1 F202 18PK/GY (DIESEL) FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 K900 18DB/DG (2.4L) SENSOR GROUND
2 K900 20DB/DG (DIESEL) SENSOR GROUND
3 N7 18DB/OR (2.4L) VEHICLE SPEED SIGNAL
3 N7 20DB/OR (DIESEL) VEHICLE SPEED SENSOR SIGNAL
WASHER FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z401 18BK/LB (EXCEPT EXPORT) GROUND
1 Z401 20BK/LB (EXPORT) GROUND
2 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
WASHER PUMP MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
2 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
8W - 80 - 134 8W-80 CONNECTOR PIN-OUTSRS

WATER IN FUEL SENSOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 F853 20RD WATER IN FUEL SENSOR SIGNAL
2 K900 18RD SENSOR GROUND
WIPER MODULE - DK. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 W3 14BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT-
PUT
2 W7 20BR/GY WIPER PARK SWITCH SENSE
3 W4 14BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUT-
PUT
4 Z103 14BK/WT GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 135
