2004 CHRYSLER VOYAGER sensor

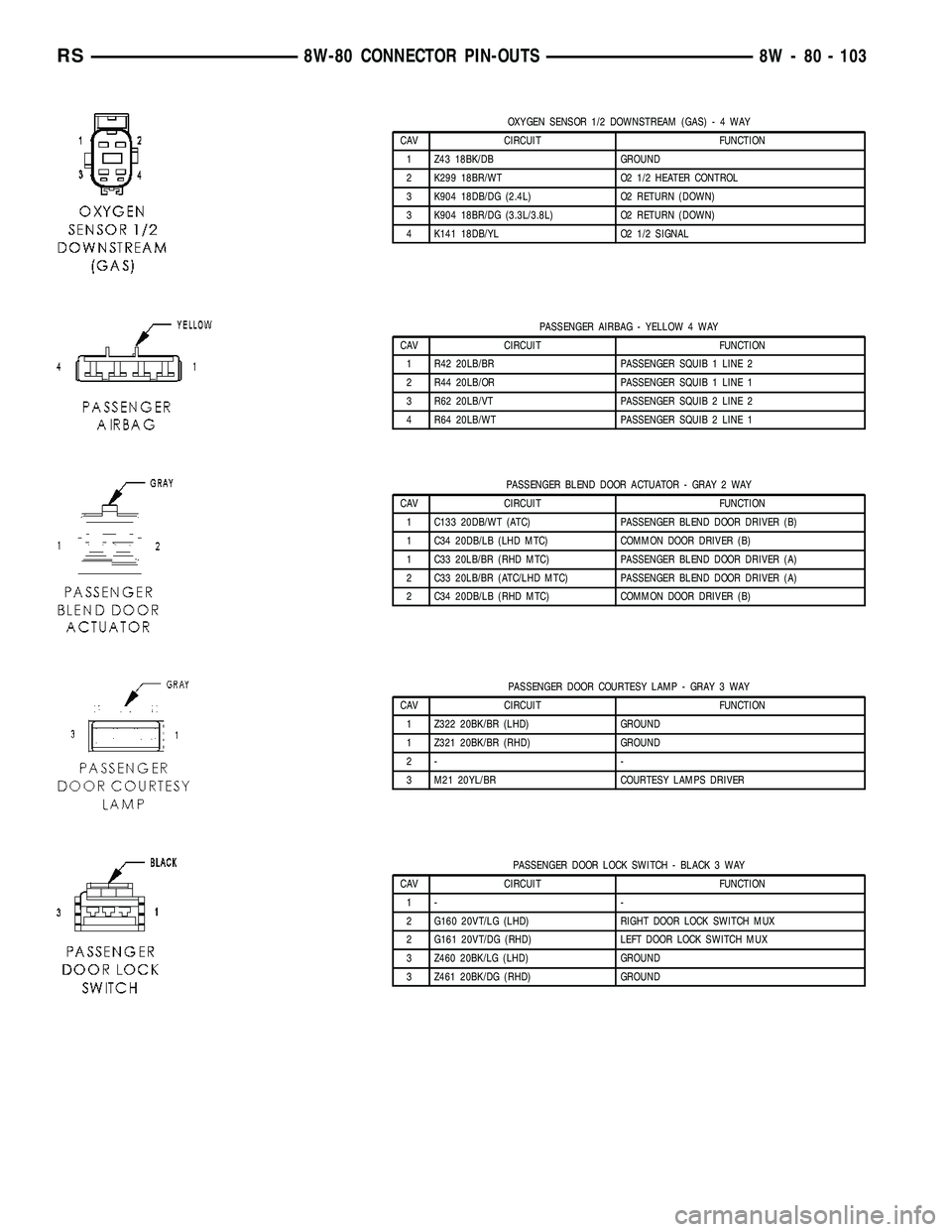

OXYGEN SENSOR 1/2 DOWNSTREAM (GAS)-4WAY
CAV CIRCUIT FUNCTION
1 Z43 18BK/DB GROUND
2 K299 18BR/WT O2 1/2 HEATER CONTROL
3 K904 18DB/DG (2.4L) O2 RETURN (DOWN)
3 K904 18BR/DG (3.3L/3.8L) O2 RETURN (DOWN)
4 K141 18DB/YL O2 1/2 SIGNAL
PASSENGER AIRBAG - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R42 20LB/BR PASSENGER SQUIB 1 LINE 2
2 R44 20LB/OR PASSENGER SQUIB 1 LINE 1
3 R62 20LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 20LB/WT PASSENGER SQUIB 2 LINE 1
PASSENGER BLEND DOOR ACTUATOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C133 20DB/WT (ATC) PASSENGER BLEND DOOR DRIVER (B)
1 C34 20DB/LB (LHD MTC) COMMON DOOR DRIVER (B)
1 C33 20LB/BR (RHD MTC) PASSENGER BLEND DOOR DRIVER (A)
2 C33 20LB/BR (ATC/LHD MTC) PASSENGER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD MTC) COMMON DOOR DRIVER (B)
PASSENGER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (LHD) GROUND
1 Z321 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 103

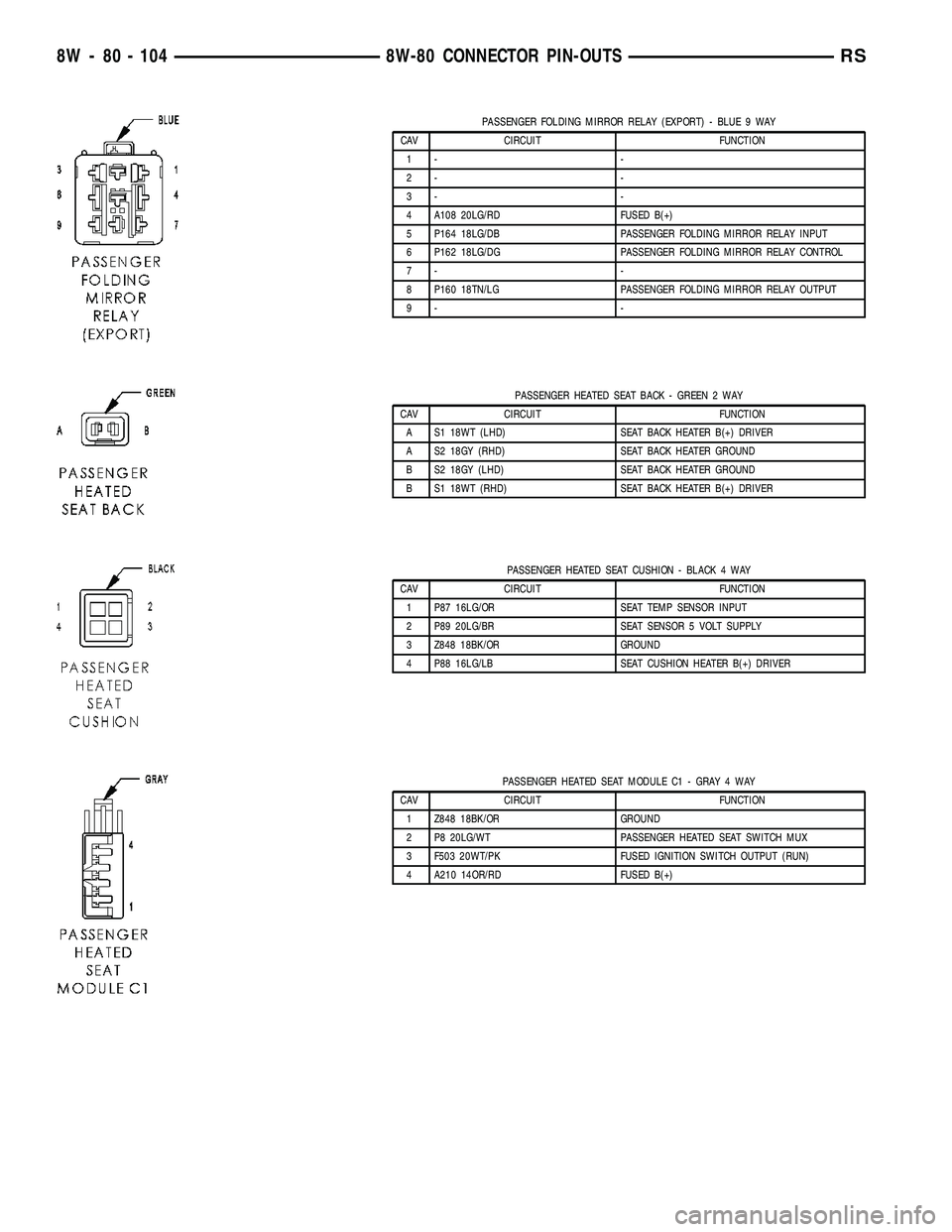

PASSENGER FOLDING MIRROR RELAY (EXPORT) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 20LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
PASSENGER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18WT (LHD) SEAT BACK HEATER B(+) DRIVER
A S2 18GY (RHD) SEAT BACK HEATER GROUND
B S2 18GY (LHD) SEAT BACK HEATER GROUND
B S1 18WT (RHD) SEAT BACK HEATER B(+) DRIVER
PASSENGER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16LG/OR SEAT TEMP SENSOR INPUT
2 P89 20LG/BR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR GROUND
4 P88 16LG/LB SEAT CUSHION HEATER B(+) DRIVER
PASSENGER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z848 18BK/OR GROUND
2 P8 20LG/WT PASSENGER HEATED SEAT SWITCH MUX
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED B(+)
8W - 80 - 104 8W-80 CONNECTOR PIN-OUTSRS

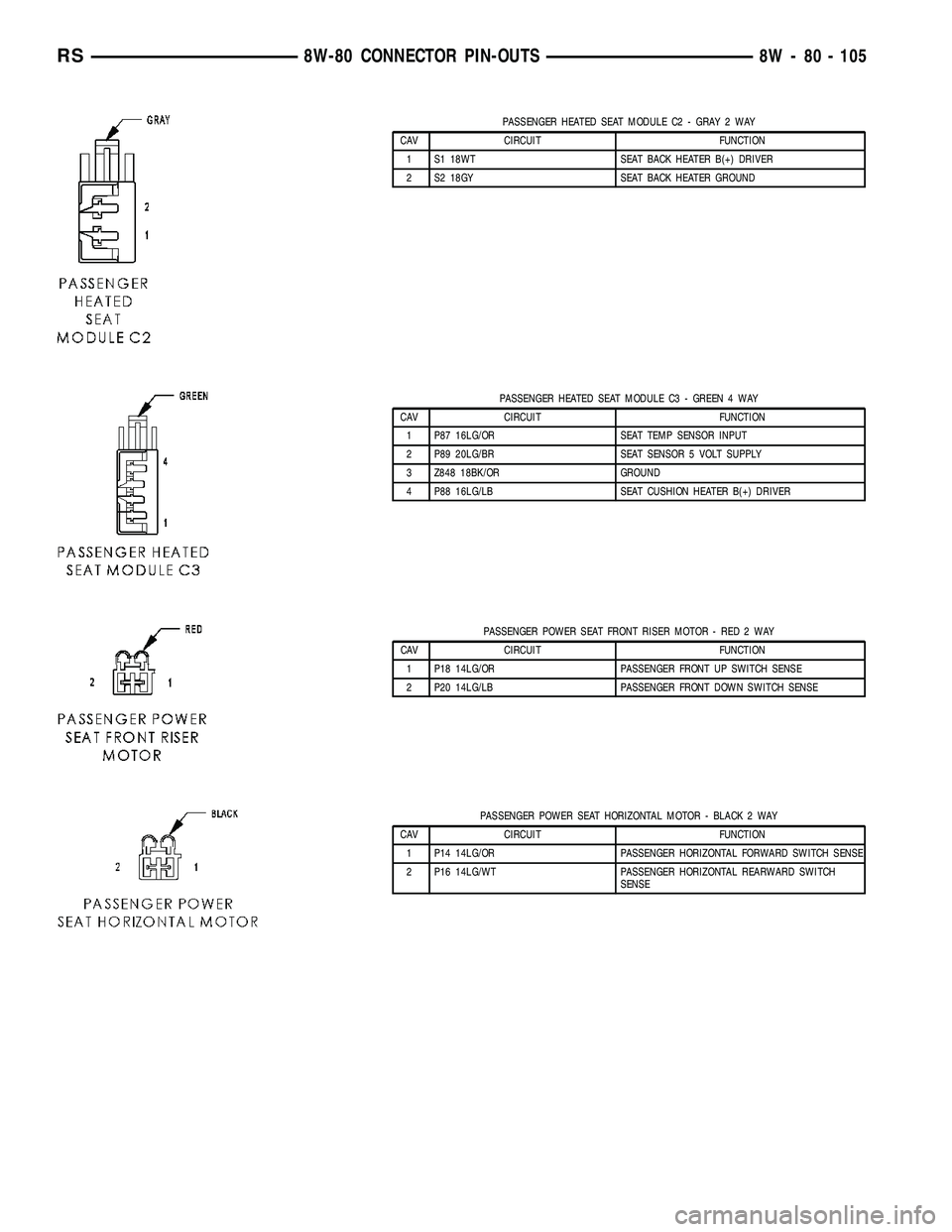

PASSENGER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18WT SEAT BACK HEATER B(+) DRIVER
2 S2 18GY SEAT BACK HEATER GROUND
PASSENGER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16LG/OR SEAT TEMP SENSOR INPUT
2 P89 20LG/BR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR GROUND
4 P88 16LG/LB SEAT CUSHION HEATER B(+) DRIVER
PASSENGER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
2 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
PASSENGER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
2 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 105

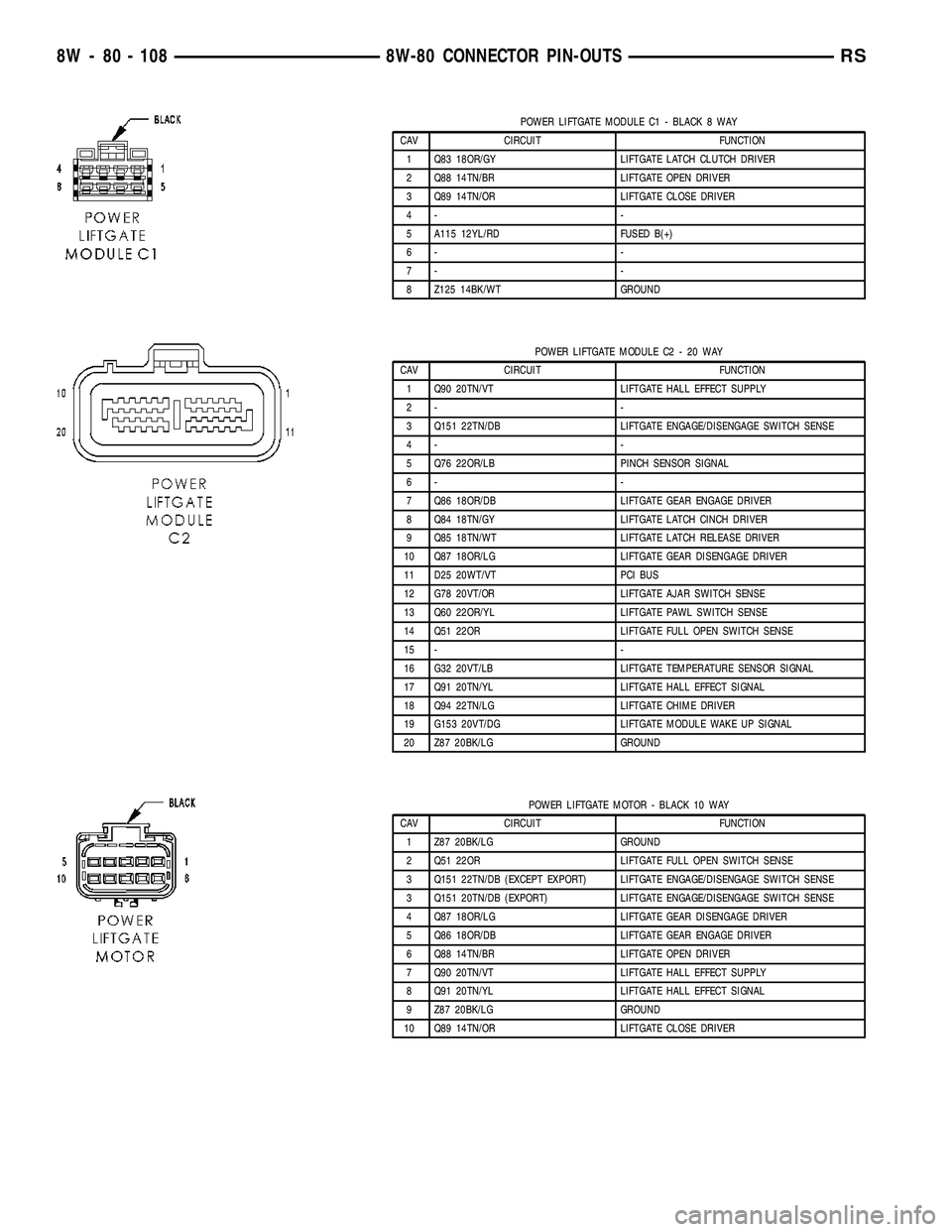

POWER LIFTGATE MODULE C1 - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 14TN/BR LIFTGATE OPEN DRIVER
3 Q89 14TN/OR LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
POWER LIFTGATE MODULE C2 - 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
2- -
3 Q151 22TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 22OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
18 Q94 22TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/DG LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
POWER LIFTGATE MOTOR - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 Z87 20BK/LG GROUND
2 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 22TN/DB (EXCEPT EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
3 Q151 20TN/DB (EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 14TN/BR LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 14TN/OR LIFTGATE CLOSE DRIVER
8W - 80 - 108 8W-80 CONNECTOR PIN-OUTSRS

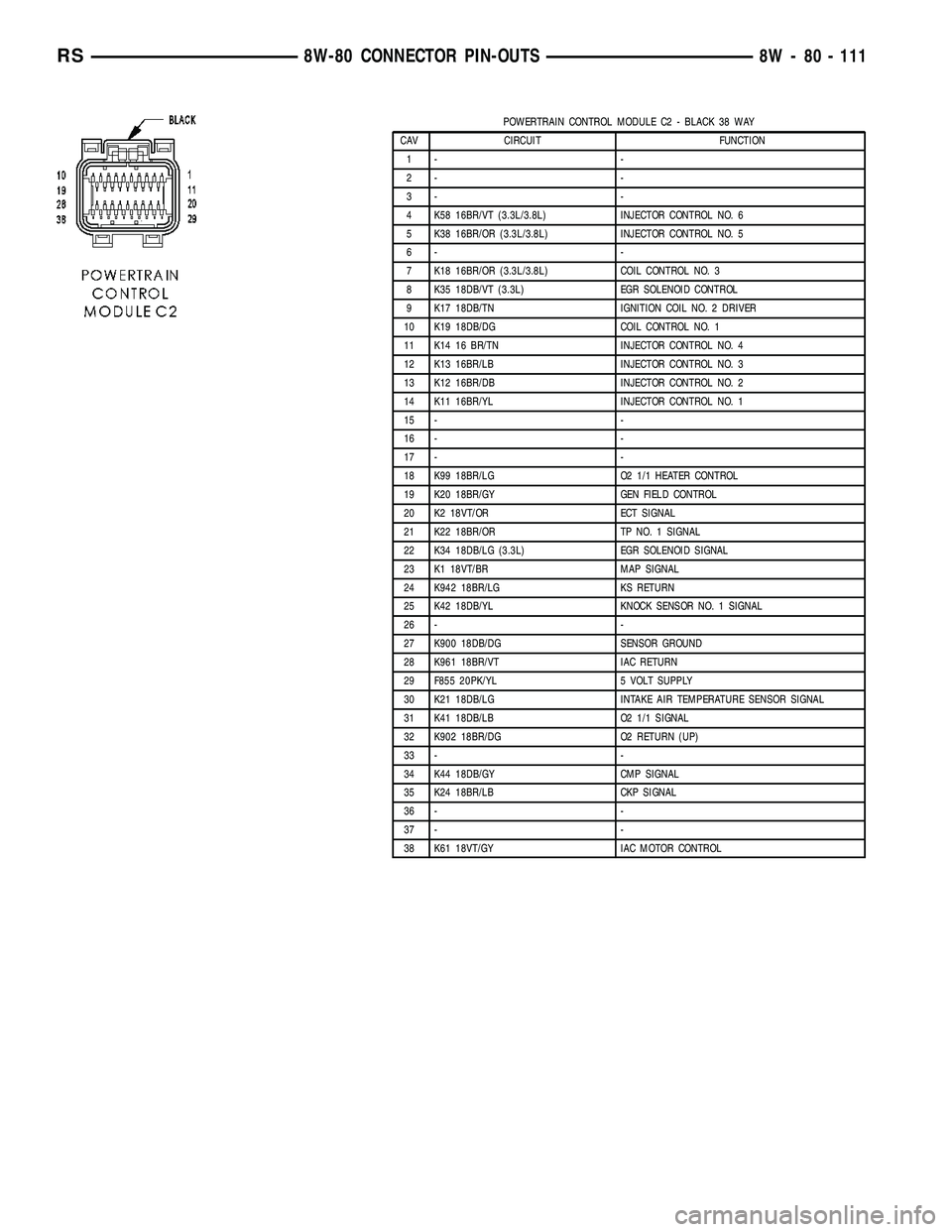

POWERTRAIN CONTROL MODULE C2 - BLACK 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 K58 16BR/VT (3.3L/3.8L) INJECTOR CONTROL NO. 6
5 K38 16BR/OR (3.3L/3.8L) INJECTOR CONTROL NO. 5
6- -
7 K18 16BR/OR (3.3L/3.8L) COIL CONTROL NO. 3
8 K35 18DB/VT (3.3L) EGR SOLENOID CONTROL
9 K17 18DB/TN IGNITION COIL NO. 2 DRIVER
10 K19 18DB/DG COIL CONTROL NO. 1
11 K14 16 BR/TN INJECTOR CONTROL NO. 4
12 K13 16BR/LB INJECTOR CONTROL NO. 3
13 K12 16BR/DB INJECTOR CONTROL NO. 2
14 K11 16BR/YL INJECTOR CONTROL NO. 1
15 - -
16 - -
17 - -
18 K99 18BR/LG O2 1/1 HEATER CONTROL
19 K20 18BR/GY GEN FIELD CONTROL
20 K2 18VT/OR ECT SIGNAL
21 K22 18BR/OR TP NO. 1 SIGNAL
22 K34 18DB/LG (3.3L) EGR SOLENOID SIGNAL
23 K1 18VT/BR MAP SIGNAL
24 K942 18BR/LG KS RETURN
25 K42 18DB/YL KNOCK SENSOR NO. 1 SIGNAL
26 - -
27 K900 18DB/DG SENSOR GROUND
28 K961 18BR/VT IAC RETURN
29 F855 20PK/YL 5 VOLT SUPPLY
30 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
31 K41 18DB/LB O2 1/1 SIGNAL
32 K902 18BR/DG O2 RETURN (UP)
33 - -
34 K44 18DB/GY CMP SIGNAL
35 K24 18BR/LB CKP SIGNAL
36 - -
37 - -
38 K61 18VT/GY IAC MOTOR CONTROL
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 111

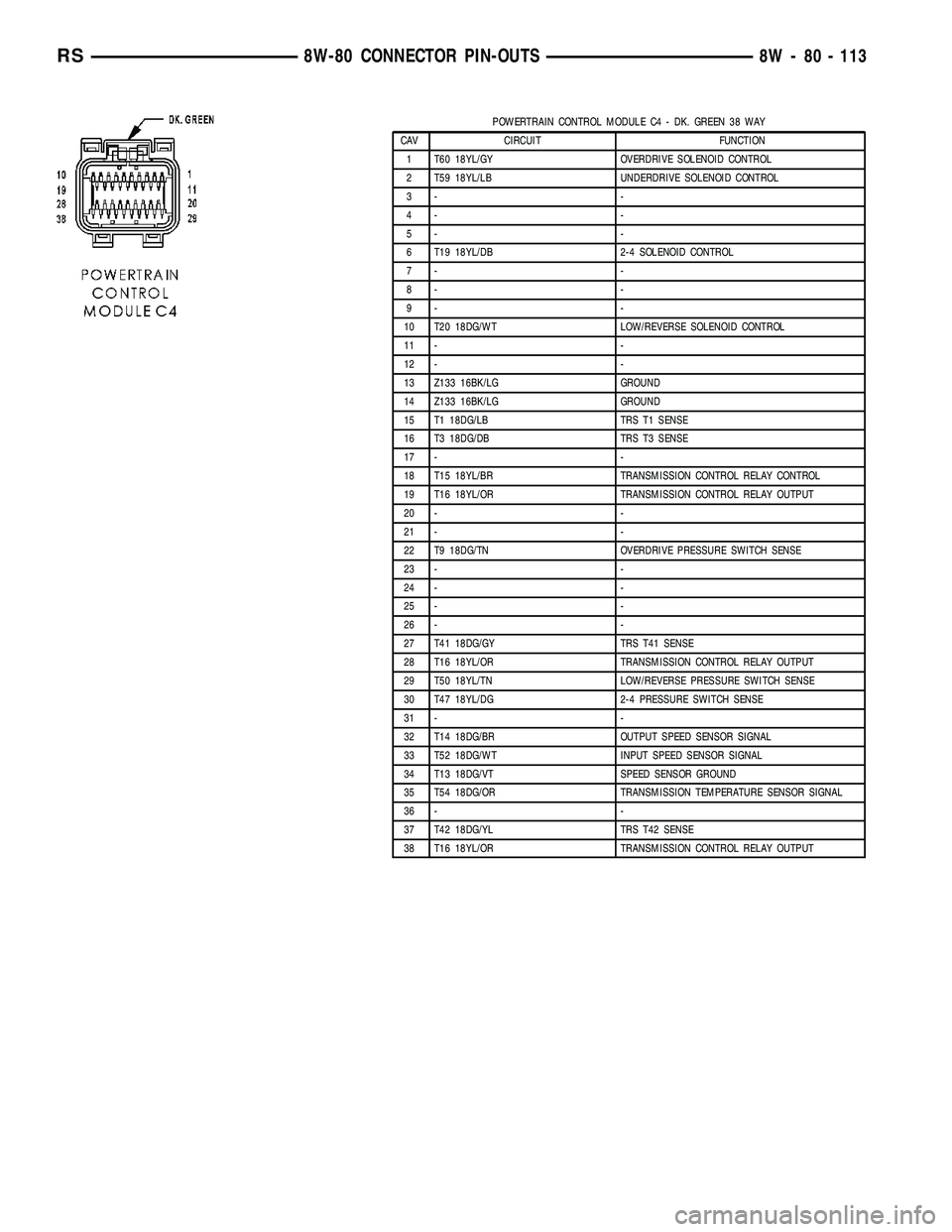

POWERTRAIN CONTROL MODULE C4 - DK. GREEN 38 WAY
CAV CIRCUIT FUNCTION
1 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
2 T59 18YL/LB UNDERDRIVE SOLENOID CONTROL
3- -
4- -
5- -
6 T19 18YL/DB 2-4 SOLENOID CONTROL
7- -
8- -
9- -
10 T20 18DG/WT LOW/REVERSE SOLENOID CONTROL
11 - -
12 - -
13 Z133 16BK/LG GROUND
14 Z133 16BK/LG GROUND
15 T1 18DG/LB TRS T1 SENSE
16 T3 18DG/DB TRS T3 SENSE
17 - -
18 T15 18YL/BR TRANSMISSION CONTROL RELAY CONTROL
19 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
20 - -
21 - -
22 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
23 - -
24 - -
25 - -
26 - -
27 T41 18DG/GY TRS T41 SENSE
28 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
29 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
30 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
31 - -
32 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
33 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
34 T13 18DG/VT SPEED SENSOR GROUND
35 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
36 - -
37 T42 18DG/YL TRS T42 SENSE
38 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 113

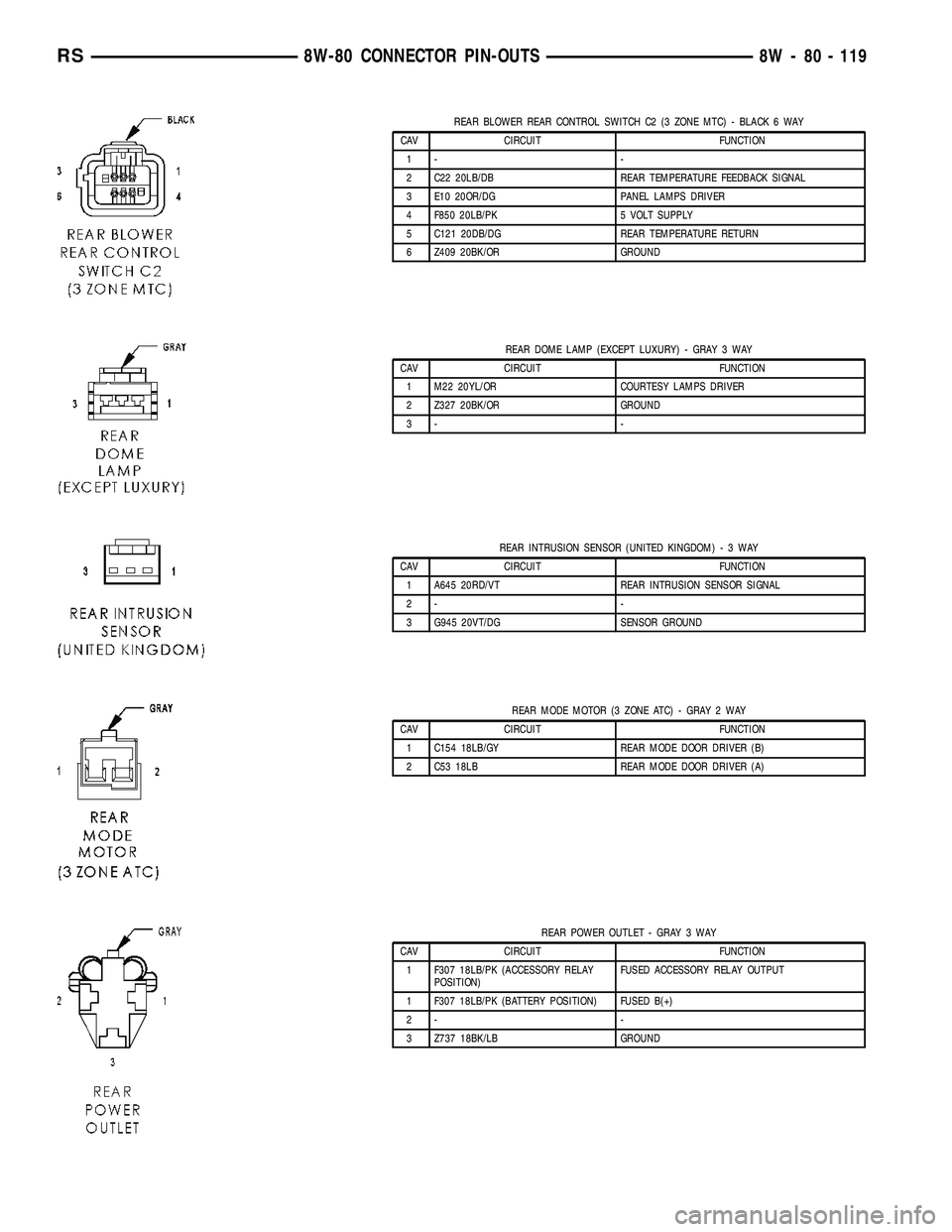

REAR BLOWER REAR CONTROL SWITCH C2 (3 ZONE MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 C22 20LB/DB REAR TEMPERATURE FEEDBACK SIGNAL
3 E10 20OR/DG PANEL LAMPS DRIVER
4 F850 20LB/PK 5 VOLT SUPPLY
5 C121 20DB/DG REAR TEMPERATURE RETURN
6 Z409 20BK/OR GROUND
REAR DOME LAMP (EXCEPT LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3- -
REAR INTRUSION SENSOR (UNITED KINGDOM)-3WAY
CAV CIRCUIT FUNCTION
1 A645 20RD/VT REAR INTRUSION SENSOR SIGNAL
2- -
3 G945 20VT/DG SENSOR GROUND
REAR MODE MOTOR (3 ZONE ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C154 18LB/GY REAR MODE DOOR DRIVER (B)
2 C53 18LB REAR MODE DOOR DRIVER (A)
REAR POWER OUTLET - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 F307 18LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 18LB/PK (BATTERY POSITION) FUSED B(+)
2- -
3 Z737 18BK/LB GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 119

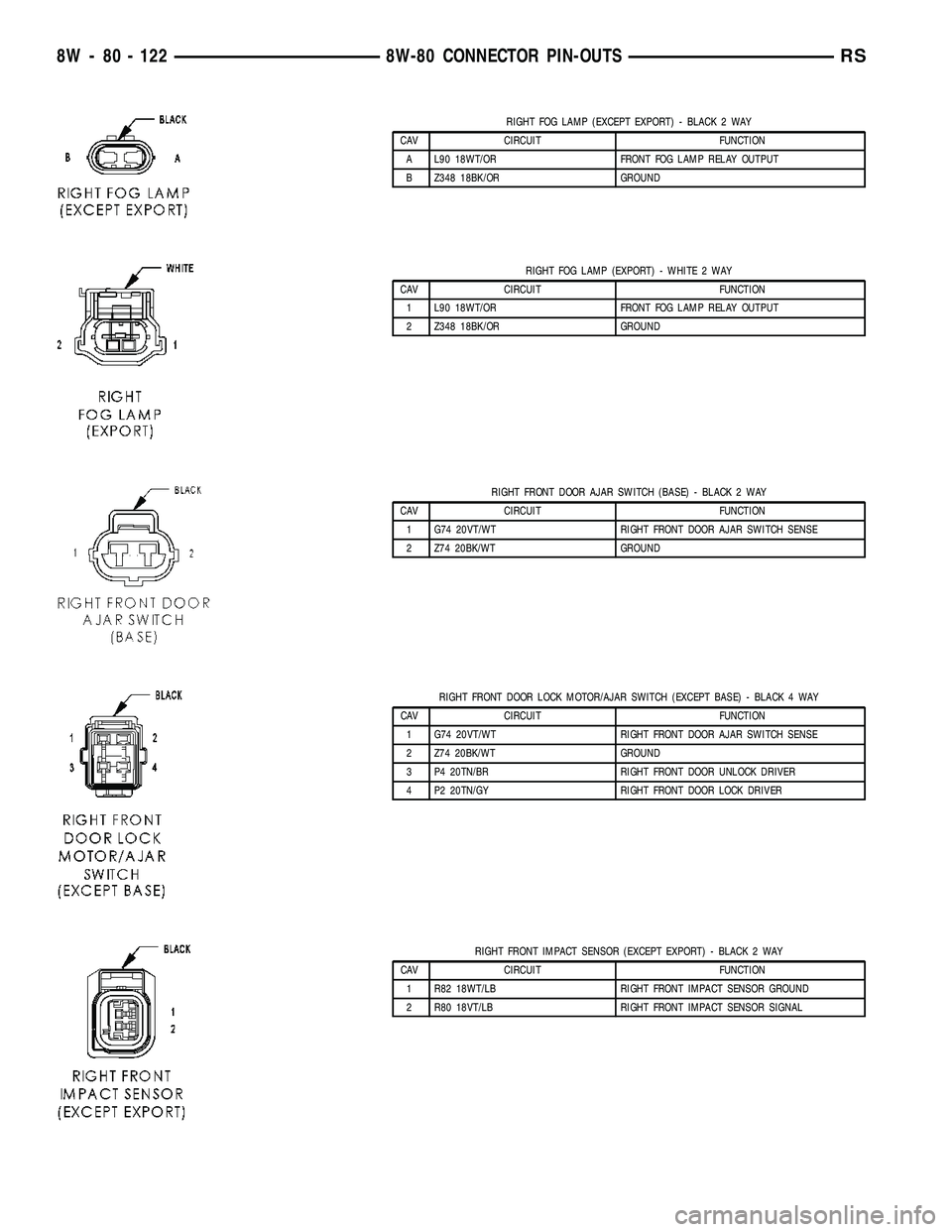

RIGHT FOG LAMP (EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT
B Z348 18BK/OR GROUND
RIGHT FOG LAMP (EXPORT) - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT
2 Z348 18BK/OR GROUND
RIGHT FRONT DOOR AJAR SWITCH (BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z74 20BK/WT GROUND
RIGHT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z74 20BK/WT GROUND
3 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
4 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
RIGHT FRONT IMPACT SENSOR (EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R82 18WT/LB RIGHT FRONT IMPACT SENSOR GROUND
2 R80 18VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
8W - 80 - 122 8W-80 CONNECTOR PIN-OUTSRS
