2004 CHRYSLER VOYAGER sensor

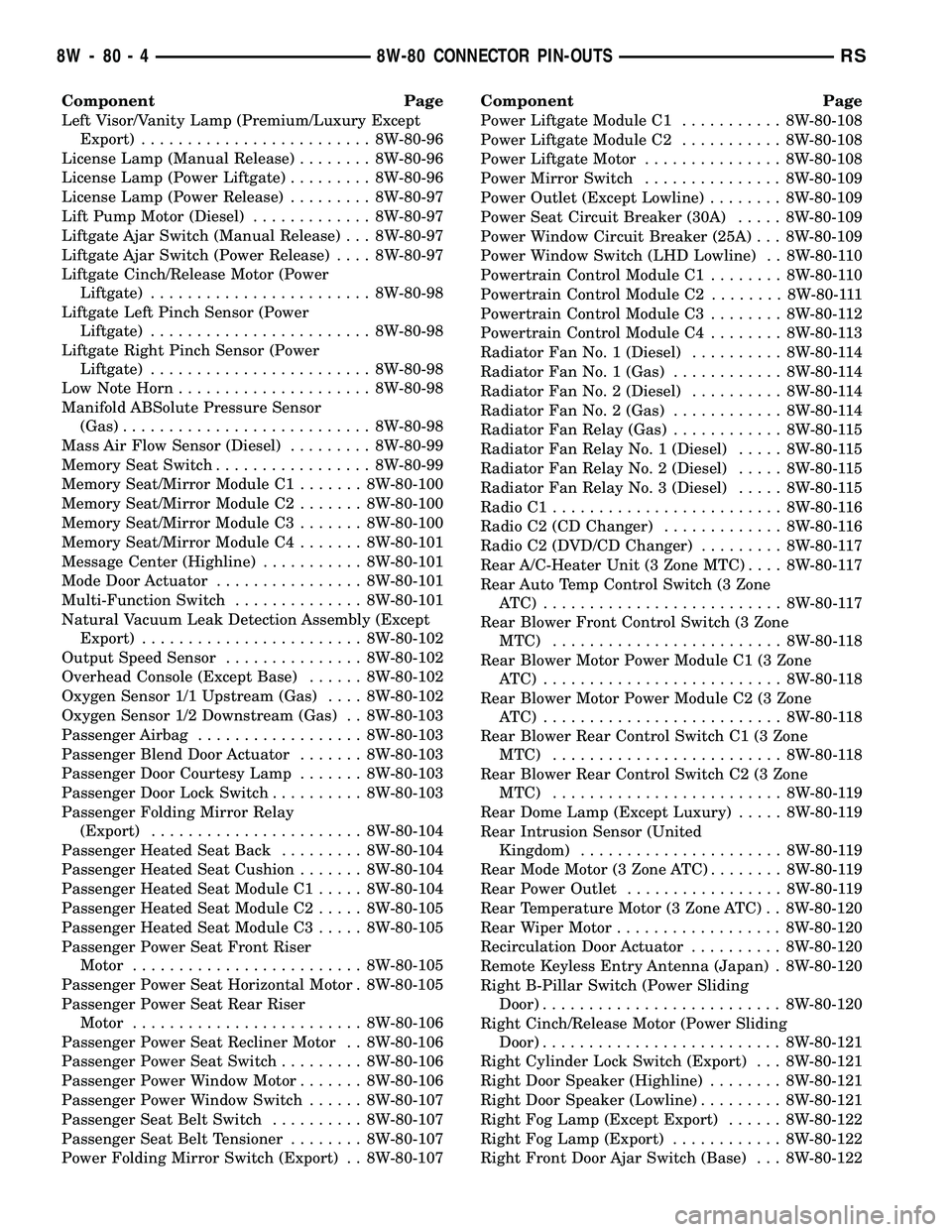

Component Page
Left Visor/Vanity Lamp (Premium/Luxury Except
Export)......................... 8W-80-96
License Lamp (Manual Release)........ 8W-80-96
License Lamp (Power Liftgate)......... 8W-80-96
License Lamp (Power Release)......... 8W-80-97
Lift Pump Motor (Diesel)............. 8W-80-97
Liftgate Ajar Switch (Manual Release) . . . 8W-80-97
Liftgate Ajar Switch (Power Release).... 8W-80-97
Liftgate Cinch/Release Motor (Power
Liftgate)........................ 8W-80-98
Liftgate Left Pinch Sensor (Power
Liftgate)........................ 8W-80-98
Liftgate Right Pinch Sensor (Power
Liftgate)........................ 8W-80-98
Low Note Horn..................... 8W-80-98
Manifold ABSolute Pressure Sensor
(Gas)........................... 8W-80-98
Mass Air Flow Sensor (Diesel)......... 8W-80-99
Memory Seat Switch................. 8W-80-99
Memory Seat/Mirror Module C1....... 8W-80-100
Memory Seat/Mirror Module C2....... 8W-80-100
Memory Seat/Mirror Module C3....... 8W-80-100
Memory Seat/Mirror Module C4....... 8W-80-101
Message Center (Highline)........... 8W-80-101
Mode Door Actuator................ 8W-80-101
Multi-Function Switch.............. 8W-80-101
Natural Vacuum Leak Detection Assembly (Except
Export)........................ 8W-80-102
Output Speed Sensor............... 8W-80-102
Overhead Console (Except Base)...... 8W-80-102
Oxygen Sensor 1/1 Upstream (Gas).... 8W-80-102
Oxygen Sensor 1/2 Downstream (Gas) . . 8W-80-103
Passenger Airbag.................. 8W-80-103
Passenger Blend Door Actuator....... 8W-80-103
Passenger Door Courtesy Lamp....... 8W-80-103
Passenger Door Lock Switch.......... 8W-80-103
Passenger Folding Mirror Relay
(Export)....................... 8W-80-104
Passenger Heated Seat Back......... 8W-80-104
Passenger Heated Seat Cushion....... 8W-80-104
Passenger Heated Seat Module C1..... 8W-80-104
Passenger Heated Seat Module C2..... 8W-80-105
Passenger Heated Seat Module C3..... 8W-80-105
Passenger Power Seat Front Riser
Motor......................... 8W-80-105
Passenger Power Seat Horizontal Motor . 8W-80-105
Passenger Power Seat Rear Riser
Motor......................... 8W-80-106
Passenger Power Seat Recliner Motor . . 8W-80-106
Passenger Power Seat Switch......... 8W-80-106
Passenger Power Window Motor....... 8W-80-106
Passenger Power Window Switch...... 8W-80-107
Passenger Seat Belt Switch.......... 8W-80-107
Passenger Seat Belt Tensioner........ 8W-80-107
Power Folding Mirror Switch (Export) . . 8W-80-107Component Page
Power Liftgate Module C1........... 8W-80-108
Power Liftgate Module C2........... 8W-80-108
Power Liftgate Motor............... 8W-80-108
Power Mirror Switch............... 8W-80-109
Power Outlet (Except Lowline)........ 8W-80-109
Power Seat Circuit Breaker (30A)..... 8W-80-109
Power Window Circuit Breaker (25A) . . . 8W-80-109
Power Window Switch (LHD Lowline) . . 8W-80-110
Powertrain Control Module C1........ 8W-80-110
Powertrain Control Module C2........ 8W-80-111
Powertrain Control Module C3........ 8W-80-112
Powertrain Control Module C4........ 8W-80-113
Radiator Fan No. 1 (Diesel).......... 8W-80-114
Radiator Fan No. 1 (Gas)............ 8W-80-114
Radiator Fan No. 2 (Diesel).......... 8W-80-114
Radiator Fan No. 2 (Gas)............ 8W-80-114
Radiator Fan Relay (Gas)............ 8W-80-115
Radiator Fan Relay No. 1 (Diesel)..... 8W-80-115
Radiator Fan Relay No. 2 (Diesel)..... 8W-80-115
Radiator Fan Relay No. 3 (Diesel)..... 8W-80-115
Radio C1......................... 8W-80-116
Radio C2 (CD Changer)............. 8W-80-116
Radio C2 (DVD/CD Changer)......... 8W-80-117
Rear A/C-Heater Unit (3 Zone MTC).... 8W-80-117
Rear Auto Temp Control Switch (3 Zone
ATC) .......................... 8W-80-117
Rear Blower Front Control Switch (3 Zone
MTC)......................... 8W-80-118
Rear Blower Motor Power Module C1 (3 Zone
ATC) .......................... 8W-80-118
Rear Blower Motor Power Module C2 (3 Zone
ATC) .......................... 8W-80-118
Rear Blower Rear Control Switch C1 (3 Zone
MTC)......................... 8W-80-118
Rear Blower Rear Control Switch C2 (3 Zone
MTC)......................... 8W-80-119
Rear Dome Lamp (Except Luxury)..... 8W-80-119
Rear Intrusion Sensor (United
Kingdom)...................... 8W-80-119
Rear Mode Motor (3 Zone ATC)........ 8W-80-119
Rear Power Outlet................. 8W-80-119
Rear Temperature Motor (3 Zone ATC) . . 8W-80-120
Rear Wiper Motor.................. 8W-80-120
Recirculation Door Actuator.......... 8W-80-120
Remote Keyless Entry Antenna (Japan) . 8W-80-120
Right B-Pillar Switch (Power Sliding
Door).......................... 8W-80-120
Right Cinch/Release Motor (Power Sliding
Door).......................... 8W-80-121
Right Cylinder Lock Switch (Export) . . . 8W-80-121
Right Door Speaker (Highline)........ 8W-80-121
Right Door Speaker (Lowline)......... 8W-80-121
Right Fog Lamp (Except Export)...... 8W-80-122
Right Fog Lamp (Export)............ 8W-80-122
Right Front Door Ajar Switch (Base) . . . 8W-80-122
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSRS

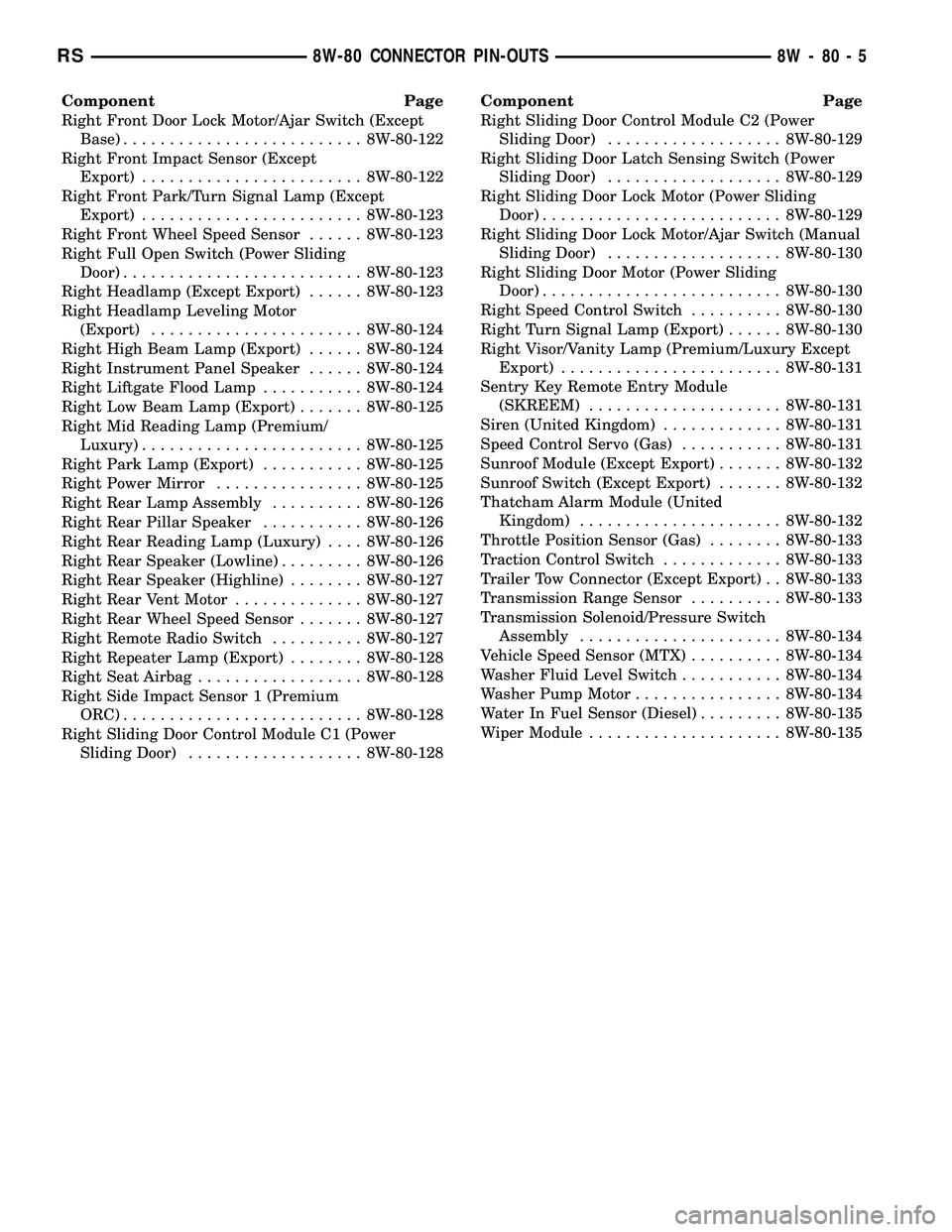

Component Page
Right Front Door Lock Motor/Ajar Switch (Except
Base).......................... 8W-80-122
Right Front Impact Sensor (Except
Export)........................ 8W-80-122
Right Front Park/Turn Signal Lamp (Except
Export)........................ 8W-80-123
Right Front Wheel Speed Sensor...... 8W-80-123
Right Full Open Switch (Power Sliding
Door).......................... 8W-80-123
Right Headlamp (Except Export)...... 8W-80-123
Right Headlamp Leveling Motor
(Export)....................... 8W-80-124
Right High Beam Lamp (Export)...... 8W-80-124
Right Instrument Panel Speaker...... 8W-80-124
Right Liftgate Flood Lamp........... 8W-80-124
Right Low Beam Lamp (Export)....... 8W-80-125
Right Mid Reading Lamp (Premium/
Luxury)........................ 8W-80-125
Right Park Lamp (Export)........... 8W-80-125
Right Power Mirror................ 8W-80-125
Right Rear Lamp Assembly.......... 8W-80-126
Right Rear Pillar Speaker........... 8W-80-126
Right Rear Reading Lamp (Luxury).... 8W-80-126
Right Rear Speaker (Lowline)......... 8W-80-126
Right Rear Speaker (Highline)........ 8W-80-127
Right Rear Vent Motor.............. 8W-80-127
Right Rear Wheel Speed Sensor....... 8W-80-127
Right Remote Radio Switch.......... 8W-80-127
Right Repeater Lamp (Export)........ 8W-80-128
Right Seat Airbag.................. 8W-80-128
Right Side Impact Sensor 1 (Premium
ORC).......................... 8W-80-128
Right Sliding Door Control Module C1 (Power
Sliding Door)................... 8W-80-128Component Page
Right Sliding Door Control Module C2 (Power
Sliding Door)................... 8W-80-129
Right Sliding Door Latch Sensing Switch (Power
Sliding Door)................... 8W-80-129
Right Sliding Door Lock Motor (Power Sliding
Door).......................... 8W-80-129
Right Sliding Door Lock Motor/Ajar Switch (Manual
Sliding Door)................... 8W-80-130
Right Sliding Door Motor (Power Sliding
Door).......................... 8W-80-130
Right Speed Control Switch.......... 8W-80-130
Right Turn Signal Lamp (Export)...... 8W-80-130
Right Visor/Vanity Lamp (Premium/Luxury Except
Export)........................ 8W-80-131
Sentry Key Remote Entry Module
(SKREEM)..................... 8W-80-131
Siren (United Kingdom)............. 8W-80-131
Speed Control Servo (Gas)........... 8W-80-131
Sunroof Module (Except Export)....... 8W-80-132
Sunroof Switch (Except Export)....... 8W-80-132
Thatcham Alarm Module (United
Kingdom)...................... 8W-80-132
Throttle Position Sensor (Gas)........ 8W-80-133
Traction Control Switch............. 8W-80-133
Trailer Tow Connector (Except Export) . . 8W-80-133
Transmission Range Sensor.......... 8W-80-133
Transmission Solenoid/Pressure Switch
Assembly...................... 8W-80-134
Vehicle Speed Sensor (MTX).......... 8W-80-134
Washer Fluid Level Switch........... 8W-80-134
Washer Pump Motor................ 8W-80-134
Water In Fuel Sensor (Diesel)......... 8W-80-135
Wiper Module..................... 8W-80-135
RS8W-80 CONNECTOR PIN-OUTS8W-80-5

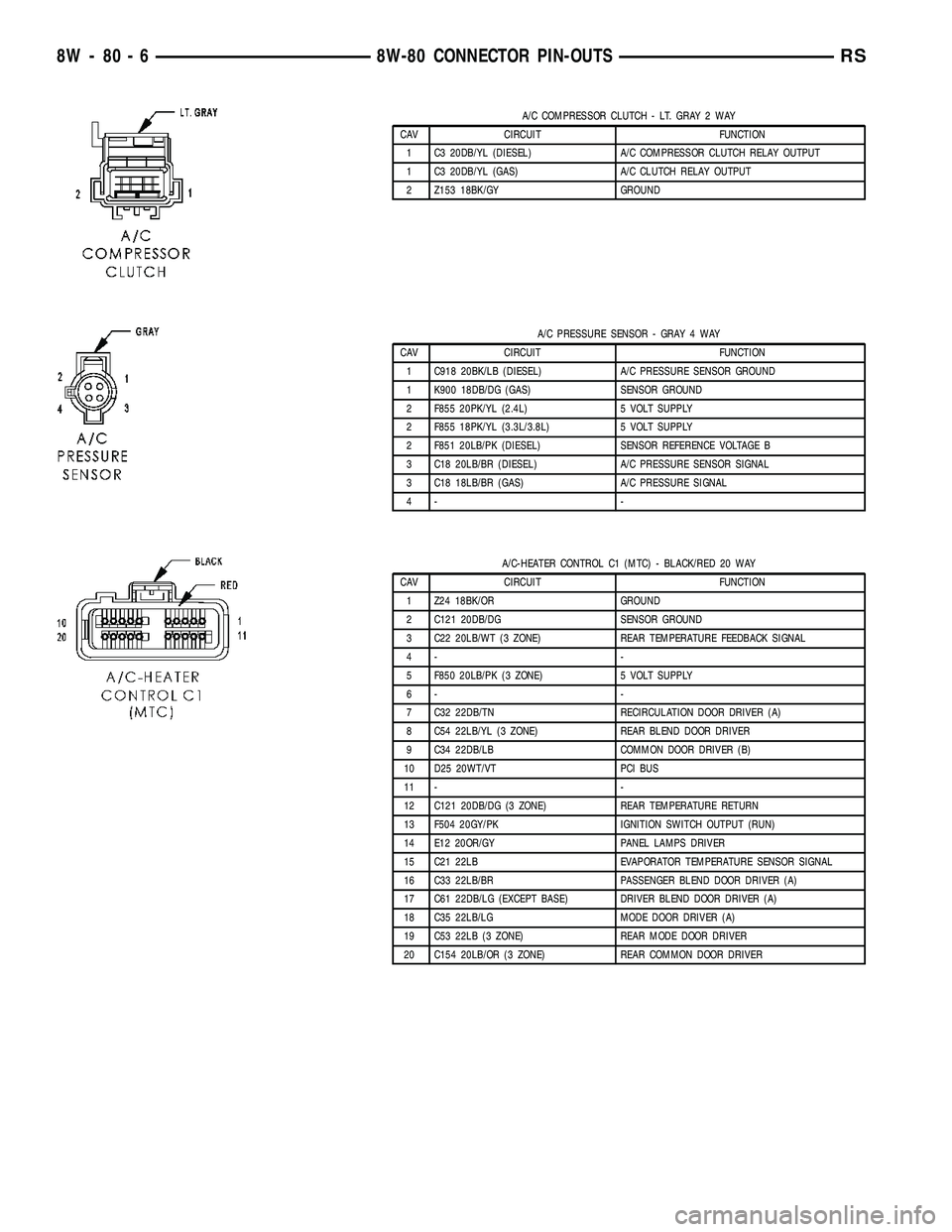

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C3 20DB/YL (DIESEL) A/C COMPRESSOR CLUTCH RELAY OUTPUT
1 C3 20DB/YL (GAS) A/C CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND
A/C PRESSURE SENSOR - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 C918 20BK/LB (DIESEL) A/C PRESSURE SENSOR GROUND
1 K900 18DB/DG (GAS) SENSOR GROUND
2 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
2 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
2 F851 20LB/PK (DIESEL) SENSOR REFERENCE VOLTAGE B
3 C18 20LB/BR (DIESEL) A/C PRESSURE SENSOR SIGNAL
3 C18 18LB/BR (GAS) A/C PRESSURE SIGNAL
4- -
A/C-HEATER CONTROL C1 (MTC) - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Z24 18BK/OR GROUND
2 C121 20DB/DG SENSOR GROUND
3 C22 20LB/WT (3 ZONE) REAR TEMPERATURE FEEDBACK SIGNAL
4- -
5 F850 20LB/PK (3 ZONE) 5 VOLT SUPPLY
6- -
7 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
8 C54 22LB/YL (3 ZONE) REAR BLEND DOOR DRIVER
9 C34 22DB/LB COMMON DOOR DRIVER (B)
10 D25 20WT/VT PCI BUS
11 - -
12 C121 20DB/DG (3 ZONE) REAR TEMPERATURE RETURN
13 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
14 E12 20OR/GY PANEL LAMPS DRIVER
15 C21 22LB EVAPORATOR TEMPERATURE SENSOR SIGNAL
16 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
17 C61 22DB/LG (EXCEPT BASE) DRIVER BLEND DOOR DRIVER (A)
18 C35 22LB/LG MODE DOOR DRIVER (A)
19 C53 22LB (3 ZONE) REAR MODE DOOR DRIVER
20 C154 20LB/OR (3 ZONE) REAR COMMON DOOR DRIVER
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTSRS

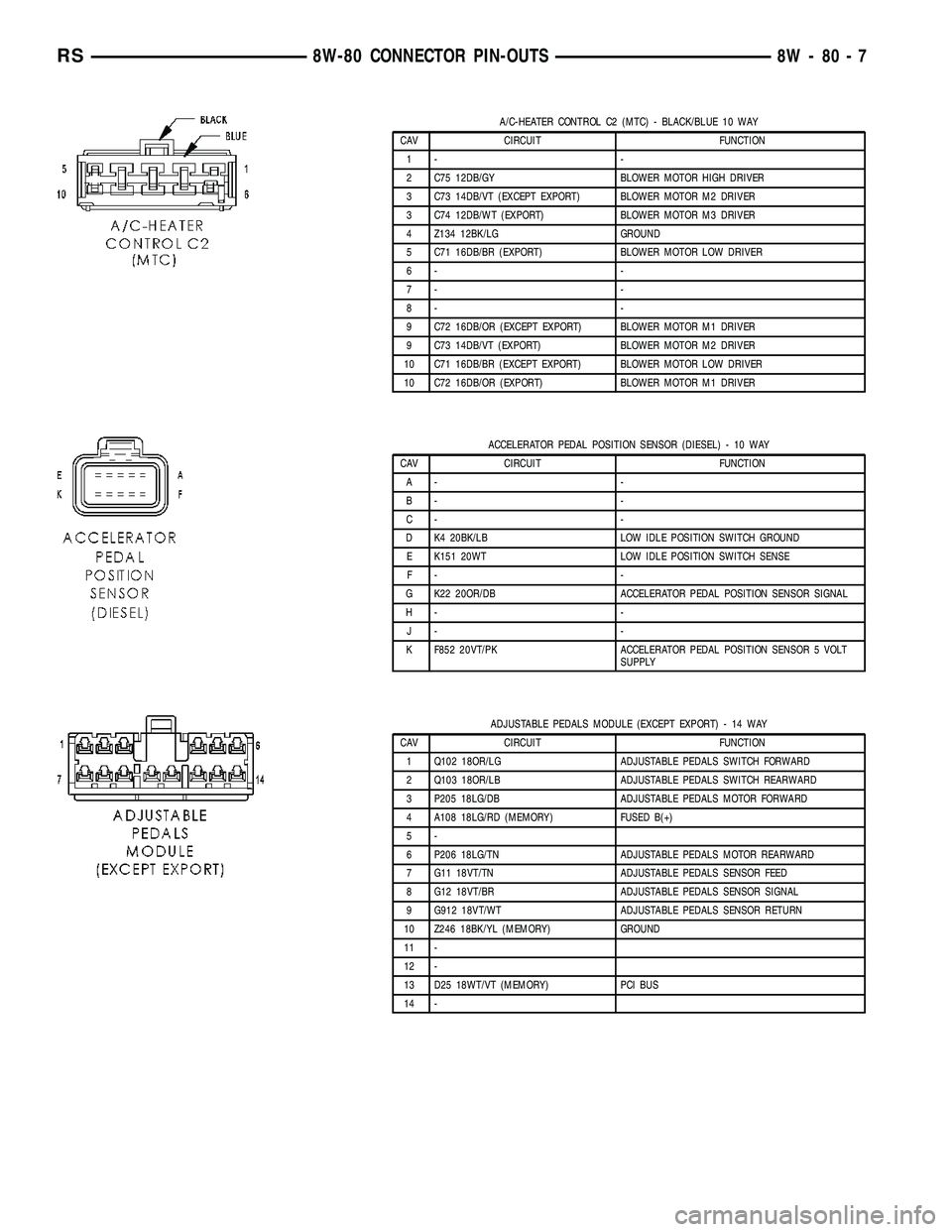

A/C-HEATER CONTROL C2 (MTC) - BLACK/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
3 C73 14DB/VT (EXCEPT EXPORT) BLOWER MOTOR M2 DRIVER
3 C74 12DB/WT (EXPORT) BLOWER MOTOR M3 DRIVER
4 Z134 12BK/LG GROUND
5 C71 16DB/BR (EXPORT) BLOWER MOTOR LOW DRIVER
6- -
7- -
8- -
9 C72 16DB/OR (EXCEPT EXPORT) BLOWER MOTOR M1 DRIVER
9 C73 14DB/VT (EXPORT) BLOWER MOTOR M2 DRIVER
10 C71 16DB/BR (EXCEPT EXPORT) BLOWER MOTOR LOW DRIVER
10 C72 16DB/OR (EXPORT) BLOWER MOTOR M1 DRIVER
ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - 10 WAY
CAV CIRCUIT FUNCTION
A- -
B- -
C- -
D K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
E K151 20WT LOW IDLE POSITION SWITCH SENSE
F- -
G K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
H- -
J- -
K F852 20VT/PK ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
ADJUSTABLE PEDALS MODULE (EXCEPT EXPORT) - 14 WAY
CAV CIRCUIT FUNCTION
1 Q102 18OR/LG ADJUSTABLE PEDALS SWITCH FORWARD
2 Q103 18OR/LB ADJUSTABLE PEDALS SWITCH REARWARD
3 P205 18LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
4 A108 18LG/RD (MEMORY) FUSED B(+)
5-
6 P206 18LG/TN ADJUSTABLE PEDALS MOTOR REARWARD
7 G11 18VT/TN ADJUSTABLE PEDALS SENSOR FEED
8 G12 18VT/BR ADJUSTABLE PEDALS SENSOR SIGNAL
9 G912 18VT/WT ADJUSTABLE PEDALS SENSOR RETURN
10 Z246 18BK/YL (MEMORY) GROUND
11 -
12 -
13 D25 18WT/VT (MEMORY) PCI BUS
14 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-7

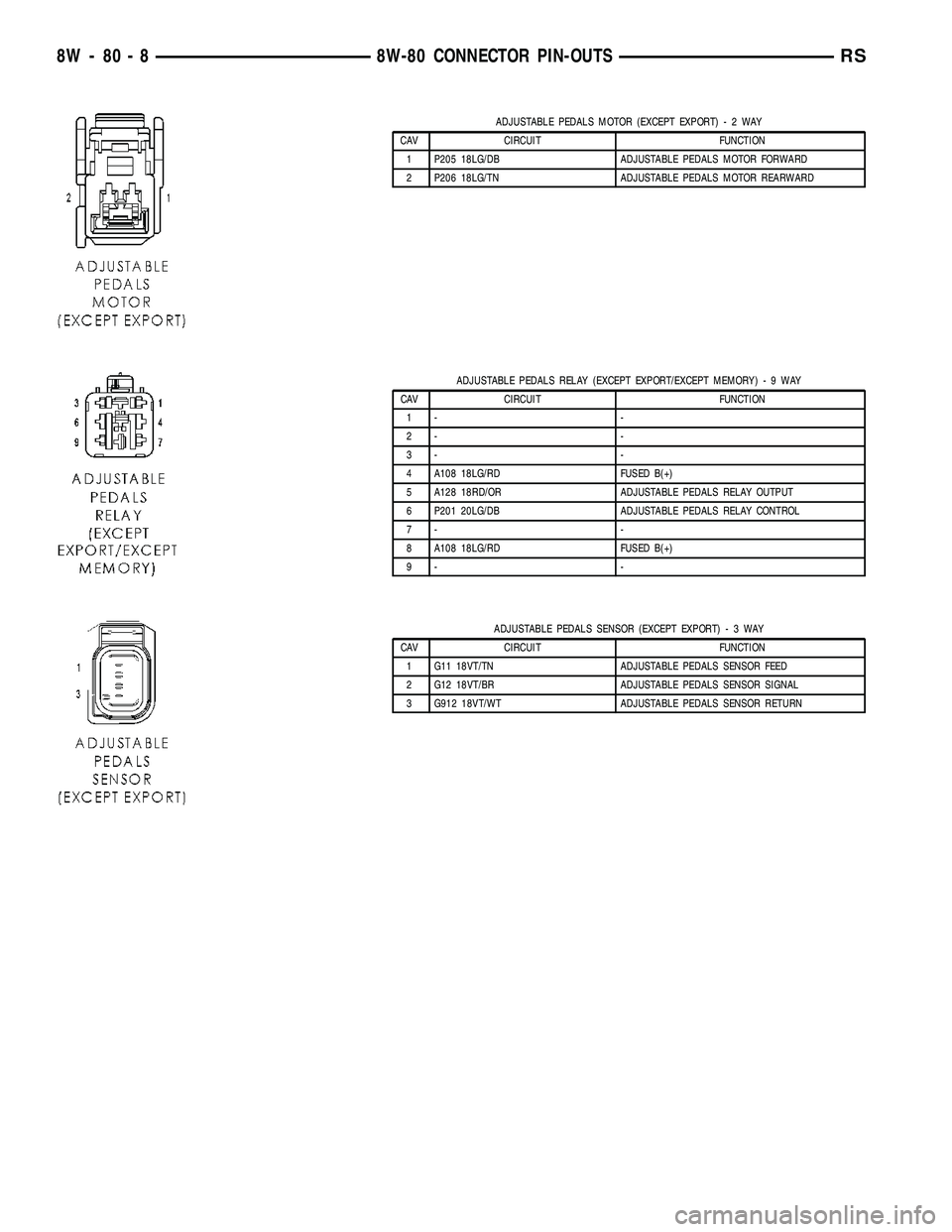

ADJUSTABLE PEDALS MOTOR (EXCEPT EXPORT)-2WAY
CAV CIRCUIT FUNCTION
1 P205 18LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2 P206 18LG/TN ADJUSTABLE PEDALS MOTOR REARWARD
ADJUSTABLE PEDALS RELAY (EXCEPT EXPORT/EXCEPT MEMORY)-9WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 A128 18RD/OR ADJUSTABLE PEDALS RELAY OUTPUT
6 P201 20LG/DB ADJUSTABLE PEDALS RELAY CONTROL
7- -
8 A108 18LG/RD FUSED B(+)
9- -
ADJUSTABLE PEDALS SENSOR (EXCEPT EXPORT)-3WAY
CAV CIRCUIT FUNCTION
1 G11 18VT/TN ADJUSTABLE PEDALS SENSOR FEED
2 G12 18VT/BR ADJUSTABLE PEDALS SENSOR SIGNAL
3 G912 18VT/WT ADJUSTABLE PEDALS SENSOR RETURN
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTSRS

AIRBAG CONTROL MODULE C1 (ORC) (PREMIUM) - YELLOW 32 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4- -
5 R31 20LG/OR LEFT SEAT SQUIB LINE 2
6 R33 20LG/WT LEFT SEAT SQUIB LINE 1
7 R34 20LB/WT RIGHT SEAT SQUIB LINE 2
8 R32 20LB/OR RIGHT SEAT SQUIB LINE 1
9 R57 20LG/GY DRIVER SEAT BELT SWITCH LINE 2
10 - -
11 R59 20LG/TN DRIVER SEAT BELT SWITCH LINE 1
12 - -
13 - -
14 - -
15 R13 20LB LEFT SIDE IMPACT SENSOR 1 SIGNAL
16 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND
17 - -
18 - -
19 R15 20DB LEFT SIDE IMPACT SENSOR 1 GROUND
20 - -
21 - -
22 - -
23 - -
24 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL
25 - -
26 - -
27 - -
28 - -
29 R53 20LG/YL DRIVER SEAT BELT TENSIONER LINE 2
30 R55 20LG/DG DRIVER SEAT BELT TENSIONER LINE 1
31 R56 20LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
32 R54 20LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSRS

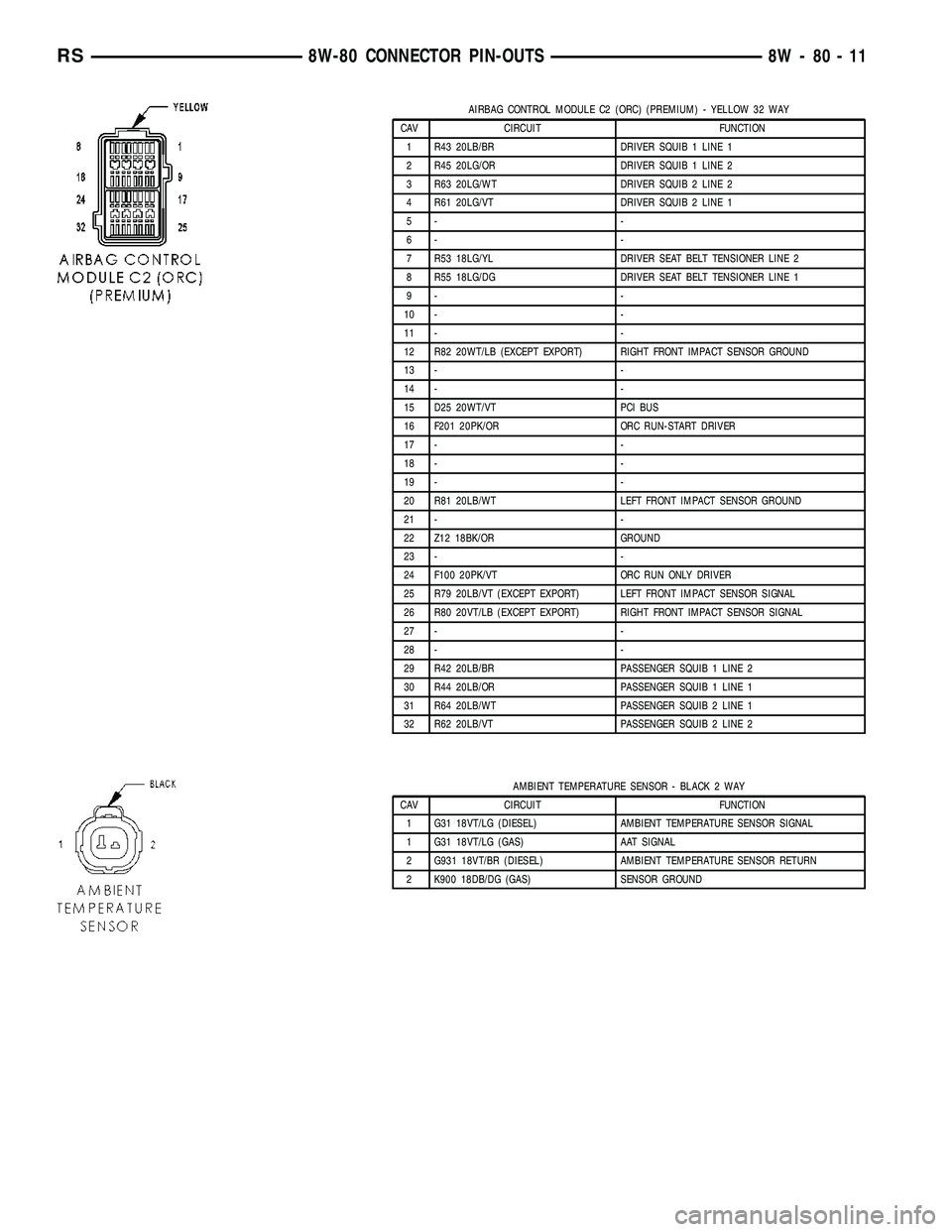

AIRBAG CONTROL MODULE C2 (ORC) (PREMIUM) - YELLOW 32 WAY
CAV CIRCUIT FUNCTION
1 R43 20LB/BR DRIVER SQUIB 1 LINE 1
2 R45 20LG/OR DRIVER SQUIB 1 LINE 2
3 R63 20LG/WT DRIVER SQUIB 2 LINE 2
4 R61 20LG/VT DRIVER SQUIB 2 LINE 1
5- -
6- -
7 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
8 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
9- -
10 - -
11 - -
12 R82 20WT/LB (EXCEPT EXPORT) RIGHT FRONT IMPACT SENSOR GROUND
13 - -
14 - -
15 D25 20WT/VT PCI BUS
16 F201 20PK/OR ORC RUN-START DRIVER
17 - -
18 - -
19 - -
20 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
21 - -
22 Z12 18BK/OR GROUND
23 - -
24 F100 20PK/VT ORC RUN ONLY DRIVER
25 R79 20LB/VT (EXCEPT EXPORT) LEFT FRONT IMPACT SENSOR SIGNAL
26 R80 20VT/LB (EXCEPT EXPORT) RIGHT FRONT IMPACT SENSOR SIGNAL
27 - -
28 - -
29 R42 20LB/BR PASSENGER SQUIB 1 LINE 2
30 R44 20LB/OR PASSENGER SQUIB 1 LINE 1
31 R64 20LB/WT PASSENGER SQUIB 2 LINE 1
32 R62 20LB/VT PASSENGER SQUIB 2 LINE 2
AMBIENT TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G31 18VT/LG (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
1 G31 18VT/LG (GAS) AAT SIGNAL
2 G931 18VT/BR (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
2 K900 18DB/DG (GAS) SENSOR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-11

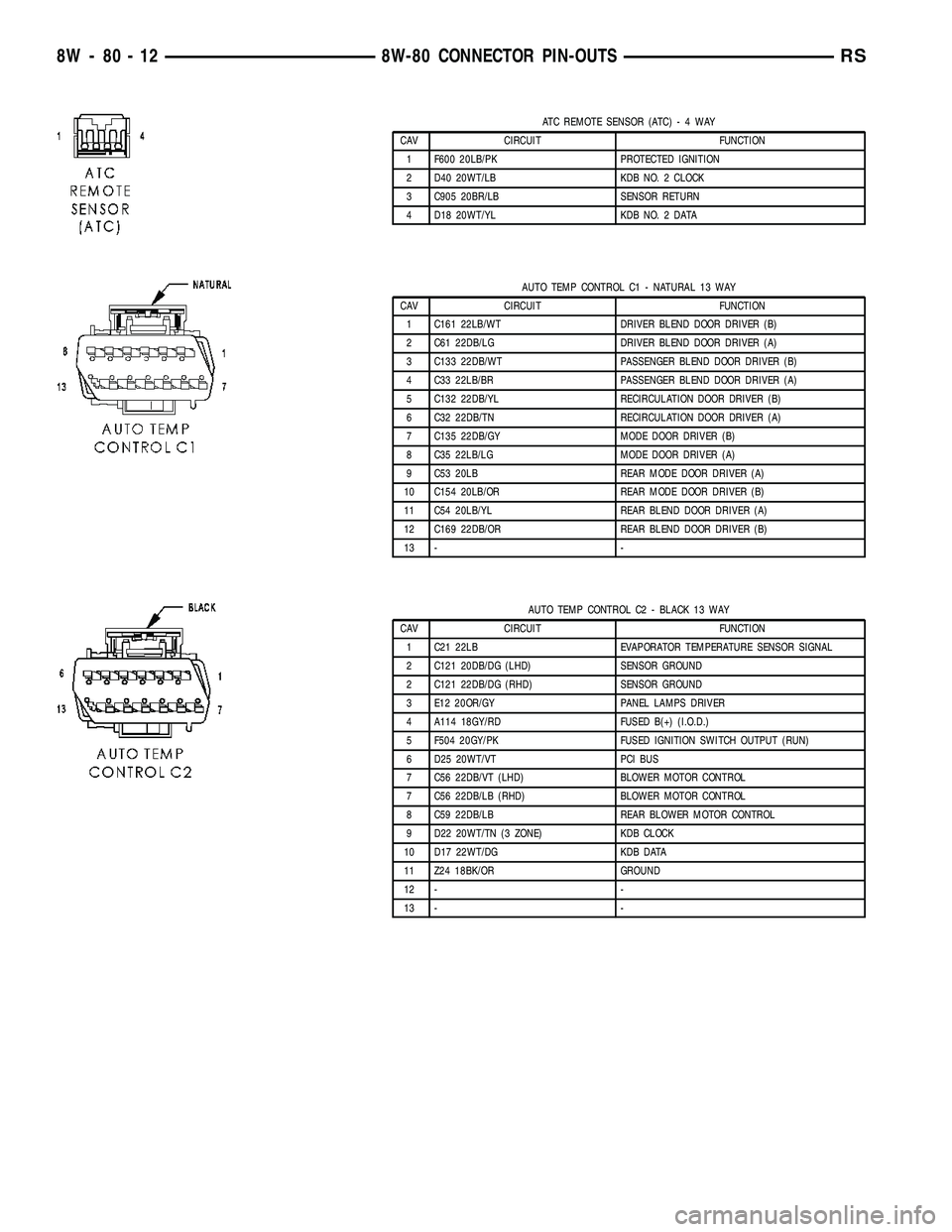

ATC REMOTE SENSOR (ATC)-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTO TEMP CONTROL C1 - NATURAL 13 WAY
CAV CIRCUIT FUNCTION
1 C161 22LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C61 22DB/LG DRIVER BLEND DOOR DRIVER (A)
3 C133 22DB/WT PASSENGER BLEND DOOR DRIVER (B)
4 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C132 22DB/YL RECIRCULATION DOOR DRIVER (B)
6 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
7 C135 22DB/GY MODE DOOR DRIVER (B)
8 C35 22LB/LG MODE DOOR DRIVER (A)
9 C53 20LB REAR MODE DOOR DRIVER (A)
10 C154 20LB/OR REAR MODE DOOR DRIVER (B)
11 C54 20LB/YL REAR BLEND DOOR DRIVER (A)
12 C169 22DB/OR REAR BLEND DOOR DRIVER (B)
13 - -
AUTO TEMP CONTROL C2 - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 C21 22LB EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG (LHD) SENSOR GROUND
2 C121 22DB/DG (RHD) SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 18GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 22DB/VT (LHD) BLOWER MOTOR CONTROL
7 C56 22DB/LB (RHD) BLOWER MOTOR CONTROL
8 C59 22DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN (3 ZONE) KDB CLOCK
10 D17 22WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 - -
13 - -
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTSRS
