2004 CHEVROLET VENTURE Owners Manual

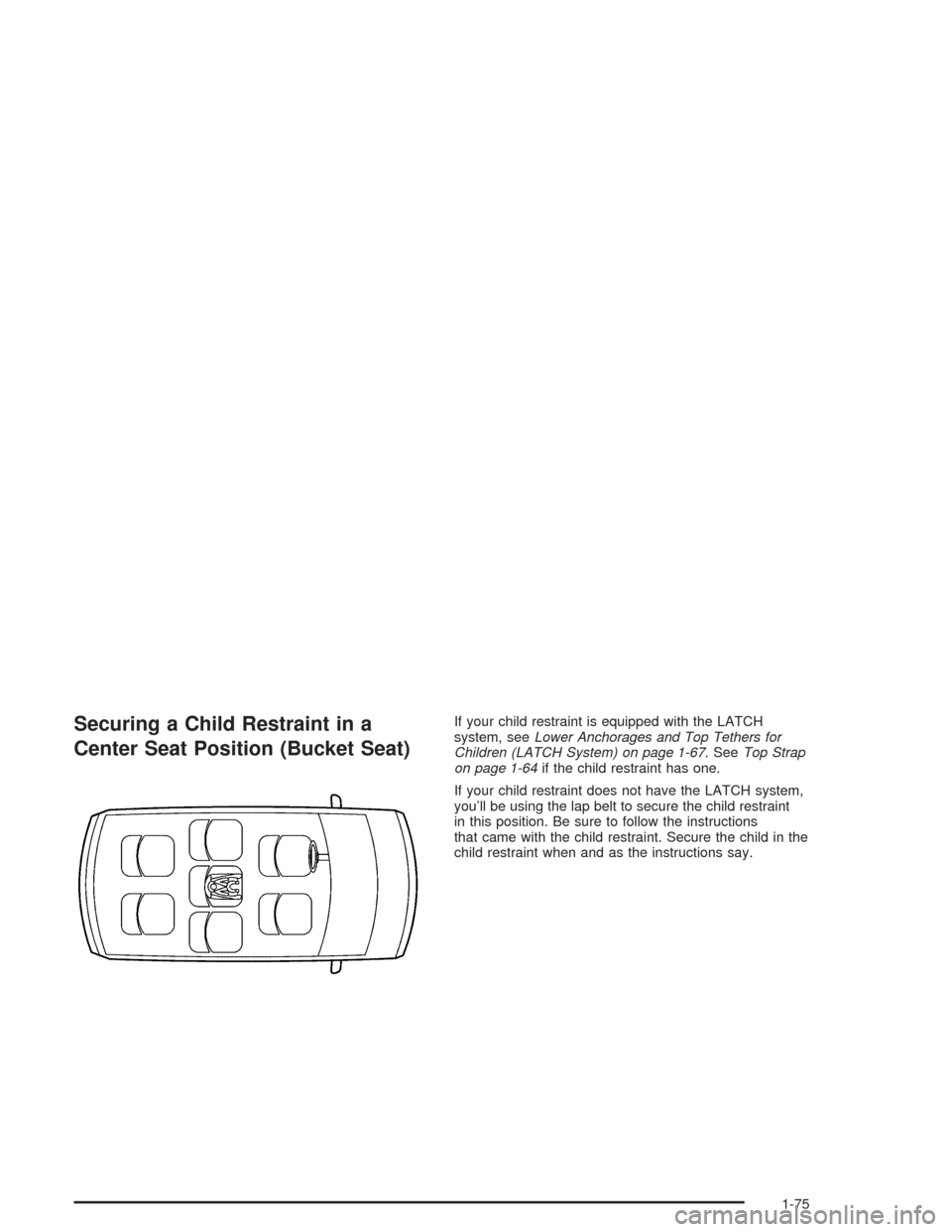

Securing a Child Restraint in a
Center Seat Position (Bucket Seat)If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-67. SeeTop Strap
on page 1-64if the child restraint has one.
If your child restraint does not have the LATCH system,
you’ll be using the lap belt to secure the child restraint
in this position. Be sure to follow the instructions
that came with the child restraint. Secure the child in the
child restraint when and as the instructions say.
1-75

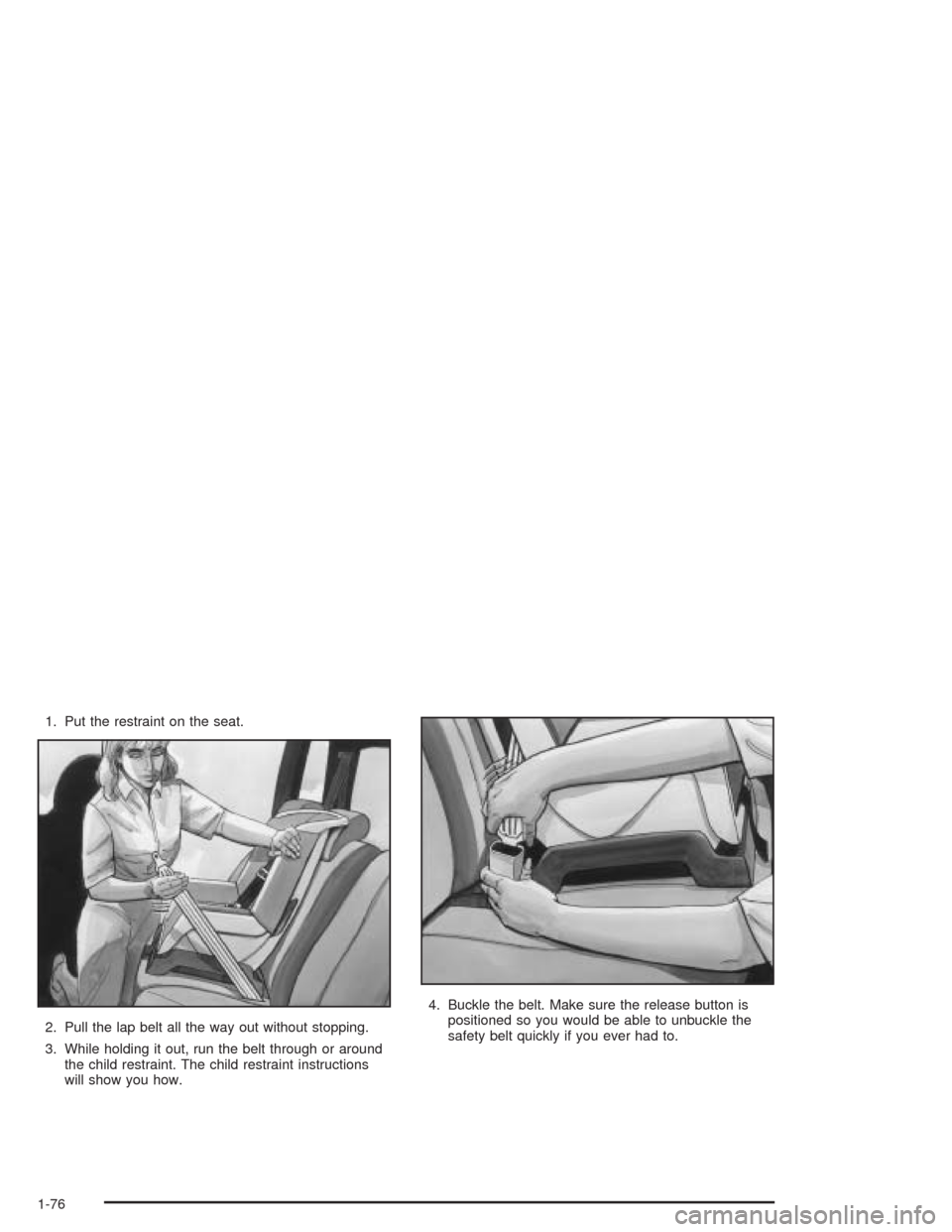

1. Put the restraint on the seat.
2. Pull the lap belt all the way out without stopping.
3. While holding it out, run the belt through or around
the child restraint. The child restraint instructions
will show you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-76

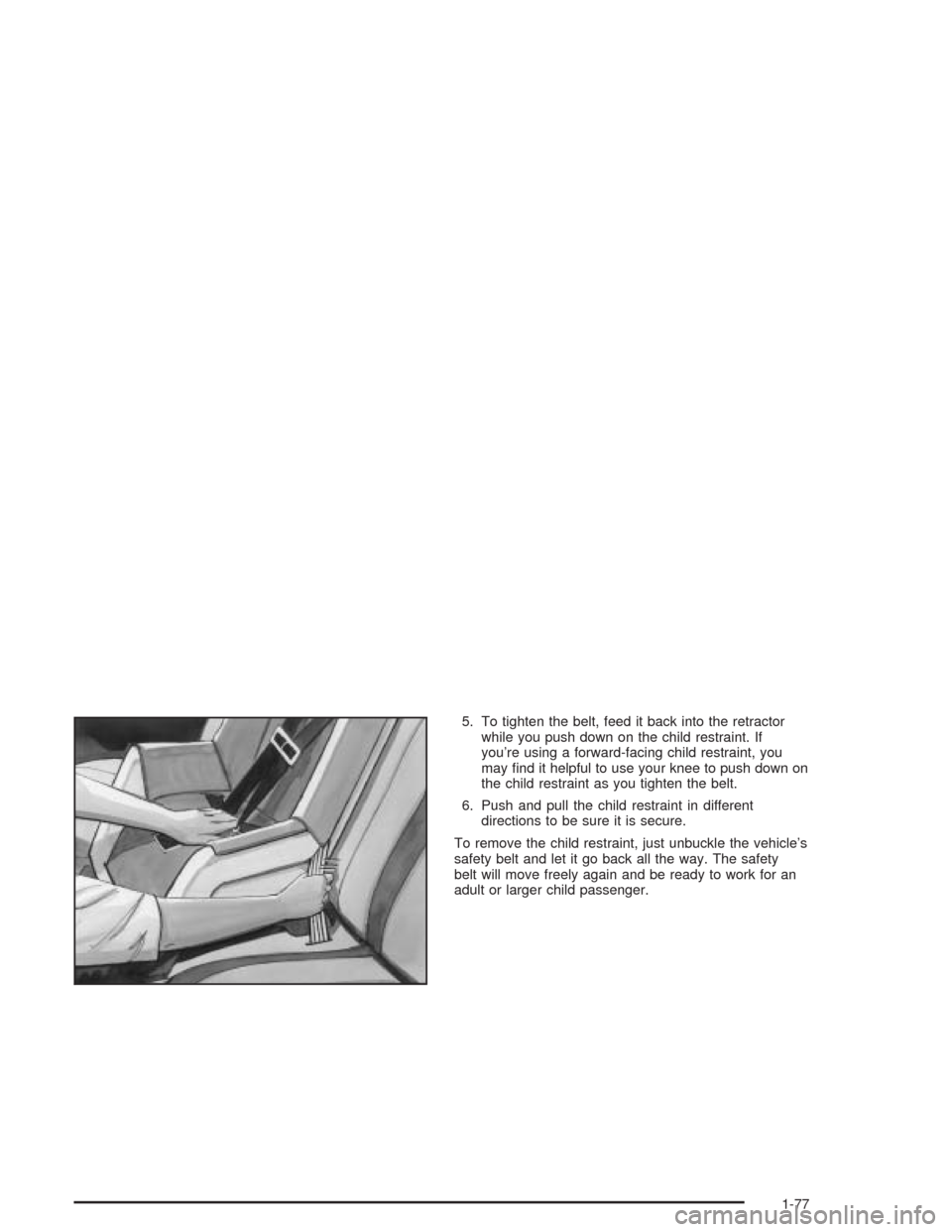

5. To tighten the belt, feed it back into the retractor
while you push down on the child restraint. If
you’re using a forward-facing child restraint, you
may nd it helpful to use your knee to push down on
the child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-77

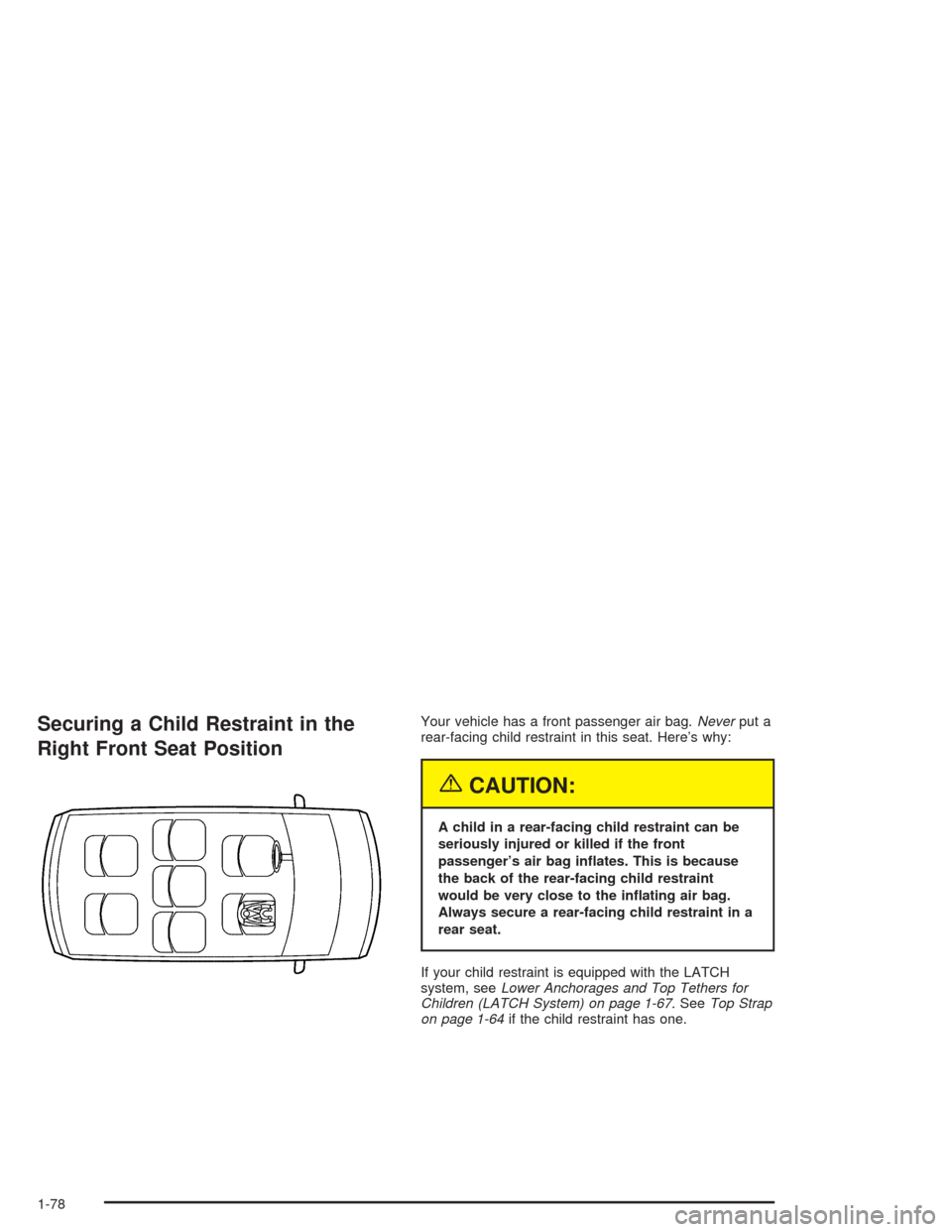

Securing a Child Restraint in the
Right Front Seat PositionYour vehicle has a front passenger air bag.Neverput a
rear-facing child restraint in this seat. Here’s why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the front
passenger’s air bag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating air bag.
Always secure a rear-facing child restraint in a
rear seat.
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-67. SeeTop Strap
on page 1-64if the child restraint has one.
1-78

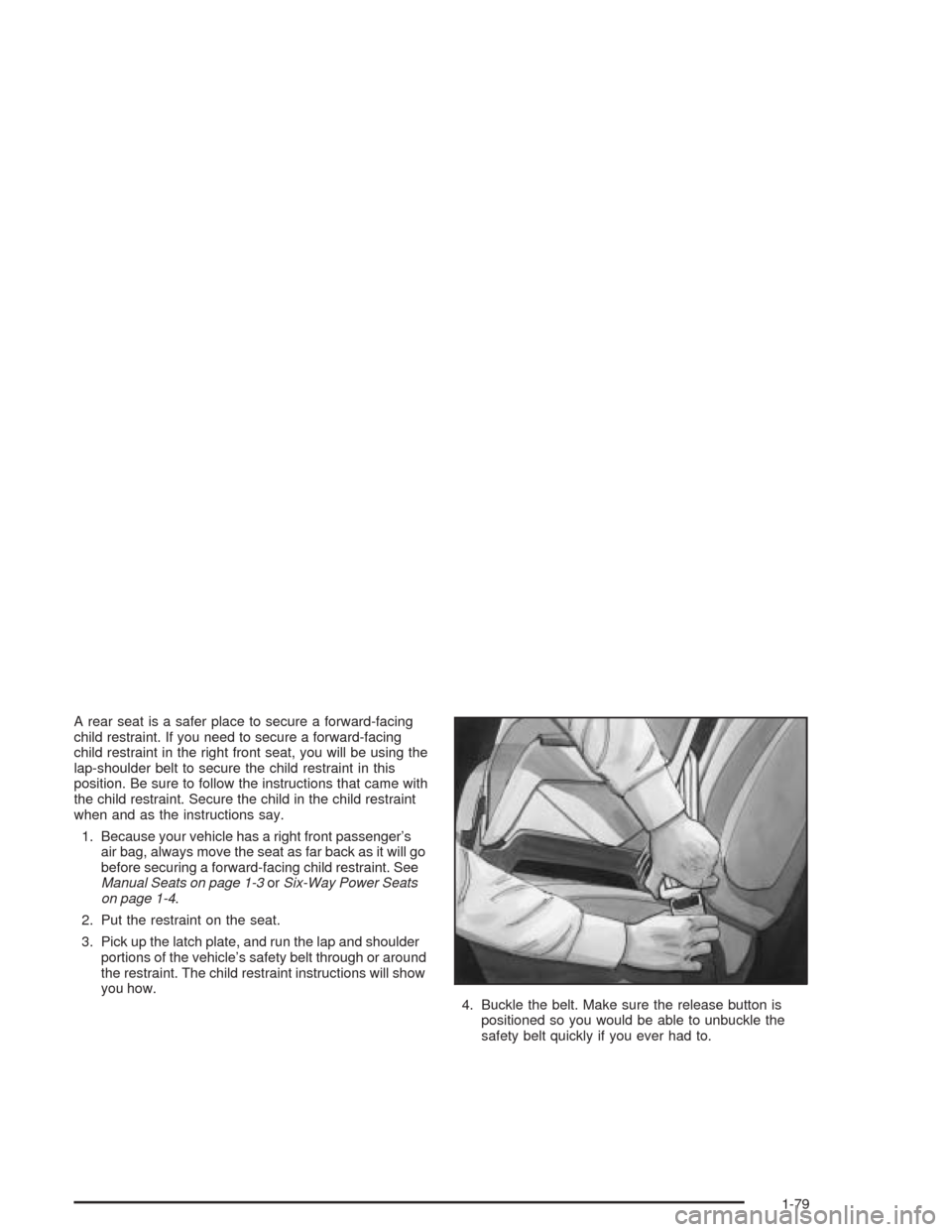

A rear seat is a safer place to secure a forward-facing
child restraint. If you need to secure a forward-facing
child restraint in the right front seat, you will be using the
lap-shoulder belt to secure the child restraint in this
position. Be sure to follow the instructions that came with
the child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Because your vehicle has a right front passenger’s
air bag, always move the seat as far back as it will go
before securing a forward-facing child restraint. See
Manual Seats on page 1-3orSix-Way Power Seats
on page 1-4.
2. Put the restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or around
the restraint. The child restraint instructions will show
you how.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-79

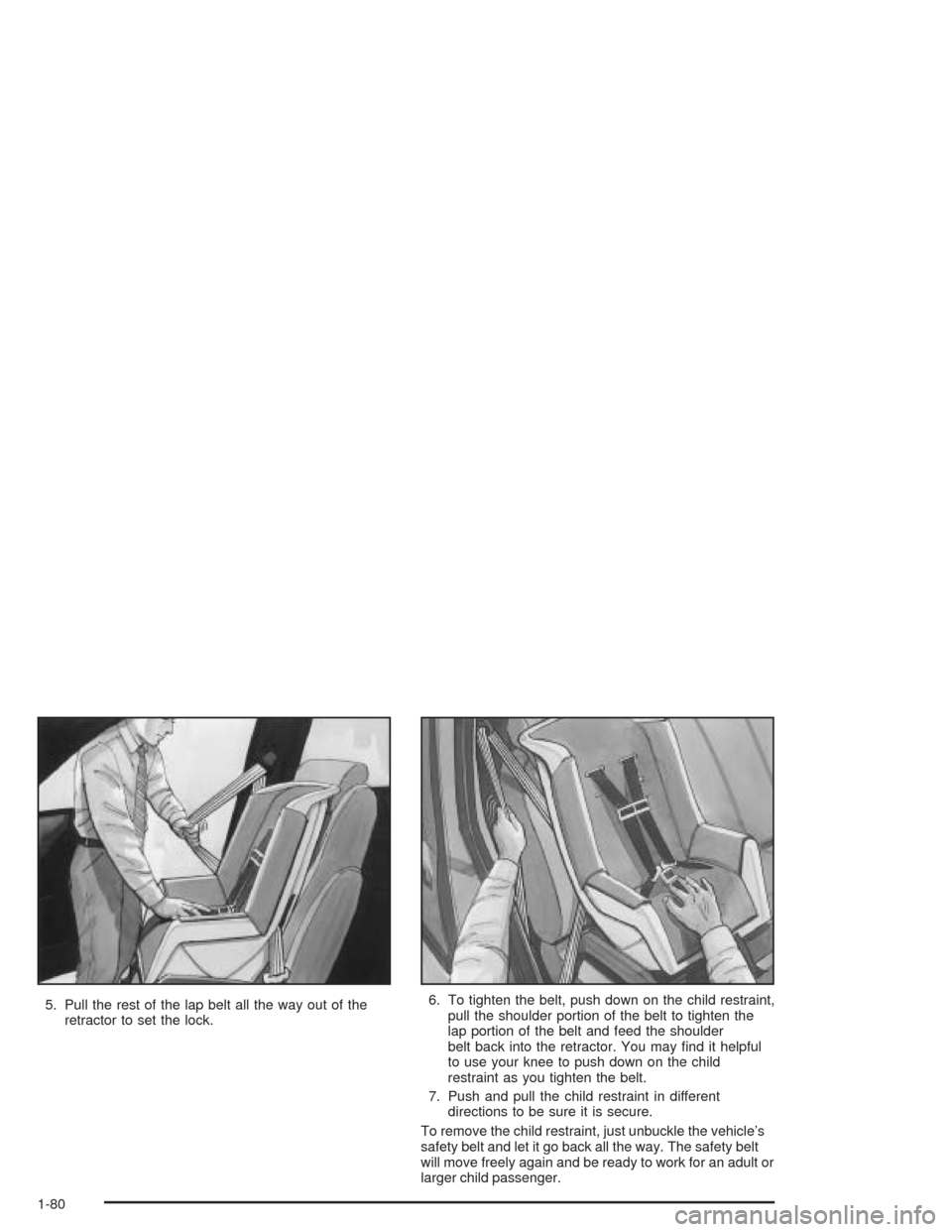

5. Pull the rest of the lap belt all the way out of the
retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. You may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult or
larger child passenger.
1-80

Built-In Child Restraint
If your vehicle has this option in a bucket seat, each
bucket seat that has the built-in child restraint ts in only
one location in your vehicle. To nd out where a
bucket seat that has a built-in child restraint must be
located in your vehicle seeRear Seat Operation
on page 1-6. If your vehicle has this option in a 60/40
bench seat, this bench seat will only t in the second
row of your vehicle. In both types of seats, the built-in
child restraint works the same way. Bucket Seat
60/40 Bench Seat
1-81

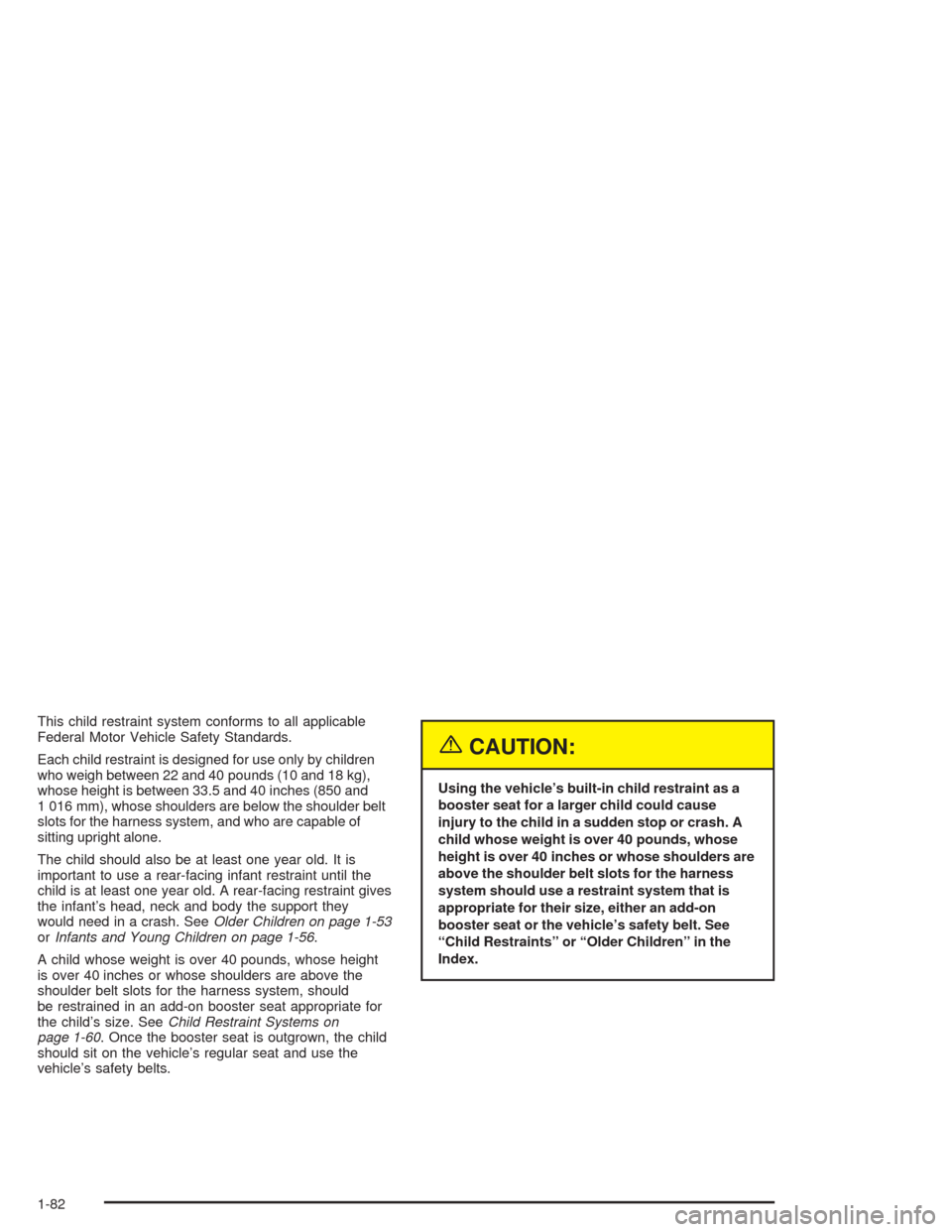

This child restraint system conforms to all applicable
Federal Motor Vehicle Safety Standards.
Each child restraint is designed for use only by children
who weigh between 22 and 40 pounds (10 and 18 kg),
whose height is between 33.5 and 40 inches (850 and
1 016 mm), whose shoulders are below the shoulder belt
slots for the harness system, and who are capable of
sitting upright alone.
The child should also be at least one year old. It is
important to use a rear-facing infant restraint until the
child is at least one year old. A rear-facing restraint gives
the infant’s head, neck and body the support they
would need in a crash. SeeOlder Children on page 1-53
orInfants and Young Children on page 1-56.
A child whose weight is over 40 pounds, whose height
is over 40 inches or whose shoulders are above the
shoulder belt slots for the harness system, should
be restrained in an add-on booster seat appropriate for
the child’s size. SeeChild Restraint Systems on
page 1-60. Once the booster seat is outgrown, the child
should sit on the vehicle’s regular seat and use the
vehicle’s safety belts.
{CAUTION:
Using the vehicle’s built-in child restraint as a
booster seat for a larger child could cause
injury to the child in a sudden stop or crash. A
child whose weight is over 40 pounds, whose
height is over 40 inches or whose shoulders are
above the shoulder belt slots for the harness
system should use a restraint system that is
appropriate for their size, either an add-on
booster seat or the vehicle’s safety belt. See
“Child Restraints” or “Older Children” in the
Index.
1-82
