2004 CHEVROLET KODIAK radio antenna

Low Washer Fluid Warning Light.....................3-42
Check Gages Warning Light...........................3-42
Fuel Gage...................................................3-42
Water in Fuel Warning Light...........................3-43
Air Filter Restriction Indicator..........................3-44
Air Pressure Gage........................................3-44
Hourmeter Gage...........................................3-45
Audio System(s).............................................3-45
Setting the Time...........................................3-45
AM-FM Radio...............................................3-46Radio with Cassette......................................3-48
Radio with CD..............................................3-53
Theft-Deterrent Feature (Non-RDS Radios).......3-57
Radio Reception...........................................3-57
Care of Your Cassette Tape Player.................3-57
Care of Your CDs.........................................3-59
Care of Your CD Player................................3-59
Fixed Mast Antenna......................................3-59
Chime Level Adjustment................................3-59
Section 3 Instrument Panel
3-2

Care of Your CDs
Handle CDs carefully. Store them in their original cases
or other protective cases and away from direct
sunlight and dust. If the surface of a CD is soiled,
dampen a clean, soft cloth in a mild, neutral detergent
solution and clean it, wiping from the center to the edge.
Be sure never to touch the side without writing when
handling CDs. Pick up CDs by grasping the outer edges
or the edge of the hole and the outer edge.
Care of Your CD Player
The use of CD lens cleaners for CDs is not advised,
due to the risk of contaminating the lens of the CD optics
with lubricants internal to the CD mechanism.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged. If the mast should ever
become slightly bent, you can straighten it out by hand.
If the mast is badly bent, you should replace it.
Check occasionally to be sure the mast is still tightened
to the fender. If tightening is required, tighten by
hand, then with a wrench one quarter turn.
Chime Level Adjustment
The radio is the vehicle chime producer. The chime is
produced from the driver’s side front door speakers.
To change the volume level, press and hold
pushbutton 6 with the ignition on and the radio power
off. The chime volume level will change from the normal
level to loud, and HI will be displayed on the radio.
To change back to the default or normal setting, press
and hold pushbutton 6 again. The chime level will
change from the loud level to normal, and LO will be
displayed. Each time the chime volume is changed,
three chimes will sound as an example of the new
volume selected. Removing the radio and not replacing
it with a factory radio or chime module will disable
vehicle chimes.
3-59

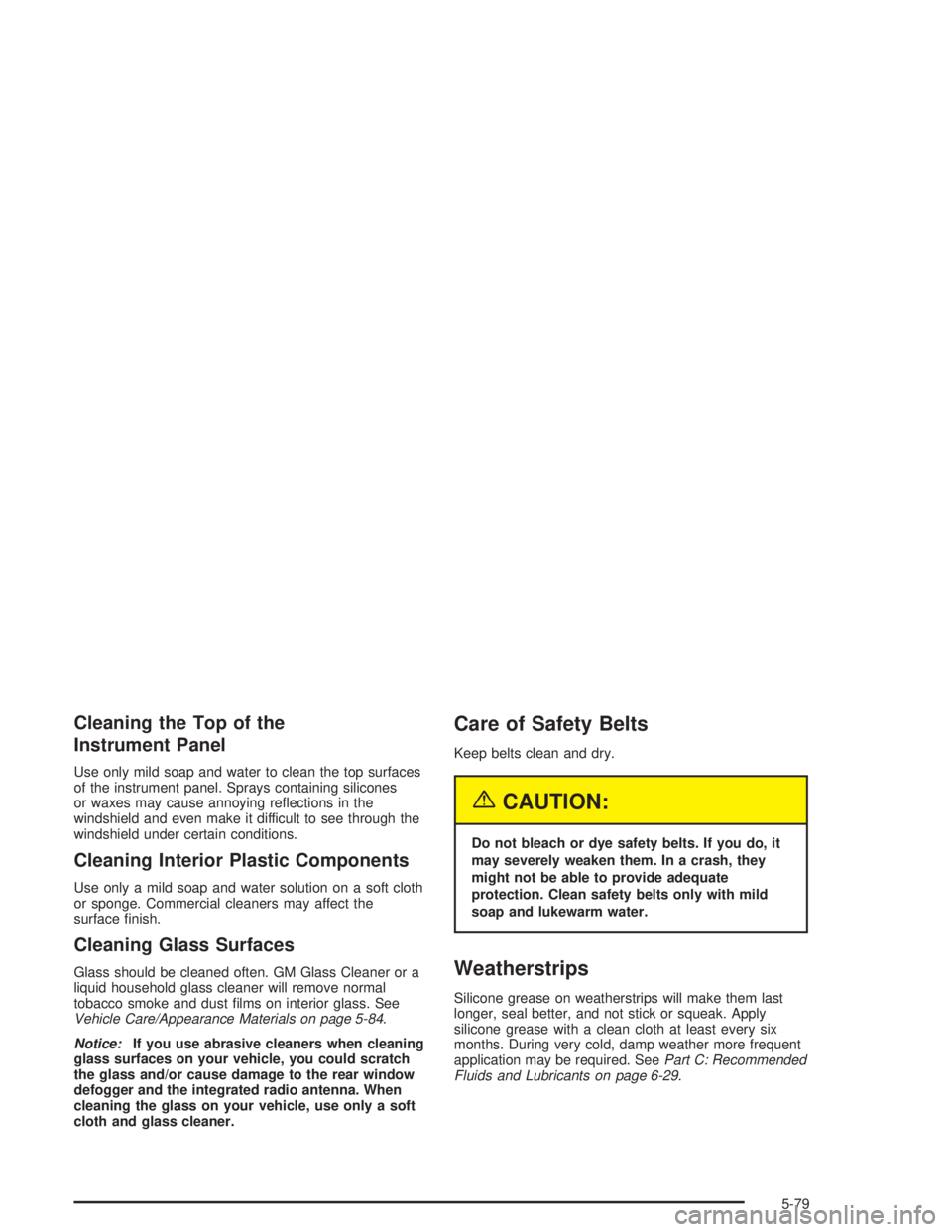

Cleaning the Top of the
Instrument Panel
Use only mild soap and water to clean the top surfaces
of the instrument panel. Sprays containing silicones
or waxes may cause annoying reflections in the
windshield and even make it difficult to see through the
windshield under certain conditions.
Cleaning Interior Plastic Components
Use only a mild soap and water solution on a soft cloth
or sponge. Commercial cleaners may affect the
surface finish.
Cleaning Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner or a
liquid household glass cleaner will remove normal
tobacco smoke and dust films on interior glass. See
Vehicle Care/Appearance Materials on page 5-84.
Notice:If you use abrasive cleaners when cleaning
glass surfaces on your vehicle, you could scratch
the glass and/or cause damage to the rear window
defogger and the integrated radio antenna. When
cleaning the glass on your vehicle, use only a soft
cloth and glass cleaner.
Care of Safety Belts
Keep belts clean and dry.
{CAUTION:
Do not bleach or dye safety belts. If you do, it
may severely weaken them. In a crash, they
might not be able to provide adequate
protection. Clean safety belts only with mild
soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth at least every six
months. During very cold, damp weather more frequent
application may be required. SeePart C: Recommended
Fluids and Lubricants on page 6-29.
5-79

A
Accessory Power Outlets.................................3-17
Adding Equipment to Your Air Bag-Equipped
Vehicle.......................................................1-61
Adding Washer Fluid.......................................5-44
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment............................5-86
Adjusting the Speakers
(Balance/Fade)............................3-47, 3-50, 3-54
Air Bag
Off Light.....................................................3-28
Readiness Light..........................................3-27
Air Bag System..............................................1-48
Adding Equipment to Your Air Bag-Equipped
Vehicle...................................................1-61
Air Bag Off Switch.......................................1-55
How Does an Air Bag Restrain?....................1-53
Servicing Your Air Bag-Equipped Vehicle.........1-60
What Makes an Air Bag Inflate?....................1-53
What Will You See After an Air Bag Inflates? . . 1-54
When Should an Air Bag Inflate?...................1-53
Where Are the Air Bags?..............................1-52
Air Brake.......................................................2-35
Air Brake System Warning Light........................3-33
Air Brake Systems..........................................5-50
Air Cleaner/Filter, Engine.................................5-30
Air Conditioning System...................................5-67Air Connections..............................................4-36
Air Dryer.......................................................5-50
Air Pressure Gage..........................................3-44
Air Shift Control (Automatic Transmission)..........2-27
Air Suspension...............................................2-27
Air Suspension Seats........................................ 1-6
Airbag Sensing and Diagnostic Module (SDM)...... 7-5
All Overseas Locations...................................... 7-4
Allison Transmission
®External Filters...............5-100
Aluminum or Chrome-Plated Wheels..................5-82
AM ...............................................................3-57
AM-FM Radio.................................................3-46
Antenna, Fixed Mast.......................................3-59
Anti-lock Brake System (ABS)............................ 4-7
Anti-Lock Brake, System Warning Light..............3-34
Anti-Lock Brakes, Trailer System
Warning Light.............................................3-35
Appearance Care............................................5-76
Care of Safety Belts....................................5-79
Chemical Paint Spotting...............................5-83
Cleaning the Inside of Your Vehicle................5-77
Cleaning the Outside of Your Vehicle..............5-80
Finish Damage............................................5-83
Sheet Metal Damage...................................5-82
Underbody Maintenance...............................5-83
Vehicle Care/Appearance Materials................5-84
Weatherstrips..............................................5-79
Ashtrays........................................................3-18
1

Audio System(s).............................................3-45
AM-FM Radio.............................................3-46
Care of Your Cassette Tape Player................3-57
Care of Your CD Player...............................3-59
Care of Your CDs........................................3-59
Chime Level Adjustment...............................3-59
Fixed Mast Antenna.....................................3-59
Radio with Cassette.....................................3-48
Radio with CD............................................3-53
Setting the Time..........................................3-45
Theft-Deterrent Feature................................3-57
Understanding Radio Reception.....................3-57
Automatic Ether Injection System......................5-66
Automatic Transmission...........................2-13, 2-19
Fluid..........................................................5-31
Operation...................................................2-28
Automatic Transmission External Filter...............5-31
Automatic Transmission Shift Indicator Check......6-26
Axle, Two-Speed Rear Axle Electric
Shift Control...............................................2-26
B
Battery..........................................................5-55
Battery Replacement......................................... 2-5
Bench Seat, Split............................................. 1-6
Body Lubrication Service..................................6-25Brake
Diesel Engine Exhaust.................................2-25
Exhaust Indicator Light.................................3-40
Parking Warning Light..................................3-34
System Warning Light..................................3-31
Trailer Hand Control Valve.............................. 4-9
Brake Adjustment............................................5-49
Brake Fluid....................................................5-46
Brake Pedal Travel.........................................5-49
Brake System Check.......................................6-26
Brakes..........................................................5-46
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-11
Bucket Seats................................................... 1-2
Bulb Replacement
Replacement Bulbs......................................5-63
C
Canada........................................................... 7-4
Canadian Owners................................................ ii
Capacities and Specifications............................5-93
Carbon Monoxide...................................4-25, 2-37
2
