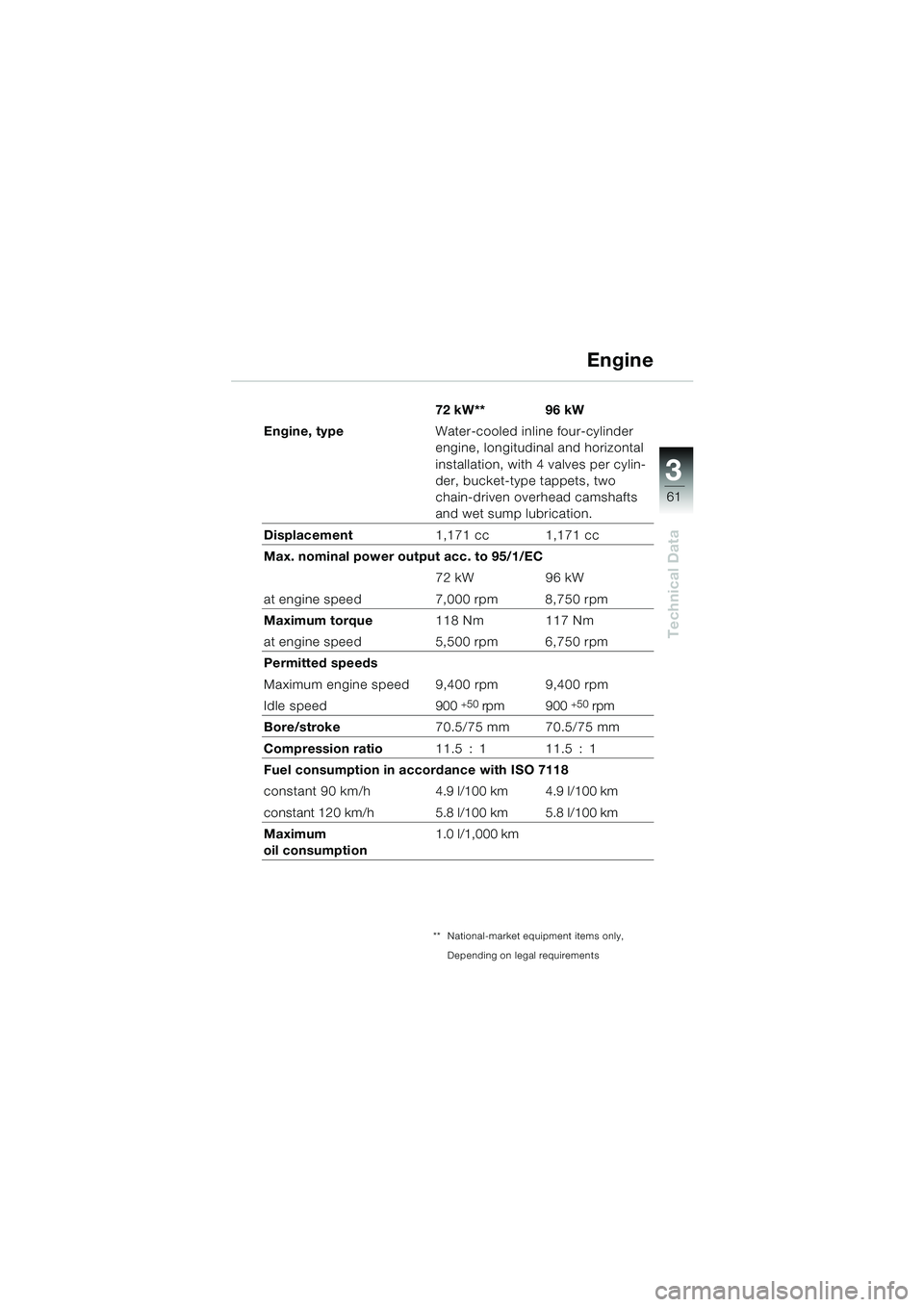

61
Technical Data
3
72 kW** 96 kW
Engine, type Water-cooled inline four-cylinder
engine, longitudinal and horizontal
installation, with 4 valves per cylin-
der, bucket-type tappets, two
chain-driven overhead camshafts
and wet sump lubrication.
Displacement 1,171 cc 1,171 cc
Max. nominal power output acc. to 95/1/EC 72 kW 96 kW
at engine speed 7,000 rpm 8,750 rpm
Maximum torque 118 Nm 117 Nm
at engine speed 5,500 rpm 6,750 rpm
Permitted speeds
Maximum engine speed 9,400 rpm 9,400 rpm
Idle speed 900
+50 rpm 900 +50 rpm
Bore/stroke 70.5/75 mm 70.5/75 mm
Compression ratio 11.5 : 1 11.5 : 1
Fuel consumption in accordance with ISO 7118
constant 90 km/h 4.9 l/100 km 4.9 l/100 km
constant 120 km/h 5.8 l/100 km 5.8 l/100 km
Maximum
oil consumption 1.0 l/1,000 km
Engine
** National-market equipment items only,
Depending on legal requirements
20k41bkg3.book Seite 61 Mittwoch, 26. Mai 2004 3:33 15

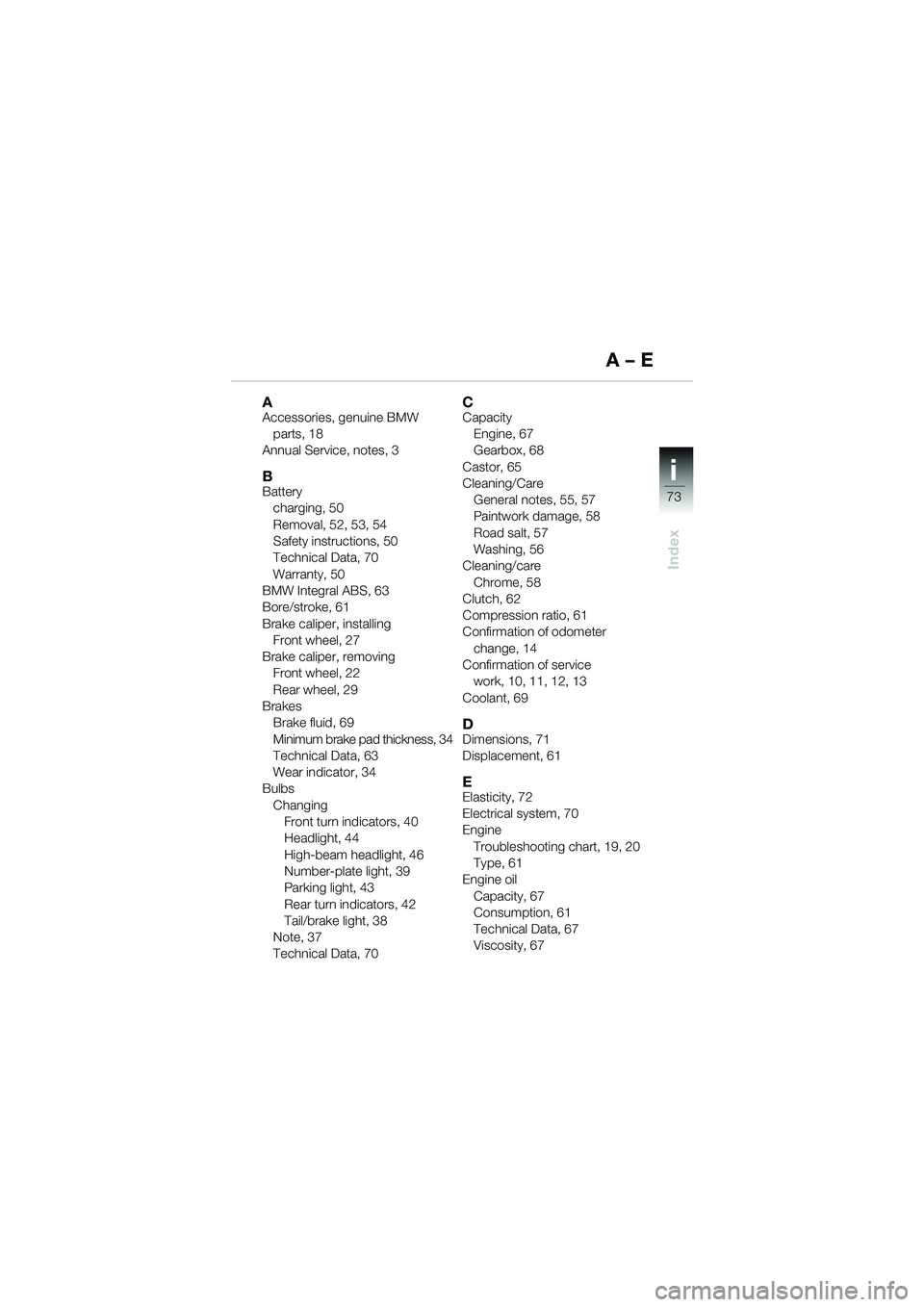

73
i
A – E
AAccessories, genuine BMW parts, 18
Annual Service, notes, 3
BBattery charging, 50
Removal, 52, 53, 54
Safety instructions, 50
Technical Data, 70
Warranty, 50
BMW Integral ABS, 63
Bore/stroke, 61
Brake caliper, installing Front wheel, 27
Brake caliper, removing Front wheel, 22
Rear wheel, 29
Brakes Brake fluid, 69
Minimum brake pad thickness, 34
Technical Data, 63
Wear indicator, 34
Bulbs
ChangingFront turn indicators, 40
Headlight, 44
High-beam headlight, 46
Number-plate light, 39
Parking light, 43
Rear turn indicators, 42
Tail/brake light, 38
Note, 37
Technical Data, 70
CCapacity Engine, 67
Gearbox, 68
Castor, 65
Cleaning/Care General notes, 55, 57
Paintwork damage, 58
Road salt, 57
Washing, 56
Cleaning/care Chrome, 58
Clutch, 62
Compression ratio, 61
Confirmation of odometer
change, 14
Confirmation of service work, 10, 11, 12, 13
Coolant, 69
DDimensions, 71
Displacement, 61
EElasticity, 72
Electrical system, 70
Engine Troubleshooting chart, 19, 20
Type, 61
Engine oil
Capacity, 67
Consumption, 61
Technical Data, 67
Viscosity, 67
Index
