4
General information and controls
1

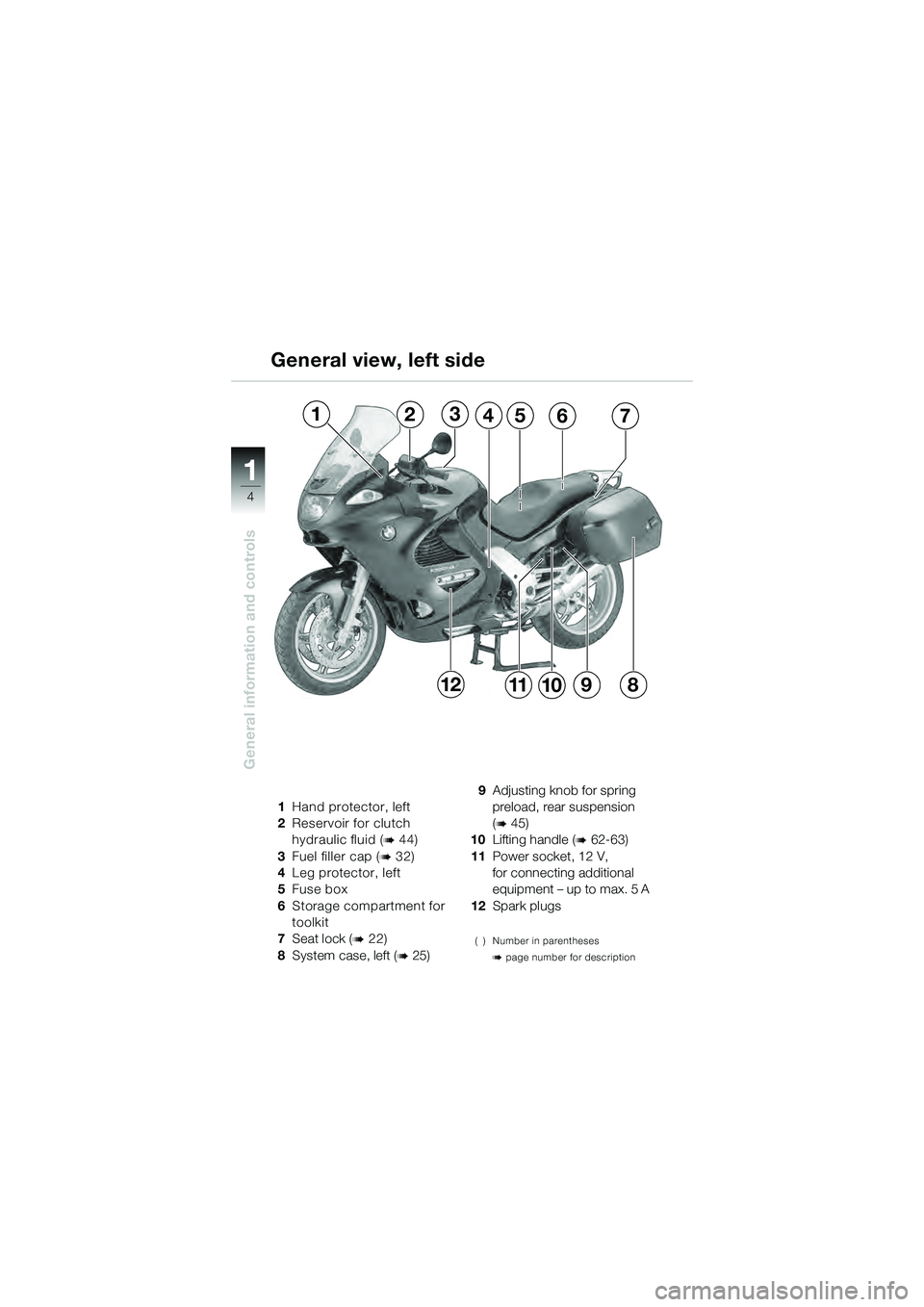

General view, left side
1Hand protector, left
2 Reservoir for clutch
hydraulic fluid (
44)
3 Fuel filler cap (
32)
4 Leg protector, left
5 Fuse box
6 Storage compartment for
toolkit
7 Seat lock (
22)
8 System case, left (
25) 9
Adjusting knob for spring
preload, rear suspension
(
45)
10 Lifting handle (
62-63)
11 Power socket, 12 V,
for connecting additional
equipment – up to max. 5 A
12 Spark plugs
( ) Number in parentheses
page number for description
1265437
12111098
10k4101g3.fm Seite 4 Mittwoch, 9. Juni 2004 3:23 15
22
General information and controls
1

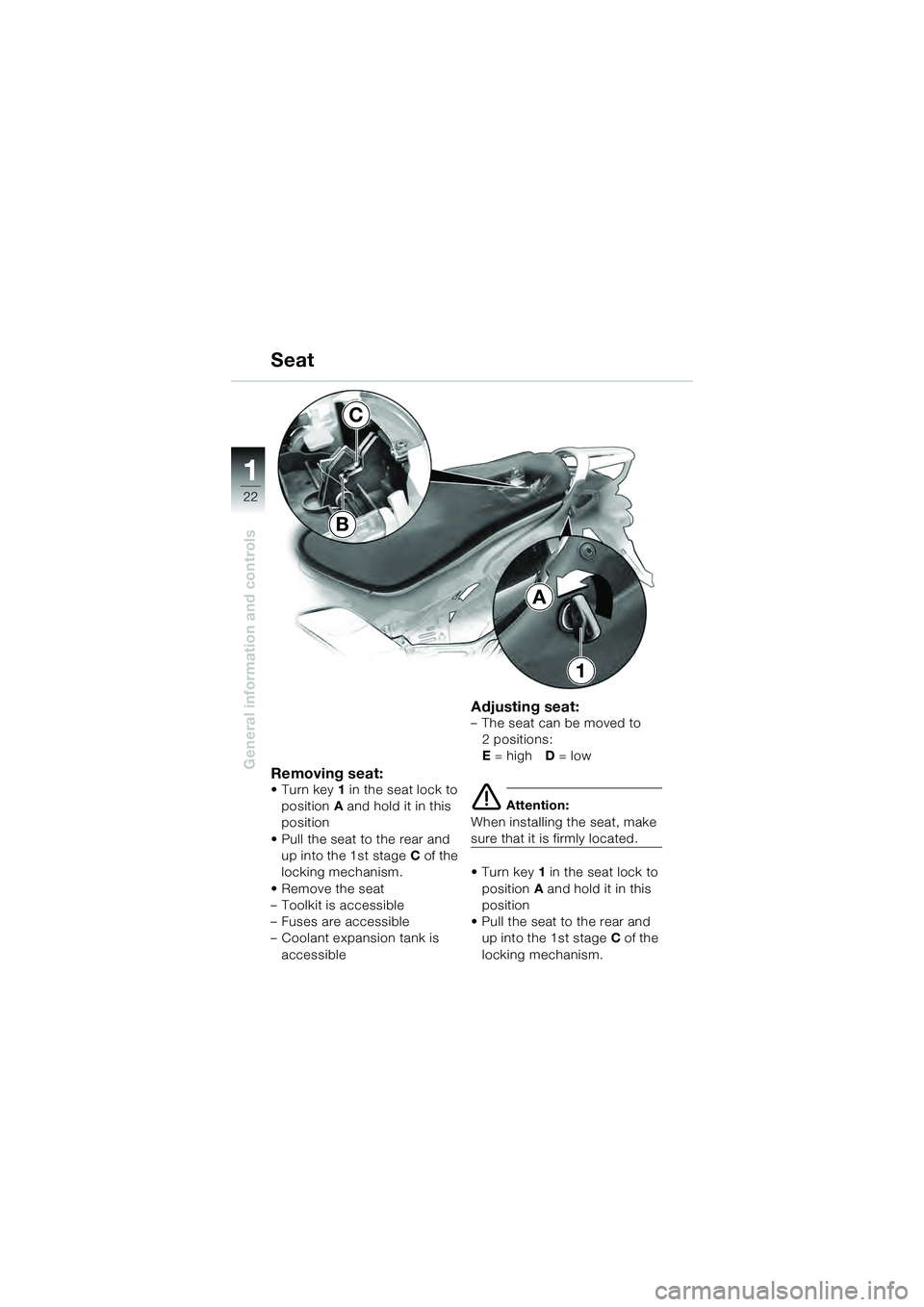

Removing seat:• Turn key1 in the seat lock to
position A and hold it in this
position
• Pull the seat to the rear and up into the 1st stage C of the
locking mechanism.
• Remove the seat
– Toolkit is accessible
– Fuses are accessible
– Coolant expansion tank is accessible
Adjusting seat:– The seat can be moved to 2 positions:
E = high D = low
Attention:
When installing the seat, make
sure that it is firmly located.
•Turn key 1 in the seat lock to
position A and hold it in this
position
• Pull the seat to the rear and up into the 1st stage C of the
locking mechanism.
Seat
A
1
B
C
10k41bkg3.book Seite 22 Donnerstag, 27. Mai 2004 5:30 17
91
Index
i
DDisplay, ambient temperature, 7, 15
EEmergency off (kill) switch for ignition, 13
Engine oil, 31 Oil filler neck, 31
Engine oil pressure telltale light, 68
Engine speed, 70
FFront brake Brake fluid level, 40
Handbrake lever, 35
Fuel
Octane number, 33
Fuel filler cap, 4, 32
Fuel gauge, 6
Fuel tank capacity, 68
Fuse box, 4
GGear indicator, 7
Gearshift lever, 21
Gearshifts, 70, 71
General view, Left side, 4
Right side, 5
HHandlebar fitting
Left, 12
Right, 13
Handlebar lever Handbrake lever, 35
Hazard warning flashers, 9
Headlight basic setting, 55
Headlight switch, 12
Heated handlebar grips, 13
High-beam/low-beam headlight switch, 12
Horn, 12
Horn push, 12
IIgnition switch and steering lock, 6, 10
Function, 11
Installing system case, 27
Integral brake function, 76
KKeys, 10
LLHD traffic Headlight setting, 53
Lifting handle, 4
Light switch, 13
Lights, 52, 54, 55 Beam throw, 42, 53
Notes, 42
Loading, 49
D - L
