CHANGING A FUSE
The fuse boxes are placed in the
lower part of the fascia (driver's side),
in the engine compartment (left-hand
side) and in the left boot trim.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
ied. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse with a
fuse of the same rating (same colour).
Use the special pliers located on the
support next to the fuse box, this
support also contains the replace-
ment fuses.

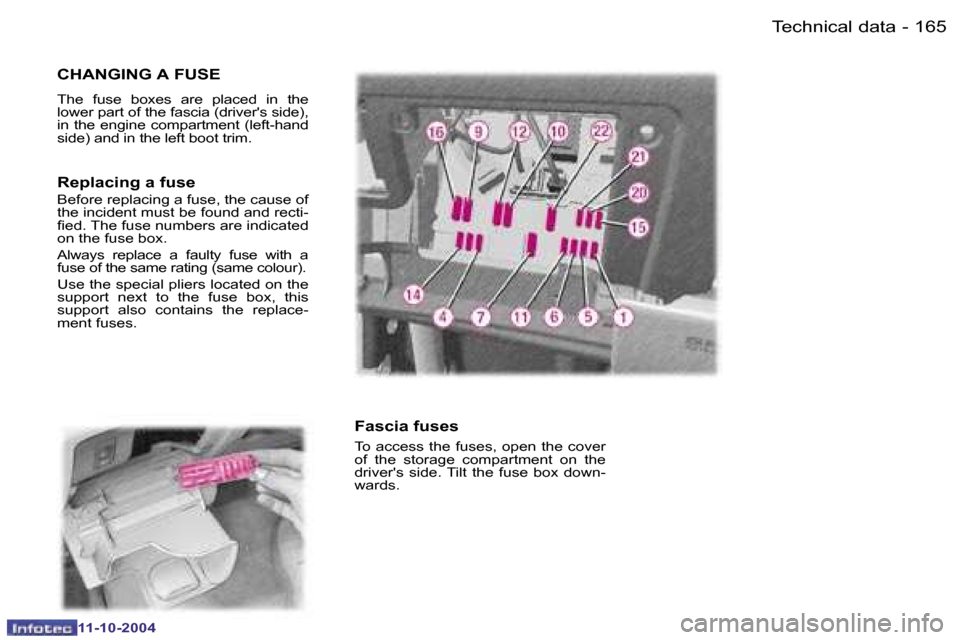

Fascia fuses
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Technical data

166 -
11-10-2004
167Technical data-
11-10-2004
Fuse N°RatingFunctions
F1 15 ABoot fusebox, diagnostics socket, low current steering lock.
F4 20 A Steering wheel controls, audio equipment, alarm, navigation-t
elematics,
multifunction display, automatic gearbox, electric seat memory uni t.
F5 15 A Alarm siren, tyre under-inlation detection unit.
F6 10 A STOP switch, automatic gearbox electronics, clutch switch, electrochro
matic mirror,
courtesy mirror, map reading lights, diagnostic connector, steering wheel angle sensor,
ESP dual function sensor, panoramic roof concealing shutter (407 SW).
F7 15 A Alarm (accessory).
F9 30 A Rear one-touch electric windows.
F10 20 A Front 12 V accessories socket, lighter, glove box switch.
F11 15 A Electric child lock, rear doors deadlocking.
F12 30 A Front one-touch electric windows, sunroof.
F14 10 A Engine fusebox, boot fusebox, trailer fusebox (accessory), wipers relay .
F15 15 A Instrument panel, air conditioning control panel, rain and
brightness sensors, electric seats,
air bags control unit.
Technical data

166 -
11-10-2004
167Technical data-
11-10-2004

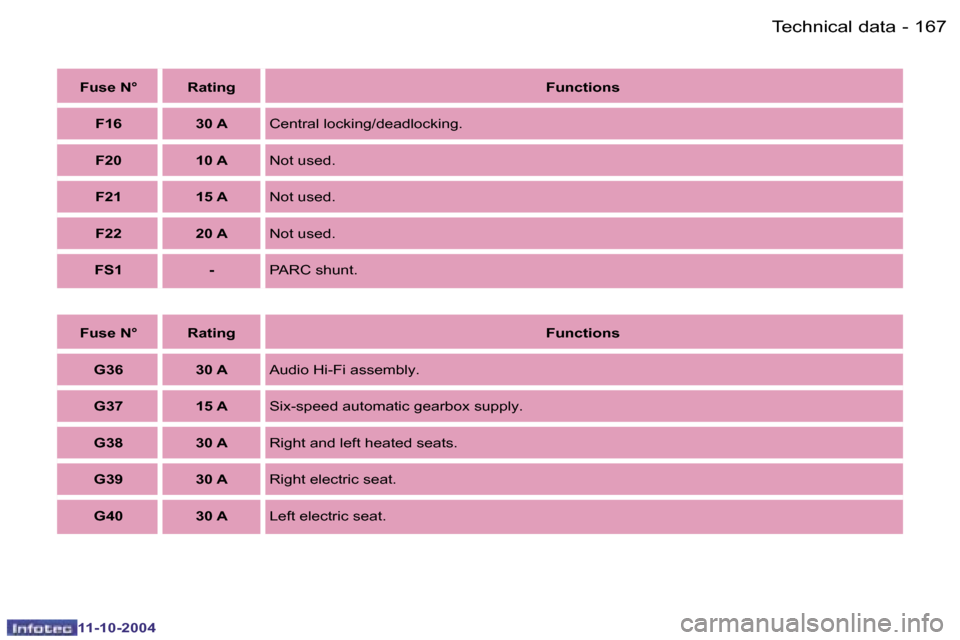

Fuse N°RatingFunctions
G36 30 AAudio Hi-Fi assembly.
G37 15 A Six-speed automatic gearbox supply.
G38 30 A Right and left heated seats.
G39 30 A Right electric seat.
G40 30 A Left electric seat.
Fuse N°Rating Functions
F16 30 ACentral locking/deadlocking.
F20 10 A Not used.
F21 15 A Not used.
F22 20 A Not used.
FS1 - PARC shunt.

170 -
11-10-2004
171
-
11-10-2004
1 - Power steering reservoir.
2 - Engine coolant reservoir
(expansion bottle).
3 - Engine oil iller cap.
4 - Brake luid reservoir.
5 - Air ilter.
6 -
Dipstick.
7 - Windscreen and headlamp*
wash iller cap.
PETROL ENGINES
Important: if you have to remove or reit the engine style cover, handle i t with
care to avoid damaging the ixing clips.
Check the levels!
Technical data
* According to country.

170 -
11-10-2004
171
-
11-10-2004

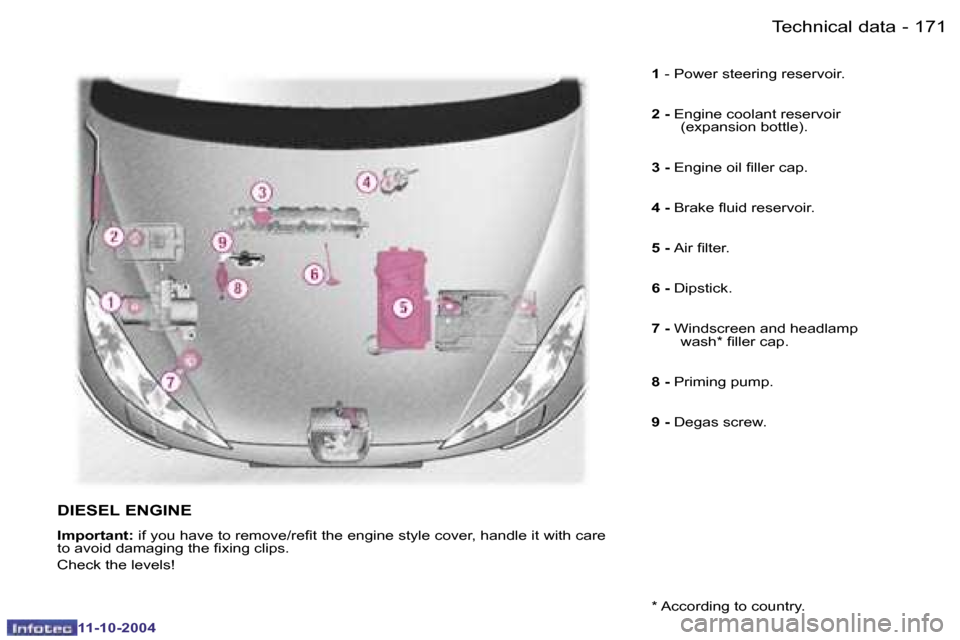

1 - Power steering reservoir.
2 - Engine coolant reservoir
(expansion bottle).
3 - Engine oil iller cap.
4 - Brake luid reservoir.
5 - Air ilter.
6 - Dipstick.
7 - Windscreen and headlamp wash* iller cap.
8 - Priming pump.
9 - Degas screw.
DIESEL ENGINE
Important: if you have to remove/reit the engine style cover, handle it with care
to avoid damaging the ixing clips.
Check the levels!
Technical data
* According to country.

172 -
11-10-2004
173
-
11-10-2004

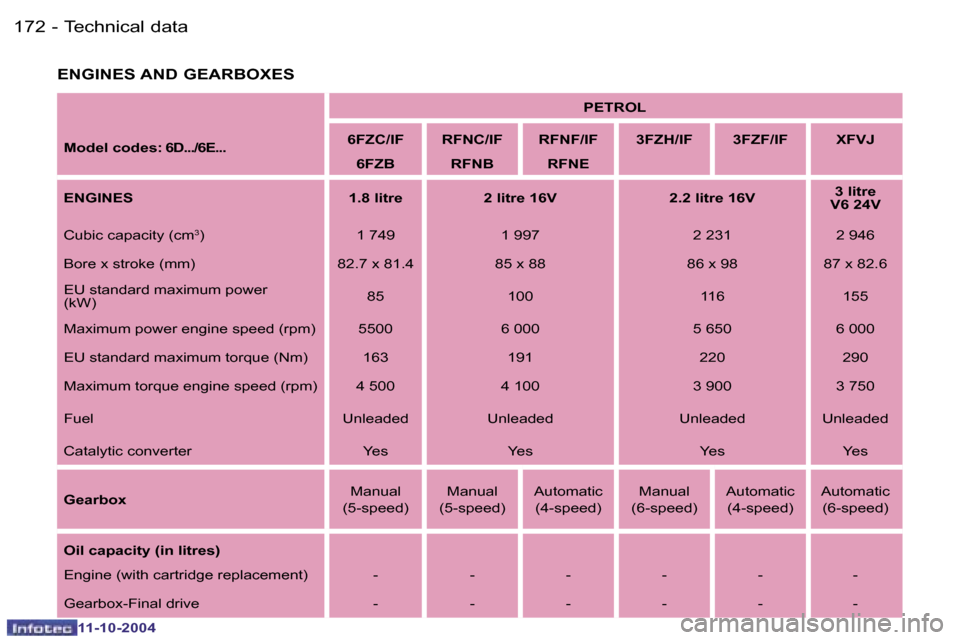

ENGINES AND GEARBOXES
Model codes: 6D.../6E...
PETROL
6FZC/IF
6FZB RFNC/IF
RFNB RFNF/IF
RFNE 3FZH/IF 3FZF/IF XFVJ
ENGINES1.8 litre 2 litre 16V 2.2 litre 16V
3 litre
V6 24V
Cubic capacity (cm
3) 1 749 1 997 2 231 2 946
Bore x stroke (mm) 82.7 x 81.4 85 x 88 86 x 98 87 x 82.6
EU standard maximum power
(kW) 85 100 116 155
Maximum power engine speed (rpm) 5500 6 000 5 650 6 000
EU standard maximum torque (Nm) 163 191 220 290
Maximum torque engine speed (rpm) 4 500 4 100 3 900 3 750
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes Yes
GearboxManual
(5-speed) Manual
(5-speed) Automatic
(4-speed) Manual
(6-speed) Automatic
(4-speed) Automatic
(6-speed)
Oil capacity (in litres)
Engine (with cartridge replacement) - - - - - -
Gearbox-Final drive - - - - - -
Technical data

172 -
11-10-2004
173
-
11-10-2004

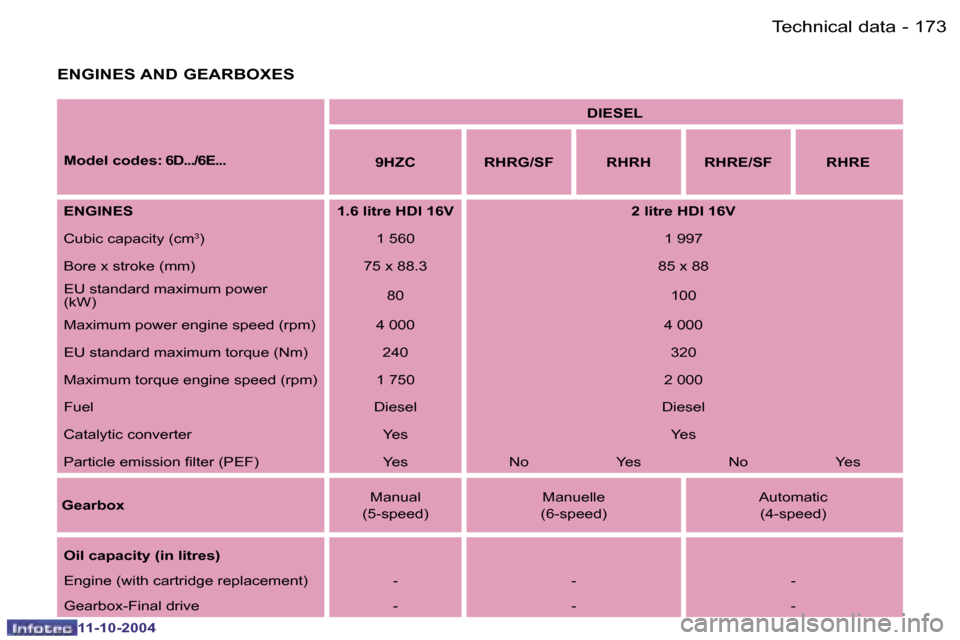

ENGINES AND GEARBOXES
Model codes: 6D.../6E... DIESEL
9HZC RHRG/SF RHRH RHRE/SF RHRE
ENGINES1.6 litre HDI 16V 2 litre HDI 16V
Cubic capacity (cm
3) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
EU standard maximum power
(kW) 80
100
Maximum power engine speed (rpm) 4 000 4 000
EU standard maximum torque (Nm) 240 320
Maximum torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission ilter (PEF) Yes No Yes No Yes
GearboxManual
(5-speed) Manuelle
(6-speed) Automatic
(4-speed)
Oil capacity (in litres)
Engine (with cartridge replacement) - - -
Gearbox-Final drive - - -
Technical data

174 -
11-10-2004
175
-
11-10-2004

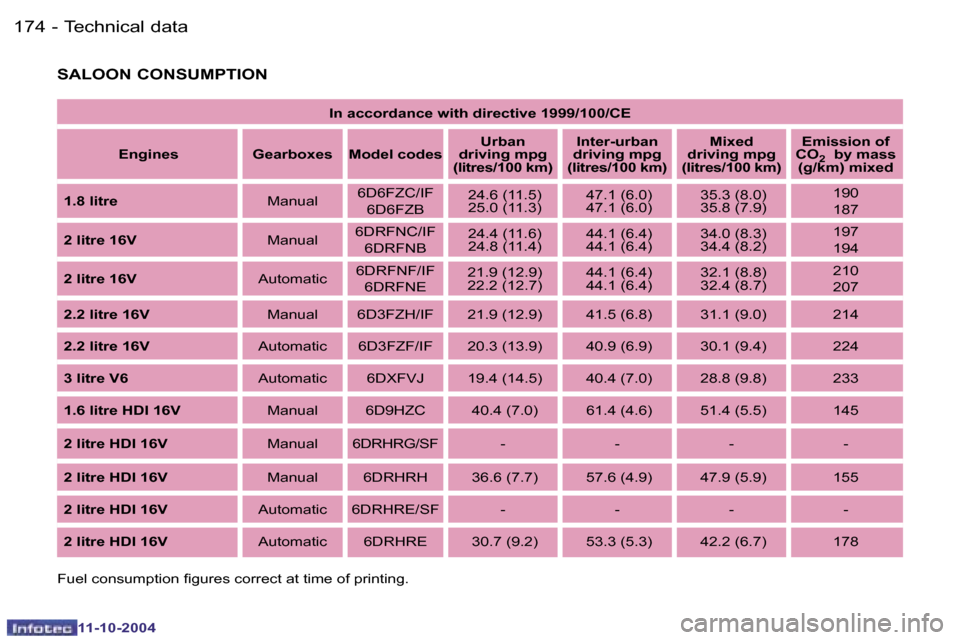

In accordance with directive 1999/100/CE
Engines Gearboxes Model
codes Urban
driving mpg (litres/100 km)
Inter-urban driving mpg
(litres/100 km)Mixed
driving mpg
(litres/100 km) Emission
of CO2
by mass (g/km) mixed
1.8 litre Manual6D6FZC/IF
6D6FZB 24.6 (11.5)
25.0 (11.3)
47.1 (6.0)
47.1 (6.0)35.3 (8.0)
35.8 (7.9) 190
187
2 litre 16V Manual6DRFNC/IF
6DRFNB 24.4 (11.6)
24.8 (11.4)
44.1 (6.4)
44.1 (6.4)34.0 (8.3)
34.4 (8.2) 197
194
2 litre 16V Automatic6DRFNF/IF
6DRFNE 21.9 (12.9)
22.2 (12.7)
44.1 (6.4)
44.1 (6.4)32.1 (8.8)
32.4 (8.7) 210
207
2.2 litre 16V Manual 6D3FZH/IF 21.9 (12.9) 41.5 (6.8) 31.1 (9.0) 214
2.2 litre 16V Automatic 6D3FZF/IF 20.3 (13.9) 40.9 (6.9) 30.1 (9.4) 224
3 litre V6 Automatic 6DXFVJ 19.4 (14.5) 40.4 (7.0) 28.8 (9.8) 233
1.6 litre HDI 16V Manual 6D9HZC 40.4 (7.0) 61.4 (4.6) 51.4 (5.5) 145
2 litre HDI 16V Manual 6DRHRG/SF - - - -
2 litre HDI 16V Manual 6DRHRH 36.6 (7.7) 57.6 (4.9) 47.9 (5.9) 155
2 litre HDI 16V Automatic 6DRHRE/SF - - - -
2 litre HDI 16V Automatic 6DRHRE 30.7 (9.2) 53.3 (5.3) 42.2 (6.7) 178
SALOON CONSUMPTION
Fuel consumption igures correct at time of printing.
