2004.5 Peugeot 307 Break Dag Owner's Manual

2
30-08-2004
3
30-08-2004

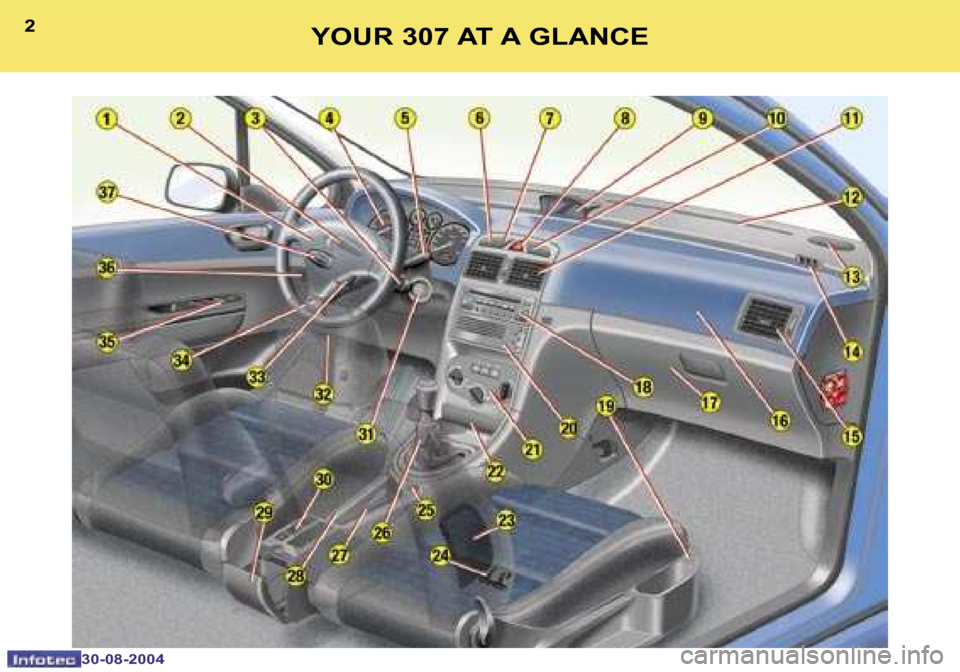

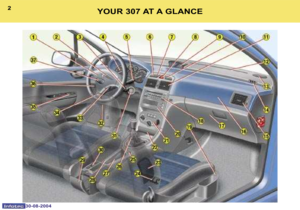

YOUR 307 AT A GLANCE

2
30-08-2004
3
30-08-2004
1 - Driver's air bag.
Horn.
2 - Lights and direction
indicators stalk.

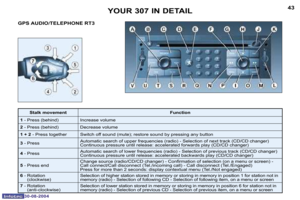

3 - Audio remote control stalk.
4 - Instrument dials.
5 - Windscreen wash-wipe stalk.
Trip computer stalk.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights
switch.
9 - Multi-function display.
10 - Electronic stability control
(ESP/ASR) button.

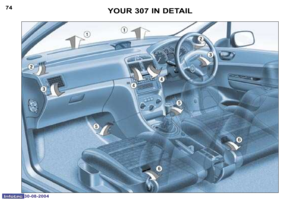

11 - Central adjustable heating/
ventilation vents and air low
regulation.
12 - Windscreen demisting vents.
13 - Speaker (tweeter).
14 - Side window demisting vent. 15 -
Side adjustable heating/
ventilation vent and air low
regulation.
16 - Passenger air bag.
17 - Glove box.

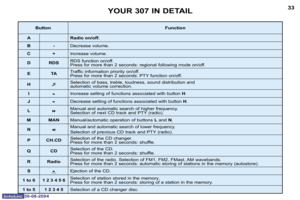

18 - RB3, RD3 audio equipment
or RT3 audio/telephone
equipment.
19 - Heated seat switches.
20 - CD changer.
21 - Heating/air conditioning
controls.
22 - Front ashtray.
23 - Side air bags.
24 - Rear footwell heating vent.
25 - 12 V accessories socket.
26 - Gear lever.
27 - Can holder.
28 - Handbrake.
29 - Waste container. 30 -
Coin storage.
Passenger air bag disarming
switch*.
31 - Steering lock and ignition.
32 - Bonnet opening control.
33 - Steering wheel adjustment
control.

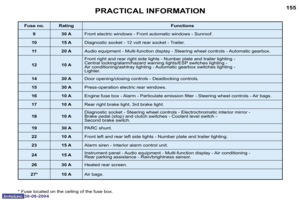

34 - Fuse box.
35 - Electric mirror controls.
Window controls.
Rear window disarming
control.
36 - Headlamp height
adjustment.
37 - Cruise control/speed limiter**
control.
YOUR 307 AT A GLANCE
* According to country.
** According to engine.

92
4
30-08-2004
5
30-08-2004
YOUR 307 AT A GLANCE
THE KEYS
The keys allow you to switch on
the ignition and operate the pas-
senger air bag disarming switch
as well as to independently oper-
ate the locks on the front doors
and the fuel iller cap. Unlocking
Press button
B to unlock the
vehicle.
This is conirmed by
rapid lashing of the
direction indicators.
Note: If the vehicle is
locked and unlocking
is activated inadvert-
ently, unless the doors
are opened within 30 seconds, the
vehicle will lock automatically.
The remote control key
Locking
Press button A to lock the vehicle.
This is conirmed by ixed lighting
of the direction indicators for ap-
proximately two seconds.
Note: a long press on button A,
in addition to locking, automati-
cally closes the windows and the
sunroof.
Central locking
From the driver's door, the keys
allow you to lock, deadlock or un-
lock the doors and the tailgate.
If one of the doors or the boot is
open, it is impossible to operate
the central locking; an audible
signal indicates this when locking
by remote control.
The remote control performs the
same functions at a distance. Deadlocking renders the
internal and external door
locking controls inoperative.
Press button A to deadlock the
vehicle.
This is conirmed by ixed lighting
of the direction indicators for ap-
proximately two seconds.
Note: a long press on button A
permits automatic closing of the
windows and the sunroof, in addi-
tion to deadlocking.
A second press on button A in
the ive seconds following dead-
locking, changes deadlocking to
normal locking.
This is conirmed by ixed light-
ing of the direction indicators for
approximately two seconds.
Vehicles itted with
deadlocking
STARTING
STOP position:
The ignition is off.
1st notch, Accessories position:
The ignition is off but the acces-
sories can be used.
2nd notch, Running position:
The ignition is on.
Starting position:

Operates the starter.

101
103
4
30-08-2004
5
30-08-2004
YOUR 307 AT A GLANCEWINDSCREEN WIPERS
Front
2 Rapid wipe (heavy rain).
1 Normal wipe (moderate
rain).
AUTO Automatic wipe.
0 Off.
â Single wipe.
Windscreen wash-wipe: pull the
stalk towards you.
STEERING WHEEL
STALKS
LIGHTING
Front and rear lights (ring A)
Switching off: rotation of
the ring backwards.
Lights off.
Side lights.
Dipped/main beam
headlamps.
Automatic switching
on of the lights. Rear fog lamp (rotation of
the ring forwards)
Front fog lamps (irst rota-
tion of the ring forwards)
Front fog lamps
and rear fog lamp
(second rotation of
the ring forwards)
Automatic switching on of the
lights
To activate or deactivate the func-
tion, place the key in the acces-
sories position, the lights stalk
in position 0 and press the end
of the lights stalk for more than
two seconds. Vehicles itted with a rear fog
lamp (ring B)
Vehicles itted with front fog
lamps and a rear fog lamp
(ring C)
Off Intermittent
wipeWash-
wipe
Automatic wipe
In the AUTO position,
the wiper operates auto-
matically and adjusts its
speed to the intensity of
the rainfall .
Rear

82
6
30-08-2004
7
30-08-2004

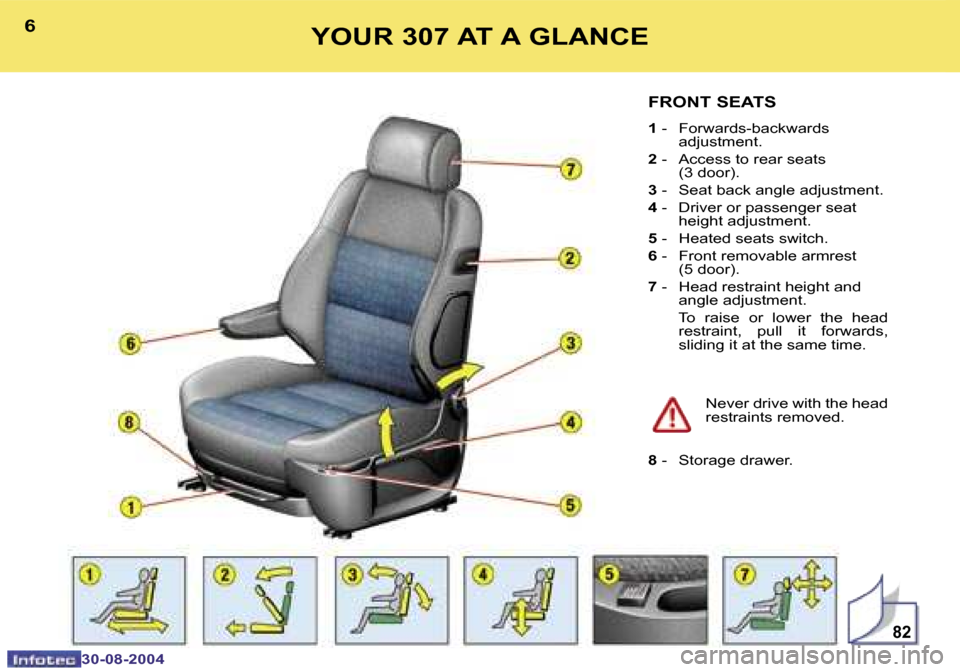

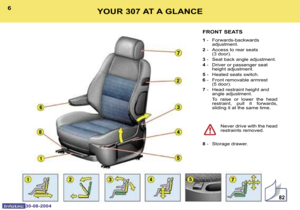

YOUR 307 AT A GLANCEFRONT SEATS
1 - Forwards-backwards
adjustment.
2 - Access to rear seats
(3 door).
3 - Seat back angle adjustment.
4 - Driver or passenger seat
height adjustment.
5 - Heated seats switch.
6 - Front removable armrest
(5 door).
7 - Head restraint height and
angle adjustment.
To raise or lower the head restraint, pull it forwards,
sliding it at the same time.
Never drive with the head
restraints removed.
8 - Storage drawer.

84
6
30-08-2004
7
30-08-2004

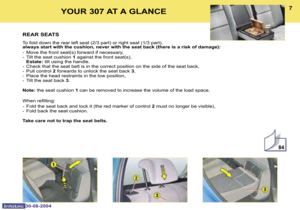

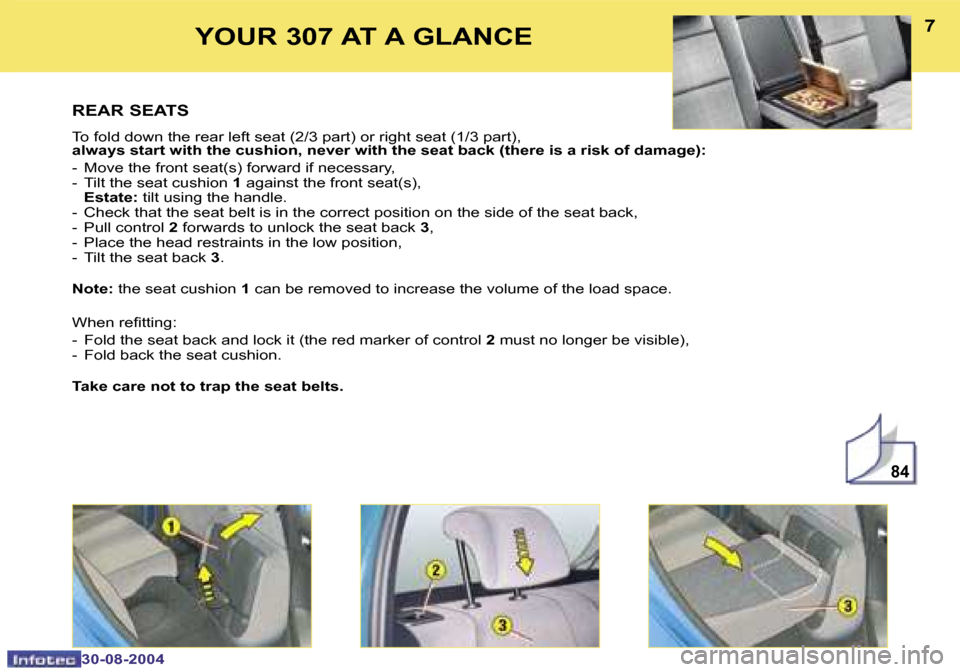

REAR SEATS
To fold down the rear left seat (2/3 part) or right seat (1/3 part),
always start with the cushion, never with the seat back (the re is a risk of damage):
- Move the front seat(s) forward if necessary,
- Tilt the seat cushion 1 against the front seat(s),
Estate: tilt using the handle.
- Check that the seat belt is in the correct position on the side of the seat back,
- Pull control 2 forwards to unlock the seat back 3,
- Place the head restraints in the low position,
- Tilt the seat back 3.
Note: the seat cushion 1 can be removed to increase the volume of the load space.
When reitting:
- Fold the seat back and lock it (the red marker of control 2 must no longer be visible),
- Fold back the seat cushion.
Take care not to trap the seat belts.
YOUR 307 AT A GLANCE

118
8
30-08-2004
9
30-08-2004

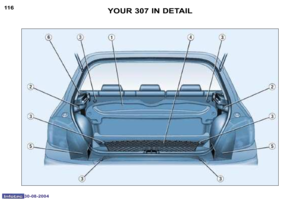

YOUR 307 AT A GLANCEBOOT FITTINGS (estate)
1 - Load space cover
2 - Floor and boot pillar stowing
rings
3 - Bench seat stowing rings
4 - Luggage retaining net
5 - Floor storage trays
(2/3 - 1/3)
6 - Side storage trays with boot
light
7 - Storage nets
8 - 12 V accessories socket
9 - High load retaining net
fastenings
10 - Grab handles and coat
hooks

130131
8
30-08-2004
9
30-08-2004
YOUR 307 AT A GLANCESide air bags* and curtain
air bags*
Side air bags are incorporated
into the front seat back frame, on
the door side.
Curtain air bags are incorporated
into the door pillars and the top of
the passenger compartment.
They are deployed independently
of each other, on whichever side
the collision occurs.
Disarming the passenger
air bag*
F With the ignition off , insert
the ignition key into the pas-
senger air bag slot 1 and turn
it to the "OFF" position.
As soon as you remove the child
seat, turn the air bag switch to the
"ON" position, to activate the air
bag again.
AIR BAGS
The air bag system has been
designed to maximise the safety
of the occupants in the event
of serious collisions. It works in
conjunction with the force limiting
seat belts. With the ignition switched
on (2nd notch), illumina-
tion of this warning light,
accompanied by the
message 'Passenger air bag
deactivated' on the multi-func-
tion display, indicates that the
passenger air bag is disarmed
(slot in the "OFF" position).
The warning light remains on
throughout the disarming process.
Disarming check
Front air bags
These are folded in the centre of
the steering wheel for the driver
and in the fascia for the front
passenger. They are deployed
simultaneously, except in cases
where the passenger air bag is
disarmed.
Precautions regarding the
passenger air bag
F disarm the air bag if you install
a rear-facing child seat,
F activate the air bag for an adult
passenger.
* According to country.
