PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU04897
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
To check the coolant level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:_

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the motorcycle is
positioned straight up when
checking the coolant level. A slight
tilt to the side can result in a false
reading.
_
2. Check the coolant level in the
coolant reservoir.NOTE:_ The coolant should be between the
minimum and maximum level marks. _
3. If the coolant is at or below the min-
imum level mark, remove panel A
(See page 6-7 for panel removal
and installation procedures.), re-
move the reservoir cap, add cool-
ant to the maximum level mark,
and then install the reservoir cap
and the panel.
1. Maximum level mark
2. Minimum level mark
1. Coolant reservoir cap
Coolant reservoir capacity
(up to the maximum level mark):
0.24 L
U5PWE1.book Page 13 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6 2. Remove the socket (together with
the bulb) by pulling it out.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU01579
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motor-
cycle is in a stable and level position
before starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. License plate light bulb
2. License plate light unit
U5PWE1.book Page 40 Monday, July 8, 2002 10:28 AM

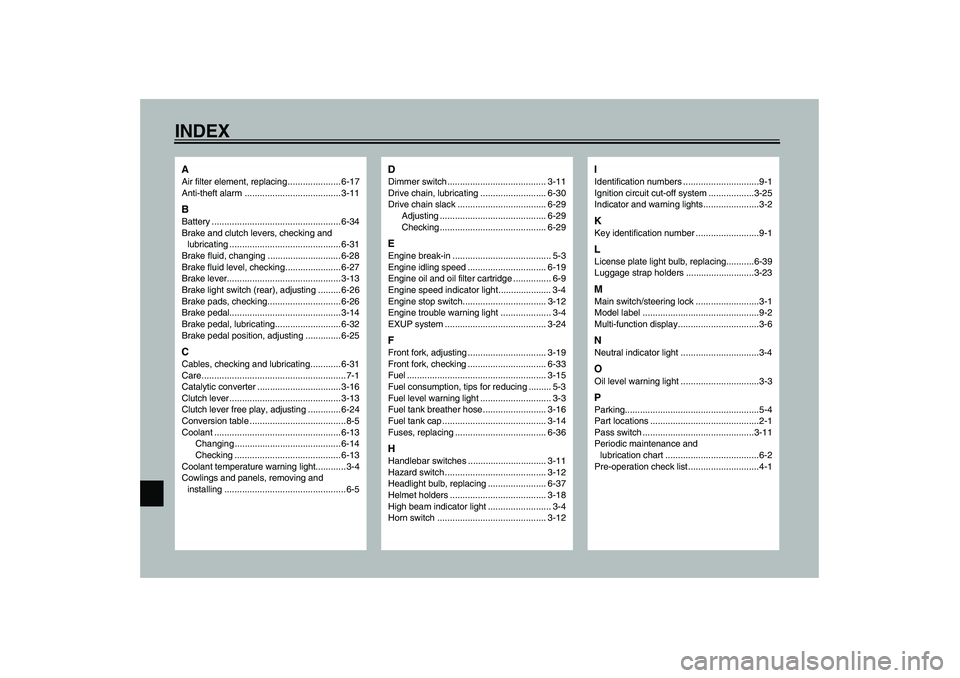

INDEXAAir filter element, replacing ..................... 6-17
