2003 YAMAHA WR 450F engine coolant

GEN
INFO

1 - 1
DESCRIPTION
EC100000
GENERAL INFORMATION
EC110000
DESCRIPTION
1
Clutch lever
2
Hot starter lever
3
“ENGINE STOP” button
4
Trip meter
5
Main switch
6
Lights switch
7
Start switch
8
Front brake lever
9
Throttle grip
0
Radiator cap
A
Fuel tank cap
B
Taillight
C
Kickstarter
D
Fuel tank
E
Headlight
F
Radiator
G
Coolant drain bolt
H
Rear brake pedal
I
Valve joint
J
Fuel cock
K
Cold starter knob
L
Air cleaner
M
Drive chain
N
Shift pedal
O
Oil dipstick
P
Front fork
NOTE:


The machine you have purchased may differ
slightly from those shown in the following.

Designs and specifications are subject to
change without notice.
B
CDE
F
G H
1234
5
6
7
8
9
0 A
IJ
K
L
M N
O P

1 - 15
GEN
INFO
STARTING AND BREAK-IN
STARTING AND BREAK-IN
WARNING
Never start or run the engine in a closed
area. The exhaust fumes are poisonous;
they can cause loss of consciousness and
death in a very short time. Always operate
the machine in a well-ventilated area.
CAUTION:
The carburetor on this machine has a
built-in accelerator pump. Therefore,
when starting the engine, do not operate
the throttle or the spark plug will foul.
Unlike a two-stroke engine, this engine
cannot be kick started when the throttle is
open because the kickstarter may kick
back. Also, if the throttle is open the air/
fuel mixture may be too lean for the
engine to start.
Before starting the machine, perform the
checks in the pre-operation check list.
AIR FILTER MAINTENANCE
According to “AIR FILTER CLEANING” section
in the CHAPTER 3, apply the foam-air-filter oil
or its equivalent to the element. (Excess oil in
the element may adversely affect engine start-
ing.)
STARTING A COLD ENGINE
NOTE:
This model is equipped with an ignition circuit
cut-off system. The engine can be started
under the following conditions.
When the transmission is in neutral.
When the clutch is disengaged with the
transmission in any position. However, it is
recommended to shift into neutral before
starting the engine.
1. Inspect the coolant level.
2. Turn the fuel cock to “ON”.
3. Push the main switch to “ON”.
4. Shift the transmission into neutral.
5. Fully open the cold starter knob 1.
6. Start the engine by pushing the start
switch or by kicking the kickstarter.

SPEC

2 - 2
GENERAL SPECIFICATIONS
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
With oil filter replacement 1.1 L (0.97 Imp qt, 1.16 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Coolant capacity (including all routes): 1.6 L (1.41 Imp qt, 1.69 US qt)
Air filter: Wet type element
Fuel:
Type Premium unleaded gasoline only with a research
octane number of 95 or higher.(Except for ZA)
Premium gasoline (For ZA)
Tank capacity 10 L (2.2 Imp gal, 2.64 US gal)
Reserve 1.2 L (0.26 Imp gal, 0.32 US gal)
Carburetor:
Type FCR MX39
Manufacturer KEIHIN
Spark plug:
Type/manufacturer CR8E/NGK (resistance type)
Gap 0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 62/22 (2.818)
Secondary reduction system Chain drive
Secondary reduction ratio 50/14 (3.571)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 29/12 (2.416)
2nd 26/15 (1.733)
3rd 21/16 (1.312)
4th 21/20 (1.050)
5th 21/25 (0.840)
Chassis:
Frame type Semi double cradle
Caster angle 27.2˚
Trail 118 mm (4.65 in)
Tire:
Type With tube
Size (front) 80/100-21 51M (USA, CDN, ZA)
90/90-21 54R (EUROPE, AUS, NZ)
Size (rear) 110/100-18 64M (USA, CDN, ZA)
130/90-18 69R (EUROPE, AUS, NZ)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2

, 15 psi)

2

SPEC

2 - 11
MAINTENANCE SPECIFICATIONS
Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Spark plug M10S
×
1.0 1 13 1.3 9.4
Camshaft cap M6
×
1.0 10 10 1.0 7.2
Cylinder head blind plug screw M12
×
1.0 1 37 3.7 27
Cylinder head (stud bolt) M6
×
1.0 2 7 0.7 5.1
M8
×
1.25 1 15 1.5 11
(bolt) M10
×
1.25 4 Refer to NOTE.*
1

(nut) M6
×
1.0 2 10 1.0 7.2
Cylinder head cover M6
×
1.0 2 10 1.0 7.2
Cylinder M6
×
1.0 1 10 1.0 7.2
Timing chain tensioner M6
×
1.0 2 10 1.0 7.2
Tensioner cap bolt M6
×
1.0 1 7 0.7 5.1
Timing chain guide (rear) M6
×
1.0 2 10 1.0 7.2
Exhaust pipe (nut) M8
×
1.25 1 13 1.3 9.4
(bolt) M8
×
1.25 1 24 2.4 17
Silencer M8
×
1.25 2 35 3.5 25
Silencer clamp M8
×
1.25 1 20 2.0 14
Exhaust pipe protector M6
×
1.0 3 10 1.0 7.2
Spark arrester (for USA) M6
×
1.0 3 10 1.0 7.2
Silencer end pipe (for USA) M6
×
1.0 1 10 1.0 7.2
Carburetor joint clamp (cylinder head side) M5
×
0.8 1 3 0.3 2.2
Carburetor joint clamp (carburetor side) M4
×
0.7 1 3 0.3 2.2
Air filter case M6
×
1.0 2 8 0.8 5.8
Air filter joint clamp M6
×
1.0 1 3 0.3 2.2
Air filter joint and air filter case M5
×
0.8 1 4 0.4 2.9
Throttle cable (pull) M6
×
1.0 1 4 0.4 2.9
Throttle cable (return) M12
×
1.0 1 11 1.1 8.0
Throttle cable cover M5
×
0.8 2 4 0.4 2.9
Hot starter plunger M12
×
1.0 1 2 0.2 1.4
Radiator panel (upper) M6
×
1.0 2 10 1.0 7.2
Radiator M6
×
1.0 6 10 1.0 7.2
Radiator hose clamp M6
×
1.0 8 2 0.2 1.4
Radiator pipe 1, 2 M10
×
1.0 2 10 1.0 7.2
Impeller M8
×
1.25 1 14 1.4 10
Water pump housing cover M6
×
1.0 3 10 1.0 7.2
Coolant drain bolt M6
×
1.0 1 10 1.0 7.2
Oil pump cover M4
×
0.7 1 2 0.2 1.4
Oil pump M6
× 1.0 3 10 1.0 7.2
Engine oil drain bolt (oil filter) M6 × 1.0 1 10 1.0 7.2
Oil filter cover M6 × 1.0 2 10 1.0 7.2
Oil delivery pipe 1 M10 × 1.25 1 20 2.0 14
M8 × 1.25 2 18 1.8 13
Oil delivery pipe 2 M6 × 1.0 1 10 1.0 7.2
Oil hose M6 × 1.0 2 10 1.0 7.2

3 - 4
INSP
ADJ
PRE-OPERATION INSPECTION AND MAINTENANCE
EC320000
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation, practice or a race, make sure the machine is in good operating
condition.
Before using this machine, check the following points.
GENERAL INSPECTION AND MAINTENANCE
Item Routine Page
CoolantCheck that coolant is filled up to the radiator filler cap.
Check the cooling system for leakage.P.3-5 ~ 9
FuelCheck that a fresh gasoline is filled in the fuel tank. Check the
fuel line for leakage.P.1-14
Engine oilCheck that the oil level is correct. Check the crankcase and
frame oil line for leakage.P.3-14 ~ 18
Gear shifter and clutchCheck that gears can be shifted correctly in order and that the
clutch operates smoothly.P.3-10
Throttle grip/HousingCheck that the throttle grip operation and free play are correctly
adjusted. Lubricate the throttle grip and housing, if necessary.P.3-10 ~ 11
Brakes Check the play of front brake and effect of front and rear brake. P.3-26 ~ 32
ChainCheck chain slack and alignment. Check that the chain is lubri-
cated properly.P.3-33 ~ 36
WheelsCheck for excessive wear and tire pressure. Check for loose
spokes and have no excessive play.P.3-44 ~ 45
SteeringCheck that the handlebar can be turned smoothly and have no
excessive play.P.3-45 ~ 46
Front forks and rear shock
absorberCheck that they operate smoothly and there is no oil leakage. P.3-36 ~ 43
Cables (wires)Check that the clutch and throttle cables move smoothly. Check
that they are not caught when the handlebars are turned or
when the front forks travel up and down.—
Muffler Check that the muffler is tightly mounted and has no cracks.—
Sprocket Check that the driven sprocket tightening bolt is not loose. P.3-33
Lubrication Check for smooth operation. Lubricate if necessary. P.3-47
Bolts and nuts Check the chassis and engine for loose bolts and nuts. P.1-19
Lead connectorsCheck that the AC magneto, CDI unit, and ignition coil are con-
nected tightly.P.1-6
SettingsIs the machine set suitably for the condition of the racing course
and weather or by taking into account the results of test runs
before racing? Are inspection and maintenance completely
done?P.7-1 ~ 21

3 - 5
INSP
ADJ
EC350000
ENGINE
COOLANT LEVEL INSPECTION
WARNING
Do not remove the radiator cap 1, drain
bolt and hoses when the engine and radia-
tor are hot. Scalding hot fluid and steam
may be blown out under pressure, which
could cause serious injury.
When the engine has cooled, place a thick
towel over the radiator cap, slowly rotate
the cap counterclockwise to the detent.
This procedure allows any residual pres-
sure to escape. When the hissing sound
has stopped, press down on the cap while
turning counterclockwise and remove it.
CAUTION:
Hard water or salt water is harmful to the
engine parts. You may use distilled water, if
you can’t get soft water.
1. Place the machine on a level place, and
hold it in an upright position.
2. Inspect:
Coolant level
Coolant level should be between the
maximum a and minimum b marks.
Coolant level is below the “LOW” level
line → Add soft water (tap water) up to
the proper level.
3. Start the engine and let it warm up for
several minutes.
4. Turn off the engine and check the coolant
level again.
NOTE:
Before checking the coolant level, wait a few
minutes until the coolant settles.
LOWFULLCOOLANT
a
b
COOLANT REPLACEMENT
WARNING
Do not remove the radiator cap when the
engine is hot.
ENGINE/COOLANT LEVEL INSPECTION/
COOLANT REPLACEMENT

3 - 6
INSP
ADJ
COOLANT REPLACEMENT
CAUTION:
Take care so that coolant does not splash
on painted surfaces. If it splashes, wash it
away with water.
1. Place a container under the engine.
2. Remove:
Seat
Refer to “SEAT, FUEL TANK AND
SIDE COVERS” section in the CHAP-
TER 4.
3. Disconnect:
Coolant reservoir hose 1
Drain the coolant completely.
4. Connect:
Coolant reservoir hoseLOWFULLCOOLANT1
5. Remove:
Engine guard 1
Coolant drain bolt 2
6. Remove:
Radiator cap
Drain the coolant completely.
7. Clean:
Cooling system
Thoroughly flush the cooling system
with clean tap water.
8. Install:
Copper washer
Coolant drain bolt
Engine guard
Bolt [engine guard (front)]
Bolt [engine guard (rear)]
New
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..34 Nm (3.4 m · kg, 24 ft · lb)
T R..23 Nm (2.3 m · kg, 17 ft · lb)

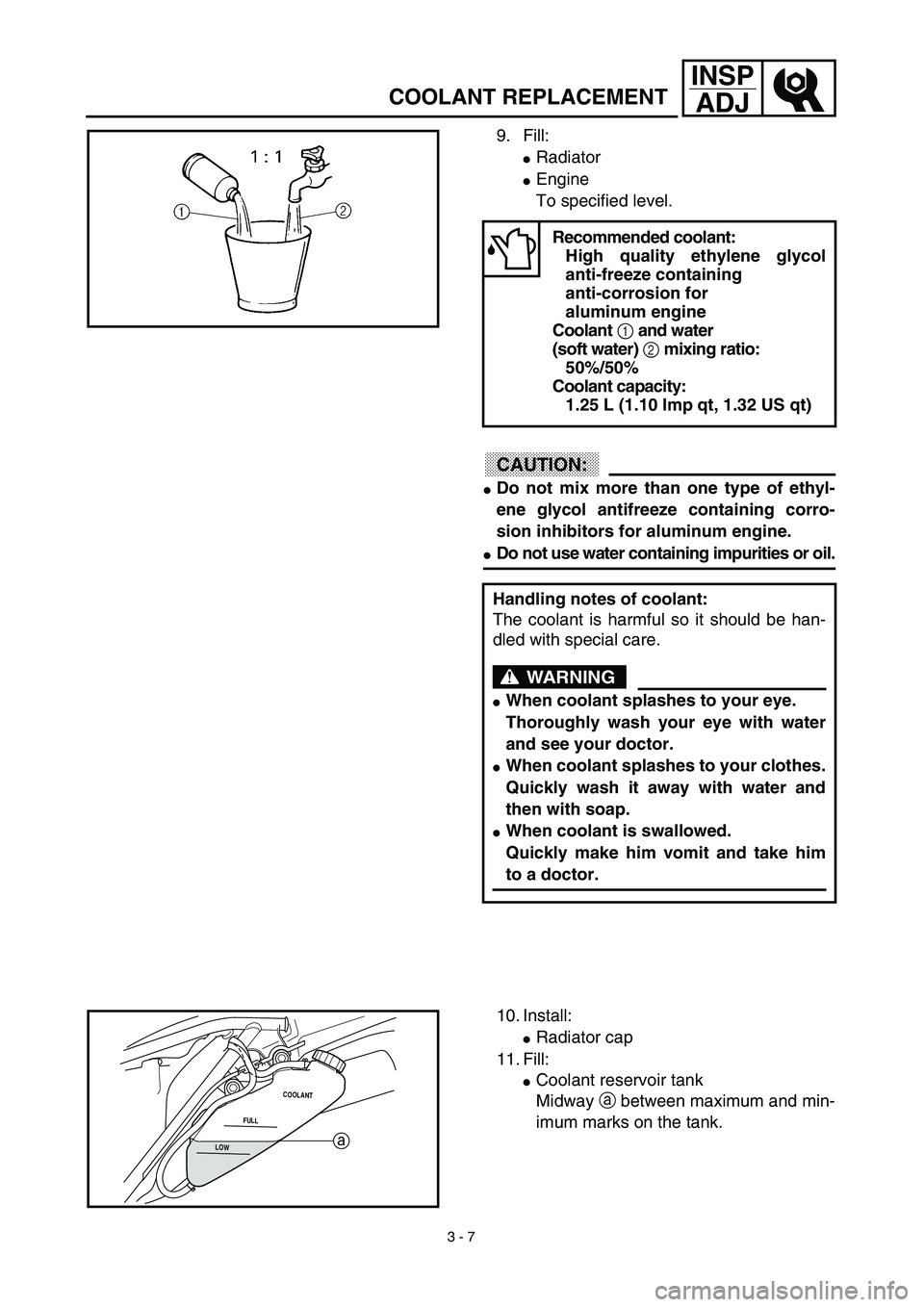

3 - 7
INSP
ADJ
COOLANT REPLACEMENT
9. Fill:
Radiator
Engine
To specified level.
CAUTION:
Do not mix more than one type of ethyl-
ene glycol antifreeze containing corro-
sion inhibitors for aluminum engine.
Do not use water containing impurities or oil.
Recommended coolant:
High quality ethylene glycol
anti-freeze containing
anti-corrosion for
aluminum engine
Coolant 1 and water
(soft water) 2 mixing ratio:
50%/50%
Coolant capacity:
1.25 L (1.10 Imp qt, 1.32 US qt)
Handling notes of coolant:
The coolant is harmful so it should be han-
dled with special care.
WARNING
When coolant splashes to your eye.
Thoroughly wash your eye with water
and see your doctor.
When coolant splashes to your clothes.
Quickly wash it away with water and
then with soap.
When coolant is swallowed.
Quickly make him vomit and take him
to a doctor.
10. Install:
Radiator cap
11. Fill:
Coolant reservoir tank
Midway a between maximum and min-
imum marks on the tank.
LOWFULLCOOLANTa
