GENERAL SPECIFICATIONS
EC200000
SPECIFICATIONS
EC211000
GENERAL SPECIFICATIONS
TT-R125E
Model name: TT-R125ER (USA, CDN, AUS, NZ)
TT-R125E (EUROPE, ZA)
Model code number: 5HPK (USA, AUS, NZ, EUROPE, ZA)
5HPL (CDN)
Dimensions: USA, AUS, NZ,
ZA, EUROPECDN
Overall length 1,830 mm (72.0 in) 1,865 mm (73.4 in)
Overall width 785 mm (30.9 in)
←
Overall height 1,055 mm (41.5 in)
←
Seat height 775 mm (30.5 in)
←
Wheelbase 1,250 mm (49.2 in)
←
Minimum ground clearance 265 mm (10.4 in)
←
Basic weight:
With oil and full fuel tank 90 kg (198.4 lb)
Engine:
Engine type Air cooled 4-stroke, SOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 124 cm
3

(7.57 cu.in)
Bore
×
stroke 54.0
×
54.0 mm (2.126
×
2.126 in)
Compression ratio 10.0:1
Starting system Kick and electric starter
Lubrication system: Wet sump
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher
Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher
ı

Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade

SPEC

2 - 2

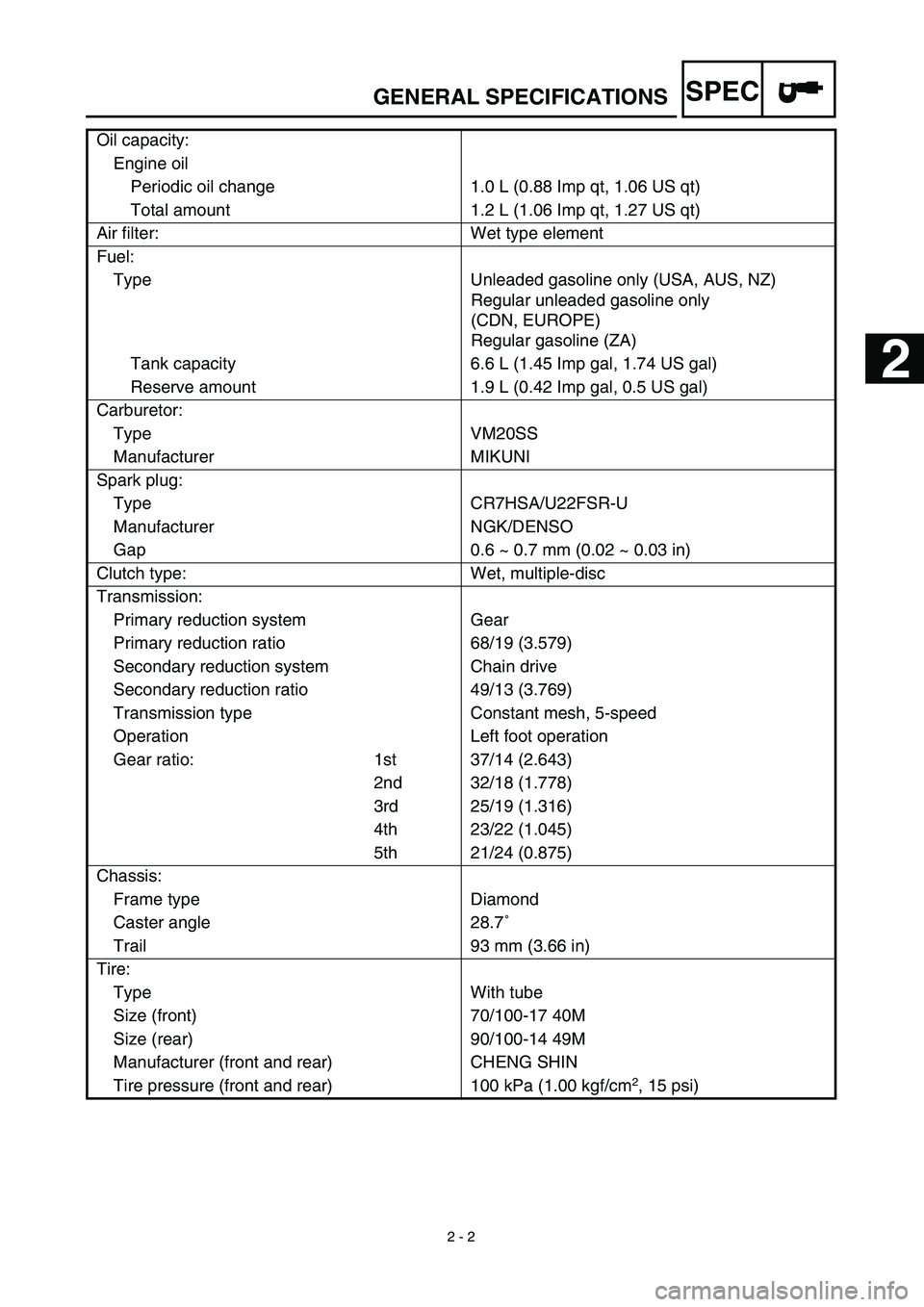

GENERAL SPECIFICATIONS
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS, NZ)
Regular unleaded gasoline only
(CDN, EUROPE)
Regular gasoline (ZA)
Tank capacity 6.6 L (1.45 Imp gal, 1.74 US gal)
Reserve amount 1.9 L (0.42 Imp gal, 0.5 US gal)
Carburetor:
Type VM20SS
Manufacturer MIKUNI
Spark plug:
Type CR7HSA/U22FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 68/19 (3.579)
Secondary reduction system Chain drive
Secondary reduction ratio 49/13 (3.769)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 37/14 (2.643)
2nd 32/18 (1.778)
3rd 25/19 (1.316)
4th 23/22 (1.045)
5th 21/24 (0.875)
Chassis:
Frame type Diamond
Caster angle 28.7˚
Trail 93 mm (3.66 in)
Tire:
Type With tube
Size (front) 70/100-17 40M
Size (rear) 90/100-14 49M
Manufacturer (front and rear) CHENG SHIN
Tire pressure (front and rear) 100 kPa (1.00 kgf/cm
2

, 15 psi)
2

SPEC

2 - 3

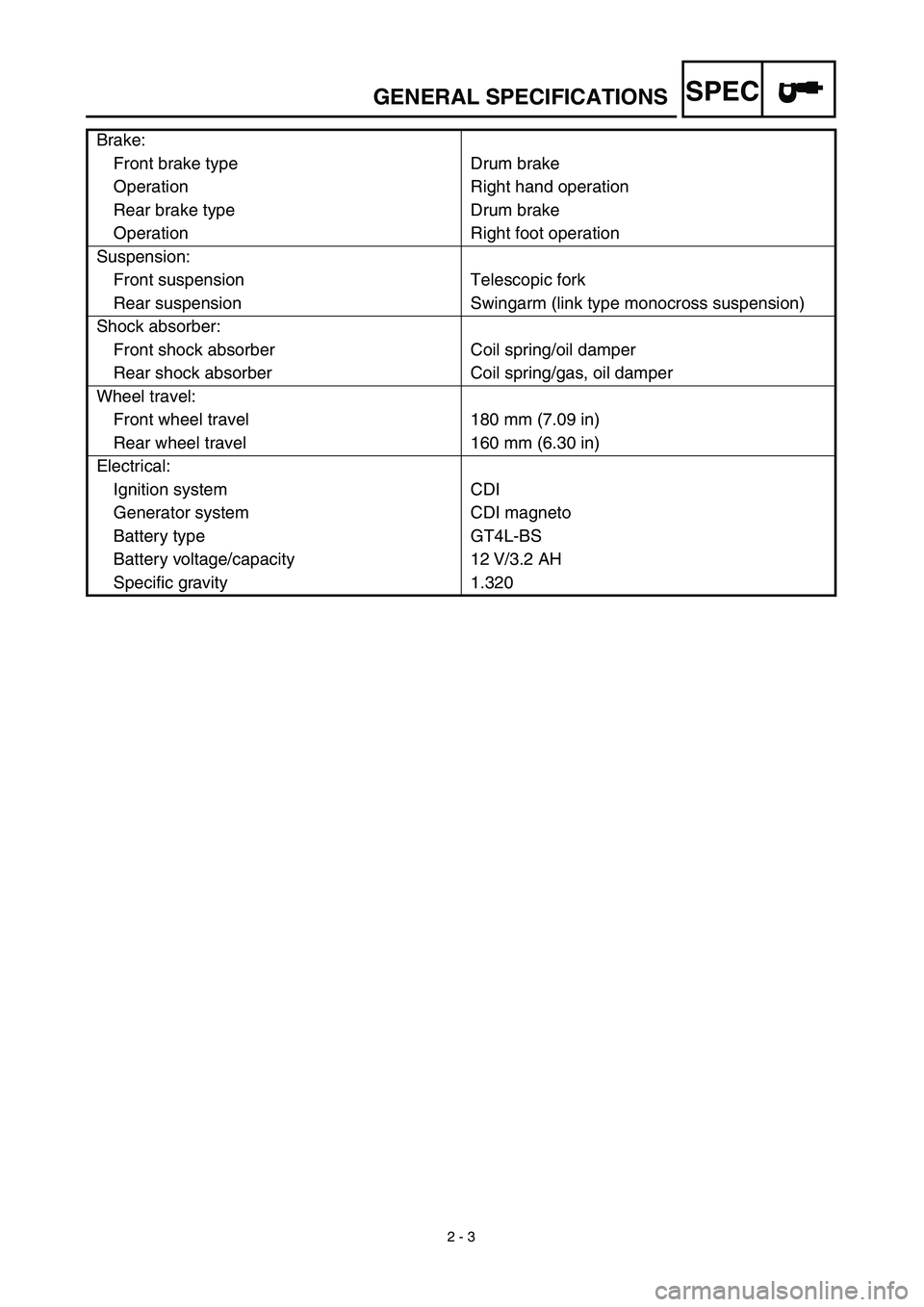

GENERAL SPECIFICATIONS
Brake:
Front brake type Drum brake
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 180 mm (7.09 in)
Rear wheel travel 160 mm (6.30 in)
Electrical:
Ignition system CDI
Generator system CDI magneto
Battery type GT4L-BS
Battery voltage/capacity 12 V/3.2 AH
Specific gravity 1.320

SPEC

2 - 4
GENERAL SPECIFICATIONS
TT-R125LWE
Model name: TT-R125LWER (USA, CDN, AUS, NZ)
TT-R125LWE (EUROPE, ZA)
Model code number: 5HPM (USA, AUS, NZ, EUROPE, ZA)
5HPN (CDN)
Dimensions: USA, AUS, NZ,
ZA, EUROPECDN
Overall length 1,885 mm (74.2 in) 1,890 mm (74.4 in)
Overall width 795 mm (31.3 in)
←
Overall height 1,085 mm (42.7 in)
←
Seat height 805 mm (31.7 in)
←
Wheelbase 1,270 mm (50.0 in)
←
Minimum ground clearance 295 mm (11.6 in)
←
Basic weight:
With oil and full fuel tank 90 kg (198.4 lb)
Engine:
Engine type Air cooled 4-stroke, SOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 124 cm
3

(7.57 cu.in)
Bore
×
stroke 54.0
×
54.0 mm (2.126
×
2.126 in)
Compression ratio 10.0:1
Starting system Kick and electric starter
Lubrication system: Wet sump
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher
Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher
ı

Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade

SPEC

2 - 5
GENERAL SPECIFICATIONS
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS, NZ)
Regular unleaded gasoline only
(CDN, EUROPE)
Regular gasoline (ZA)
Tank capacity 6.6 L (1.45 Imp gal, 1.74 US gal)
Reserve amount 1.9 L (0.42 Imp gal, 0.5 US gal)
Carburetor:
Type VM20SS
Manufacturer MIKUNI
Spark plug:
Type CR7HSA/U22FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 68/19 (3.579)
Secondary reduction system Chain drive
Secondary reduction ratio 54/13 (4.154)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 37/14 (2.643)
2nd 32/18 (1.778)
3rd 25/19 (1.316)
4th 23/22 (1.045)
5th 21/24 (0.875)
Chassis:
Frame type Diamond
Caster angle 28.5˚
Trail 107 mm (4.21 in)
Tire:
Type With tube
Size (front) 70/100-19 42M
Size (rear) 90/100-16 52M
Manufacturer (front and rear) INOUE RUBBER
Tire pressure (front and rear) 100 kPa (1.00 kgf/cm
2

, 15 psi)

SPEC

2 - 6

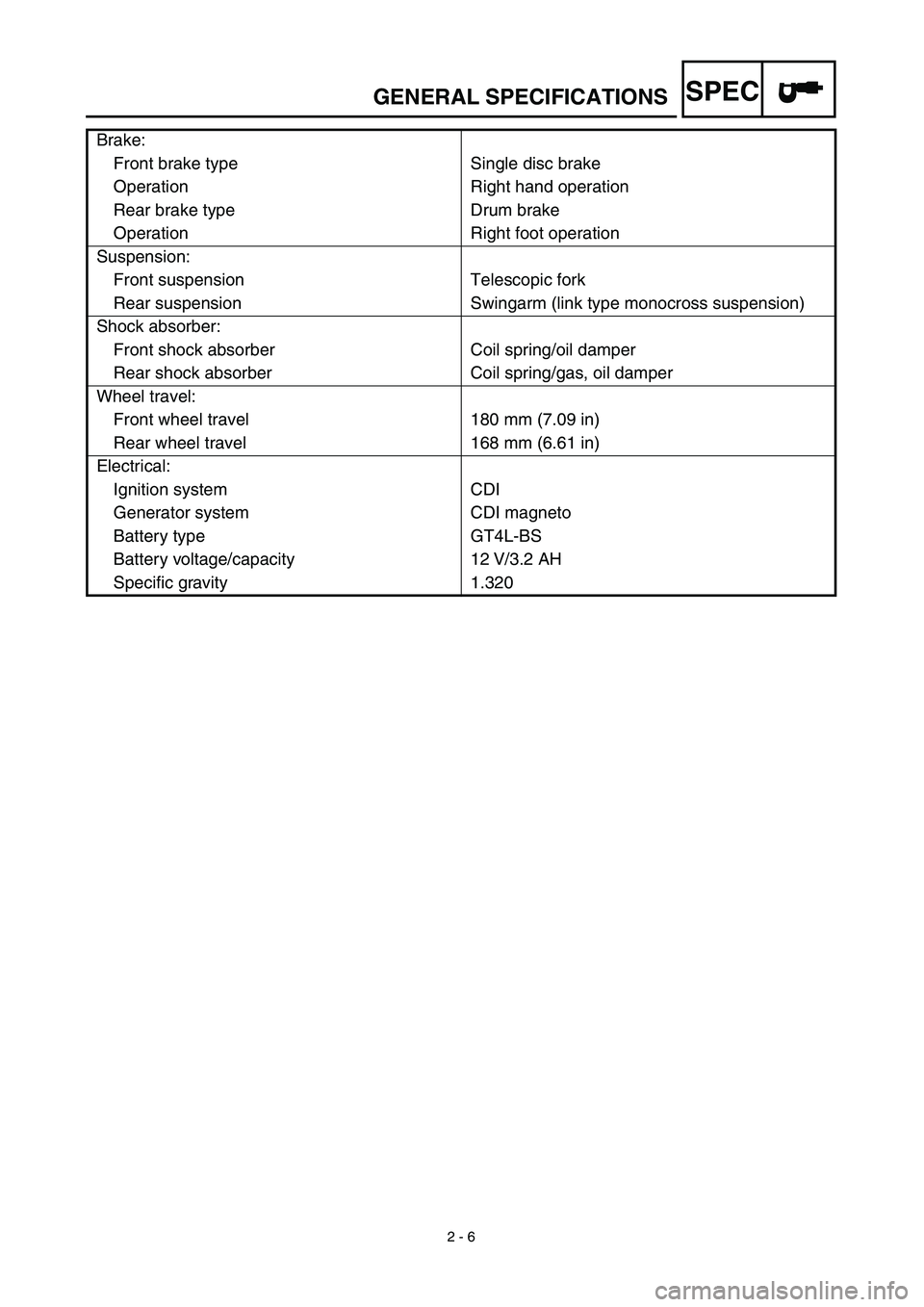

GENERAL SPECIFICATIONS
Brake:
Front brake type Single disc brake
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 180 mm (7.09 in)
Rear wheel travel 168 mm (6.61 in)
Electrical:
Ignition system CDI
Generator system CDI magneto
Battery type GT4L-BS
Battery voltage/capacity 12 V/3.2 AH
Specific gravity 1.320

SPEC

2 - 10
MAINTENANCE SPECIFICATIONS
Piston:
Piston to cylinder clearance 0.020 ~ 0.026 mm
(0.0008 ~ 0.0010 in)0.15 mm
(0.0059 in)
Piston size “D”53.977 ~ 53.996 mm
(2.1251 ~ 2.1258 in)----
Piston over size (2nd) 54.5 mm (2.1457 in) ----
(4th) 55.0 mm (2.1654 in) ----
Measuring point “H”5 mm (0.20 in) ----
Piston off-set 0.5 mm (0.0197 in) ----
Piston pin bore inside diameter 15.002 ~ 15.013 mm
(0.5906 ~ 0.5911 in)15.043 mm
(0.5922 in)
Piston pin outside diameter 14.991 ~ 15.000 mm
(0.5902 ~ 0.5906 in)14.971 mm
(0.5894 in)
Piston rings:
Top ring
Type Barrel ----
Dimensions (B
×
T) 1.0
×
2.1 mm (0.04
×
0.08 in) ----
End gap (installed) 0.15 ~ 0.30 mm
(0.006 ~ 0.012 in)0.4 mm
(0.016 in)
Side clearance (installed) 0.035 ~ 0.090 mm
(0.0014 ~ 0.0035 in)0.12 mm
(0.0047 in)
2nd ring
Type Taper ----
Dimensions (B
×
T) 1.0
×
2.1 mm (0.04
×
0.08 in) ----
End gap (installed) 0.30 ~ 0.45 mm
(0.012 ~ 0.018 in)0.55 mm
(0.022 in)
Side clearance 0.020 ~ 0.060 mm
(0.0008 ~ 0.0024 in)0.12 mm
(0.0047 in)
Oil ring
Dimensions (B
×
T) 2.0
×
2.2 mm (0.08
×
0.09 in) ----
End gap (installed) 0.20 ~ 0.70 mm (0.01 ~ 0.03 in) ----Item Standard Limit
H
D
T
B
B
T
B
T

SPEC

2 - 12

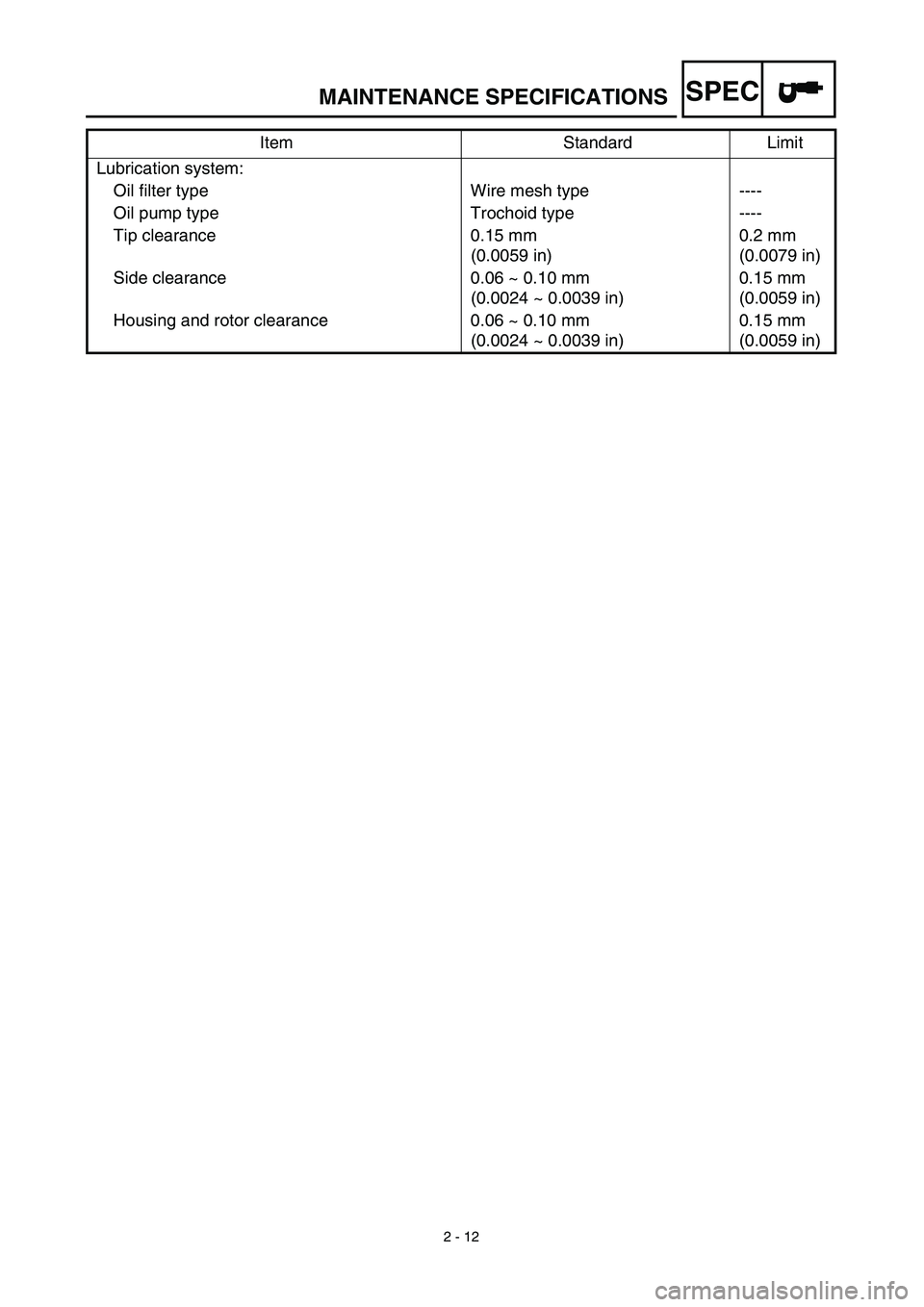

MAINTENANCE SPECIFICATIONS
Lubrication system:
Oil filter type Wire mesh type ----
Oil pump type Trochoid type ----
Tip clearance 0.15 mm
(0.0059 in)0.2 mm
(0.0079 in)
Side clearance 0.06 ~ 0.10 mm
(0.0024 ~ 0.0039 in)0.15 mm
(0.0059 in)
Housing and rotor clearance 0.06 ~ 0.10 mm
(0.0024 ~ 0.0039 in)0.15 mm
(0.0059 in) Item Standard Limit
