2003 YAMAHA TTR125 brake light

1 - 1
GEN
INFO

DESCRIPTION
EC100000
GENERAL INFORMATION
EC110000
DESCRIPTION
1
Clutch lever
2
Engine stop switch
3
Main switch
4
Starter knob
5
Start switch
6
Front brake lever
7
Throttle grip
8
Fuel tank cap
9
Air filter
0
Kickstarter crank
A
Fuel tank
B
Dipstick
C
Rear brake pedal
D
Fuel cock
E
Drive chain
F
Shift pedal
G
Front fork
*The illustration shows the TT-R125LWE.
NOTE:


The machine you have purchased may differ
slightly from those shown in the following.

Designs and specifications are subject to
change without notice.
90A
CB
D
FE G
12 34 5 6
7 8

1 - 10
GEN
INFO

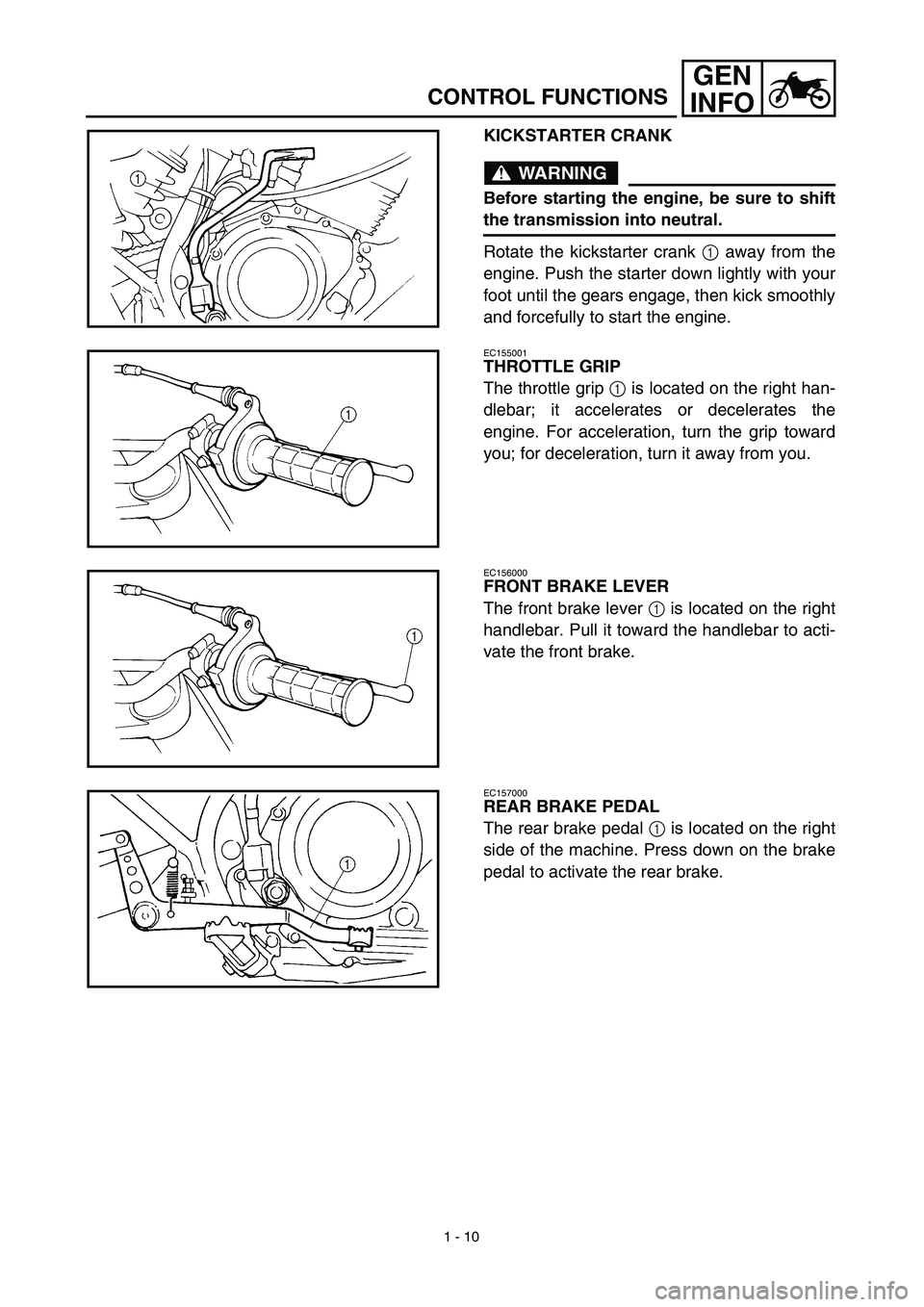

CONTROL FUNCTIONS
KICKSTARTER CRANK
WARNING
Before starting the engine, be sure to shift
the transmission into neutral.
Rotate the kickstarter crank 1 away from the
engine. Push the starter down lightly with your
foot until the gears engage, then kick smoothly
and forcefully to start the engine.
EC155001
THROTTLE GRIP
The throttle grip 1 is located on the right han-
dlebar; it accelerates or decelerates the
engine. For acceleration, turn the grip toward
you; for deceleration, turn it away from you.
EC156000
FRONT BRAKE LEVER
The front brake lever 1 is located on the right
handlebar. Pull it toward the handlebar to acti-
vate the front brake.
EC157000
REAR BRAKE PEDAL
The rear brake pedal 1 is located on the right
side of the machine. Press down on the brake
pedal to activate the rear brake.

3 - 31
INSP
ADJ

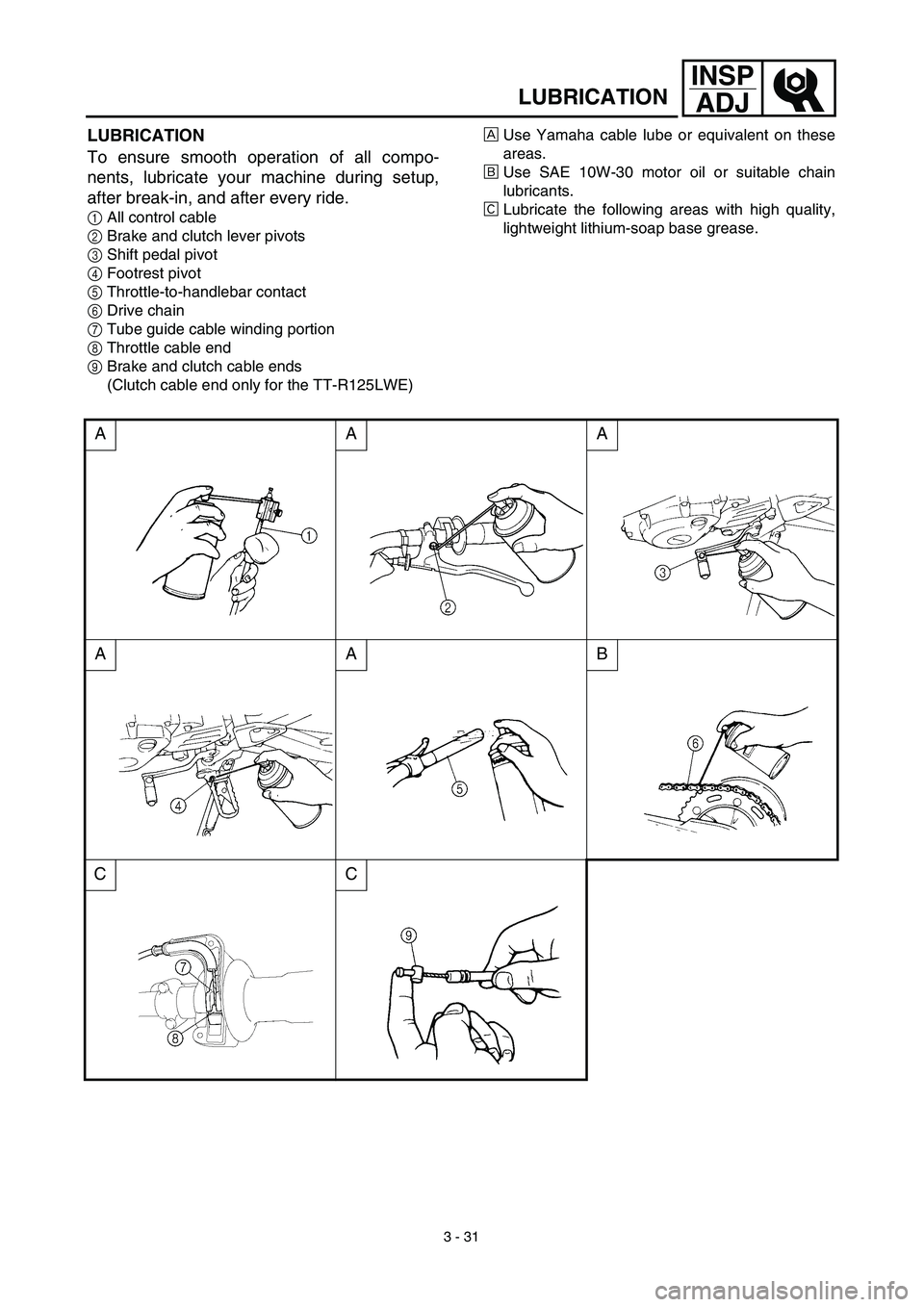

LUBRICATION
LUBRICATION
To ensure smooth operation of all compo-
nents, lubricate your machine during setup,
after break-in, and after every ride.
1All control cable
2Brake and clutch lever pivots
3Shift pedal pivot
4Footrest pivot
5Throttle-to-handlebar contact
6Drive chain
7Tube guide cable winding portion
8Throttle cable end
9Brake and clutch cable ends
(Clutch cable end only for the TT-R125LWE)ÅUse Yamaha cable lube or equivalent on these
areas.
ıUse SAE 10W-30 motor oil or suitable chain
lubricants.
ÇLubricate the following areas with high quality,
lightweight lithium-soap base grease.
AAA
AAB
CC

5 - 4
CHAS

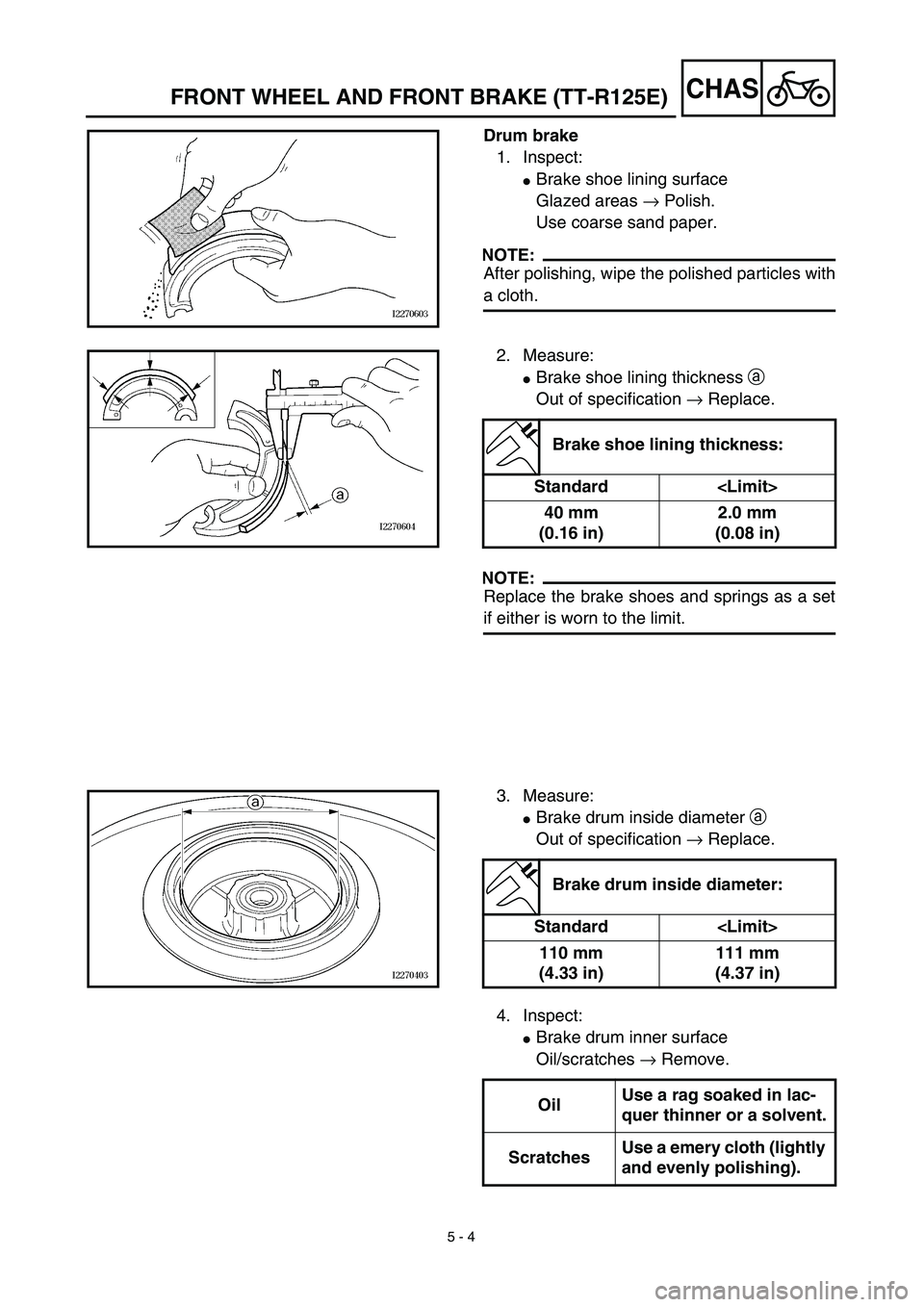

FRONT WHEEL AND FRONT BRAKE (TT-R125E)
Drum brake
1. Inspect:

Brake shoe lining surface
Glazed areas
→
Polish.
Use coarse sand paper.
NOTE:

After polishing, wipe the polished particles with
a cloth.
2. Measure:

Brake shoe lining thickness
a

Out of specification
→
Replace.
NOTE:

Replace the brake shoes and springs as a set
if either is worn to the limit.
Brake shoe lining thickness:
Standard
40 mm
(0.16 in)2.0 mm
(0.08 in)
3. Measure:

Brake drum inside diameter
a

Out of specification
→
Replace.
Brake drum inside diameter:
Standard
110 mm
(4.33 in)111 mm
(4.37 in)
4. Inspect:

Brake drum inner surface
Oil/scratches
→
Remove.
OilUse a rag soaked in lac-
quer thinner or a solvent.
ScratchesUse a emery cloth (lightly
and evenly polishing).

5 - 20
CHAS

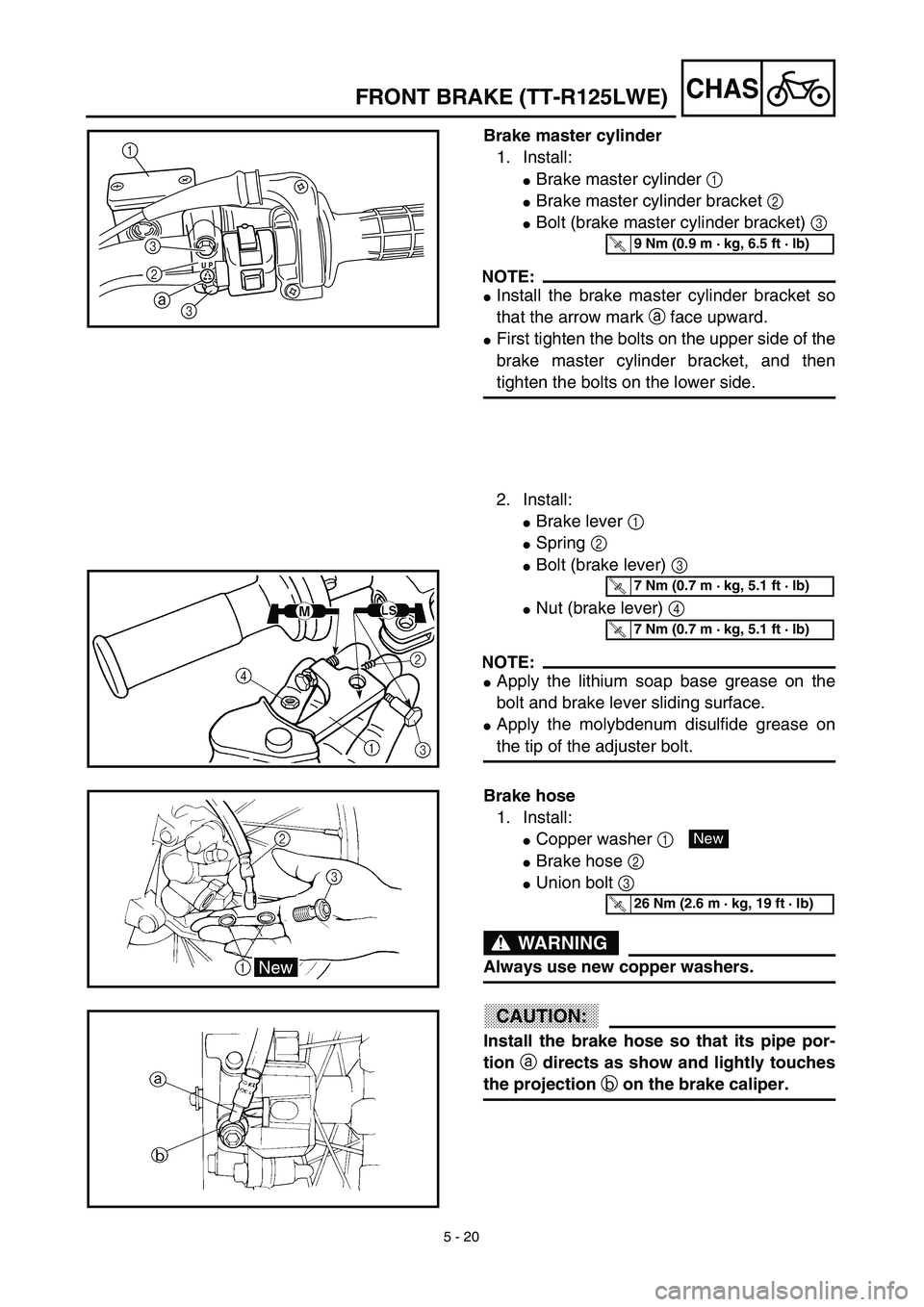

Brake master cylinder
1. Install:
Brake master cylinder 1
Brake master cylinder bracket 2
Bolt (brake master cylinder bracket) 3
NOTE:
Install the brake master cylinder bracket so
that the arrow mark a face upward.
First tighten the bolts on the upper side of the
brake master cylinder bracket, and then
tighten the bolts on the lower side.
2. Install:
Brake lever 1
Spring 2
Bolt (brake lever) 3
Nut (brake lever) 4
NOTE:
Apply the lithium soap base grease on the
bolt and brake lever sliding surface.
Apply the molybdenum disulfide grease on
the tip of the adjuster bolt.
T R..9 Nm (0.9 m · kg, 6.5 ft · lb)
U P2 1
3 3
a
T R..7 Nm (0.7 m · kg, 5.1 ft · lb)
T R..7 Nm (0.7 m · kg, 5.1 ft · lb)
Brake hose
1. Install:
Copper washer 1
Brake hose 2
Union bolt 3
WARNING
Always use new copper washers.
CAUTION:
Install the brake hose so that its pipe por-
tion a directs as show and lightly touches
the projection b on the brake caliper.
New
T R..26 Nm (2.6 m · kg, 19 ft · lb)
FRONT BRAKE (TT-R125LWE)

5 - 28
CHASREAR WHEEL AND REAR BRAKE
4. Inspect:
Brake drum inner surface.
Oil/scratches → Remove.
OilUse a rag soaked in lac-
quer thinner or a solvent.
ScratchesUse a emery cloth (lightly
and evenly polishing).

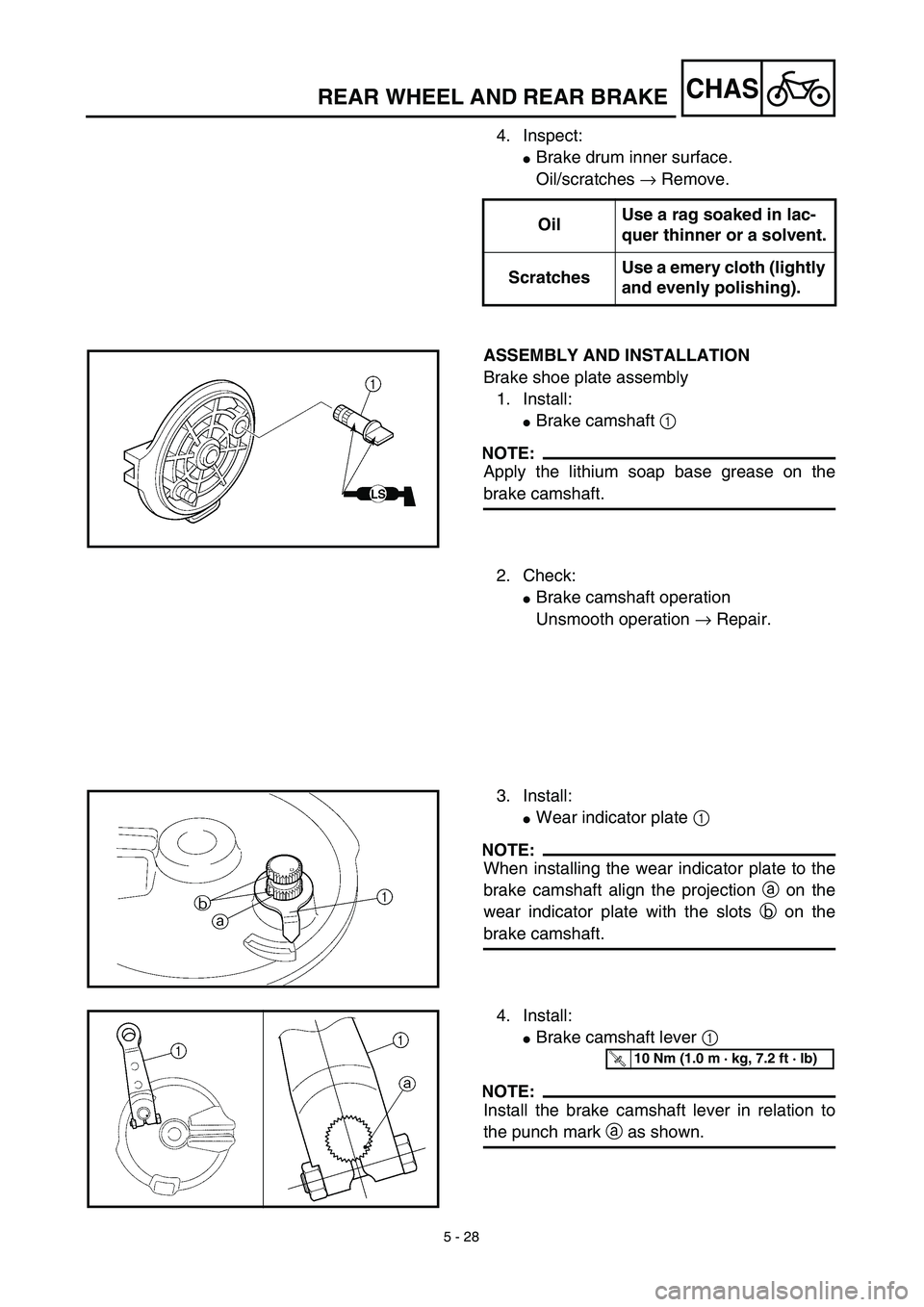

ASSEMBLY AND INSTALLATION
Brake shoe plate assembly
1. Install:
Brake camshaft 1
NOTE:
Apply the lithium soap base grease on the
brake camshaft.
2. Check:
Brake camshaft operation
Unsmooth operation → Repair.
3. Install:
Wear indicator plate 1
NOTE:
When installing the wear indicator plate to the
brake camshaft align the projection a on the
wear indicator plate with the slots b on the
brake camshaft.
4. Install:
Brake camshaft lever 1
NOTE:
Install the brake camshaft lever in relation to
the punch mark a as shown.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
