6-9
EBU00180

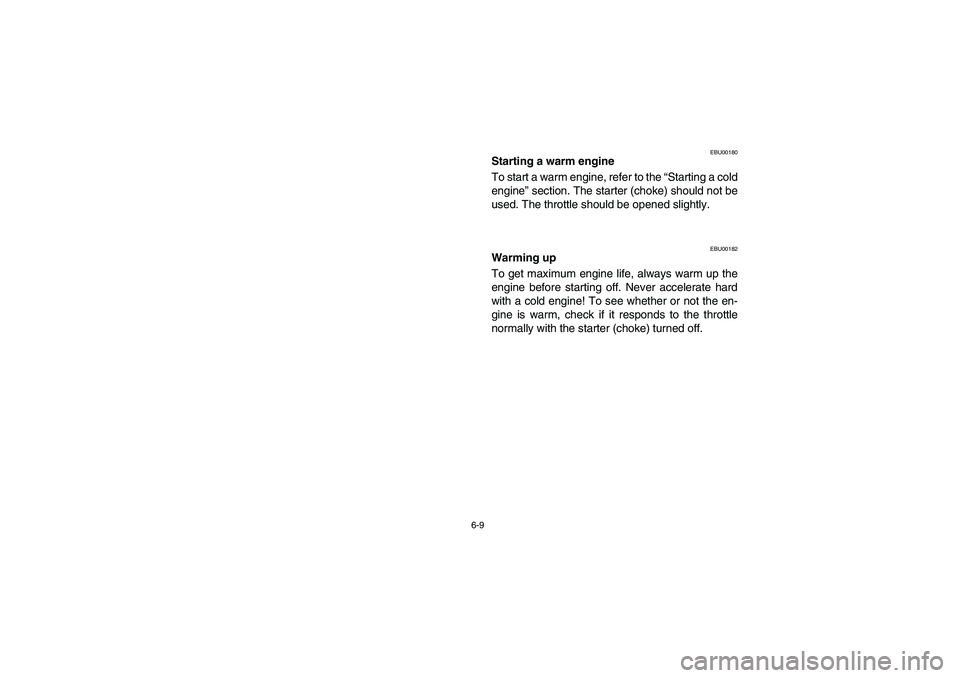

Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
U5TE60.book Page 9 Monday, June 10, 2002 8:47 AM

6-13 1. Drive select lever
a. F (Forward)
b. N (Neutral)
c. R (Reverse)
1. Levier de présélection
a. F (Marche avnt)
b. N (Point mort)
c. R (Marche arrière)
1. Palanca de selección de marcha
a. F (Marcha adelante)
b. N (Punto muerto)
c. R (Marcha atrás)

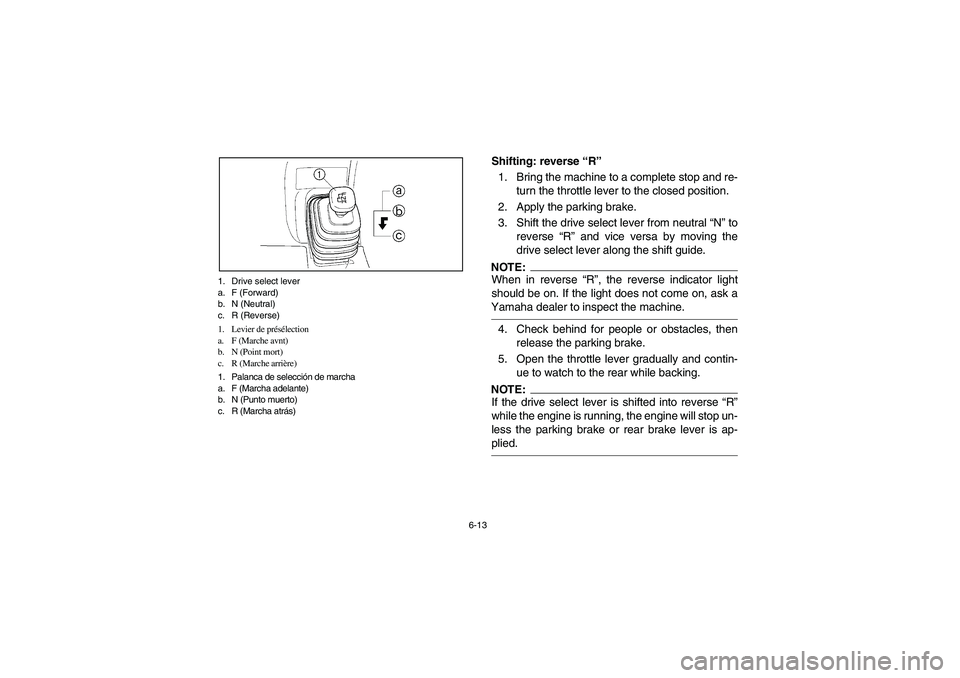

Shifting: reverse “R”
1. Bring the machine to a complete stop and re-
turn the throttle lever to the closed position.
2. Apply the parking brake.
3. Shift the drive select lever from neutral “N” to
reverse “R” and vice versa by moving the
drive select lever along the shift guide.NOTE:_ When in reverse “R”, the reverse indicator light
should be on. If the light does not come on, ask a
Yamaha dealer to inspect the machine. _4. Check behind for people or obstacles, then
release the parking brake.
5. Open the throttle lever gradually and contin-
ue to watch to the rear while backing.NOTE:_ If the drive select lever is shifted into reverse “R”
while the engine is running, the engine will stop un-
less the parking brake or rear brake lever is ap-
plied. _
U5TE60.book Page 13 Monday, June 10, 2002 8:47 AM

8-7
EBU00262

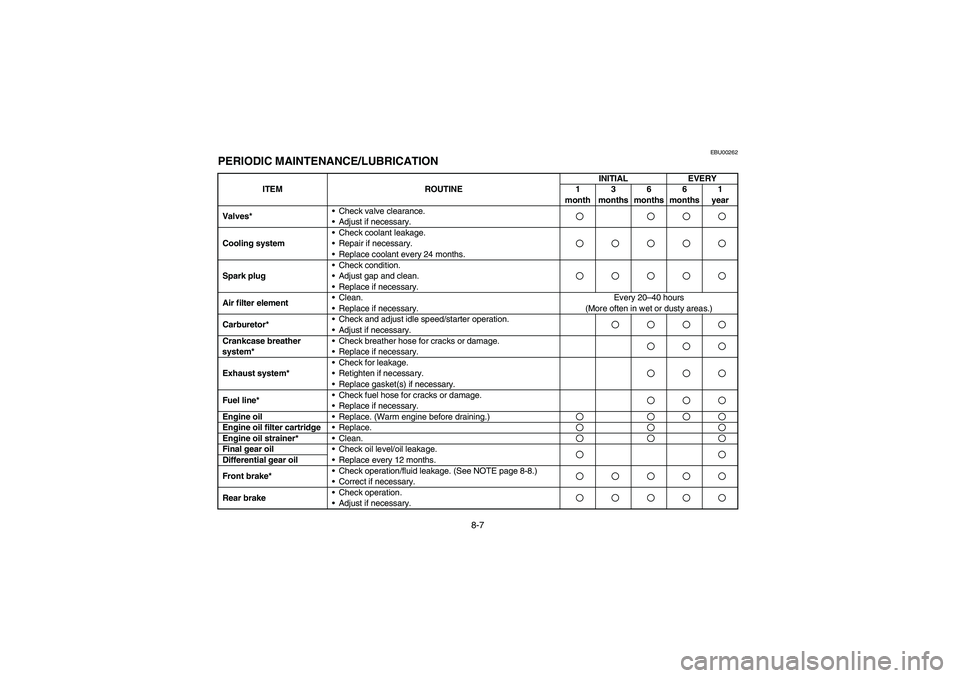

PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*•Check valve clearance.
•Adjust if necessary.
Cooling system•Check coolant leakage.
•Repair if necessary.
•Replace coolant every 24 months.Spark plug•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter element•Clean.
•Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*•Check and adjust idle speed/starter operation.
•Adjust if necessary.Crankcase breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Retighten if necessary.
•Replace gasket(s) if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil
•Replace. (Warm engine before draining.)Engine oil filter cartridge
•Replace.Engine oil strainer*
•Clean.Final gear oil
•Check oil level/oil leakage.
•Replace every 12 months.Differential gear oil
Front brake*•Check operation/fluid leakage. (See NOTE page 8-8.)
•Correct if necessary.Rear brake•Check operation.
•Adjust if necessary.U5TE60.book Page 7 Monday, June 10, 2002 8:47 AM

8-29 1. Engine oil filler cap
1. Bouchon de remplissage d’huile de moteur
1. Tapa de relleno de aceite de motor
1. Maximum level mark 2. Minimum level mark
1. Repère de niveau maximum 2. Repère de niveau minimum
1. Marca de nivel máximo 2. Marca de nivel mínimo
EBU01099

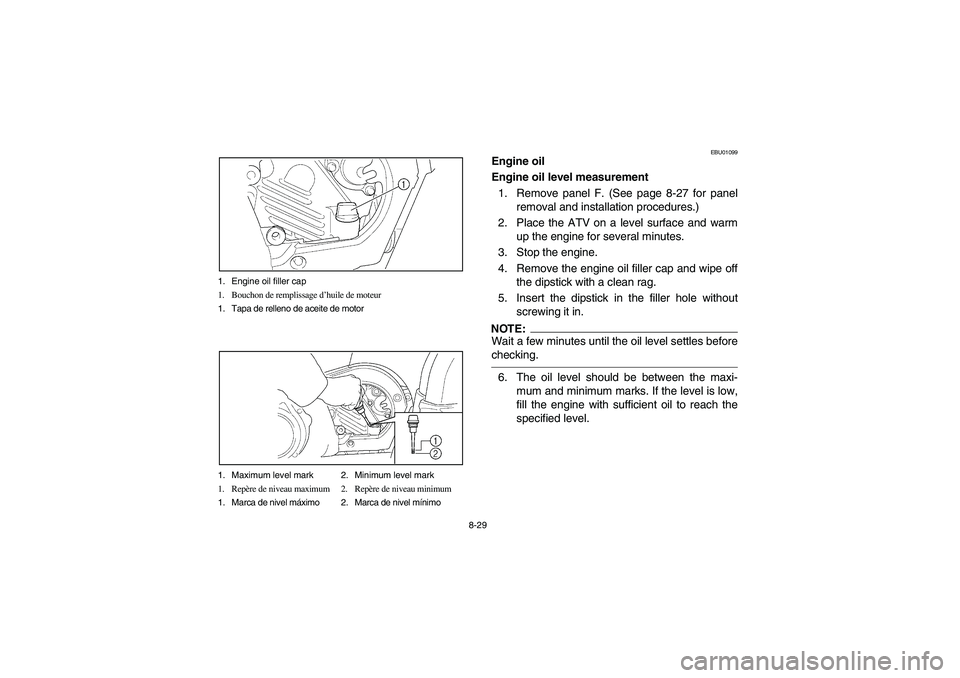

Engine oil
Engine oil level measurement
1. Remove panel F. (See page 8-27 for panel
removal and installation procedures.)
2. Place the ATV on a level surface and warm
up the engine for several minutes.
3. Stop the engine.
4. Remove the engine oil filler cap and wipe off
the dipstick with a clean rag.
5. Insert the dipstick in the filler hole without
screwing it in.NOTE:_ Wait a few minutes until the oil level settles before
checking. _6. The oil level should be between the maxi-
mum and minimum marks. If the level is low,
fill the engine with sufficient oil to reach the
specified level.
U5TE60.book Page 29 Monday, June 10, 2002 8:47 AM

8-39
‘1. Final gear oil
2. Final gear case filler bolt
3. Proper level
1. Huile de transmission finale
2. Boulon de remplissage du carter de transmission finale
3. Niveau correct
1. Aceite de la transmisión final
2. Perno de relleno de la caja de la transmisión final
3. Nivel adecuado
10. Start the engine and warm it up for several
minutes. While warming up, check for oil
leakage. If oil leakage is found, stop the en-
gine immediately and check for the cause.
11. Install the panels.
EBU01145
Final gear oil
Final gear oil measurement
1. Place the machine on a level surface.
2. Remove the oil filler bolt, and then check the
oil level in the final gear case.NOTE:_ The oil level should be at the brim of the filler hole. _3. If the oil is below the brim of the filler hole,
add sufficient oil of the recommended type to
raise it to the correct level.CAUTION:_ Be sure no foreign material enters the final
gear case. _4. Install the oil filler bolt.
U5TE60.book Page 39 Monday, June 10, 2002 8:47 AM

8-51 1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1. Bouchon du vase d’expansion
2. Repère de niveau maximum
3. Repère de niveau minimum
1. Tapa del depósito de refrigerante
2. Marca de nivel máximo
3. Marca de nivel mínimo

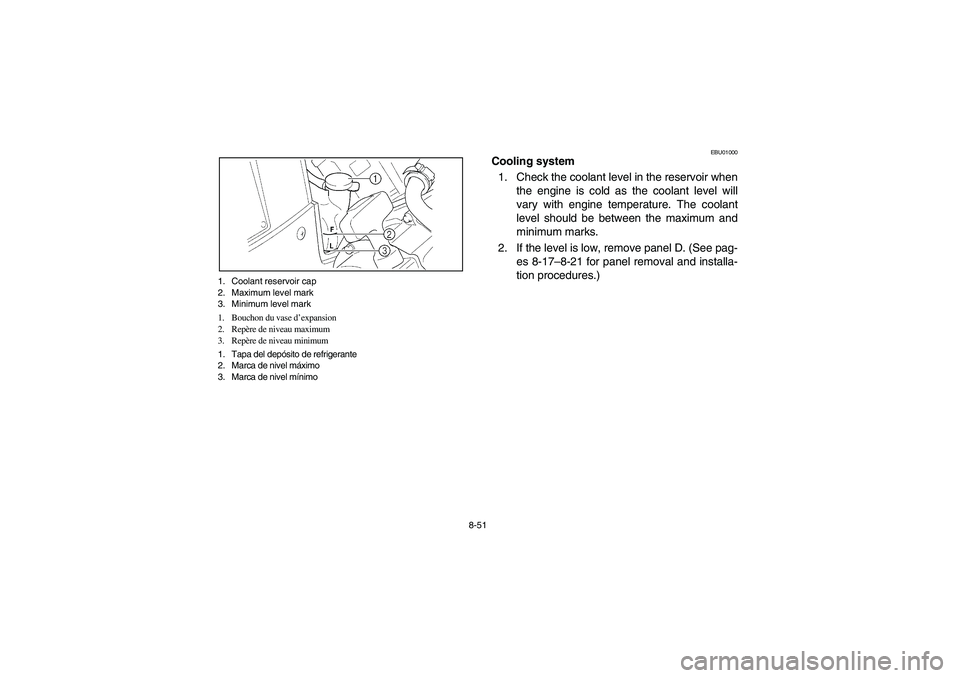

EBU01000
Cooling system
1. Check the coolant level in the reservoir when
the engine is cold as the coolant level will
vary with engine temperature. The coolant
level should be between the maximum and
minimum marks.
2. If the level is low, remove panel D. (See pag-
es 8-17–8-21 for panel removal and installa-
tion procedures.)
U5TE60.book Page 51 Monday, June 10, 2002 8:47 AM

8-61 1. Axle boot (× 2 each side)
1. Soufflet d’axe (× 2 de chaque côté)
1. Guardapolvo de eje (× 2 en cada lado)
12. Install the radiator cap.
13. Start the engine and let it idle for several min-
utes. Stop the engine, and then check the
coolant level in the radiator. If it is low, add
more coolant until it reaches the top of the ra-
diator.
14. Fill the coolant reservoir with coolant up to
the maximum level.
15. Install the coolant reservoir cap and check for
coolant leakage.NOTE:_ If any leakage is found, ask a Yamaha dealer to in-
spect the cooling system. _16. Install the panels and the front carrier.
EBU00862
Axle boots
Check the protective boots for holes or tears. If any
damage is found, have them replaced by a
Yamaha dealer.
U5TE60.book Page 61 Monday, June 10, 2002 8:47 AM

8-75

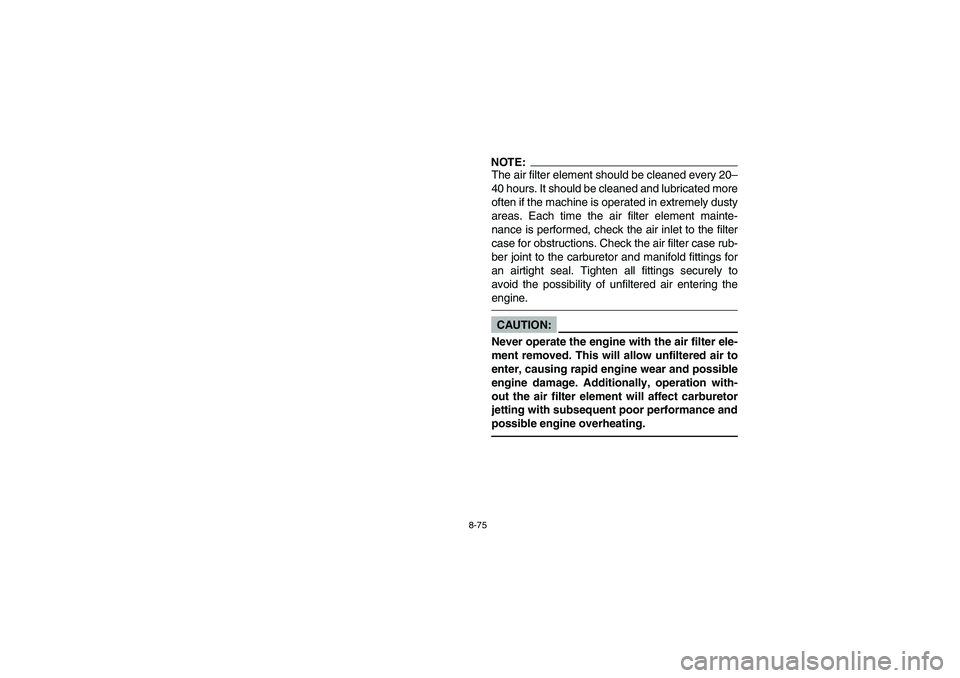

NOTE:_ The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the machine is operated in extremely dusty
areas. Each time the air filter element mainte-
nance is performed, check the air inlet to the filter
case for obstructions. Check the air filter case rub-
ber joint to the carburetor and manifold fittings for
an airtight seal. Tighten all fittings securely to
avoid the possibility of unfiltered air entering the
engine. _CAUTION:_ Never operate the engine with the air filter ele-
ment removed. This will allow unfiltered air to
enter, causing rapid engine wear and possible
engine damage. Additionally, operation with-
out the air filter element will affect carburetor
jetting with subsequent poor performance and
possible engine overheating. _
