2-1
E
EJU01008
Location of main components
1Handlebars
Use to control direction.
2Fuel tank filler cap
3Rope hole
4Footwell
Use to place feet for balance.
5Intake grate
Prevents debris from getting into the jet pump.
6Speed sensor
UF0X73.book Page 1 Thursday, July 11, 2002 3:56 PM

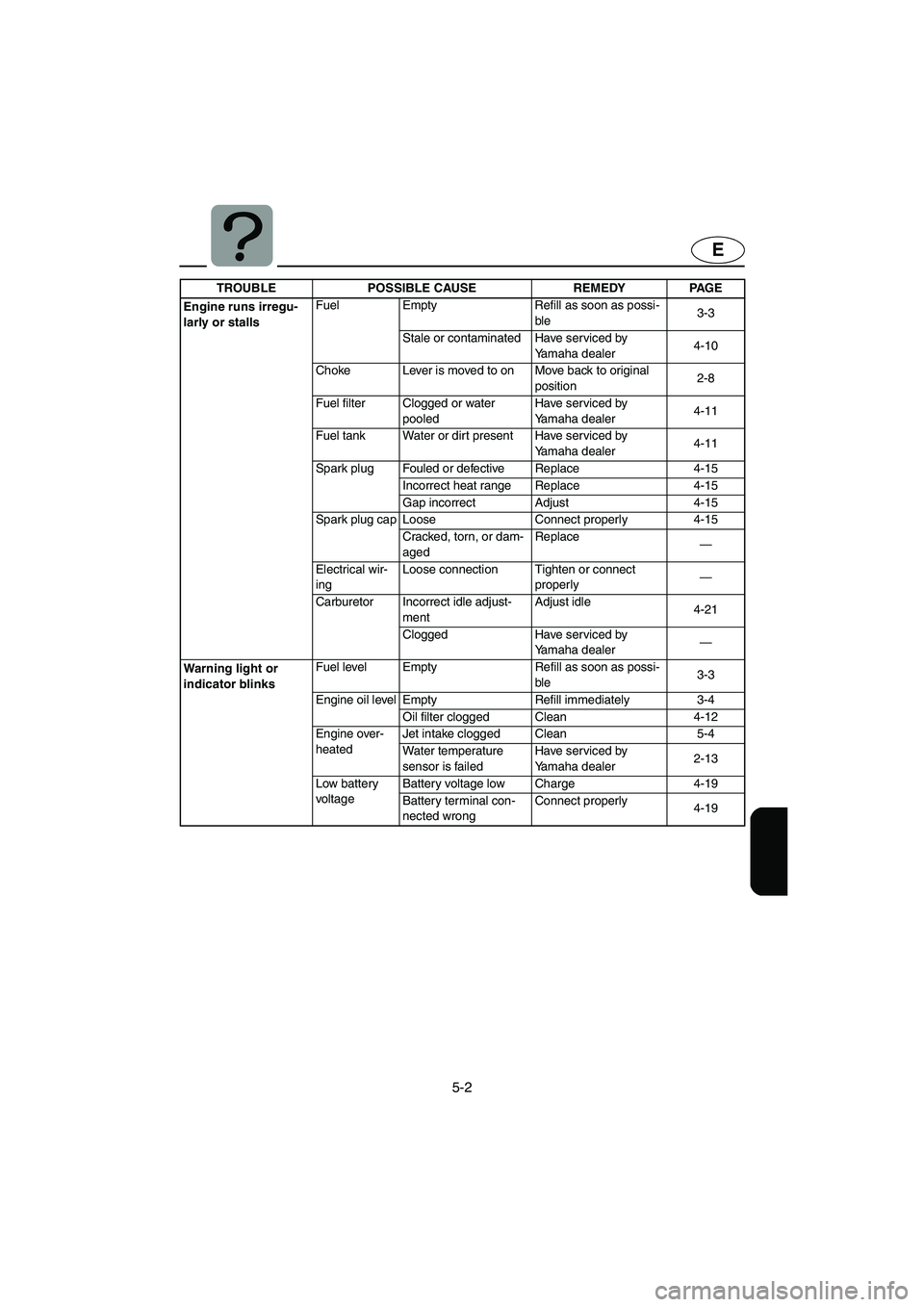

5-2
E
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as possi-
ble3-3
Stale or contaminated Have serviced by
Yamaha dealer4-10
Choke Lever is moved to on Move back to original
position2-8
Fuel filter Clogged or water
pooledHave serviced by
Yamaha dealer4-11
Fuel tank Water or dirt present Have serviced by
Yamaha dealer4-11
Spark plug Fouled or defective Replace 4-15
Incorrect heat range Replace 4-15
Gap incorrect Adjust 4-15
Spark plug cap Loose Connect properly 4-15
Cracked, torn, or dam-
agedReplace
—
Electrical wir-
ingLoose connection Tighten or connect
properly—
Carburetor Incorrect idle adjust-
mentAdjust idle
4-21
Clogged Have serviced by
Yamaha dealer—
Warning light or
indicator blinksFuel level Empty Refill as soon as possi-
ble3-3
Engine oil level Empty Refill immediately 3-4
Oil filter clogged Clean 4-12
Engine over-
heatedJet intake clogged Clean 5-4
Water temperature
sensor is failedHave serviced by
Yamaha dealer2-13
Low battery
voltageBattery voltage low Charge 4-19
Battery terminal con-
nected wrongConnect properly
4-19 TROUBLE POSSIBLE CAUSE REMEDY PAGE
