2003 VOLVO XC70 keyless

2003 VOLVO XC70
pg. 57 Front seats
Electrically operated seats - general information
Adjusting the front seats:
The passenger's seat can only be adjusted if the ignition key is in posi\
tion I or II.
Driver's seat: The driver's seat can be adjusted if the ignition key is in position I o\
r II (see
page 35).
However, it can also be adjusted:
l Within 40 seconds after the ignition has been switched off (even if the\
key has been removed from the
ignition switch).
l Within 40 seconds after the driver's door has been unlocked with the key\
or remote control and
opened. The key does not have to be in the ignition switch during this p\
eriod.
Remote keyless entry system and driver's seat
The remote control transmitter also controls the electrically operated d\
river's seat in the following way:
l Adjust the seat to your preferences.
l When you leave your car, lock it using the remote control.
l The next time you unlock the driver's door with the same remote control(the one you used to lock the
doors with) and open the driver's door, the driver's seat will automati\
cally move to the position in which
you left it.
The seat will move to this position even if someone else has adjusted it\
since you last unlocked the car
with the same remote control.
NOTE:
l This feature will work in the same way with all of the remote control tr\
ansmitters (up to 3) that you
use with your car.
l This feature will not function if you lock your car with the key.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04a.htm (4 of 11)12/30/200\
6 4:17:56 PM

2003 VOLVO XC70
2 0 0 3
VOLVO XC70
Chapter 5 - Keys, Locks, Alarm


pg.75 Keys, Locks, Alarm

Keys, Exterior courtesy lights, Locking and unlocking the car 76
Remote keyless entry system 77
Unlocking the tailgate, Central locking buttons, "Trunk lock"
function 79
Alarm 80
Child safety locks - rear doors 82

pg. 76 Keys, Exterior courtesy lights, Locking and unlocking the car

Keys
file:///K|/ownersdocs/2003/2003_XC70/03xc70_05.htm (1 of 11)12/30/2006\
4:17:58 PM

2003 VOLVO XC70
Exterior courtesy lights
Home Safe System
When you leave your car at night, you can make use of the courtesy light\
ing function:
l Remove the key from the ignition switch.
l Pull the direction indicator lever towards the steering wheel (as when \
activating the high beams).
l Exit the car and lock the doors.
The headlights, parking lights, license plate lights and the lights in t\
he sideview mirrors will now come
on and remain on for 30, 60 or 90 seconds (the time interval is at your\
discretion and can be changed by
an authorized Volvo retailer).
Approach lighting
When approaching the car at night, press the yellow button in the centra\
l locking remote control (see
illustration on
page 77). This lights up the interior courtesy light, parking lights, license \
plate lights and
the lights in the sideview mirrors.

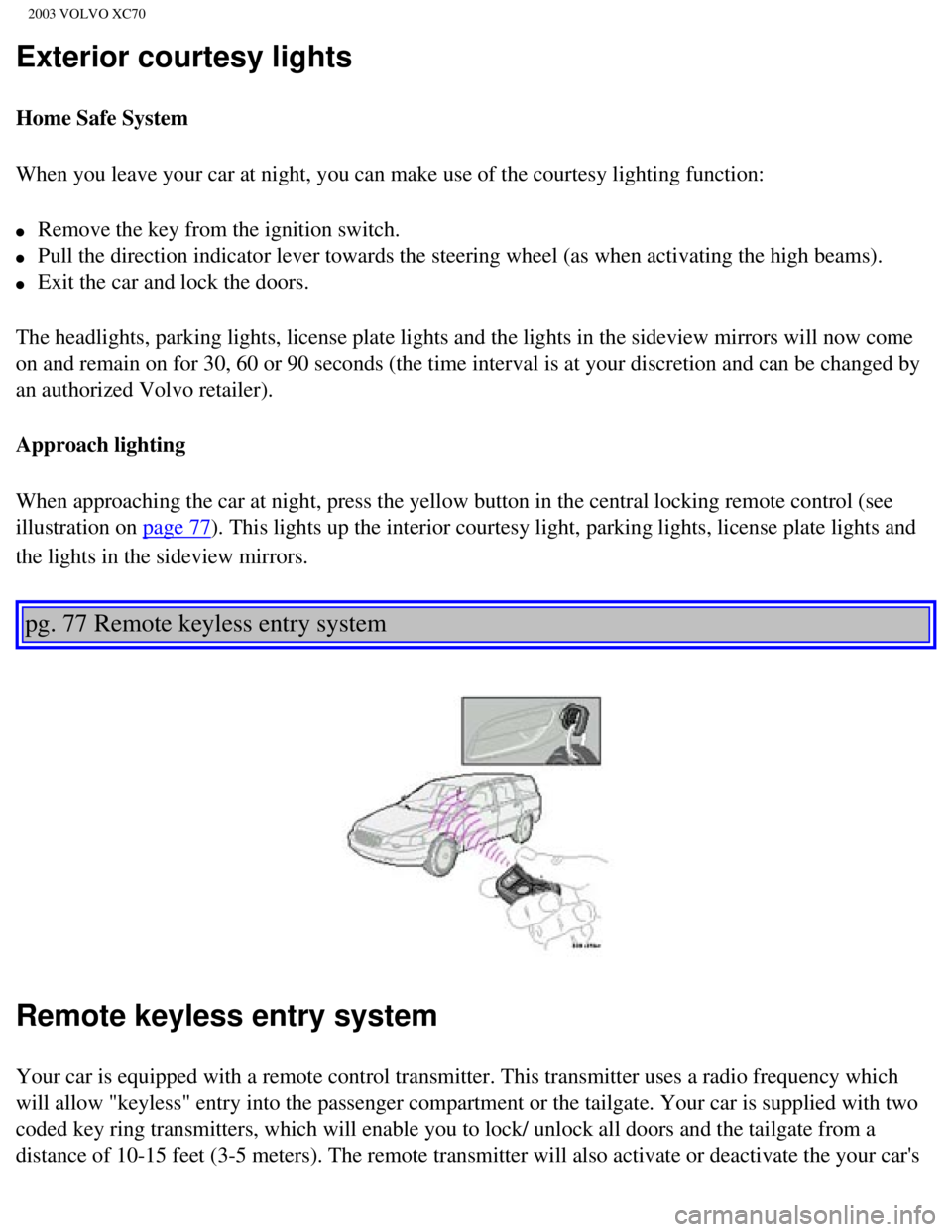

pg. 77 Remote keyless entry system

Remote keyless entry system
Your car is equipped with a remote control transmitter. This transmitter\
uses a radio frequency which
will allow "keyless" entry into the passenger compartment or the tailgat\
e. Your car is supplied with two
coded key ring transmitters, which will enable you to lock/ unlock all d\
oors and the tailgate from a
distance of 10-15 feet (3-5 meters). The remote transmitter will also \
activate or deactivate the your car's
file:///K|/ownersdocs/2003/2003_XC70/03xc70_05.htm (3 of 11)12/30/2006\
4:17:58 PM

2003 VOLVO XC70
interference that may cause undesired operation of the device
* See page 80 for more information on this function.

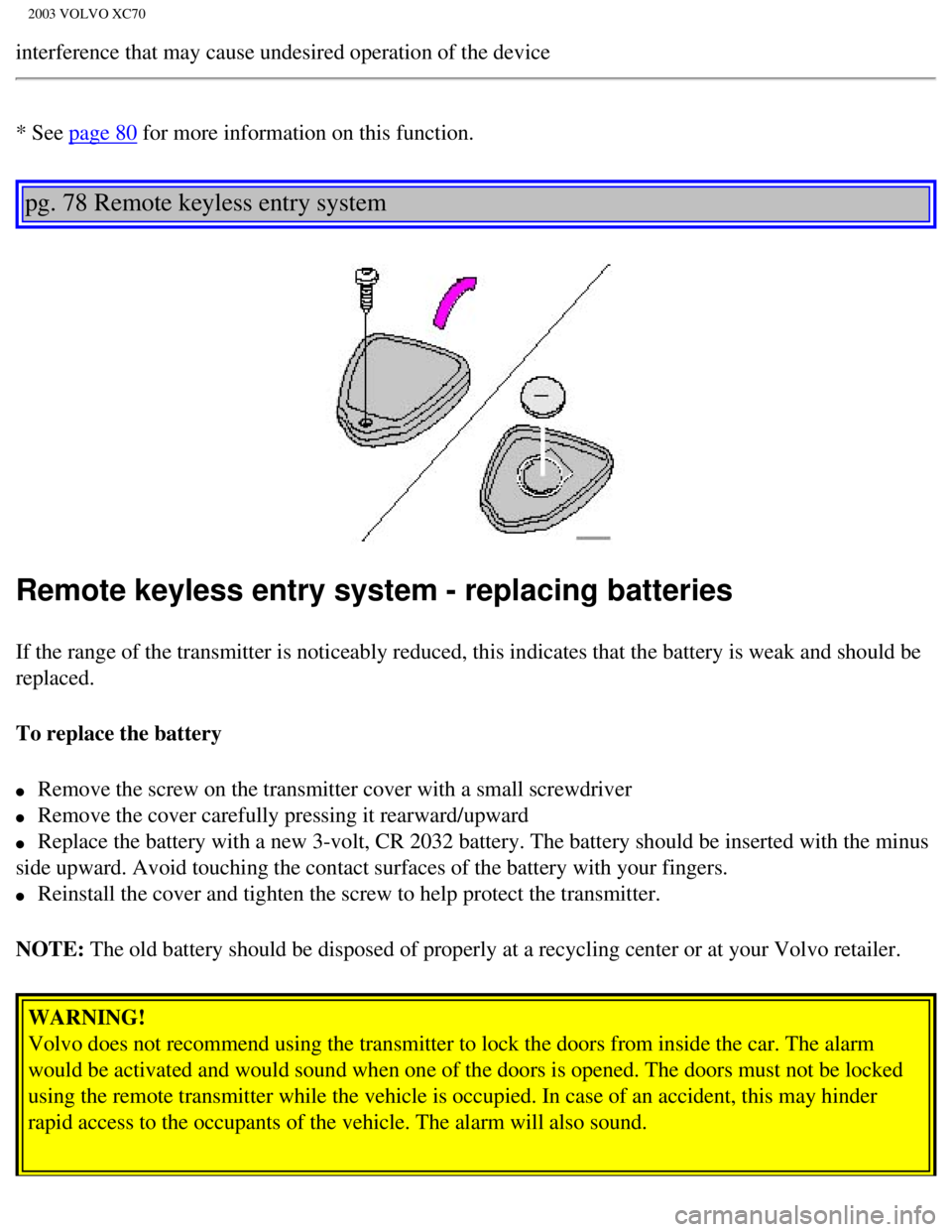

pg. 78 Remote keyless entry system

Remote keyless entry system - replacing batteries
If the range of the transmitter is noticeably reduced, this indicates th\
at the battery is weak and should be
replaced.
To replace the battery
l Remove the screw on the transmitter cover with a small screwdriver
l Remove the cover carefully pressing it rearward/upward
l Replace the battery with a new 3-volt, CR 2032 battery. The battery shou\
ld be inserted with the minus
side upward. Avoid touching the contact surfaces of the battery with you\
r fingers.
l Reinstall the cover and tighten the screw to help protect the transmitte\
r.
NOTE: The old battery should be disposed of properly at a recycling center or\
at your Volvo retailer.
WARNING!
Volvo does not recommend using the transmitter to lock the doors from in\
side the car. The alarm
would be activated and would sound when one of the doors is opened. The \
doors must not be locked
using the remote transmitter while the vehicle is occupied. In case of a\
n accident, this may hinder
rapid access to the occupants of the vehicle. The alarm will also sound.\

file:///K|/ownersdocs/2003/2003_XC70/03xc70_05.htm (5 of 11)12/30/2006\
4:17:58 PM

2003 VOLVO XC70
Cruise control 33
Cup holder
59
Cup holder in the center console
60
D
Detachable trailer hitch - installing
102
Dimensions
143
Direction indicators
36
Distributor ignition system
147
Door step courtesy lights - replacing
123
Doors and locks
76
Drive belt
131
Driver's seat and remote keyless entry system
57
Driving economy
95
Driving mode indicator
27
Driving mode W
91, 93, 104
Driving with trunk open
96
E
Economical driving
95
Electric socket in cargo compartment
67
Electrical system
148
Electrical system - general information
96
Electrically operated front seats
56
Electrically operated sideview mirrors
41
Electrically operated sun roof
42
Electrically operated windows
40
Electronic Brake Force Distribution
19
Electronic Climate Control (ECC)
48 - 51
Emergency Locking Retractor (ELR)
14
Emergency towing
99, 100
Emergency warning flashers
38
Emissions systems
130
Engine - specifications
144, 145
file:///K|/ownersdocs/2003/2003_XC70/03xc70_12.htm (4 of 12)12/30/2006\
4:18:08 PM

2003 VOLVO XC70
Instrument panel 27
Instruments
26
Integrated booster cushion
12
Interior Air Quality system
51
Interior features - overview
24
Interior lighting
74
J
Jack
72, 112
Jump starting
103
K
Key - removing from ignition switch
87
Keyless entry system
77, 78
Keyless entry system - replacing batteries
78
Keylock
87
Keys
76
Kickdown
91, 92
L
Label information
142
License plate lights - replacing
124
Lifting the car
133
Lights - accessory
31
Load carriers
97
Locking and unlocking the car
76
Locking steering wheel
35
Long distance trip
105
Long loads
57
M
Maintenance schedule
129
Malfunction indicator lamp
29
Manual climate control with air conditioning
52-54
Manual transmission
89, 145
Memory function - front seats
56
file:///K|/ownersdocs/2003/2003_XC70/03xc70_12.htm (7 of 12)12/30/2006\
4:18:08 PM

2003 VOLVO XC70
Rear window - heated 38
Rearview mirror
41
Refrigerant
47
Refueling
86
Remote central locking system and sideview mirrors
system
41
Remote control - keyless entry system
77
Remote control - Homelink® Universal Transceiver
168
Remote keyless entry system
77
Remote keyless entry system - replacing batteries
78
Remote keyless entry system and driver's seat
57
Removing the seat cushion
66
Replacing bulbs
120-125
Replacing fuses
116
Replacing wiper blades
140
Road assistance
149
Roadholding
95
Roof load - maximum
143
Roof racks
97
S
Safety locks - child
82
Seat belt maintenance
17
Seat belts
2, 3, 14
Seat belts - cleaning
128
Seats - front
56
Securing cargo
68
Servicing
133
Shiftlock
87, 90, 92
Side direction indicator - replacing
123
Side impact airbag system (SIPS)
8
Sideview mirrors
41
Sideview mirrors - heated
38
file:///K|/ownersdocs/2003/2003_XC70/03xc70_12.htm (9 of 12)12/30/2006\
4:18:09 PM
