2003 VOLVO S80 Owners Manual

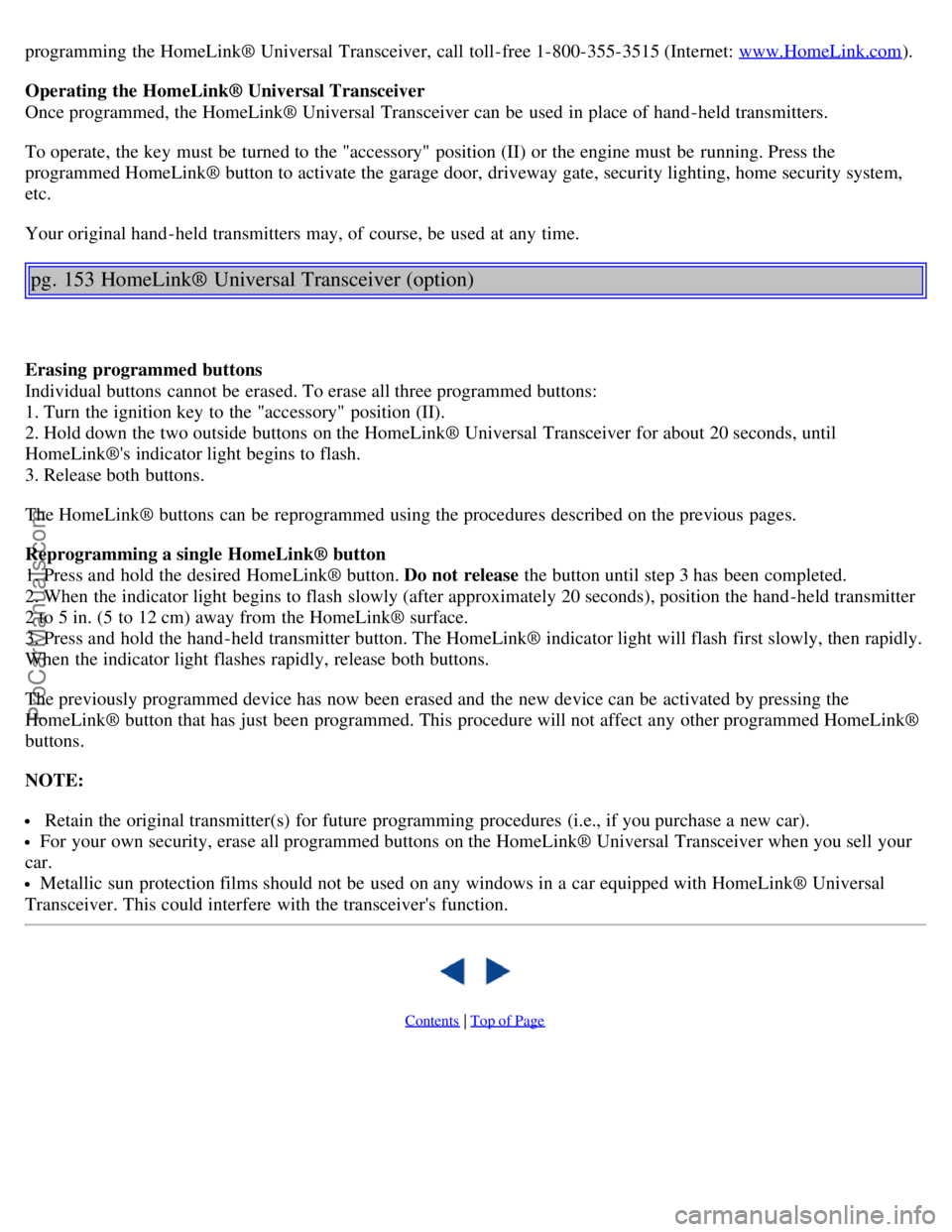

programming the HomeLink® Universal Transceiver, call toll-free 1-800-355-3515 (Internet: www.HomeLink.com).
Operating the HomeLink® Universal Transceiver
Once programmed, the HomeLink® Universal Transceiver can be used in place of hand -held transmitters.
To operate, the key must be turned to the "accessory" position (II) or the engine must be running. Press the
programmed HomeLink® button to activate the garage door, driveway gate, security lighting, home security system,
etc.
Your original hand -held transmitters may, of course, be used at any time.
pg. 153 HomeLink® Universal Transceiver (option)
Erasing programmed buttons
Individual buttons cannot be erased. To erase all three programmed buttons:
1. Turn the ignition key to the "accessory" position (II).
2. Hold down the two outside buttons on the HomeLink® Universal Transceiver for about 20 seconds, until
HomeLink®'s indicator light begins to flash.
3. Release both buttons.
The HomeLink® buttons can be reprogrammed using the procedures described on the previous pages.
Reprogramming a single HomeLink® button
1. Press and hold the desired HomeLink® button. Do not release the button until step 3 has been completed.
2. When the indicator light begins to flash slowly (after approximately 20 seconds), position the hand -held transmitter
2 to 5 in. (5 to 12 cm) away from the HomeLink® surface.
3. Press and hold the hand -held transmitter button. The HomeLink® indicator light will flash first slowly, then rapidly.
When the indicator light flashes rapidly, release both buttons.
The previously programmed device has now been erased and the new device can be activated by pressing the
HomeLink® button that has just been programmed. This procedure will not affect any other programmed HomeLink®
buttons.
NOTE:
Retain the original transmitter(s) for future programming procedures (i.e., if you purchase a new car).
For your own security, erase all programmed buttons on the HomeLink® Universal Transceiver when you sell your
car.
Metallic sun protection films should not be used on any windows in a car equipped with HomeLink® Universal
Transceiver. This could interfere with the transceiver's function.

Contents | Top of Page
ProCarManuals.com

2 0 0 3
VOLVO S80
Index
pg. 162 Index
A
ABS..........17
ABS - warning light..........27
Accessory lights..........29
Adjusting the steering wheel..........36
Advanced User Mode (AUM) - radio..........143
Air conditioning..........45- 49
Air filter - engine..........117
Air pump system..........116
Air vents..........44
Airbag (SIPS)..........8
Airbag (SRS)..........4
Alarm..........65, 66
Alarm - "panic" function..........65
ALR/ELR..........14
Anti-lock Brake System (ABS)..........17
Anti-lock Brake System - warning light..........27
Antifreeze..........87, 116
Approach lighting..........60
Ashtrays..........38
Audio systems..........135
cassette deck..........146
CD player..........144
HU -611 - overview..........136
HU -801 - overview..........137
radio..........140
specifications..........149
AUM (Advanced User Mode) - radio..........143
Automatic car washing..........113
Automatic Locking Retractor (ALR)..........14
Automatic transmission
ProCarManuals.com

Geartronic..........76, 77
Kickdown..........76
Specifications..........130
Automatic transmission - cold starts..........75
Auxiliary socket..........29, 38
B
Backrests, rear seat - folding..........58
Battery..........87, 133
Battery maintenance..........123 -124
Replacing the battery..........124
Ventilation hose..........124
Blinds - rear/side rear windows..........42
Booster cushion..........13, 15
Booster cushion - integrated..........13
Brake failure warning light ..........26
Brake fluid..........122, 131
Brake system..........16
Bulbs (list)..........133
Bulbs - replacing..........104-110
C
Capacities (oils and fluids)..........127
, 131
Cargo net in trunk..........57
Catalytic converters - three-way..........89
Center console - switches..........29
Center head restraint - rear seat..........3
Central locking buttons..........63
Chains - winter driving..........93
Changing wheels..........96, 97
Child booster cushion ......... 13, 15
Child Restraint Anchorages ........ 12
Child safety..........12 -15
Child safety locks - rear doors..........67
Climate controls..........45 - 49
Climate system - general information..........48
Clock..........25
Coat hanger..........53
Cold weather driving..........87
Combination filter..........45, 49
Coolant..........116, 131
Cooling system..........78, 131
Courtesy light..........54
Courtesy lights (front) - replacing..........110
Courtesy lights - exterior..........60
Cruise control..........31
ProCarManuals.com

Cup holder - opening..........56
D
Dimensions..........129
Direction indicator bulbs (front)..........105
Direction indicators..........35
Distributor ignition system..........132
Door step courtesy lights - replacing..........108
Doors and locks..........60
Drive belt..........116
Driver's seat and remote keyless entry system..........53
Driving economy..........78
Driving mode indicator..........25
Driving mode W..........75, 77, 87
Driving with trunk open..........79
E
Economical driving..........78
Electrical system..........133
Electrical system - general information..........79
Electrically operated front seats..........52
Electrically operated sideview mirrors..........40
Electrically operated sun roof..........41
Electrically operated windows..........39
Electronic Brake Force Distribution..........17
Electronic Climate Control(ECC)..........45 - 49
Emergency Locking Retractor (ELR)..........14
Emergency towing..........81, 82
Emergency warning flashers..........37
Emissions systems..........115
Engine - specifications..........130
Engine - starting..........73
Engine air filter..........117
Engine compartment..........119
Engine oil..........87, 120, 121, 131
Exterior courtesy lights..........60
Exterior features - overview..........23
F
Fog light - rear..........27
, 32
Fog lights - front..........32
Folding head restraints..........29
Folding passenger's seat backrest..........53
Folding rear seat backrests ........58
Folding sideview mirrors..........27
Front airbags - SRS..........4-7
Front airbags - SRS - warning light..........26
ProCarManuals.com

Front courtesy lights - replacing..........110
Front fog lights..........32
Front fog lights - replacing ........107
Front reading lights..........54
Front seats - adjusting..........52
Front seats - heated..........37
Front suspension..........132
Fuel..........70, 131
Fuel filler cap..........72
Fuel filler door..........72
Fuel filler door - unlocking manually..........33
Fuel filter ..........117
Fuel gauge..........25
Fuel requirements..........70
Fuel system..........115, 117, 132
Fuel/emissions systems..........115
Fuses..........100 - 103
G
Gas cap..........72
Gasoline..........70
Gear indicator..........25
Gear ratios..........130
Geartronic (automatic transmission)..........76 - 77
Generator..........133
Generator warning light..........26
H
Hand brake..........38
Handling..........79
Hazard warning flashers..........37
Head restraint - center rear..........3
Head restraints, rear - folding..........29
Headlight bulbs - replacing..........104
Headlight wiper blades - replacing..........125
Headlights..........32
Heated front seats..........37
Heated rear window..........37
Heated sideview mirrors..........37
Heating..........45 - 49
Hoisting the car..........118
Home Safe System..........60
HomeLink® ........151-153
Hood - opening..........119
I
Ignition switch..........32
ProCarManuals.com

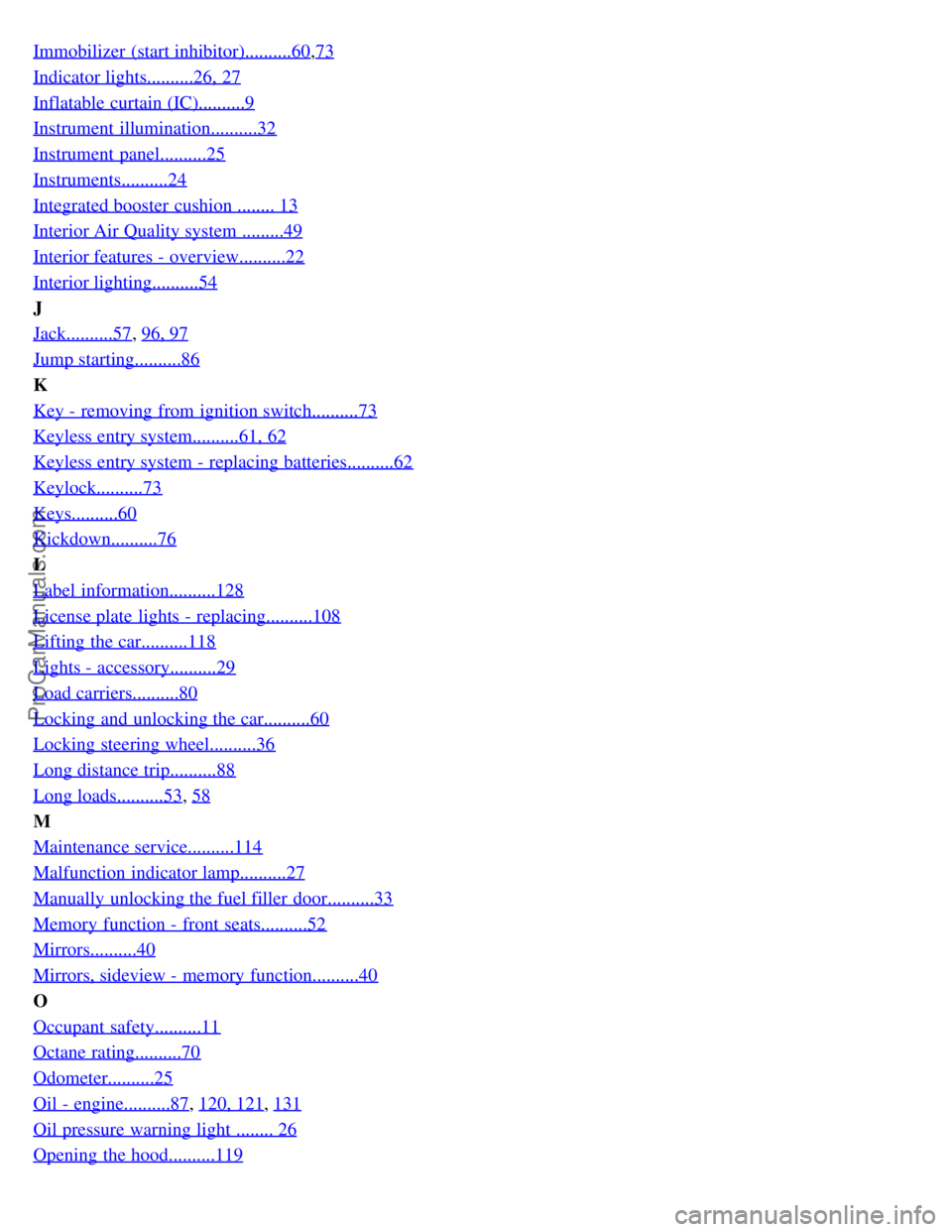

Immobilizer (start inhibitor)..........60,73
Indicator lights..........26, 27
Inflatable curtain (IC)..........9
Instrument illumination..........32
Instrument panel..........25
Instruments..........24
Integrated booster cushion ........ 13
Interior Air Quality system .........49
Interior features - overview..........22
Interior lighting..........54
J
Jack..........57
, 96, 97
Jump starting..........86
K
Key - removing from ignition switch..........73
Keyless entry system..........61, 62
Keyless entry system - replacing batteries..........62
Keylock..........73
Keys..........60
Kickdown..........76
L
Label information..........128
License plate lights - replacing..........108
Lifting the car..........118
Lights - accessory..........29
Load carriers..........80
Locking and unlocking the car..........60
Locking steering wheel..........36
Long distance trip..........88
Long loads..........53, 58
M
Maintenance service..........114
Malfunction indicator lamp..........27
Manually unlocking the fuel filler door..........33
Memory function - front seats..........52
Mirrors..........40
Mirrors, sideview - memory function..........40
O
Occupant safety..........11
Octane rating..........70
Odometer..........25
Oil - engine..........87, 120, 121, 131
Oil pressure warning light ........ 26
Opening the hood..........119
ProCarManuals.com

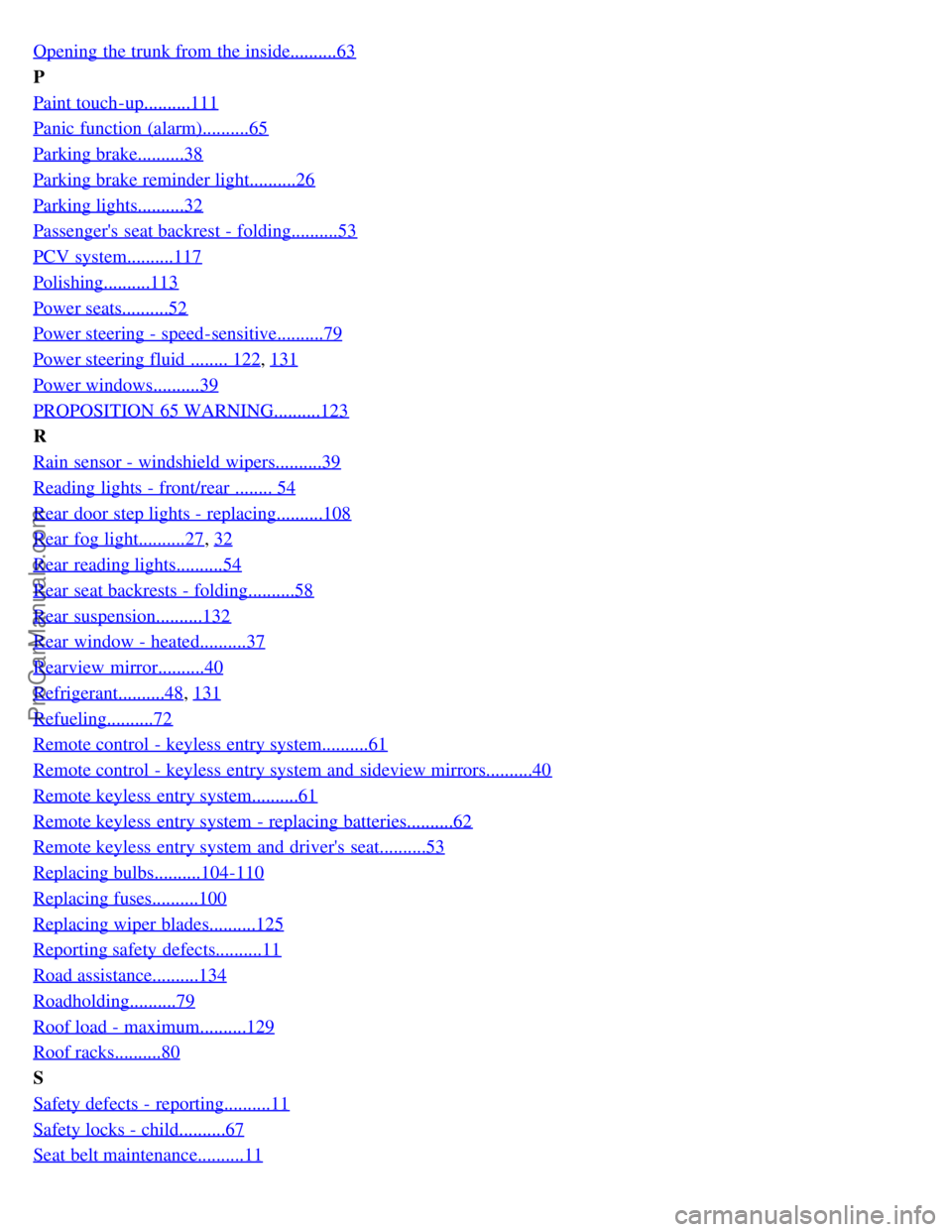

Opening the trunk from the inside..........63
P
Paint touch-up..........111
Panic function (alarm)..........65
Parking brake..........38
Parking brake reminder light..........26
Parking lights..........32
Passenger's seat backrest - folding..........53
PCV system..........117
Polishing..........113
Power seats..........52
Power steering - speed-sensitive..........79
Power steering fluid ........ 122, 131
Power windows..........39
PROPOSITION 65 WARNING..........123
R
Rain sensor - windshield wipers..........39
Reading lights - front/rear ........ 54
Rear door step lights - replacing..........108
Rear fog light..........27, 32
Rear reading lights..........54
Rear seat backrests - folding..........58
Rear suspension..........132
Rear window - heated..........37
Rearview mirror..........40
Refrigerant..........48, 131
Refueling..........72
Remote control - keyless entry system..........61
Remote control - keyless entry system and sideview mirrors..........40
Remote keyless entry system..........61
Remote keyless entry system - replacing batteries..........62
Remote keyless entry system and driver's seat..........53
Replacing bulbs..........104-110
Replacing fuses..........100
Replacing wiper blades..........125
Reporting safety defects..........11
Road assistance..........134
Roadholding..........79
Roof load - maximum..........129
Roof racks..........80
S
Safety defects - reporting..........11
Safety locks - child..........67
Seat belt maintenance..........11
ProCarManuals.com

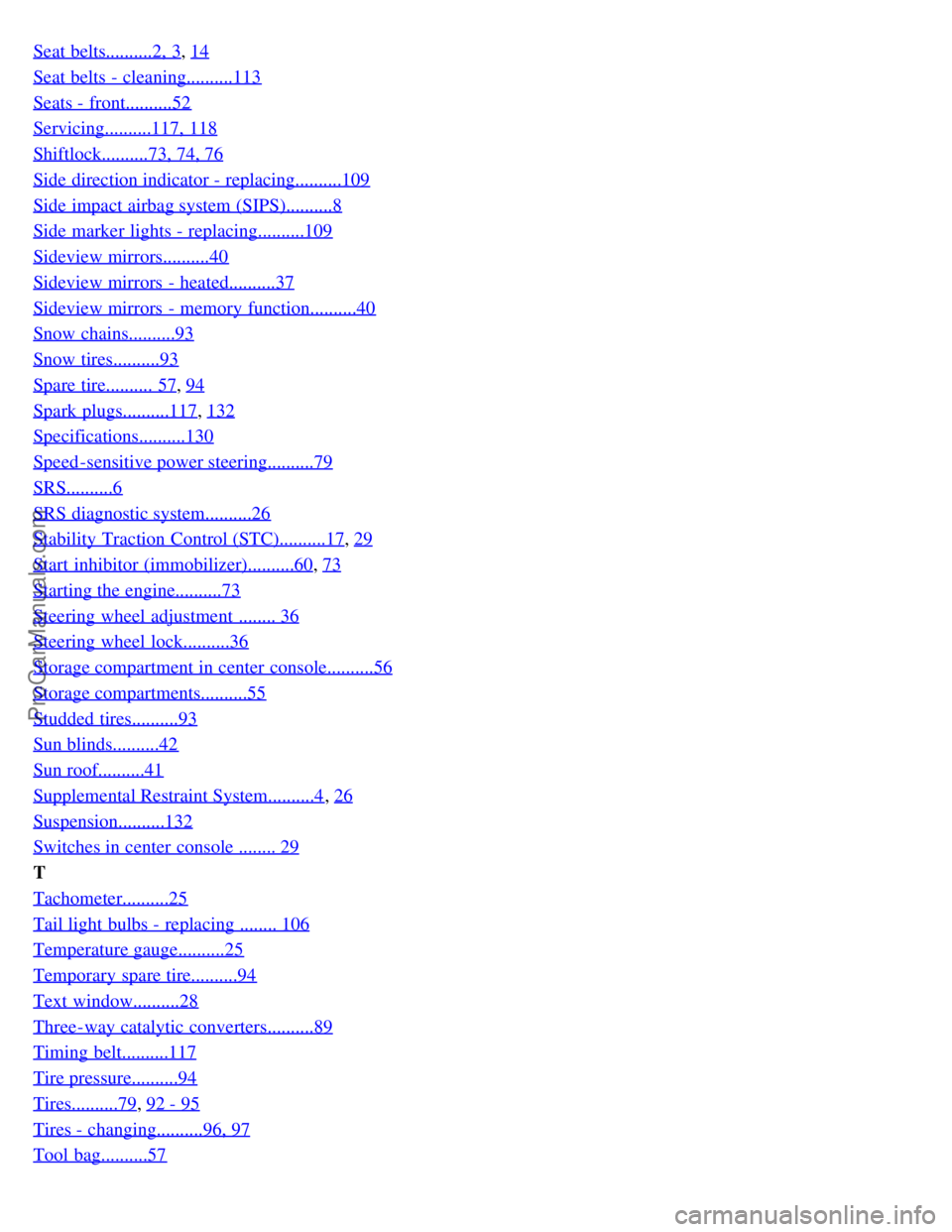

Seat belts..........2, 3, 14
Seat belts - cleaning..........113
Seats - front..........52
Servicing..........117, 118
Shiftlock..........73, 74, 76
Side direction indicator - replacing..........109
Side impact airbag system (SIPS)..........8
Side marker lights - replacing..........109
Sideview mirrors..........40
Sideview mirrors - heated..........37
Sideview mirrors - memory function..........40
Snow chains..........93
Snow tires..........93
Spare tire.......... 57, 94
Spark plugs..........117, 132
Specifications..........130
Speed -sensitive power steering..........79
SRS..........6
SRS diagnostic system..........26
Stability Traction Control (STC)..........17, 29
Start inhibitor (immobilizer)..........60, 73
Starting the engine..........73
Steering wheel adjustment ........ 36
Steering wheel lock..........36
Storage compartment in center console..........56
Storage compartments..........55
Studded tires..........93
Sun blinds..........42
Sun roof..........41
Supplemental Restraint System..........4, 26
Suspension..........132
Switches in center console ........ 29
T
Tachometer..........25
Tail light bulbs - replacing ........ 106
Temperature gauge..........25
Temporary spare tire..........94
Text window..........28
Three-way catalytic converters..........89
Timing belt..........117
Tire pressure..........94
Tires..........79, 92 - 95
Tires - changing..........96, 97
Tool bag..........57
ProCarManuals.com
