Page 54 of 256
47
22p008
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the ”PRESS” signs on
the buckle release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
22p009
The driver and front passenger ’s seat
belts pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractor so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are acti-
vated even with no passenger in the front
seat.
Collisions occurring at certain speeds and
angles may cause the seat belt preten-
sioners and SRS airbags not to operate
all together.
—Front seat belt
pretensioners
Page 142 of 256
136

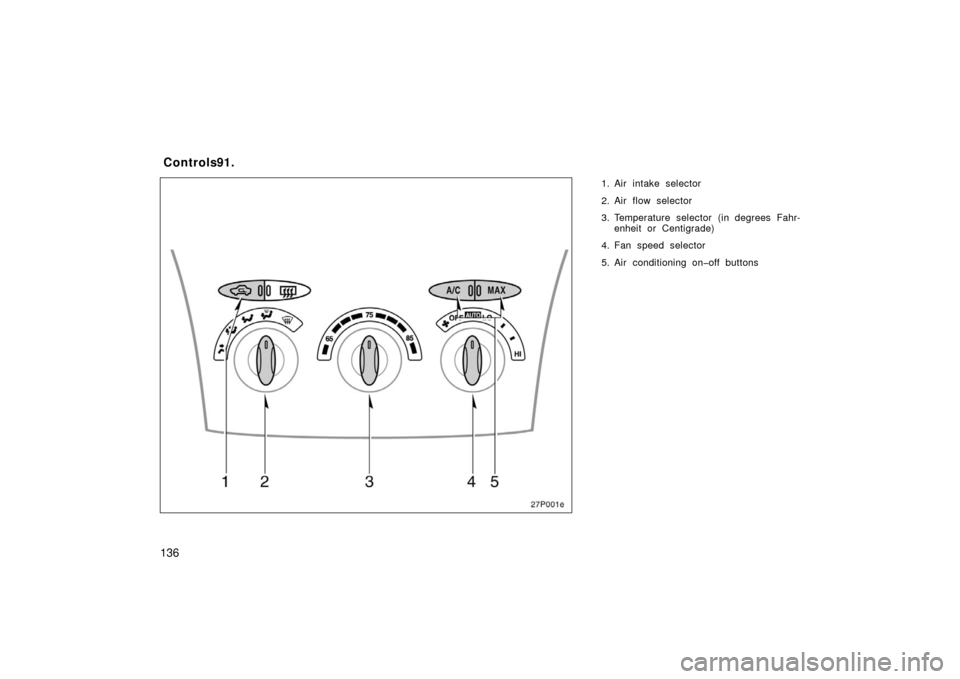

1. Air intake selector
2. Air flow selector
3. Temperature selector (in degrees Fahr-enheit or Centigrade)
4. Fan speed selector
5. Air conditioning on off buttons
Controls91.
27P001e
Page 144 of 256
138
27p003a

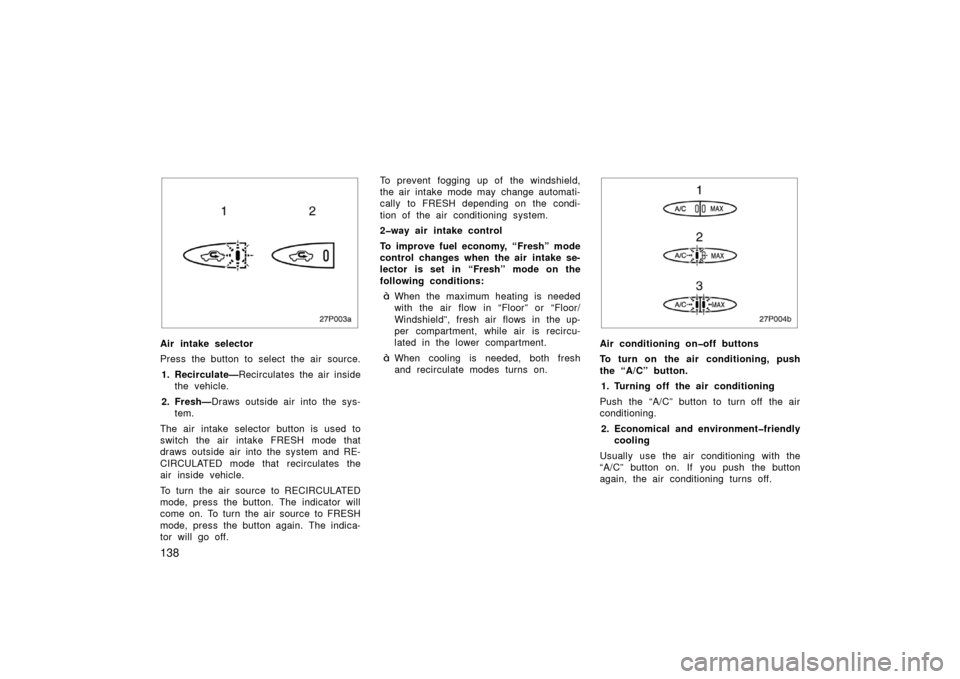

Air intake selector
Press the button to select the air source.1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem.
The air intake selector button is used to
switch the air intake FRESH mode that
draws outside air into the system and RE-
CIRCULATED mode that recirculates the
air inside vehicle.
To turn the air source to RECIRCULATED
mode, press the button. The indicator will
come on. To turn the air source to FRESH
mode, press the button again. The indica-
tor will go off. To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
2 way air intake control
To improve fuel economy, “Fresh” mode
control changes when the air intake se-
lector is set in “Fresh” mode on the
following conditions:
When the maximum heating is needed
with the air flow in “Floor” or “Floor/
Windshield”, fresh air flows in the up-
per compartment, while air is recircu-
lated in the lower compartment.
When cooling is needed, both fresh
and recirculate modes turns on.
27p004b
Air conditioning on off buttons
To turn on the air conditioning, push
the “A/C” button.
1. Turning off the air conditioning
Push the “A/C” button to turn off the air
conditioning. 2. Economical and environment friendly cooling
Usually use the air conditioning with the
“A/C” button on. If you push the button
again, the air conditioning turns off.
