’03 MATRIX_U (L/O 0201)
42003 MY COROLLA MATRIX_U (OM12767U)
1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer, two trip meters and outside
temperature gauge
Instrument cluster overview

’03 MATRIX_U (L/O 0201)
832003 MY COROLLA MATRIX_U (OM12767U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature gauge 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature gauge 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 86
. . . . . . . . . . . . . . .
SECTION 1 5

’03 MATRIX_U (L/O 0201)
852003 MY COROLLA MATRIX_U (OM12767U)
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stopandgo traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 201 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm
( revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
Tachometer Odometer and two trip meters

’03 MATRIX_U (L/O 0201)
862003 MY COROLLA MATRIX_U (OM12767U)
3. Trip meter reset knob—Resets the twotrip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.

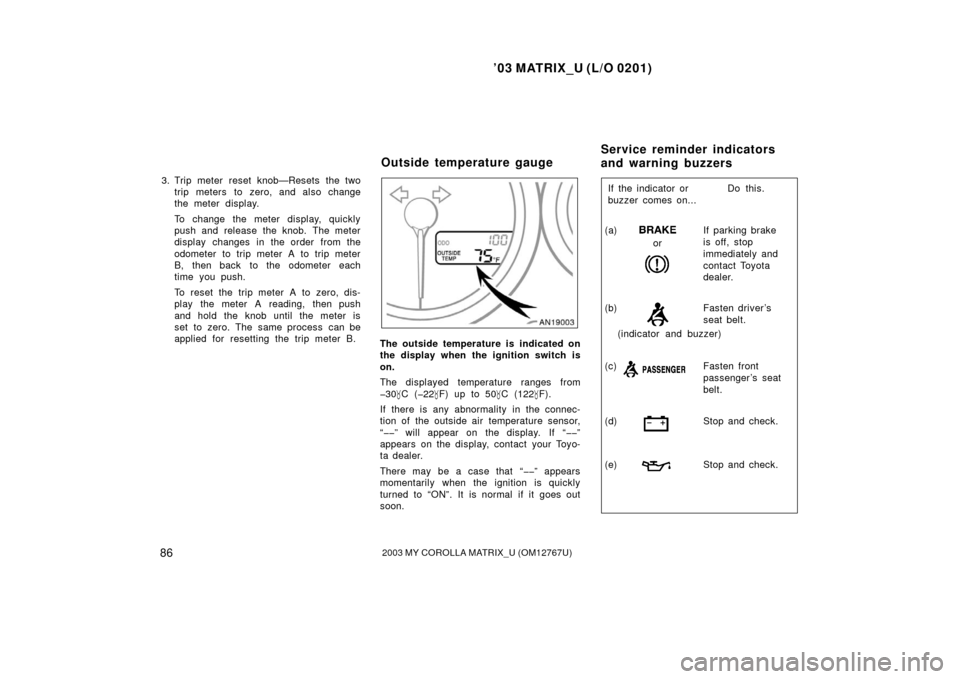

The outside temperature is indicated on
the display when the ignition switch is
on.
The displayed temperature ranges from
30 C (22 F) up to 50 C (122 F).
If there is any abnormality in the connec-
tion of the outside air temperature sensor,
“” will appear on the display. If “”
appears on the display, contact your Toyo-
ta dealer.
There may be a case that “” appears
momentarily when the ignition is quickly
turned to “ON”. It is normal if it goes out
soon.
(a) If parking brake
is off, stop
immediately and
contact Toyota
dealer.
(b) Fasten driver ’s
seat belt.
If the indicator or
buzzer comes on...
(d) Stop and check.
(indicator and buzzer)
(e) Stop and check.
or
Do this.
(c) Fasten front passenger ’s seat
belt.
Outside temperature gauge Service reminder indicators
an d warn in g bu zzers

’03 MATRIX_U (L/O 0201)
2492003 MY COROLLA MATRIX_U (OM12767U)
Even if the damage does not appear seri-
ous, a qualified technician should examine
the damage. Objects which have pene-
trated the tire may have caused internal
damage.
Any tires which are over 6 years old
must be checked by a qualified techni-
cian even if damage is not obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This also applies to the spare tire and
tires stored for future use.
REPLACING YOUR TIRES
Twowheel drive models—When replac-
ing a tire, use only the same size and
construction as originally installed and
with the same or greater load capacity.
Fourwheel drive models—When replac-
ing tires, make sure all the tires are the
same brand. Only use the same size,
construction and tread patterns as the
originally installed tires, with the same
or greater load capacity.
Using any other size or type of tire may
seriously affect handling, ride, speedome-
ter/odometer calibration, ground clearance,
and clearance between the body and tires
or snow chains.CAUTION
Do not mix radial, bias belted, or
biasply tires on your vehicle. It
can cause dangerous handling char-
acteristics, resulting in loss of con-
trol.
Do not use tire or wheels other
than the manufacturer ’s recom-
mended size.
Toyota recommends all four tires, or at
least both front or rear tires be re-
placed as a set.
See “If you have a flat tire” on page 202
in Section 4 for tire change procedure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect vehicle
handling and tire life. Wheels can get out
of balance with regular use and should
therefore be balanced occasionally.
When replacing a tubeless tire, the air
valve should also be replaced with a
new one.
To equalize tire wear and help extend
tire life, Toyota recommends that you
rotate your tires according to the main-
tenance schedule. (For scheduled main-
tenance information, please refer to the
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.) Howev-
er, the most appropriate timing for tire
rotation may vary according to your
driving habits and road surface condi-
tions.
See “If you have a flat tire” on page 202
in Section 4 for tire change procedure.
—Rotating tires
