3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Open the hood. Turn the bulb base counterclockwise to the front of the
vehicle as shown.
—Front fog lights

’03 MATRIX_U (L/O 0201)
2622003 MY COROLLA MATRIX_U (OM12767U)
2. Unplug the connector.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Parking, front side marker
and front turn signal lights

’03 MATRIX_U (L/O 0201)
2632003 MY COROLLA MATRIX_U (OM12767U)
a: Stop/tail and rear side marker light
b: Rear turn signal light
c: Backup lightRemove the clips with a Phillipshead
screwdriver and remove the cover.
—Stop/tail, rear side marker,
rear turn signal and backup
lights—High mounted stoplight

’03 MATRIX_U (L/O 0201)
2642003 MY COROLLA MATRIX_U (OM12767U)

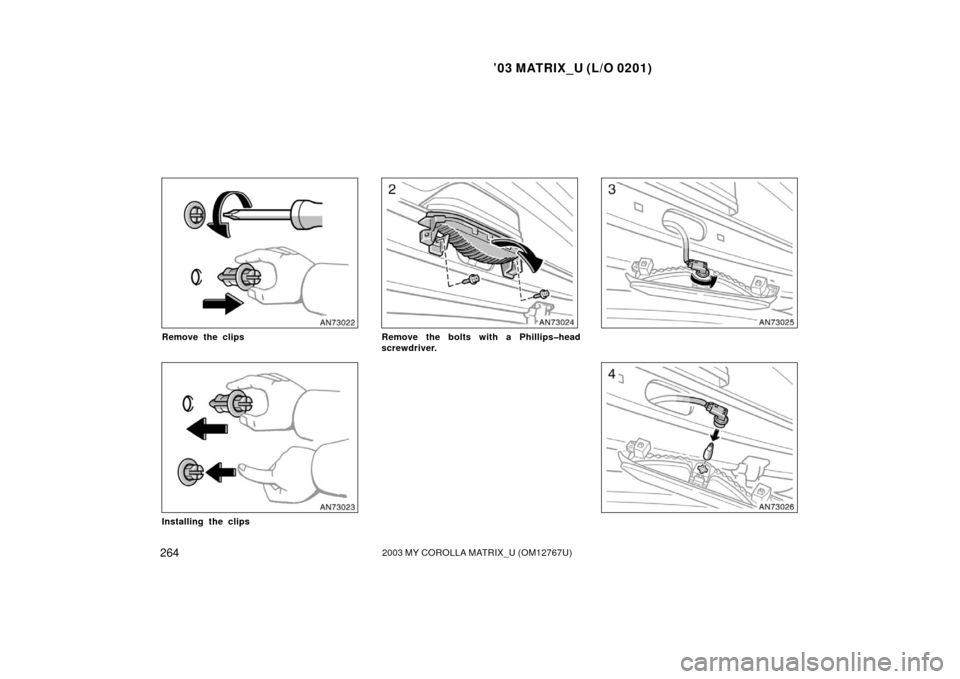

Remove the clips
Installing the clips
Remove the bolts with a Phillipshead
screwdriver.

’03 MATRIX_U (L/O 0201)
2652003 MY COROLLA MATRIX_U (OM12767U)
Remove the cover with a flatbladed
screwdriver which is wrapped with a
cloth.
—License plate lights

’03 MATRIX_U (L/O 0201)
2662003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)
2672003 MY COROLLA MATRIX_U (OM12767U)
SPECIFICATIONS
Dimensions and weight268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’03 MATRIX_U (L/O 0201)
2682003 MY COROLLA MATRIX_U (OM12767U)
Model: 1ZZFE and 2ZZGE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 1ZZFE engine 79.0  91.5 (3.11  3.60)
2ZZGE engine 82.0  85.0 (3.23  3.35)
Displacement, cm
3 (cu. in.):
1ZZFE engine 1794 (109.5)
2ZZGE engine 1796 (109.6)
Dimensions and weight
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight (occupants
+ luggage) kg (lb.) P205/55R16 tires P215/50ZR17 tires
4350 (171.3)
4350 (171.3)
1765 (69.5) 1765 (69.5)
1585 (62.4)
2600 (102.4) 2600 (102.4)
1515 (59.6) 1505 (59.3)
1495 (58.9)
∗ 2
1500 (59.1)∗31485 (58.5)
385 (850) 385 (850)
∗ 1: Unladen vehicle∗2: Twowheel drive models∗3: Fourwheel drive models 1575 (62.0)
∗
2
1585 (62.4)∗3
Engine
