2003 TOYOTA HIGHLANDER Owners Manual

’03 HIGHLANDER_U (L/O 0208)
2272003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
CAUTION
When lowering the vehicle, make
sure all portions of your body and
all other persons around will not be
injured as the vehicle is lowered to
the ground.
Have the wheel nuts tightened by
torque wrench at 103 N·m (10.5
kgf·m, 76 ft·lbf), as soon as pos-
sible after changing wheels. Other-
wise, the nuts may loosen and the
wheels may fall off, which could
cause a serious accident.
Steel wheels
Aluminum wheels
10. Reinstall the wheel ornament.
1. Put the wheel ornament into position.
2. Then tap it firmly with the side or heel of your hand to snap it into place.
CAUTION
Take due care in handling the orna-
ment to avoid unexpected personal
injury.
—Reinstalling wheel ornament

’03 HIGHLANDER_U (L/O 0208)
2282003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
11. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specification
designated on page 289 in Section 8. If
the pressure is lower, drive slowly to the
nearest service station and fill to the cor-
rect pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
12. Restow all the tools and jack secure- ly.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified on page 289 in Section 8 with
a torque wrench. Have a technician repair
the flat tire.
CAUTION
Before driving, make sure all the
tools and jack are securely in place
in their storage location to reduce the
possibility of personal injury during a
collision or sudden braking.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
If your vehicle is equipped with the
traction control system, turn off the
system to become unstuck. (For details,
see “Traction control system” on page
119 in Section 16.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
 Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
 Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
—After changing wheels If your vehicle becomes stuck

’03 HIGHLANDER_U (L/O 0208)
2292003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

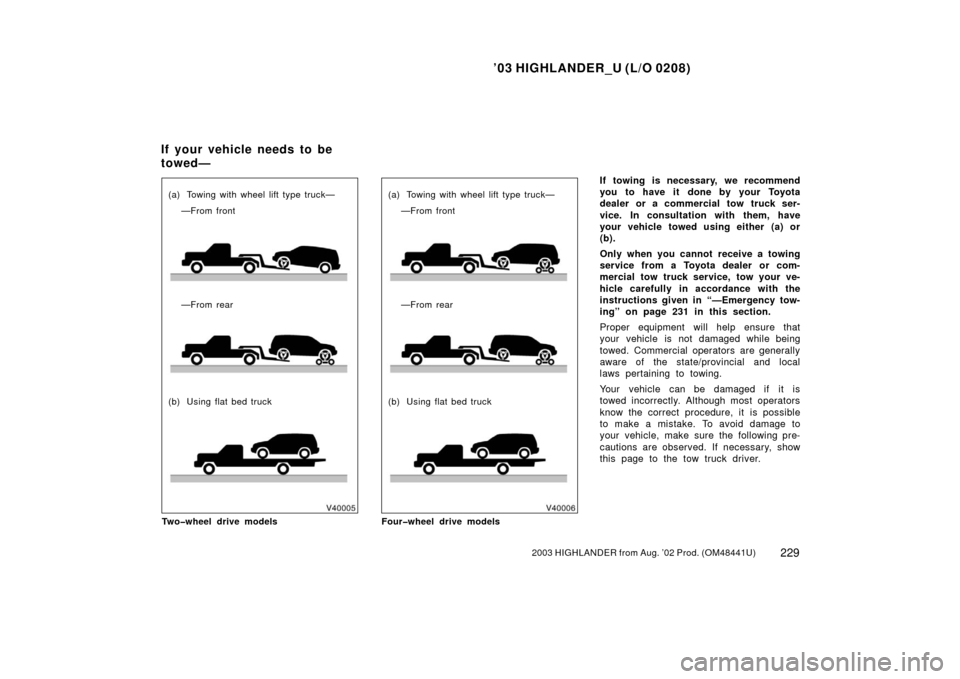

(a) Towing with wheel lift type truck—
—From front
—From rear
(b) Using flat bed truck
Twowheel drive models(a) Towing with wheel lift type truck— —From front
—From rear
(b) Using flat bed truck
Fourwheel drive models
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” on page 231 in this section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
If your vehicle needs to be
towed—

’03 HIGHLANDER_U (L/O 0208)
2302003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
Twowheel drive models—
(a) Towing with wheel lift type truck
From front—Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle from the rear
with the front wheels on the ground,
as this may cause serious damage to
the transmission.
(b) Using flat bed truck
Fourwheel drive models—
(a) Towing with wheel lift type truck
Use a towing dolly under the wheels not
lifted by the truck.
(b) Using flat bed truck(c) Towing with sling
type truck
All models—
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.

’03 HIGHLANDER_U (L/O 0208)
2312003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Front
Rear
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to one of the emergency towing
eyelets on the front of the vehicle or
the right emergency towing eyelet un-
der the rear of the vehicle. Use extreme
caution when towing the vehicle.
To install the front towing eyelet, see
“—Installing front towing eyelet” on page
232 in this section.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hardsurfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in “N”. The key
must be in “ACC” (engine off) or “ON”
(engine running).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
—Emergency towing

’03 HIGHLANDER_U (L/O 0208)
2322003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

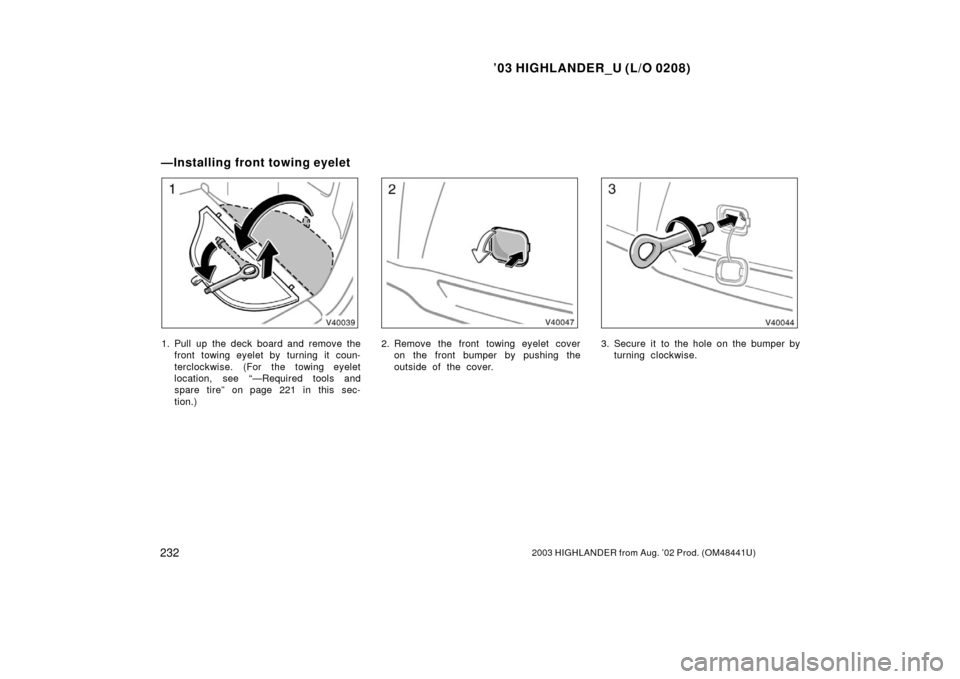

1. Pull up the deck board and remove the
front towing eyelet by turning it coun-
terclockwise. (For the towing eyelet
location, see “—Required tools and
spare tire” on page 221 in this sec-
tion.)2. Remove the front towing eyelet coveron the front bumper by pushing the
outside of the cover.3. Secure it to the hole on the bumper byturning clockwise.
—Installing front towing eyelet

’03 HIGHLANDER_U (L/O 0208)
2332003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
4. Tighten the front towing eyelet securely
by a wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the front
eyelet securely. If the tightening is
loose, it may come off when being
towed and result in death or serious
injury.
Before emergency towing, check that
the eyelet is not broken or damaged
and that the installation bolts are not
loose.
Fasten the towing cable or chain se-
curely to the eyelet.
Do not jerk the eyelet. Apply steady
and even force.
To avoid damaging the eyelet, do not
pull from the side or at a vertical
angle. Always pull straight ahead.
CAUTION
If the emergency towing eyelet is
used to get out when your vehicle
becomes struck in mud, sand or oth-
er condition from which the vehicle
cannot be driven out under its own
power, make sure to observe the pre-
cautions mentioned below. Otherwise,
excessive stress will be put on the
eyelet and the towing cable or chain
may break, causing serious injury or
damage.
If the towing vehicle can hardly
move, do not forcibly continue the
towing. Contact your Toyota dealer
or a commercial tow truck service
for assistance.
Tow the vehicle as straight ahead
as possible.
Keep away from the vehicle during
towing.
—Emergency towing eyelet
precautions

’03 HIGHLANDER_U (L/O 0208)
2342003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
The following methods are effective to get
out when your vehicle is struck in mud,
sand or other condition from which the
vehicle cannot be driven out under its own
power. Use extreme caution when towing
vehicles. In addition, keep away from the
vehicles and towing cable or chain when
towing.
Remove the soil and sand in the front
and the back of the tires.
Place a stone or wood under the tires.
If you cannot shift the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:
1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flatbladed screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.
—Tips for towing a stuck
vehicle If you cannot shift automatic
transmission selector lever
