2003 TOYOTA COROLLA Owners Manual

’03 Corolla U (L/O 0201)
52003 MY COROLLA_U (OM12744U)
1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display

Ty p e B

’03 Corolla U (L/O 0201)
62003 MY COROLLA_U (OM12744U)
orBrake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Low fuel level warning light∗1
or Low engine oil pressure warning light
∗
1
Antilock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light
∗1,
∗
3
Turn signal indicator lights Headlight high beam indicator light
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1or
Indicator symbols on the instrument panel

’03 Corolla U (L/O 0201)
72003 MY COROLLA_U (OM12744U)
Overdriveoff indicator light
Cruise control indicator light
∗2
∗ 1
: For details, see “Service reminder indicators and warning
buzzers” on page 85 in Section 15.
∗2: If this light flashes, see “Cruise control” on page 99 in Sec-
tion 16.
∗3: This symbol equipped only on vehicles sold in Canada.

’03 Corolla U (L/O 0201)
82003 MY COROLLA_U (OM12744U)

’03 Corolla U (L/O 0201)
92003 MY COROLLA_U (OM12744U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Side doors 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Toyota vehicle intrusion protection system (TVIP) 20
. . . . . . . . . . . . . . .
Hood 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’03 Corolla U (L/O 0201)
102003 MY COROLLA_U (OM12744U)

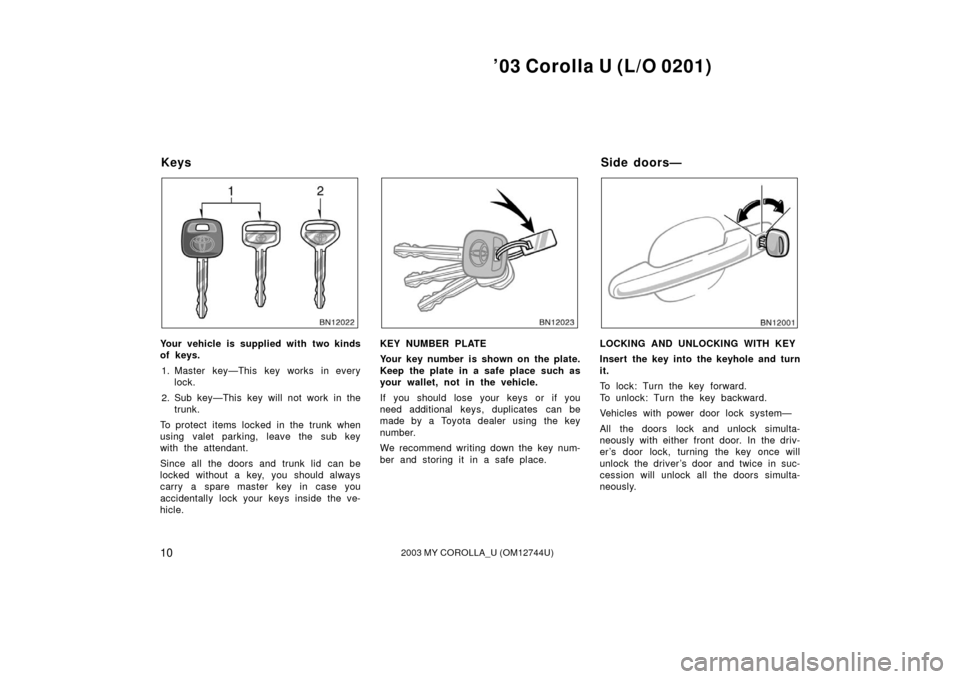

Your vehicle is supplied with two kinds
of keys.1. Master key—This key works in every lock.
2. Sub key—This key will not work in the trunk.
To protect items locked in the trunk when
using valet parking, leave the sub key
with the attendant.
Since all the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
Keys Side doors—

’03 Corolla U (L/O 0201)
112003 MY COROLLA_U (OM12744U)
When the interior light dial is in the
DOOR position, and all doors are un-
locked simultaneously using either the key
or the wireless remote control transmitter,
the interior light will come on and remain
on for about 15 seconds before fading
out. (For further information, see “Interior/
instrument panel light control” on page 77
in Section 14.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock system—
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.

’03 Corolla U (L/O 0201)
122003 MY COROLLA_U (OM12744U)

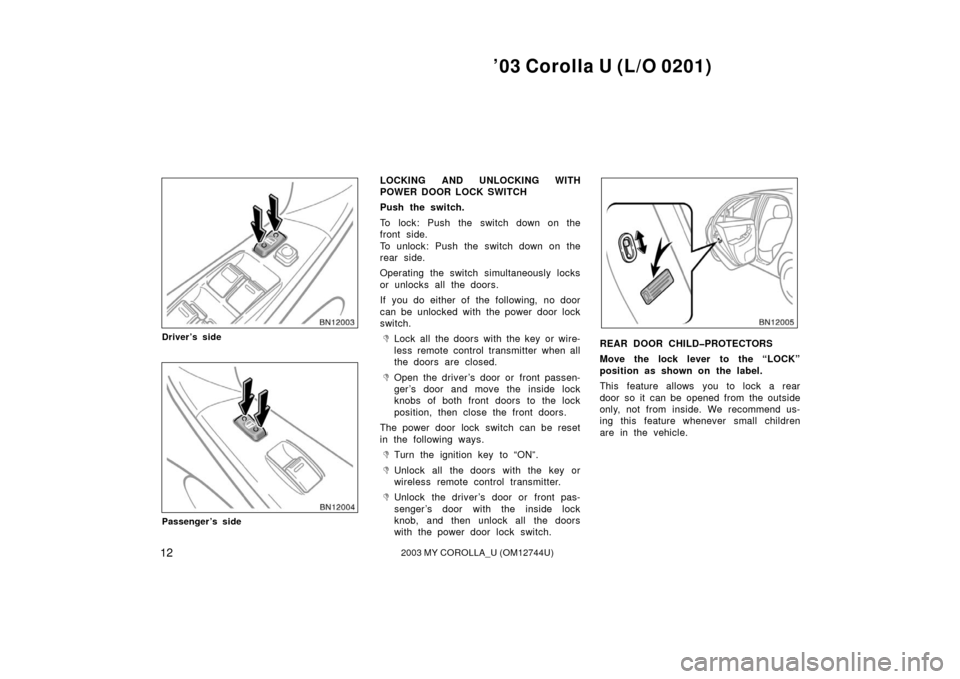

Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the doors.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the doors with the key or wire-
less remote control transmitter when all
the doors are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
